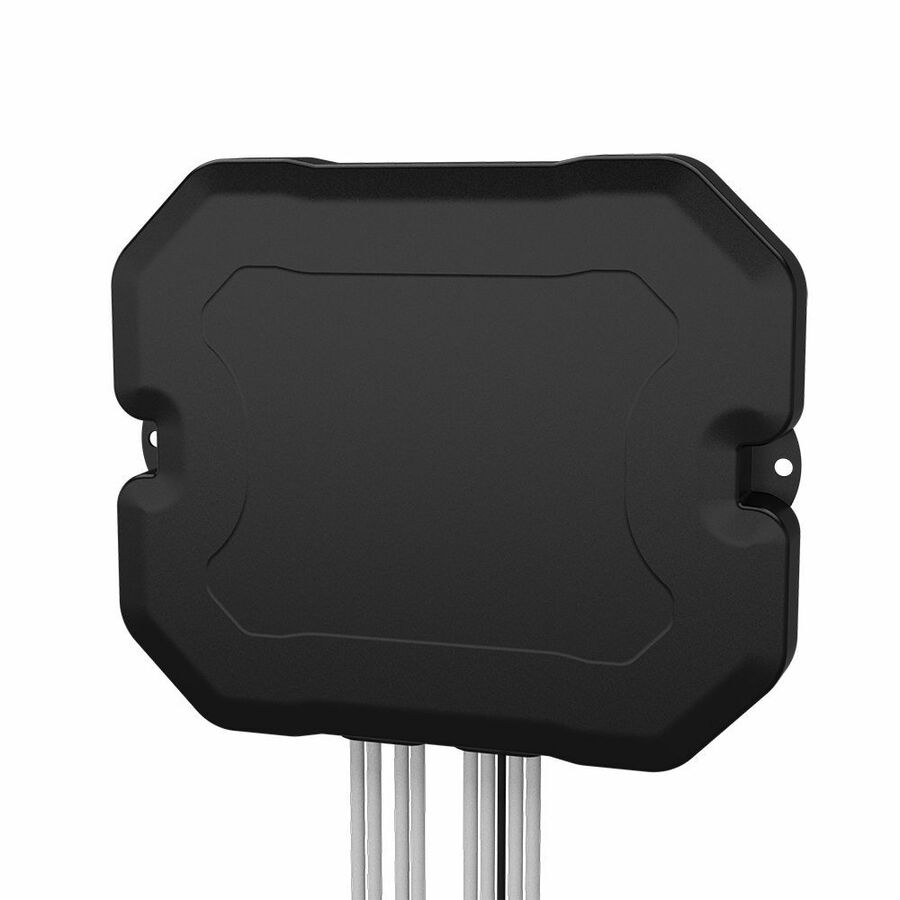

Panorama BATGM4-6-60 Covert Dash Antenna - 4x4 MIMO 4G/5G, GNSS, 5 Leads
Panorama

Panorama BATGM4-6-60 Covert Dash Antenna - 4x4 MIMO 4G/5G, GNSS, 5 Leads

MPN: BATGM4-6-605G
$173.54$240.00Save $66.46

In Stock· Only 1 left

1
Secure checkout

Key Features

  • Unlock full 4x4 MIMO throughput from four-port 5G routers
  • Hide the entire antenna system on or under the dash - zero roof drilling
  • Deploy the same pad in vehicles, branches, and pop-up sites
  • Withstand dust and spray with an IP55-sealed housing
  • Cut install time with peel-and-stick mounting and terminated leads
  • Keep GNSS accuracy tight beside active LTE radios

Technical Specifications

Gnss

ElementActive L1
Lna Gain26 dB
FilteringAdvanced out-of-band filtering

Package

Cable3 m (9.8 ft) leads
ConnectorsSMA (RP-SMA on Wi-Fi leads where fitted)
Shipping Weight2.00 lb

Cellular

Technology4G LTE (Cat 18/20) / 5G sub-6 GHz
Configuration4x4 MIMO
Frequency Range617-960 / 1427-6000 MHz

Physical

Height0.98 in
Length7.72 in
MountingAdhesive or screw, non-conductive surface
Ingress RatingIP55

Performance

DirectivityOmnidirectional
Element DesignHigh isolation, low correlation

About This Device

Modern 5G routers expose four cellular antenna ports for a reason: without four properly isolated elements they never reach rated throughput. The Panorama BATGM4-6-60 delivers exactly that in covert form - 4x4 MIMO 4G/5G cellular + active L1 GNSS inside a discreet 7.72 x 0.98 in low-profile pad that mounts with adhesive or screws to any non-conductive surface, on or under a dashboard or parcel shelf. The four cellular elements cover 617-960/1427-6000 MHz - low-band n71 through C-band n77/n78 - with the isolation and low correlation needed for genuine 4x4 MIMO gains in challenging coverage. The L1 GNSS module adds advanced filtering behind a 26 dB gain LNA, so telematics and AVL fixes stay accurate next to active LTE transmitters. The IP55-rated housing shrugs off dust and water, and every lead arrives factory terminated with 3 m (9.8 ft) of cable, so installers connect straight to Cradlepoint R-series, Peplink, Sierra Wireless, Digi, and similar mobile or branch routers. Because the element design is efficient on or off metal-free surfaces, the same antenna also serves fixed enterprise and branch deployments where a visible external antenna is unwelcome.
