Cloud Care Networks
CradlepointAntennas & Signal

Cradlepoint 170801-000 Cellular Antenna, 600 MHz–6 GHz, SMA, Charcoal, for E300 and E3000

5GMPN 170801-000
  • Single (SISO)
  • No cable

Made for Cradlepoint

$16.46

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Overview

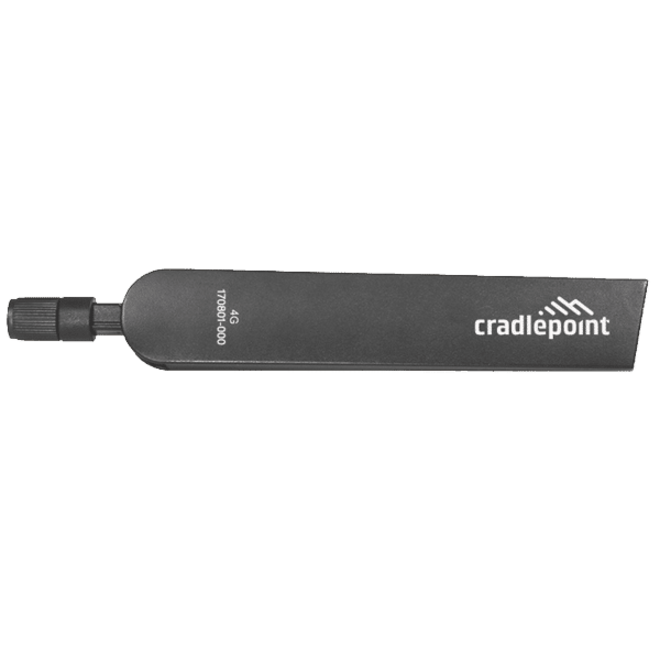

The Cradlepoint 170801-000 is a charcoal cellular antenna that covers 600 MHz to 6 GHz and attaches directly to the router's SMA port. It is 180 mm long and is the replacement or spare antenna for the Cradlepoint E300, E3000, E100, E102, R980, R920 and S700, as well as the MC400 1200M-B and MC400-5GB modems. Each package contains one antenna.

  • 600 MHz – 6 GHz cellular frequency coverage
  • SMA connector with direct attach to the router or modem port
  • 180 mm length
  • Charcoal housing color
  • Compatible with Cradlepoint E300, E3000, E100, E102, R980, R920, S700 and MC400 1200M-B / MC400-5GB
  • TAA compliant
  • Restores full antenna sets on Cradlepoint E-Series, R-Series and S700 hardware with the manufacturer's own part
  • One antenna per package, so you replace only what is missing or damaged

The Cradlepoint 170801-000 is Cradlepoint's own cellular antenna for its SMA-equipped routers and modems. It covers 600 MHz to 6 GHz, connects to the SMA port by direct attach, and measures 180 mm. The charcoal housing matches the hardware it is designed for. Cradlepoint lists the part as active and specifies it for deployments in North America, Latin America, Europe, Africa and the Middle East, and Asia-Pacific.

Compatibility comes straight from Cradlepoint. The antenna fits the E300, E3000, R980, R920 and S700. It also fits the E100 (North America) and E102 (UK, Europe, Australia, New Zealand and Mexico) routers, plus the MC400 1200M-B and MC400-5GB modems. It appears in the E100, E102, E300 and E3000 data sheets under part number 170801-000.

The antenna is sold individually, so you order exactly the number you need. Cradlepoint's data sheets list the E3000 with four antennas. The E300 and E100 take two or four, and the E102 takes two. IT teams can use single units to replace a damaged or lost antenna without reordering a full set, or to stock spares for a fleet of branch and edge routers.

For installation, hand-tighten the antenna onto the SMA port. Cradlepoint specifies a maximum torque of 4 in-lbs. The part is TAA compliant and made in Taiwan, and it ships with UPC 810007800752.

Ideal for

  • Replacing a lost or damaged antenna on a Cradlepoint E300 or E3000 branch router
  • Keeping spare antennas on hand for a fleet of R980 or R920 routers
  • Completing the antenna set on an MC400 1200M-B or MC400-5GB modem
  • Stocking replacement parts for E100 and E102 deployments

Specifications

General

MPN
170801-000
UPC
810007800752
Brand
Cradlepoint
TAA Compliant
Yes
Product Status
Active
Country OF Origin
Taiwan

Compatibility

Modems
MC400 1200M-B & MC400-5GB
Regions
North America, Latin America, Europe, Africa & Middle East, Asia-Pacific
Routers
E300, E3000, E100 (NA only), E102 (UK/EU/AU/NZ/MX), R980, R920, S700

Specifications

Antenna Type
Cellular
Housing Color
Charcoal
Connector Type
SMA
Frequency Bands
600 MHz – 6 GHz

Package Contents

Mounting
SMA direct attach (max torque 4 in-lbs)
Shipping Weight
0.10 lb
Antenna Quantity
1 antenna

Product Description

Length
180 mm

Questions buyers ask

Which Cradlepoint devices does the 170801-000 antenna fit?

Cradlepoint lists it for the E300, E3000, E100 (North America), E102 (UK, Europe, Australia, New Zealand, Mexico), R980, R920 and S700 routers, plus the MC400 1200M-B and MC400-5GB modems.

How many antennas are in the package?

One. Cradlepoint's data sheets list the E3000 with four antennas, the E300 and E100 with two or four, and the E102 with two, so order the quantity your router uses.

What frequency range does it cover?

It covers 600 MHz to 6 GHz.

How is it installed?

It attaches directly to the SMA port. Hand-tighten it, and do not exceed 4 in-lbs of torque.

Is it TAA compliant?

Yes, the 170801-000 is TAA compliant.
