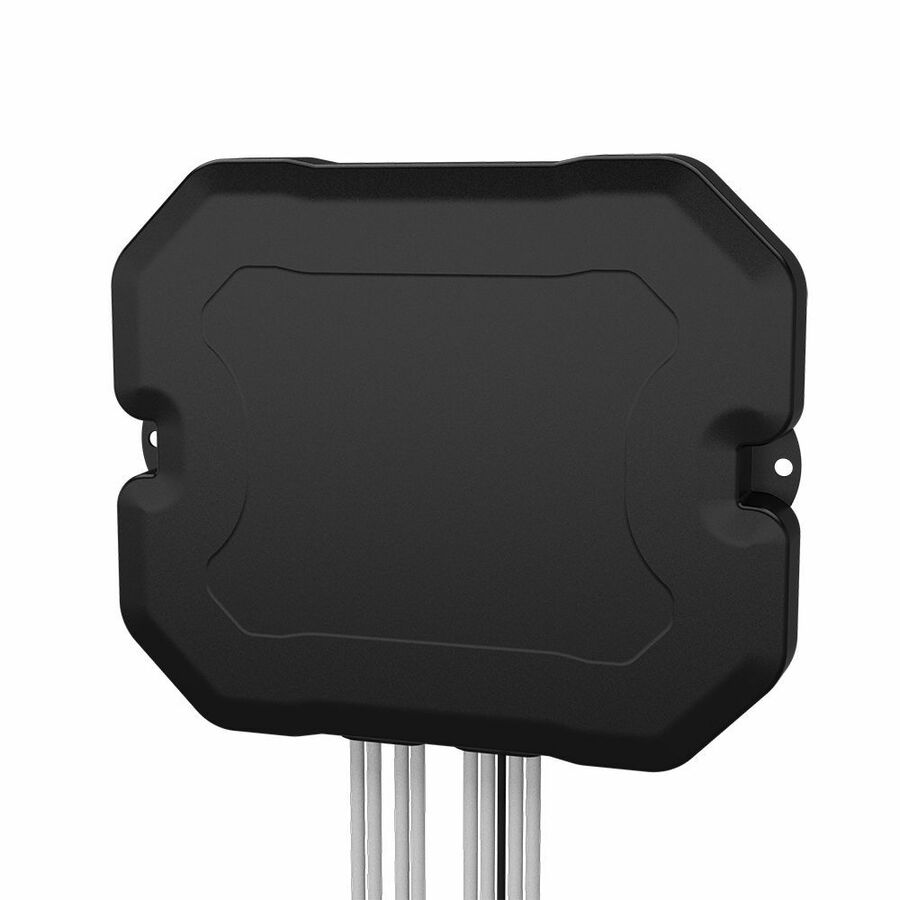

Panorama BATGM4-6-60-D Covert Dash Antenna - 4x4 MIMO 4G/5G, GNSS, 2x Wi-Fi 6E, 7 Leads

The Panorama BAT[X]M4 platform is the covert answer to four-port 5G routers. In the BATGM4-6-60-D configuration you get 4x4 MIMO 4G/5G cellular + active L1 GNSS + 2x2 MIMO Wi-Fi 6E in a single IP55 pad measuring just 7.72 x 0.98 in, engineered to hide on or under a dash, parcel shelf, or equipment shelf while feeding every antenna port on the router correctly. The four cellular elements cover 617-960/1427-6000 MHz - low-band n71 through C-band n77/n78 - with the isolation and low correlation needed for genuine 4x4 MIMO gains in challenging coverage. The L1 GNSS module adds advanced filtering behind a 26 dB gain LNA, so telematics and AVL fixes stay accurate next to active LTE transmitters. 2 dual-band Wi-Fi elements cover 2.4-7.2 GHz including Wi-Fi 6E, handling in-vehicle hotspot, passenger connectivity, or depot offload. The IP55-rated housing shrugs off dust and water, and every lead arrives factory terminated with 3 m (9.8 ft) of cable, so installers connect straight to Cradlepoint R-series, Peplink, Sierra Wireless, Digi, and similar mobile or branch routers. Because the element design is efficient on or off metal-free surfaces, the same antenna also serves fixed enterprise and branch deployments where a visible external antenna is unwelcome.
