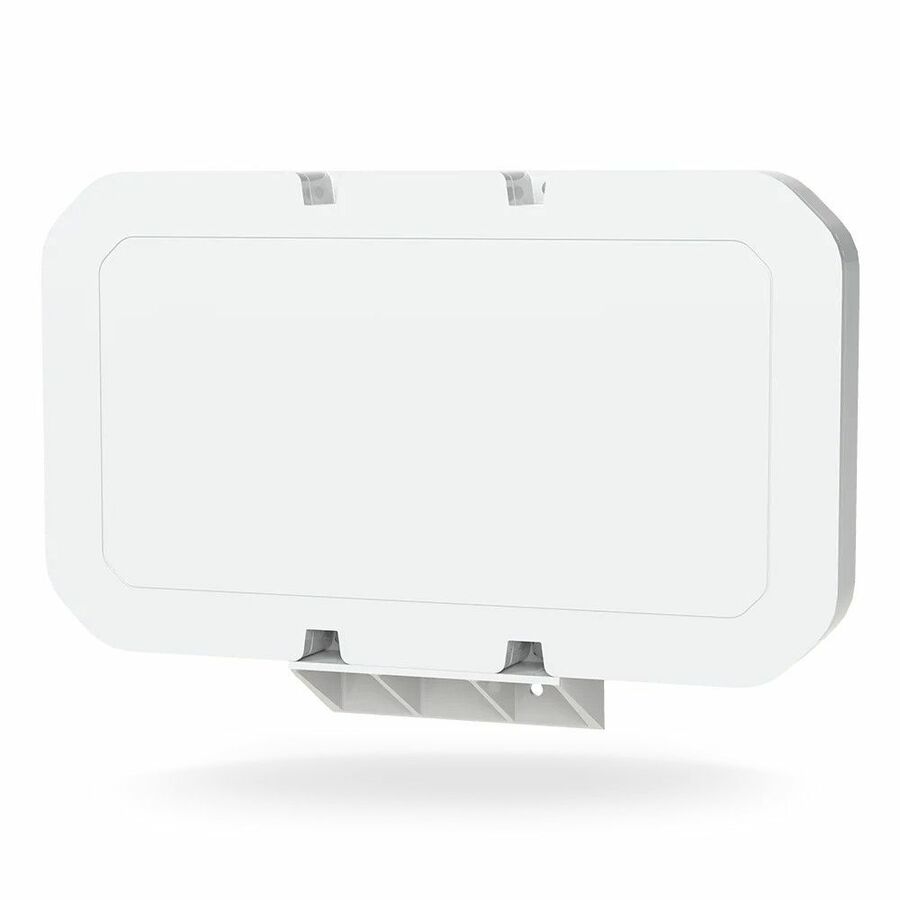

Panorama DWMM4-6-60-5NP 4x4 MIMO 4G/5G Hammerhead Antenna, 5 m N-type male

The Panorama DWMM4-6-60-5NP is a 4-in-1 member of the Hammerhead family: a wall, mast, and desk mount omnidirectional antenna that consolidates four separately fed ultra-wideband cellular elements in a single housing. Coverage spans 617-960 MHz and 1427-6000 MHz, which takes in low-band 600/700 MHz spectrum for reach and building penetration as well as mid-band 5G NR such as n77/n78 for capacity. Four separately fed ultra-wideband elements deliver a full 4x4 MIMO feed to a single modem, the configuration 5G and LTE-Advanced routers need to hit their rated speeds. This variant is fitted with 5 m integrated cables terminated in N-type male plugs for routers, combiners, and lightning arrestors with N-female ports. Installation is straightforward: the supplied offset bracket, screws, and wall plugs handle wall mounting, the included clamps take care of mast mounting, and mounting feet let the antenna stand on a desk or window sill. Because the radiation pattern is omnidirectional, installers place it for best signal rather than aiming it, which keeps site surveys short. Typical pairings include enterprise routers from Cradlepoint, Peplink, Digi, Sierra Wireless, and Semtech — any platform with matching antenna ports or the appropriate adapters. For branch failover, fixed wireless access, or a primary 5G WAN, it replaces a cluster of paddle antennas with one clean, weather-ready unit.
