Compulocks Space Galaxy Tab A8 10.5" Enclosure with Core Counter Stand and PlusHub - Black

MPN 111B105GA8SBH01
  • Countertop

Fits Galaxy Tab A8

$219.33$244.00Save $24.67

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Compulocks 111B105GA8SBH01 bundle combines three parts. The Space Enclosure fits the Samsung Galaxy Tab A8 10.5" (2022, SM-X200, SM-X205). The powder-coated steel Core Counter Stand has a fixed 45-degree angle. The PlusHub VESA box adds six ports: USB-C PD input (90W max), USB-C, HDMI (3840x2160 at 30 Hz), two USB-A and RJ45 Ethernet. Together they form a locked, powered tablet workstation that can connect printers, scanners and displays.

  • Three-part bundle: 105GA8SB Space Enclosure, 111B Core Counter Stand and H01 PlusHub
  • Enclosure fits the Samsung Galaxy Tab A8 10.5" (2022), SM-X200 and SM-X205
  • PlusHub ports: USB-C PD (90W max in), USB-C, HDMI, two USB-A and RJ45
  • HDMI output up to 3840x2160 at 30 Hz, USB-A 3.0 at 5 Gbps, Ethernet at 100 Mbps
  • Powder-coated steel Core stand with a fixed 45-degree angle and 100x100/75x75mm VESA
  • Keyed quick lock enclosure plus lock slots on the stand and the hub
  • Connect receipt printers, barcode scanners and other USB peripherals to a locked tablet
  • Wired Ethernet gives the station a network connection that does not depend on Wi-Fi

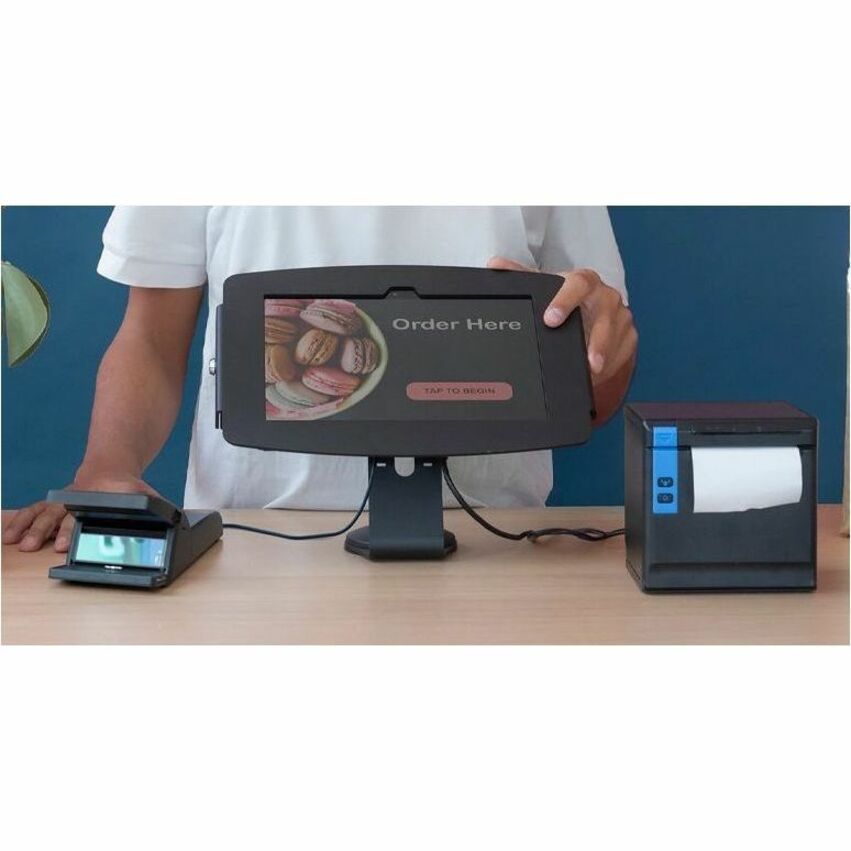

The Compulocks Core PlusHub bundle builds a full counter workstation around the Samsung Galaxy Tab A8 10.5" (2022, models SM-X200 and SM-X205). It is designed for POS counters, check-in desks and service points where the tablet needs wired peripherals as well as physical security.

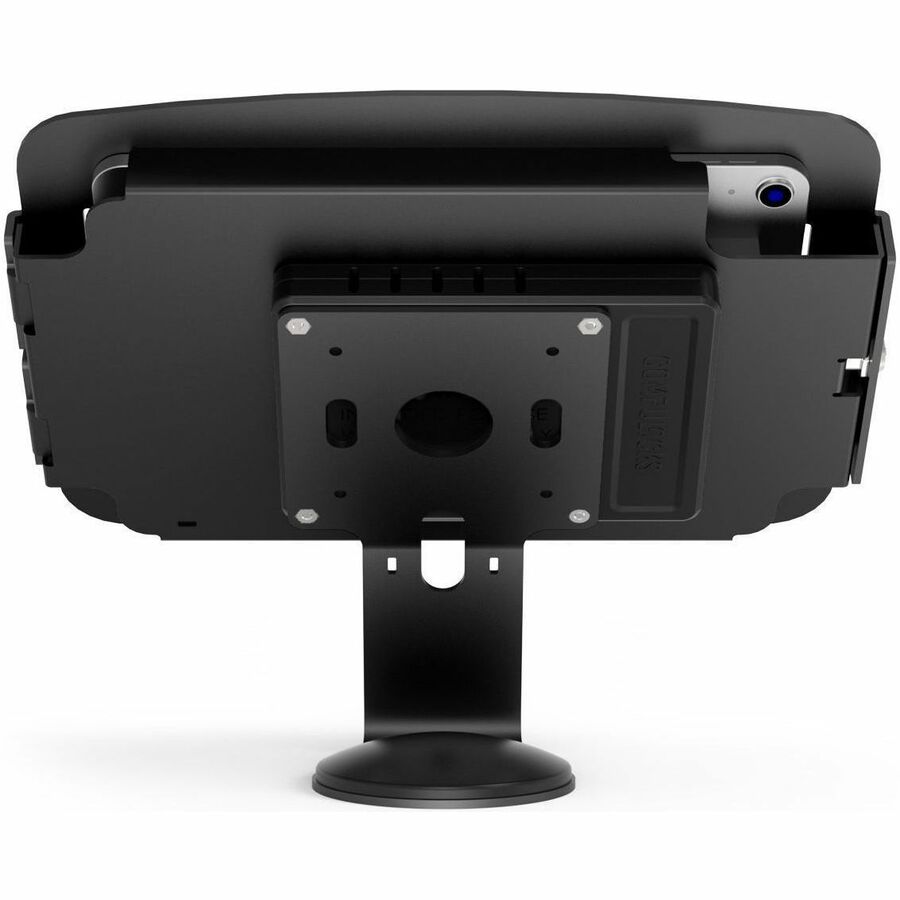

The Space Enclosure (105GA8SB) is made of high-grade aluminum with a keyed quick lock/unlock and a T-bar lock slot. It conceals the charging cable, and the camera stays exposed. The Core Stand (111B) is powder-coated steel with a fixed 45-degree viewing angle and 100x100mm and 75x75mm VESA support. It uses a 3-screw pattern for counter or wall mounting (screws not provided) and has two lock slots. It can also be used freestanding.

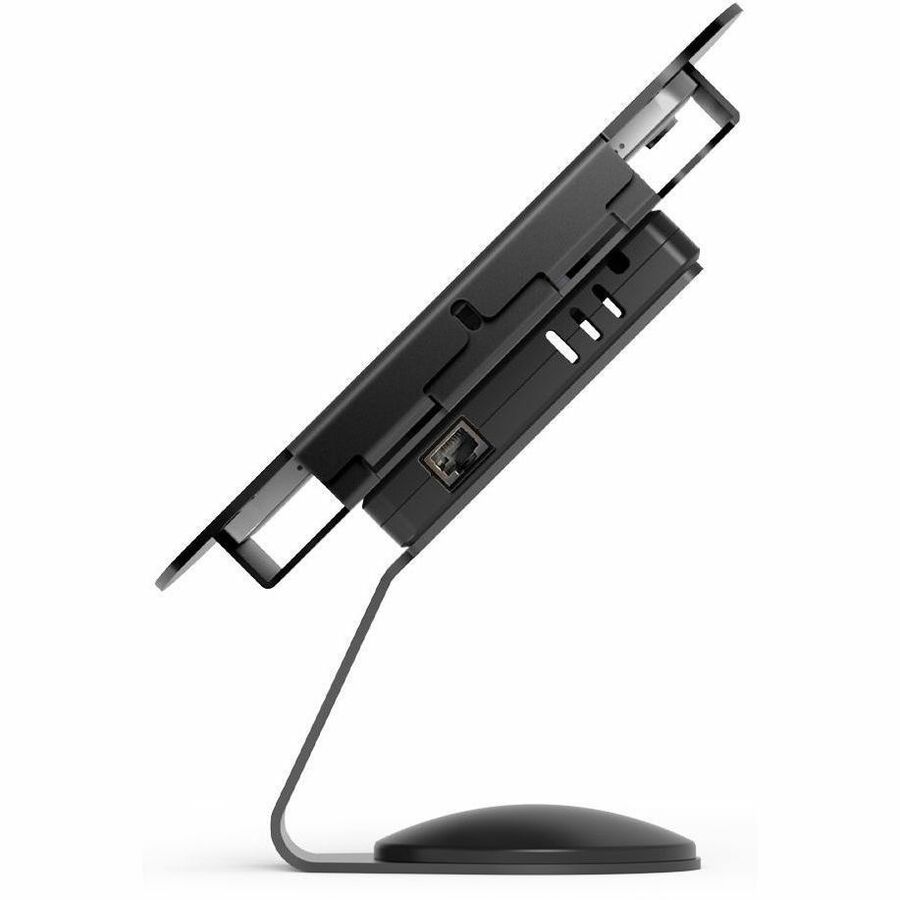

The PlusHub (H01) mounts within the VESA stack and routes its cable through the backplate. It provides six ports: - USB-C PD 2.0 input, up to 90W, for charging in - USB-C 2.0, for charging out only - HDMI, up to 3840x2160 at 30 Hz - USB-A 3.0 at 5 Gbps and USB-A 2.0 at 480 Mbps - RJ45 Ethernet at 100 Mbps

The hub supports USB-C in to HDMI out and hot-swap. Its cable is 1000 mm long, with 300 mm outside the box. The hub also has ventilation holes and a built-in lock slot.

Product sheets for all three components and Core PlusHub installation instructions are available.

Ideal for

  • Retail POS counter with a receipt printer and barcode scanner
  • Hotel or clinic check-in desk with a wired network connection
  • Customer service station that mirrors to an external display
  • Self-service kiosk with NFC or fingerprint peripherals
  • Wall-mounted staff terminal that needs USB accessories

Specifications

General

MPN
111B105GA8SBH01
UPC
819472029255
Brand
Compulocks
Colour
Black
Shipping Weight
4.60 lb
Bundle Components
111B Core Stand + 105GA8SB Space Enclosure + H01 PlusHub VESA Box

Stand 111b

Sku
111B
UPC
819472028494
Name
VESA Fixed 45 Degree Core Counter Stand or Wall Mount - Black
Colour
Black
Material
Powder-coated steel
Installation
Mounts to flat counters or walls; can be used freestanding
Weight Listed
1.76 lb (as listed on compulocks.com)
Product Sheet Sku
111B (Black), 111W (White)
Compatible Devices
100 x 100 mm VESA compatible mount
Product Sheet Weight
1.35 lb (product sheet)
Product Sheet Version
REV E

Plushub H01

Sku
H01
UPC
819472028630
Hdmi
HDMI, 3840 x 2160 at 30 Hz, downward compatible
Name
PlusHub VESA Box
Other
Ventilation holes and built-in lock slot
Ports
PD, USB-C, HDMI, 2x USB-A, RJ45 (six ports)
USB C
USB-C (Type-C 2.0), charging out only
Colour
Black
Ethernet
RJ45 Ethernet, 100 Mbps
Hot Swap
Supports hot-swap
PD Input
PD 2.0, 90 W max, charging in only
USB A 2 0
USB-A 2.0, 480 Mbps data transfer
USB A 3 0
USB-A 3.0, 5 Gbps data transfer
Video Mode
Supports USB-C in / HDMI out
Cable Length
1000 mm total; 300 mm out of the box, 700 mm inside
Weight Listed
0.60 lb (as listed on compulocks.com)
Output Single USB A
Single USB-A output 1.5 A (when PD charging in)
Output Single USB C
Single USB-C output 0.5 A (when PD charging in)
Product Sheet Weight
0.41 lb (product sheet)
Product Sheet Version
H
Output 2x USB A Combined
2 USB-A combined output 1.9 A (when PD charging in)

Enclosure 105ga8sb

Sku
105GA8SB
UPC
819472024267
Name
Galaxy Tab A8 10.5" Space Enclosure - Black
Colour
Black
Material
High-grade aluminum
Weight Listed
1.60 lb (as listed on compulocks.com)
Compatible Devices
Galaxy Tab A8 10.5" (2022) - SM-X200, SM-X205

Questions buyers ask

What ports does the PlusHub provide?

It has six ports: USB-C PD input (PD 2.0, 90W max), USB-C 2.0 (charging out only), HDMI (up to 3840x2160 at 30 Hz), USB-A 3.0 (5 Gbps), USB-A 2.0 (480 Mbps) and RJ45 Ethernet (100 Mbps).

Which tablet does this bundle fit?

The Space enclosure fits the Samsung Galaxy Tab A8 10.5" (2022), models SM-X200 and SM-X205.

How much power is available to USB accessories?

When PD power is connected, the two USB-A ports provide 1.9 A combined, a single USB-A port provides 1.5 A, and the USB-C port provides 0.5 A.

Can the stand be mounted on a wall?

Yes. The Core stand mounts to flat counters or walls, and it can also be used freestanding.
