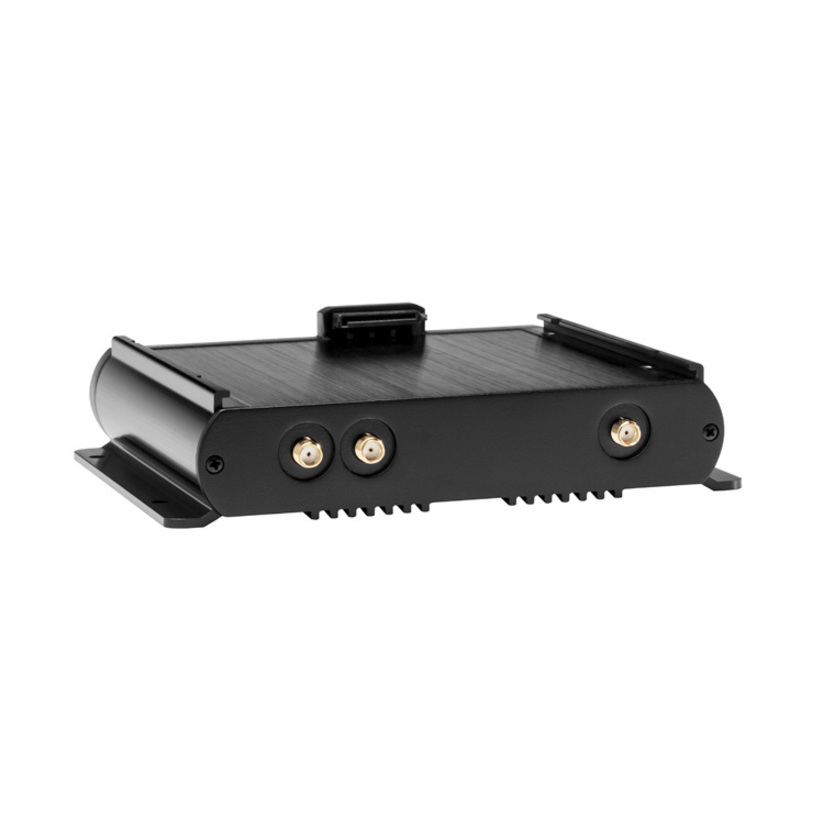

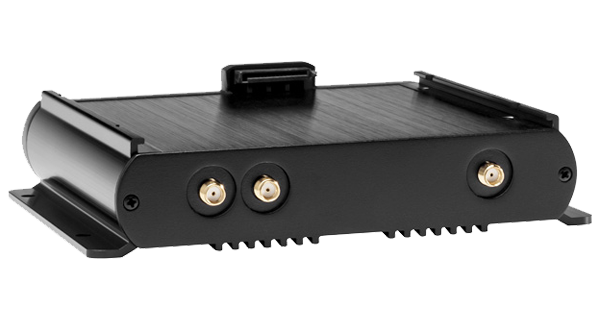

Cradlepoint 170700-000 COR Extensibility Dock for IBR900, IBR600C and R500-PLTE Routers

MPN 170700-000

Made for Cradlepoint

$179.99$199.99Save $20

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Overview

The Cradlepoint 170700-000 COR Extensibility Dock expands IBR900, IBR600C and R500-PLTE routers. It adds an MC400 expansion slot for a second modem and two extra 10/100 Ethernet ports. A 2x10 connector carries extra GPIO, 5 V sensor power, ignition sensing and redundant power. The dock can also add GPS when fitted with a GPS-capable MC400 modem. It suits fleet, public-safety and industrial deployments that need more WAN, LAN and I/O than the base router provides.

  • MC400 expansion slot for dual-modem operation
  • Two additional 10/100 Ethernet ports
  • 2x10 connector with extra GPIOs (1 in + 4 I/O)
  • 5 V DC 50 mA sensor power, ignition sensing and redundant power capability
  • Adds GPS when paired with a GPS-capable MC400 modem
  • Compatible with Cradlepoint IBR900, IBR600C and R500-PLTE
  • Add a second modem for carrier diversity and WAN failover without replacing the router
  • Connect more wired devices through two extra 10/100 Ethernet ports

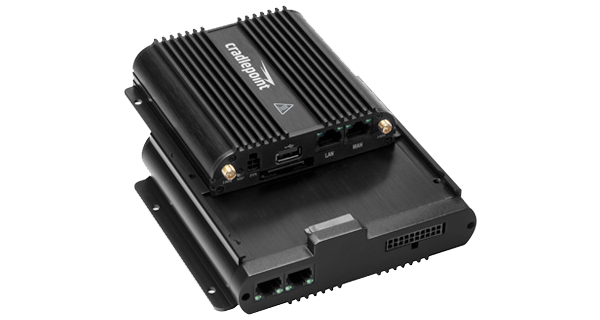

The Cradlepoint COR Extensibility Dock (part number 170700-000) is a modular expansion unit for the IBR900, IBR600C and R500-PLTE routers. It attaches to a compatible router and extends it in three areas: WAN connectivity, wired LAN and I/O.

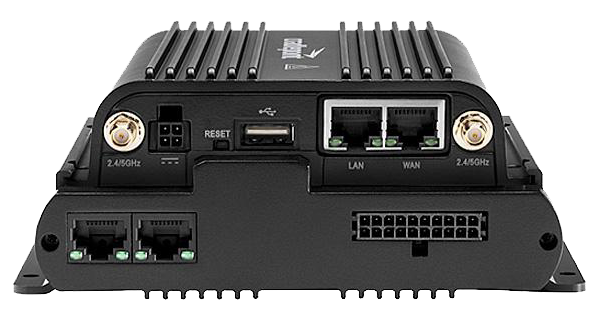

For WAN, the dock adds an MC400 expansion slot for dual-modem configurations. Installing an MC400 modem gives the router a second cellular connection for carrier diversity or failover. If that modem has GPS capability, such as the MC400LP6 or MC400LPE, the dock also adds GPS functionality. For wired networking, the dock adds two 10/100 Ethernet ports for cameras, payment terminals, in-vehicle computers or other local equipment.

For I/O and power, a 2x10 connector provides several functions: - Extra GPIOs: one input plus four configurable I/O - 5 V DC, 50 mA sensor power - Ignition sensing - Redundant power supply capability

The matching Cradlepoint 2x10 GPIO Cable (170712-000) connects to this port.

The package contains the COR Extensibility Dock only. Modems and cables are sold separately. The dock is manufactured in Taiwan and is active in Cradlepoint's catalog. It is offered in North America, Latin America, Europe, Africa & Middle East and Asia-Pacific.

Ideal for

  • Dual-modem, dual-carrier connectivity in fleet and public-safety vehicles
  • Adding wired LAN ports for in-vehicle computers, cameras or terminals
  • Vehicle telematics with ignition sensing and GPS location
  • Industrial remote monitoring with GPIO and powered sensors
  • Redundant-power installations in kiosks and cabinets

Specifications

General

MPN
170700-000
UPC
804879575405
Brand
Cradlepoint
Product Name
COR Extensibility Dock
Product Status
Active
Accessory Family
Modular
Country OF Origin
Taiwan

Package

Included
COR extensibility dock only
Shipping Weight
0.75 lb

I/O Power

Gpio
1 in + 4 I/O
Connector
2x10 connector
Sensor Power
5 V DC 50 mA sensor power
Redundant Power
Redundant power supply capable
Ignition Sensing
Ignition sensing

Expansion

GPS
Adds GPS with a GPS-capable MC400 modem (e.g. MC400LP6, MC400LPE)
Modem Slot
Dual-modem MC400 expansion slot
Ethernet Ports
2 x 10/100 Ethernet

Availability

Regions
North America, Latin America, Europe, Africa & Middle East, Asia-Pacific

Compatibility

Cradlepoint Routers
Cradlepoint IBR900, IBR600C, R500-PLTE

Questions buyers ask

Which routers does the COR Extensibility Dock support?

Cradlepoint lists the dock for the IBR900, IBR600C and R500-PLTE routers.

Does the dock include a modem?

No. The package contains the COR Extensibility Dock only. It provides a dual-modem MC400 expansion slot for a separately purchased MC400 modem.

How does the dock add GPS?

GPS is added when the dock is paired with an MC400 modem that has GPS capability, such as the MC400LP6 or MC400LPE.

What does the 2x10 connector provide?

It provides extra GPIOs (one input plus four I/O), 5 V DC 50 mA sensor power, ignition sensing and redundant power supply capability.

How many Ethernet ports does it add?

The dock adds two 10/100 Ethernet ports.
