Cradlepoint 170873-000 USB to RS232 Extensibility Cable, Screw-Lock USB-A to DB9, for R920, R980 and S700

MPN 170873-000
  • Up to 1 m

Made for Cradlepoint

$75.00

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

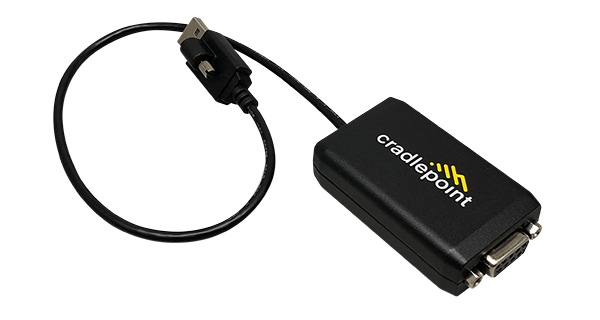

The Cradlepoint 170873-000 USB to RS232 Extensibility Cable adds a serial port to Cradlepoint R920, R980 and S700 routers. A screw-locking USB-A male connector holds the cable to the router, and a DB9 female end with screw receptacles accepts OBD-II cables, J1939 cables and other serial devices. The 400 mm cable is rated from -30 °C to 70 °C and needs no external power on the RS232 side.

  • Screw-locking USB-A male connector with a robust thumb screw
  • DB9 female RS232 connector with screw receptacles for locking
  • DB9/RS232 connection needs no external power
  • OBD-II support on the R920 when used with an OBD-II cable
  • GPS data transfer and serial redirect for LTE reporting over the serial interface
  • USB 2.0 data transfer up to 480 Mbps
  • Operating temperature from -30 °C to 70 °C; 400 mm length
  • Connect OBD-II, J1939 and other serial equipment to a Cradlepoint R920, R980 or S700 router

The Ericsson Cradlepoint USB to RS232 Extensibility Cable (part number 170873-000) adds serial connectivity to Cradlepoint ruggedized routers. It is a ruggedized locking cable that lets OBD-II cables, J1939 cables and other serial devices connect to the router. The data sheet names the R920 as the supported router. Cradlepoint's product page also lists the R980 and S700 as compatible, and the cable appears in the R920, R980 and S700 data sheets.

One end is a USB-A male connector with a thumb-screw lock, which keeps the cable attached to the router in vehicles and other high-vibration installations. The other end is a DB9 female RS232 connector with screw receptacles for locking. The DB9/RS232 connection needs no external power. With an OBD-II cable, the R920 gains OBD-II support. The cable also carries GPS data over the serial interface and supports serial redirect, so data from the serial port can be reported over LTE. The USB side runs at USB 2.0 speeds of up to 480 Mbps. DSR and DTR lines are wired in the cable but are not currently supported by NetCloud OS.

The cable is 400 mm (15.75 in) long and weighs 45.35 g (1.6 oz). It operates from -30 °C to 70 °C and from 10% to 90% humidity. It carries safety listings including UL/cUL/CB 62368-1 and CID2, plus regulatory approvals for the US, Canada, EU, UK, Japan, Taiwan, Mexico, AU/NZ and South Africa. Use of the cable requires a compatible Cradlepoint router licensed to an Ericsson NetCloud Service plan. Cradlepoint hardware carries a limited lifetime warranty for as long as it has an active NetCloud subscription. A data sheet is available for this cable.

Ideal for

  • Connecting OBD-II cables to an R920 for vehicle diagnostics data
  • Linking J1939 heavy-vehicle equipment to a Cradlepoint ruggedized router
  • Attaching legacy RS232 serial devices to an R980 or S700
  • Using serial redirect to report serial data over LTE
  • Transferring GPS data through the router's serial interface

Specifications

General

MPN
170873-000
Brand
Cradlepoint
Color
Black
Product Name
USB to RS232 Extensibility Cable
Product Status
Active
Accessory Family
Adapters & Cables

Package

UPC
810007808253
Included
Cable only
Warranty
Limited lifetime warranty while licensed to an active Ericsson NetCloud Service plan

Physical

Length
400 mm (15.75 in)
Weight
45.35 g (1.6 oz)

Technology

Cable Type
USB-A to RS232
Connector Type
USB-A male to DB9 female
Locking Feature
Screw-locking USB-A connector on one end; RS232 DB9F connector with screw receptacles for locking

Pinout USB A

Pin 1
Power +5 V
Pin 2
Data -
Pin 3
Data +
Pin 4
Ground (GND)

Compatibility

Regions
North America, Latin America, Europe, Africa & Middle East, Asia-Pacific
Obd II Support
R920 with OBD-II cable
Compatible Products
Cradlepoint S700, R980, R920
Service Requirement
Requires a compatible Cradlepoint router licensed to an Ericsson NetCloud Service plan
Supported Routers Data Sheet
R920 Ruggedized Router

Data Transfer

Data Transfer Rate
USB 2.0 up to 480 Mbps

Environmental

Storage Humidity
5% to 95%
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 70 °C (-40 °F to 158 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
UL/cUL/CB 62368-1; CB 60950-1; NRCS; CID2
Regulatory
FCC (U.S.); IC (Canada); CE (EU); UKCA (United Kingdom); VCCI (Japan); BSMI (Taiwan); NOM/NYCE (Mexico); RCM (AU/NZ); SABS (South Africa)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65; Taiwan RoHS

Pinout Rs232 Db9

Pin 1
Not connected
Pin 2
Transmit (TX) Output
Pin 3
Receive (RX) Input
Pin 4
Data Set Ready (DSR) Input (not currently supported by NetCloud OS)
Pin 5
Ground (GND)
Pin 6
Data Terminal Ready (DTR) Output (not currently supported by NetCloud OS)
Pin 7
Clear to Send (CTS) Input
Pin 8
Request to Send (RTS) Output
Pin 9
Not connected

Questions buyers ask

Which routers is the 170873-000 compatible with?

Cradlepoint lists the R920, R980 and S700 as compatible, and the cable data sheet names the R920 Ruggedized Router as the supported router.

Does the RS232 side need its own power?

No. The DB9/RS232 connection does not require external power.

Can I connect OBD-II or J1939 equipment?

Yes. The cable is designed to let OBD-II cables, J1939 cables and other serial devices connect to the router. OBD-II support applies to the R920 when used with an OBD-II cable.

Are all RS232 signals supported?

TX, RX, CTS, RTS and ground are wired and used. The DSR and DTR lines are present in the cable but are not currently supported by NetCloud OS.

Is a NetCloud subscription required?

Yes. Use of the cable requires a compatible Cradlepoint router licensed to an Ericsson NetCloud Service plan.
