Cradlepoint R2105-5GB 5G Captive Modem and Wi-Fi Accessory, Outdoor, Global (170900-014)

MPN 170900-014

Made for Cradlepoint

$1,971.02$2,153.99Save $182.97

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Overview

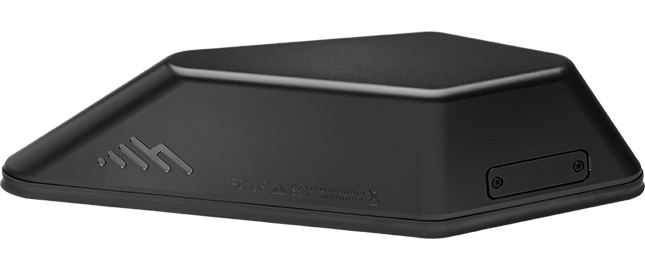

The Cradlepoint 170900-014 is the R2105-5GB Captive Modem and Wi-Fi Accessory, Global model. It runs the rugged R2105 in captive mode so a controlling Cradlepoint router, such as the R1900, gains a remote 5G WAN modem and an additional Wi-Fi 6 source. The pair is managed in Ericsson NetCloud Manager as a single entity. The R2105 carries an IP67 and IK09 rated enclosure and a 5G NR FR1 and LTE Category 20 modem rated up to 4.14 Gbps downlink.

  • R2105-5GB runs in Captive Modem and Captive Wi-Fi mode, managed with the controlling router in Ericsson NetCloud Manager as a single entity
  • Embedded 5G NR FR1 (NSA/SA) and LTE Category 20 modem with 4x4 MIMO and dual 4FF SIM slots; up to 4.14 Gbps down / 660 Mbps up
  • Dual-band, dual-radio 2x2 MU-MIMO 802.11ax Wi-Fi 6 with DFS
  • IP67 and IK09 rated outdoor enclosure; -30 °C to 70 °C operating range; MIL-STD-810G shock and vibration
  • Powered by 9–36 VDC with ignition sensing or 802.3at PoE (30 W)
  • Network operator certifications for AT&T, T-Mobile and Verizon; FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified
  • Place the 5G radio at the best-signal location, such as a roof, mast or vehicle exterior, while the router stays protected
  • One managed entity in NetCloud simplifies deployment and reduces licensing costs compared with running separate devices

The Cradlepoint 5G Captive Modem and Wi-Fi Accessory with R2105-5GB (part number 170900-014) lets you mount the cellular radio where the signal is strongest while the controlling router stays where it is needed. In Captive Modem mode, an Ericsson Cradlepoint router acts as the controller. NetCloud sees the R2105 as a modem WAN interface with the same Wireless WAN functions as an embedded modem, including Smart WAN Selection, WAN Verify and failover/failback. It also sees the R2105 as a Wi-Fi interface with the same functionality as the router's embedded Wi-Fi radios. Running the two devices as one also reduces licensing costs.

The R2105 uses an embedded 5G NR FR1 low- and mid-band modem with NSA/SA support, LTE Advanced Pro Category 20 fallback, 4x4 MIMO, dual 4FF SIM slots and 3GPP Release 15. Peak rates reach 4.14 Gbps downlink and 660 Mbps uplink. The modem supports CBRS Band 48 for private cellular networks. Listed network operator certifications are AT&T, T-Mobile and Verizon. Public safety certifications are FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. Wi-Fi is dual-band, dual-radio 2x2 MU-MIMO 802.11ax (Wi-Fi 6) with DFS.

The housing is built for exposed installs. It is rated IP67 and IK09 and tested against IEC60068-2-11 salt mist and MIL-STD-810G shock and vibration. It operates from -30 °C to 70 °C and carries E-Mark and SAE J1455 vehicle certifications. Power comes from 9–36 VDC with ignition sensing, or from 802.3at PoE (30 W).

The accessory is listed for the Ericsson Cradlepoint R1900 and appears in the R980 data sheet accessory table. The box includes the R2105 captive accessory, attached power and Ethernet cables, a 3 m GPIO cable, a mounting template and a small accessories kit.

Ideal for

  • Vehicle and fleet deployments where an R1900 sits inside the cab and the R2105 mounts outside for better 5G reception and outdoor Wi-Fi
  • Public safety and first-responder vehicles using FirstNet, T-Mobile Connecting Heroes or Verizon Frontline networks
  • Remote industrial or utility sites that need the modem at a high, exposed point with Wi-Fi coverage around the installation
  • Private cellular deployments using CBRS Band 48 alongside public 5G and LTE
  • Transit and field operations that need ignition-sensing power and rugged IP67/IK09 hardware

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
GNSS
Passive GNSS
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 internal cellular antennas
LTE Bands
FDD: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71; TDD: B34, B38, B39, B40, B41, B42, B43, B46, B48
Modulation
DL/UL up to 256 QAM (on particular carrier equipment)
Regulatory
FCC; IC; CE; RCM
Technology
5G FR1 NSA/SA, LTE Advanced Pro Cat 20, dual 4FF SIM, 3GPP Rel. 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps
Peak Downlink
Up to 4.14 Gbps
Transmit Power
5G NR 23 ± 1.5; ENDC 20 ± 1; LTE 23 ± 1; LTE HPUE 25 ± 1 (B41 SA only) dBm
Carrier Aggregation
LTE: DL up to 7 CA / UL up to 2 CA; ENDC: DL 1 CA / UL 1 CA
Private Cellular Network
Yes, CBRS Band 48 (FCC Part 96)
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified
Network Operator Certifications
AT&T; T-Mobile; Verizon

Power

Input
9–36 VDC via 4-pin 2x2 Molex Micro-Fit cable, or 802.3at PoE (30 W)
Fusing
3 A fuse (9–24 VDC); 2.5 A fuse (>24 VDC)
Features
Ignition sensing (auto ON, time-delay OFF)
PoE Class
802.3at Class 4 PD (30 W)
Consumption Idle
8 W (idle)
Consumption Heavy
17 W (heavy)
Consumption Sleep
50 mW (sleep)
Consumption Typical
14.5 W (typical)

General

MPN
170900-014
UPC
840292701236
Brand
Cradlepoint (Ericsson)
Regions
North America
Product Name
5G Captive Modem and Wi-Fi Accessory with R2105-5GB, Outdoor, Global
Operating Mode
Captive Modem and Captive Wi-Fi
Product Status
Active
Accessory Model
R2105-5GB with Wi-Fi (4.1 Gbps modem)
Accessory Family
Modular
Compatible Routers
Ericsson Cradlepoint R1900; listed in R980 data sheet

Package

Contents

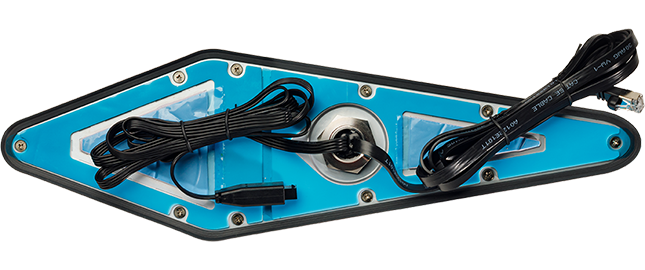

R2105 captive accessory, attached power and Ethernet cables, 3 m 2x2 20 AWG GPIO cable, mounting template, small accessories kit
Shipping Weight
5.00 lb

Physical

Weight
1.46 kg (3 lb 4 oz)

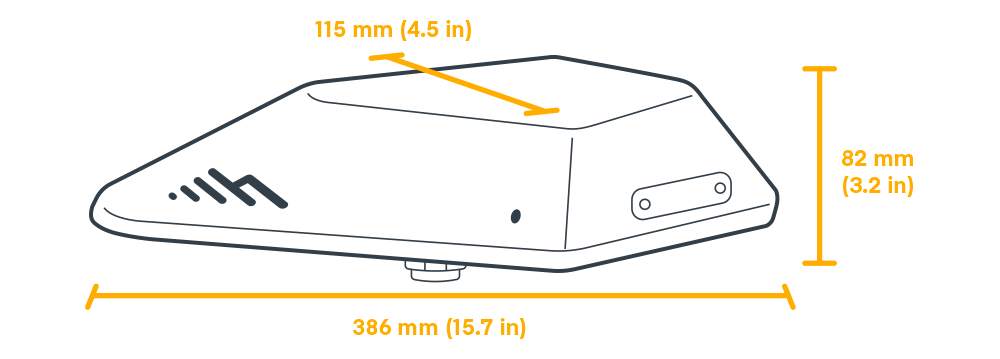

Dimensions
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)

Interfaces

GNSS
Passive GNSS (multiplexed with internal cellular antennas)
Wi-Fi
Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 5 GHz client mode only in EU
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only); 380 mm non-removable shielded CAT5e flat cable, male RJ45

Wi-Fi Power

Fcc
2.4 GHz 30.9; 5250–5350 MHz 29.4; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9; 5470–5725 MHz 29.5; 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0; 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Performance

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Ipsec VPN
300 Mbps point-to-point IPsec VPN
Stateful Firewall
900 Mbps
Concurrent Sessions
32,000
Typical Client Count
100
Concurrent VPN Tunnels
10
Ips Application Aware Client Analytics
650 Mbps

Reliability

MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Vlans
Up to 64 Layer 2/Layer 3 VLANs
Shock Vibration
MIL-STD-810G 2.2.2 Proc. 1 (shock, vibration) and Proc. 5 (shock)

Environmental

Storage Humidity
5% to 95%
Impact Protection
IK09 (10 J impact)
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Ingress Protection Corrosion
IP67; IEC60068-2-11 salt mist corrosion resistance

Certifications

Safety
CB Scheme; IEC/EN 62368-1
Vehicle
E-Mark; SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (R2100 FIPS models only)
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Support included for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud Service subscription
Service Plans
NetCloud Service for Mobile Performance; NetCloud Service for Ruggedized IoT
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Via NetCloud Manager (full subscription term)
Device Management
Ericsson NetCloud Manager (full subscription term)

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Questions buyers ask

What does Captive Modem mode do?

The controlling Ericsson Cradlepoint router manages the R2105 as part of itself. NetCloud shows the R2105 as a modem WAN interface with Smart WAN Selection, WAN Verify and failover/failback, and as a Wi-Fi interface, all managed as a single entity.

Which router is this accessory for?

The manufacturer lists the Ericsson Cradlepoint R1900 as the compatible router, and the part also appears in the R980 data sheet accessory table.

How is the R2105 powered?

It accepts 9–36 VDC through its attached 4-pin Molex Micro-Fit cable, with ignition sensing, or 802.3at PoE at 30 W.

What is included in the box?

The R2105 captive accessory with attached power and Ethernet cables, a 3 m 2x2 GPIO cable, a mounting template and a small accessories kit.

Is the R2105 suitable for outdoor mounting?

Yes. It is rated IP67 and IK09, resists salt mist per IEC60068-2-11, and operates from -30 °C to 70 °C.
