Cradlepoint W1855-5GC 5G Captive Modem Accessory, Outdoor, North America (170900-016)

MPN 170900-016

Made for Cradlepoint

$1,810.89$1,979.00Save $168.11

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

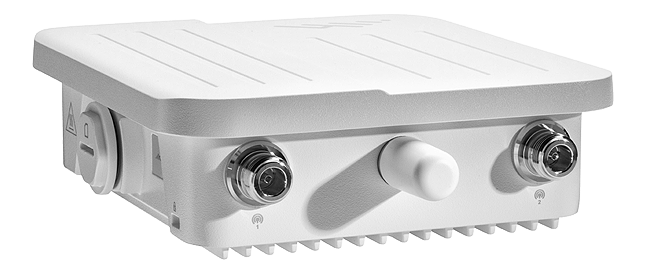

The Cradlepoint 170900-016 is the North America version of the 5G Captive Modem Accessory, Outdoor, built on the W1855-5GC. This outdoor 5G low- and mid-band adapter mounts where the signal is strongest and runs in captive modem mode. A controlling Ericsson Cradlepoint router, such as the E300, E3000, IBR1700 or R1900, manages it as a single entity in NetCloud. It delivers up to 3.4 Gbps (NSA) downlink over dual 2.5 GbE ports and is powered by PoE+.

  • W1855-5GC outdoor 5G adapter, North America version, runs in captive modem mode under a controlling Cradlepoint router
  • Embedded 5G FR1 NSA/SA modem (3GPP Release 16) with LTE Cat 19 fallback, 4x4 MIMO and dual 4FF SIM slots
  • Peak rates up to 3.4 Gbps down / 550 Mbps up (NSA); 2.0 Gbps throughput in captive modem mode
  • 2 x 2.5 GbE RJ45 ports (LAN/WAN switchable), powered by 802.3at PoE+ with injector included
  • IP67 metal enclosure with 135 MPH wind rating, ITU-T K.21 lightning protection and -30 °C to 70 °C operation
  • Four external 600 MHz–6 GHz cellular antennas with N-type female connectors included
  • Mount the 5G radio on a roof or wall for the best signal while the branch router stays indoors
  • Router and adapter act as one managed device in NetCloud, simplifying operations and reducing licensing costs

The Cradlepoint 5G Captive Modem Accessory with W1855-5GC (part number 170900-016, North America) brings high-bandwidth 5G to sites where fiber is not an option or link diversity is needed. The W1855 installs outdoors on buildings or temporary sites for optimal signal reception. It then connects back to an Ericsson Cradlepoint router over Ethernet. In captive modem mode, the router acts as the controller, and NetCloud treats the adapter as a modem WAN interface with Smart WAN Selection, WAN Verify and failover/failback. Managing the pair as one entity also reduces licensing costs.

The W1855 uses an embedded 5G FR1 NSA/SA modem to 3GPP Release 16 with LTE Advanced Pro Category 19 fallback. It has 4x4 MIMO, dual 4FF SIM slots and Dual Connectivity for simultaneous 5G and LTE connections. Peak rates are up to 3.4 Gbps down and 550 Mbps up in NSA, 2.4 Gbps and 450 Mbps in SA, and 1.6 Gbps and 200 Mbps on LTE. Throughput in captive modem mode is 2.0 Gbps across two 2.5 GbE LAN/WAN switchable ports. Private network support includes CBRS Band 48.

The metal enclosure is rated IP67 with salt-mist corrosion resistance and a 135 MPH sustained wind rating. It also carries ITU-T K.21 lightning protection and operates from -30 °C to 70 °C. Four external 600 MHz–6 GHz cellular antennas with N-type connectors are included, along with a PoE+ injector and line cord.

The manufacturer lists this accessory for the E300, E3000, IBR1700 and R1900. A manufacturer datasheet is available for the W1855.

Ideal for

  • Primary 5G WAN for branch sites where fiber is not an option
  • High-performance failover and link diversity for medium-sized sites and SD-WAN deployments
  • Temporary sites and outdoor building installations that need a strong external cellular signal
  • Video broadcast connectivity requiring high uplink bandwidth
  • Private LTE/5G deployments over CBRS Band 48 or Ericsson Private 5G

Specifications

Modem

3g
WCDMA/HSPA+
SMS
Yes
GNSS
GPS, GLONASS, BeiDou, Galileo
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 8, 19 ††
Antennas
4 external 600 MHz–6 GHz antennas, N-type female, included
LTE Bands
FDD: B1 †, B2, B3 †, B4, B5, B7 †, B8 †, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28 †, B29, B30, B32, B66, B71; TDD: B34, B38 †, B39, B40, B41 †, B42, B43, B46, B48
Modulation
DL/UL up to 256 QAM
Regulatory
FCC; IC; UKCA; RCM
Technology
5G FR1 NSA/SA, LTE Cat 19 fallback, dual 4FF SIM, 3GPP Rel. 16
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n13 (700), n14 (700), n18 (850), n20 (800), n25 (1900), n26 (850), n28 (700), n29 (700), n30 (2300), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n70 (2000), n71 (600), n75 (1500), n76 (1500), n77 (3700), n78 (3500) †, n79 (4900) †
Peak Rates SA
up to 2.4 Gbps down / 450 Mbps up
Peak Rates LTE
up to 1.6 Gbps down / 200 Mbps up
Peak Rates Nsa
up to 3.4 Gbps down / 550 Mbps up
Transmit Power
5G NR 23 ± 2 (HPUE 26 ± 2); LTE 23 ± 2 (HPUE 26 ± 2) dBm
Private Network
Yes: CBRS Band 48 (FCC Part 96), 4G LTE, 5G
Carrier Aggregation
NR: DL 2 CA / UL 1 CA; ENDC: DL 4+1 CA / UL 2+2 CA; LTE: DL 5 CA / UL 2 CA
Wireless Connectivity
Dual Connectivity: 5G low/mid-band and Cat 19 LTE
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Public Safety Certifications
FirstNet Trusted™; T-Mobile Connecting Heroes; Verizon Frontline Verified
Network Operator Certifications
AT&T; T-Mobile; Verizon †††

Power

Required
PoE+ 802.3at PSE Type 2 (30 W), injector included
Consumption
802.3at Class 4 PD (30 W)
Injector Output
30 W, 56 VDC, 0.536 A

General

MPN
170900-016
UPC
840292709638
Brand
Cradlepoint (Ericsson)
Region
North America
Category
Branch
Form Factor
Metal, outdoor
Capabilities
5G built in, eSIM
Product Name
5G Captive Modem Accessory, Outdoor, W1855-5GC, North America
Endpoint Type
Adapter
Operating Mode
Captive modem mode
Product Status
Active
Cloud Management
Yes (Ericsson NetCloud)
Special Features
Outdoor form factor, low- and mid-band, 802.3at PoE
Compatible Routers
Listed for Ericsson Cradlepoint E300, E3000, IBR1700, R1900
Subscription Terms
1, 3 or 5 years

Package

Contents
W1855, PoE injector with line cord, 4 cellular antennas
Shipping Weight
2.00 lb

Physical

Weight
1.3 kg (2 lb 13.8 oz)

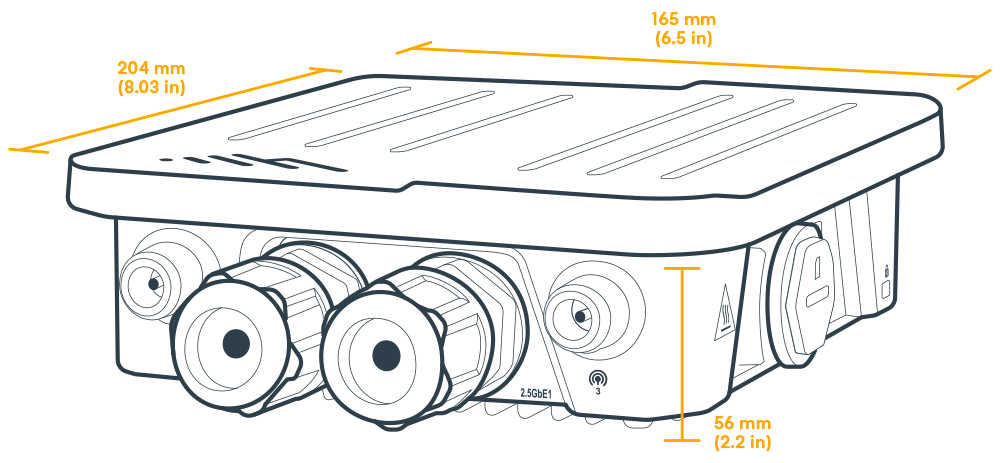

Dimensions
204 x 165 x 56 mm (8.03 x 6.5 x 2.2 in)

Interfaces

GNSS
Passive
Modem
Embedded 5G FR1 NSA/SA (Rel. 16) and LTE Cat 19 modem
Ethernet
2 x 2.5 GbE RJ45 (LAN/WAN switchable)
USB Ports
0
Serial Ports
0
Dual Modem Support
No

Performance

Standard Nat Mode
2.0 Gbps
Captive Modem Mode
2.0 Gbps
IP Passthrough Mode
2.0 Gbps

Reliability

MTBF
376,671 hours (Telcordia SR332 at 25 °C)

Environmental

Wind Lightning
135 MPH sustained wind; ITU-T K.21 lightning protection
Storage Humidity
5% to 95%
Operating Humidity
10% to 90%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)
Ingress Protection Corrosion
IP67; IEC60068-2-11 salt mist; IEC60068-2-32 free fall
Electromagnetic Compatibility
EN 61000-4-2/-3/-4/-5/-6; Class B radiated/conducted emissions

Certifications

Safety
UL/cUL; CB Scheme; EN 60950-22; EN 62368-1
Substance Compliance
WEEE; RoHS; REACH; California Prop 65

Cloud Services

Support
Support for the full subscription term
Warranty
Limited lifetime warranty with active NetCloud Service subscription
Service Plans
NetCloud Service for Branch 5G Adapter
Service Add Ons
NetCloud Exchange; NetCloud Advanced
Software Updates
Via NetCloud Manager (full subscription term)
Device Management
NetCloud Manager (full subscription term)

Questions buyers ask

Which Cradlepoint routers can control this accessory?

The manufacturer lists the 170900-016 in the accessory tables for the Ericsson Cradlepoint E300, E3000, IBR1700 and R1900.

Is this the North American version?

Yes. Part number 170900-016 is the W1855-5GC North America version. EU, UK and AP versions are sold under different part numbers.

How is the W1855 powered?

It runs on 802.3at PoE+ (30 W). A PoE injector with a line cord is included.

Are antennas included?

Yes. Four external 600 MHz–6 GHz cellular antennas with N-type female connectors come with the accessory.

What throughput can I expect in captive modem mode?

The manufacturer rates captive modem mode at 2.0 Gbps. Modem peak rates are up to 3.4 Gbps downlink in 5G NSA.
