Cradlepoint DIN Rail Mounting Bracket for R980, R920, S700 and S400 Routers (170904-001)

MPN 170904-001

Made for Cradlepoint

$27.25

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Overview

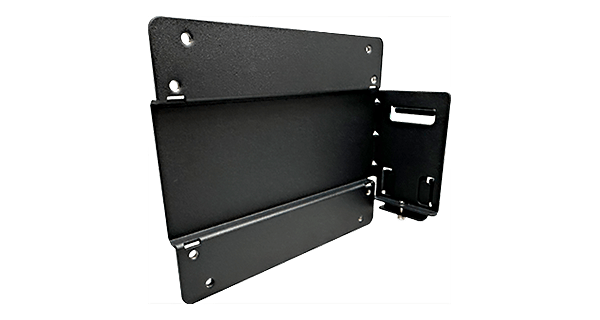

The Cradlepoint 170904-001 DIN Rail Mounting Bracket secures Ericsson Cradlepoint R980, R920, S700 and S400 routers to a standard DIN rail. It ships with the main bracket, a mounting clip, four M4x4 bracket-to-device screws and one M3x10 clip-to-bracket screw. That is everything needed to fit the router into control cabinets, kiosks and equipment racks built around DIN rail.

  • Secures Ericsson Cradlepoint routers to a standard DIN rail
  • Compatible with the Cradlepoint R980, R920, S700 and S400
  • Includes main bracket and mounting clip
  • Four M4x4 bracket-to-device screws and one M3x10 clip-to-bracket screw included
  • Listed in the Ericsson Cradlepoint S400 data sheet
  • Mounts the router inside control panels and cabinets that use DIN rail
  • Keeps the router fixed and off the cabinet floor for cleaner, safer installs
  • Complete hardware kit, so no extra screws need to be sourced on site

The Cradlepoint DIN Rail Mounting Bracket (part number 170904-001) is the manufacturer's accessory for securing Ericsson Cradlepoint routers to a standard DIN rail. It is designed for the R980, R920, S700 and S400. These compact routers are often installed inside industrial control panels, utility cabinets, kiosks and IoT enclosures, where DIN rail is the common mounting standard.

Installation is simple. The main bracket attaches to the router with four M4x4 screws, and the mounting clip fastens to the bracket with a single M3x10 screw. The assembly then mounts to the rail, so the router sits alongside power supplies, terminal blocks and other panel components. It stays off the cabinet floor and in a fixed, orderly position.

The bracket is listed in the Ericsson Cradlepoint S400 data sheet. It is offered across North America, Latin America, Europe, Africa and the Middle East, and Asia-Pacific. For multi-site rollouts, using the manufacturer's own bracket keeps installations consistent from one enclosure to the next.

Ideal for

  • Mounting an R980 or R920 router inside an industrial control panel
  • Installing S700 or S400 routers in utility, kiosk or IoT enclosures built on DIN rail
  • Standardized cabinet builds for multi-site rollouts
  • Retrofitting routers into existing DIN rail equipment cabinets

Specifications

General

MPN
170904-001
UPC
840292704060
Brand
Cradlepoint (Ericsson)
Regions
North America, Latin America, Europe, Africa & Middle East, Asia-Pacific
Product Name
DIN Rail Mounting Bracket
Product Status
Active
Accessory Family
Mounting & Enclosures

Package

Contents
Main bracket, mounting clip, 4 x M4x4 screws, 1 x M3x10 screw
Shipping Weight
1.00 lb

Compatibility

Mounting Type
Standard DIN rail
Compatible Devices
Ericsson Cradlepoint S700, S400, R980, R920

Questions buyers ask

Which Cradlepoint routers does this bracket fit?

The manufacturer lists the S700, S400, R980 and R920 as compatible.

What hardware is included?

The main bracket, a mounting clip, four M4x4 bracket-to-device screws and one M3x10 clip-to-bracket screw.

What kind of rail does it mount to?

It secures Ericsson Cradlepoint routers to a standard DIN rail.
