C2G 20279 1-Port USB-C Wall Charger with Power Delivery, 18W

MPN 20279
  • USB-C
$36.99

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

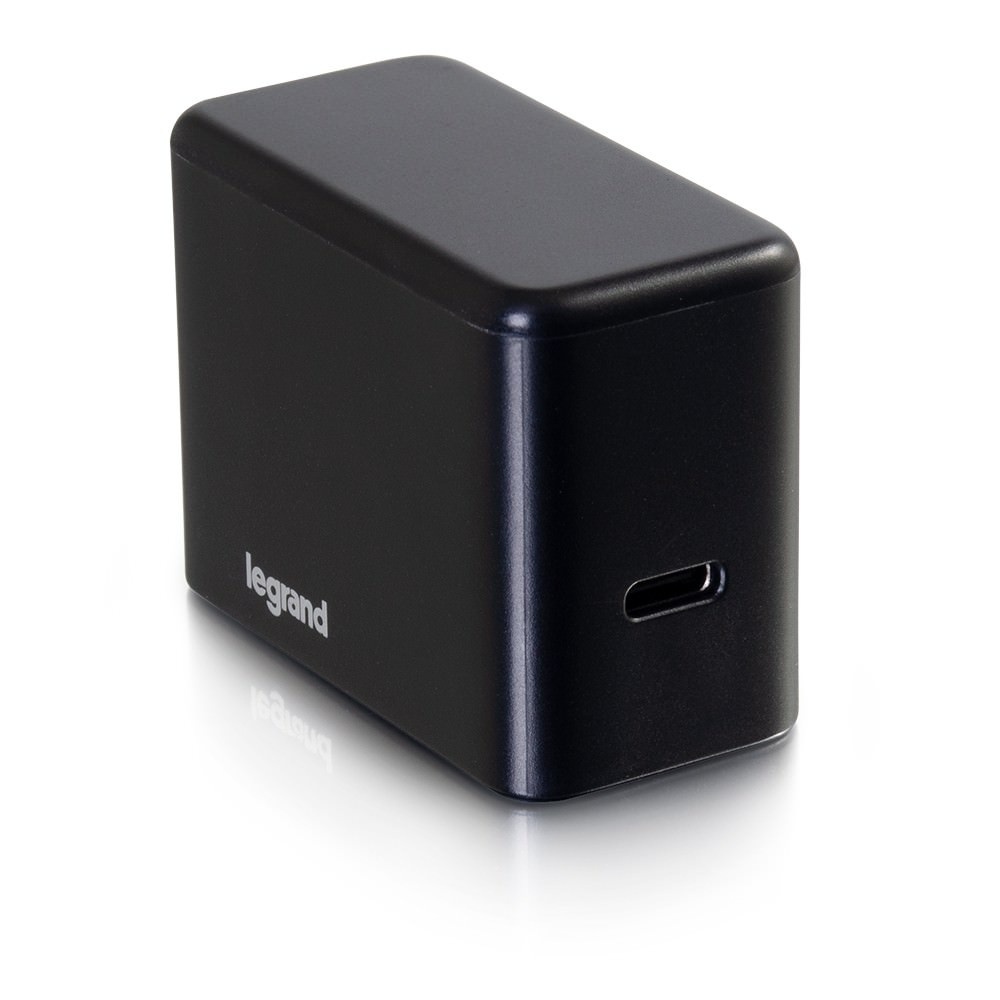

The C2G 20279 is a compact 1-port USB-C wall charger with Power Delivery, rated at 18W for charging smartphones and tablets at the desk, at home or on the road. It supplies 5V/3A, 9V/2A or 12V/1.5A through a single USB-C port and works with USB-C and Thunderbolt 3 cables. The AC prongs fold into the housing for travel, and the black body measures 51 x 38 x 26 mm.

  • 18W USB-C Power Delivery output: 5V/3A, 9V/2A or 12V/1.5A
  • One USB Type-C female port
  • Compatible with USB-C and Thunderbolt 3 cables

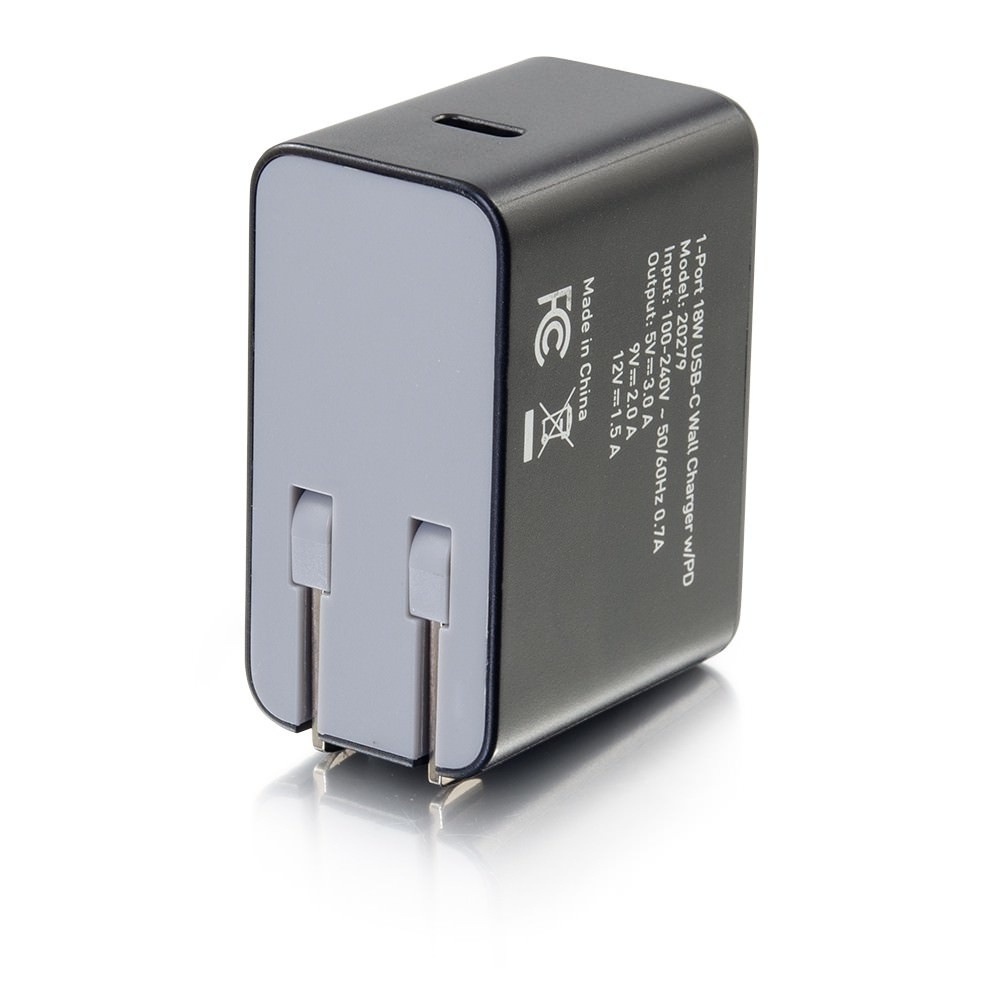

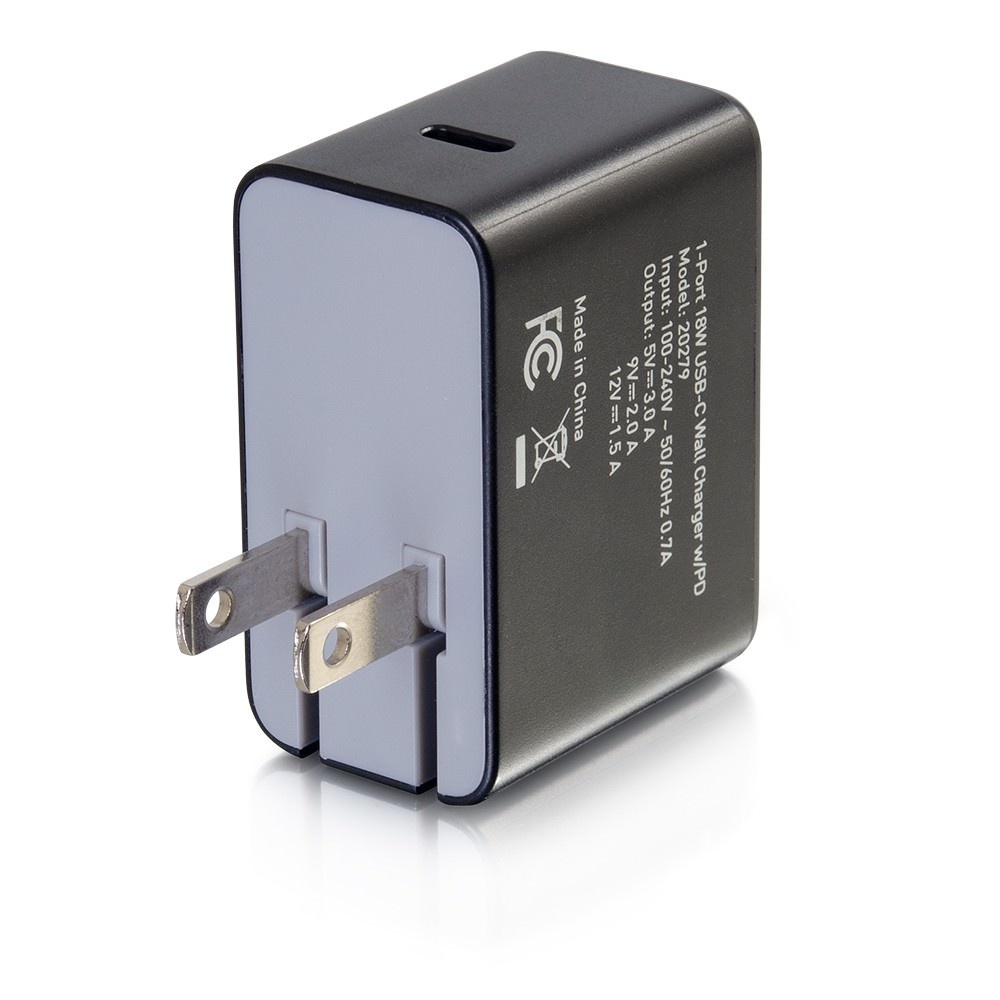

  • Foldable AC prongs on a NEMA 1-15 plug

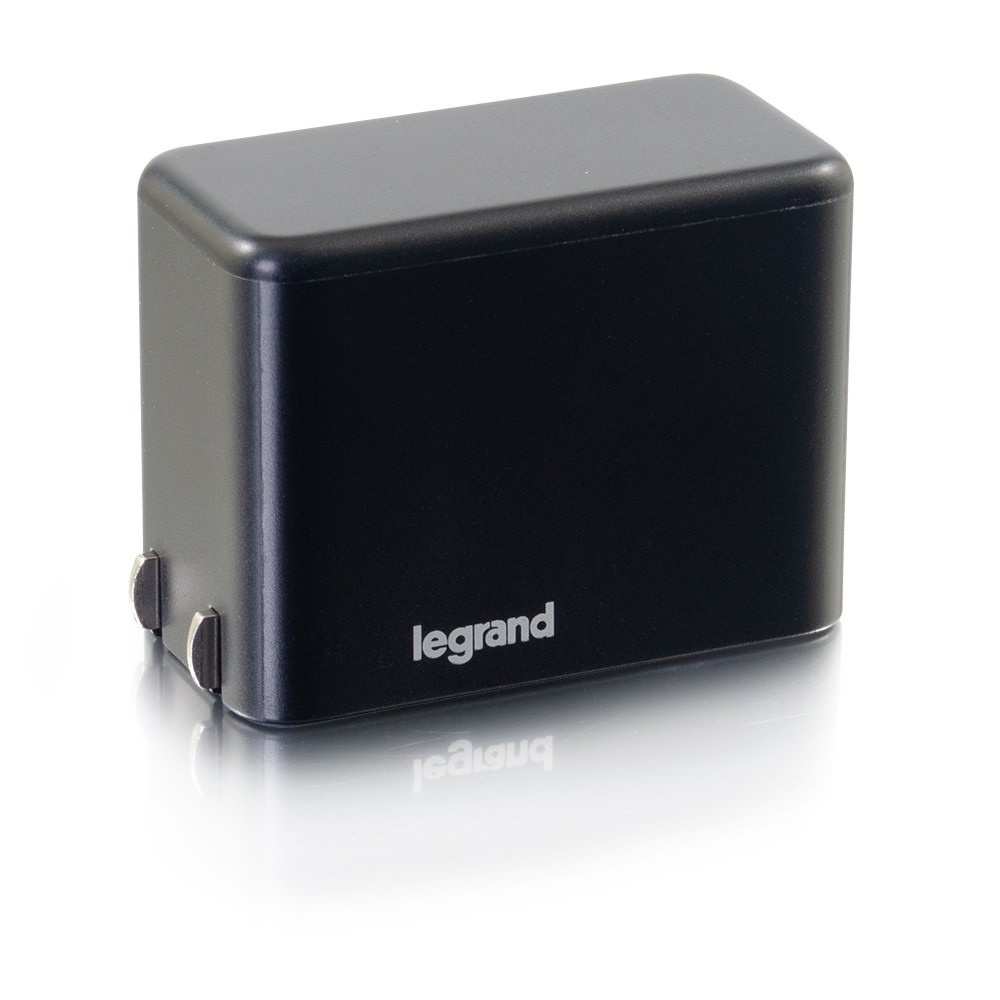

  • Compact 51 x 38 x 26 mm black housing
  • 90-264V AC input range with standby power loss of 0.1W or less
  • NDAA 889, Prop 65, REACH, RoHS and TSCA certifications
  • Charges smartphones and tablets at up to 18W from a single USB-C port

The C2G 1-Port USB-C Wall Charger with Power Delivery (legacy part number 20279, manufacturer part number CG20279) is an 18W charger for keeping smartphones and tablets powered at home, in the office or while travelling. It plugs into a standard NEMA 1-15 outlet and delivers power through one USB-C female port, and it works with both USB-C and Thunderbolt 3 cables.

Three fixed Power Delivery output levels are available: 5V at 3.0A, 9V at 2.0A and 12V at 1.5A. C2G rates USB-C port efficiency at 81.38% at 5V and 85.0% at both 9V and 12V, and standby power loss is 0.1W or less, so it draws very little when left plugged in without a device attached. The input accepts a 90-264V AC range (100-240V AC nominal) at 47-63Hz.

The housing is built for bags and field kits. At 51 x 38 x 26 mm and a 0.14 lb shipping weight it takes up little space, and the AC prongs fold into the adapter so they are less likely to bend or break in transit. It is rated for operation from 0 to +35°C and 20% to 80% non-condensing humidity, at altitudes up to 2000m.

For IT and operations teams issuing phones and tablets, the charger carries NDAA 889, Prop 65, REACH, RoHS and TSCA certifications and is CE marked, conforming to 2011/65/EU RoHS2. It is not TAA compliant. A C2G datasheet is available for this model.

Ideal for

  • Everyday desk charging of company-issued smartphones and tablets
  • Compact spare charger for travel bags and field kits
  • Replacement charger for devices that shipped without a power adapter
  • Charging point for tablets used in shared offices or front-desk stations

Specifications

General

MPN
20279
UPC
757120202790
Brand
C2G
Title
1-Port USB-C Wall Charger with Power Delivery, 18W
Manufacturer
C2G (Legrand AV)
Legacy C2g Part Number
20279
Manufacturer Part Number
CG20279

Dimensions

Dimensions Technical Drawing
51 x 38 x 26 mm

Regulatory

Compliance
CE marked; conforms to 2011/65/EU RoHS2

Label Ratings

Input
100-240V ~ 50/60Hz 0.7A
Output
5V 3.0A; 9V 2.0A; 12V 1.5A

Dimensions Measurements

Amps
3 Amp
Shipping Weight
0.14 lbs (0.1 kg)

Physical Specifications

Storage Altitude
Up to 2000m
Operating Storage
From 10% to 90% (Non-Condensing)
Operating Altitude
Up to 2000m
Operating Humidity
From 20% to 80% (Non-Condensing)
Storage Temperature
-20 to +75°C
Operating Temperature
0 to +35°C

Characteristics Features

Color
Black
Connector 1
(1) NEMA 1-15 Male
Connector 2
(1) USB-C Female
Product Type
Adapter
TAA Compliant
No

Certifications Warranties

Certifications
NDAA 889, Prop 65, REACH, RoHS, TSCA

Electrical Specifications

Inrush Current
60A
Frequency Range
47-63Hz
Output Type C 5v
Output Voltage: No load 4.75-5.25V, Full load 4.75-5.55V; Rated current: 3.0A
Output Type C 9v
Output Voltage: No load 8.55-9.45V, Full load 8.55-9.75V; Rated current: 2.0A
Output Type C 12v
Output Voltage: No load 11.4-12.6V, Full load 11.4-12.9V; Rated current: 1.5A
Standby Power Loss
≤0.1W
Input Voltage Range
90-264V AC
Efficiency USB C Port
81.38% @ 5V; 85.0% @ 9V; 85.0% @ 12V
Nominal Input Voltage
100-240V AC
Input Current Full Load
≤1.2A

Questions buyers ask

What output does the C2G 20279 provide?

It is an 18W USB-C Power Delivery charger with three output levels: 5V at 3.0A, 9V at 2.0A and 12V at 1.5A.

What kind of devices is it intended for?

C2G positions this charger for charging and powering mobile devices such as smartphones and tablets.

Can I use a Thunderbolt 3 cable with it?

Yes. The charger is compatible with both USB-C and Thunderbolt 3 cables.

What plug and input voltage does it use?

It has a NEMA 1-15 male plug with foldable prongs and accepts a nominal 100-240V AC input (90-264V AC range) at 47-63Hz.

Is the C2G 20279 TAA compliant?

No. It is not TAA compliant, but it carries NDAA 889, Prop 65, REACH, RoHS and TSCA certifications and is CE marked.
