ProClip USA ModTek Hard Case for Samsung Galaxy Tab Active5 Pro and Tab Active4 Pro

MPN 216444
  • Rugged

Fits Galaxy Tab Active4 Pro

$107.87$144.99Save $37.12

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The ProClip USA ModTek Hard Case (216444) is an exact-fit rugged case for the Samsung Galaxy Tab Active5 Pro and Galaxy Tab Active4 Pro. It links the tablet's USB-C port directly to the ModTek Dock, sold separately, for charging and data at up to 5Gbps. Shock-absorbing springs, finger wells and independent third-party testing protect the tablet in the harshest work environments.

  • Exact-fit rugged case for Samsung Galaxy Tab Active5 Pro and Galaxy Tab Active4 Pro
  • Direct USB-C connection to the ModTek Dock for simultaneous charging and data at up to 5Gbps, backward compatible with USB 2.0
  • Shock-absorbing springs; independently tested for thermal shock, 16Gmrs forklift vibration, 20K USB-C insertions and 6 ft drops to concrete

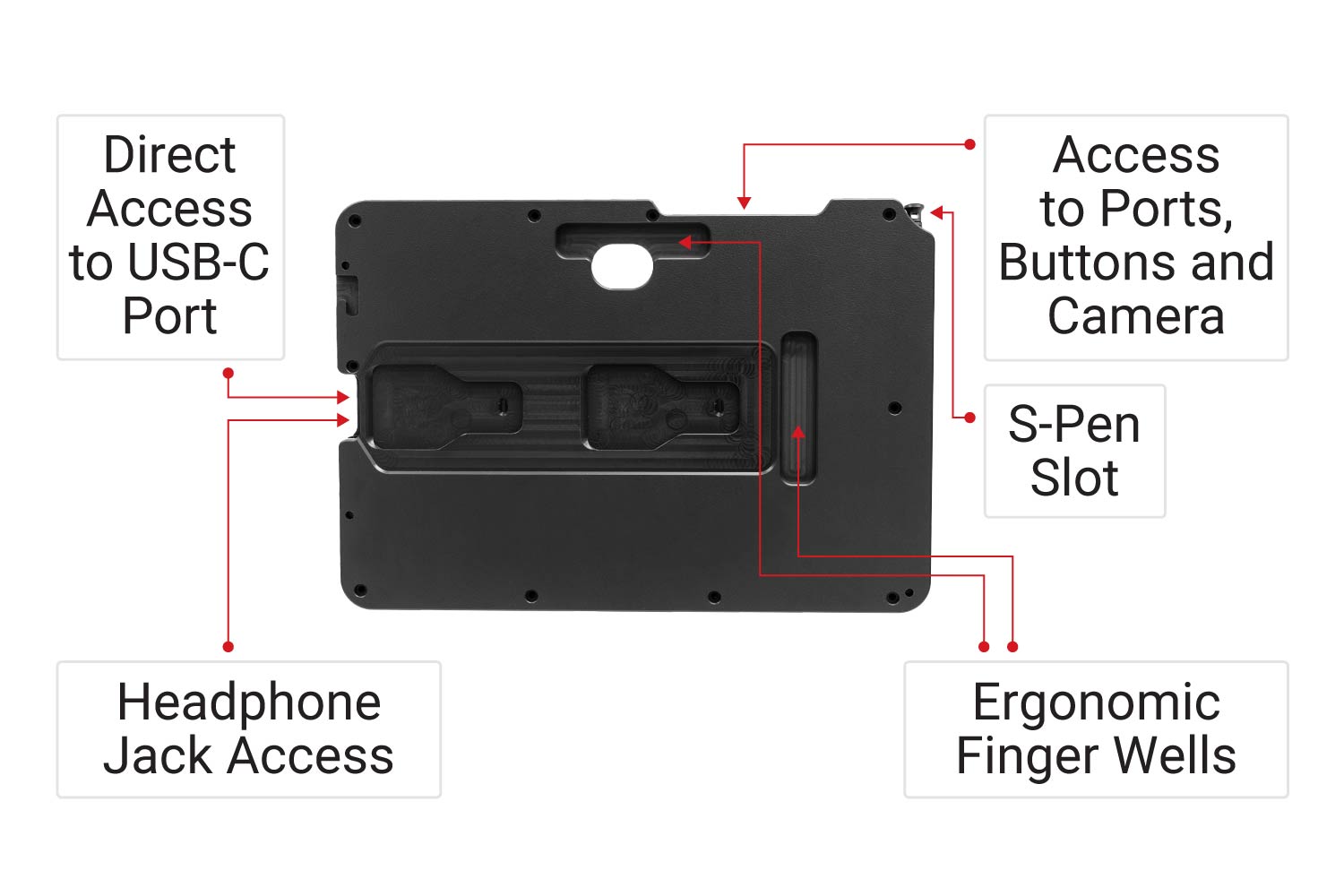

  • Easy access to all buttons, ports, cameras, screen and headphone jack
  • Ergonomic finger wells and one-handed docking and undocking
  • Universally compatible with the ModTek Dock
  • A USB-C dock connection holds up better than pogo pins against dust, moisture and bending
  • One docked connection handles both charging and data transfer at up to 5Gbps

The ProClip USA ModTek Hard Case, item 216444, is a rugged, exact-fit case for the Samsung Galaxy Tab Active5 Pro and Galaxy Tab Active4 Pro. It is the tablet half of the ModTek docking system. The case aligns the tablet's USB-C port with the ModTek Dock, avoiding pogo pins, which are susceptible to dust, dirt, moisture and bending. The connection charges the tablet and carries data at up to 5Gbps, with backward compatibility to USB 2.0 devices.

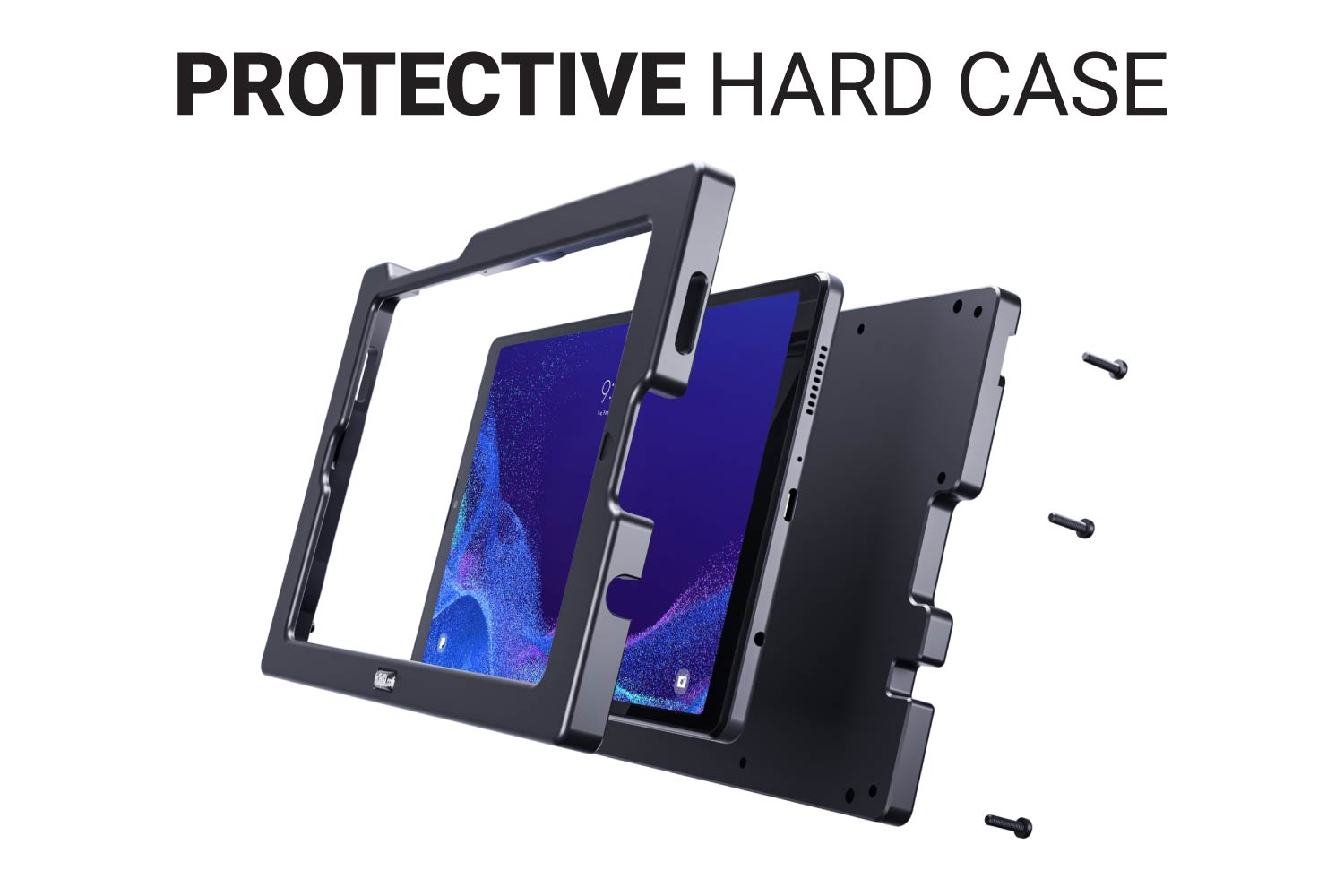

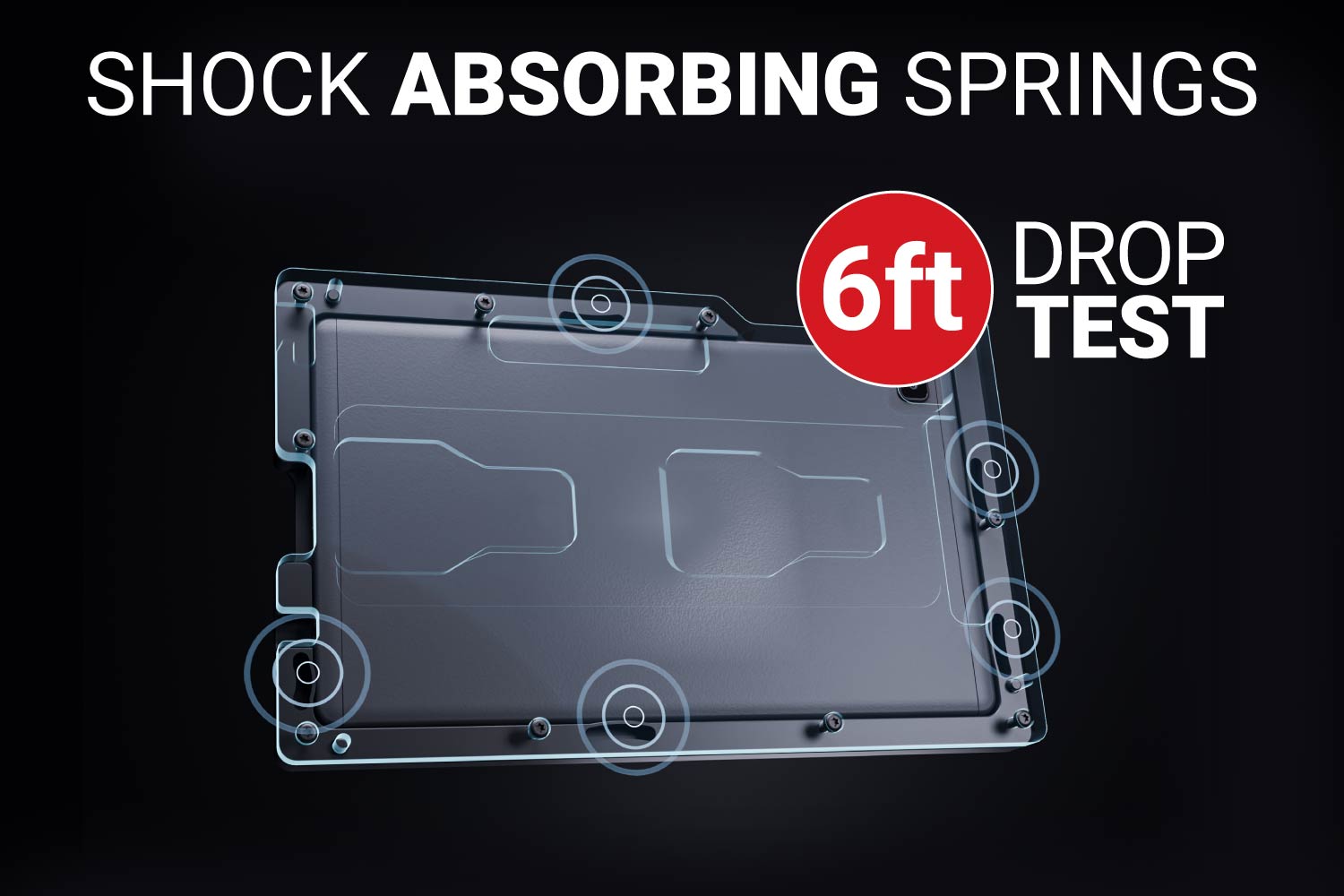

The case uses a top frame and back plate secured with 10 included screws, with shock-absorbing springs around the tablet. ProClip had ModTek independently tested for thermal shock, forklift vibration (16Gmrs), 20K USB-C insertions and 6 ft drops to concrete. Ergonomic finger wells improve grip. The design leaves buttons, ports, cameras, the screen and the headphone jack accessible. Secure locking channels keep the case seated on the dock, and docking and undocking take one hand.

Every ModTek Hard Case is universally compatible with the ModTek Dock, so fleets running several Samsung rugged tablets can share one dock design. The dock (216410 USB-C 3.1 Dock or 216412 USB-C 3.1 Dock with USB Expansion Hub) and power supplies (216406, 945031, 945032) are sold separately. The case is device specific and is fitted to the bare tablet without any skin, case or screen protector. A T10 Torx screwdriver is required. ProClip provides installation instructions for 216444 and a ModTek for Samsung sell sheet.

Ideal for

  • Vehicle-docked Galaxy Tab Active5 Pro and Active4 Pro tablets for field crews

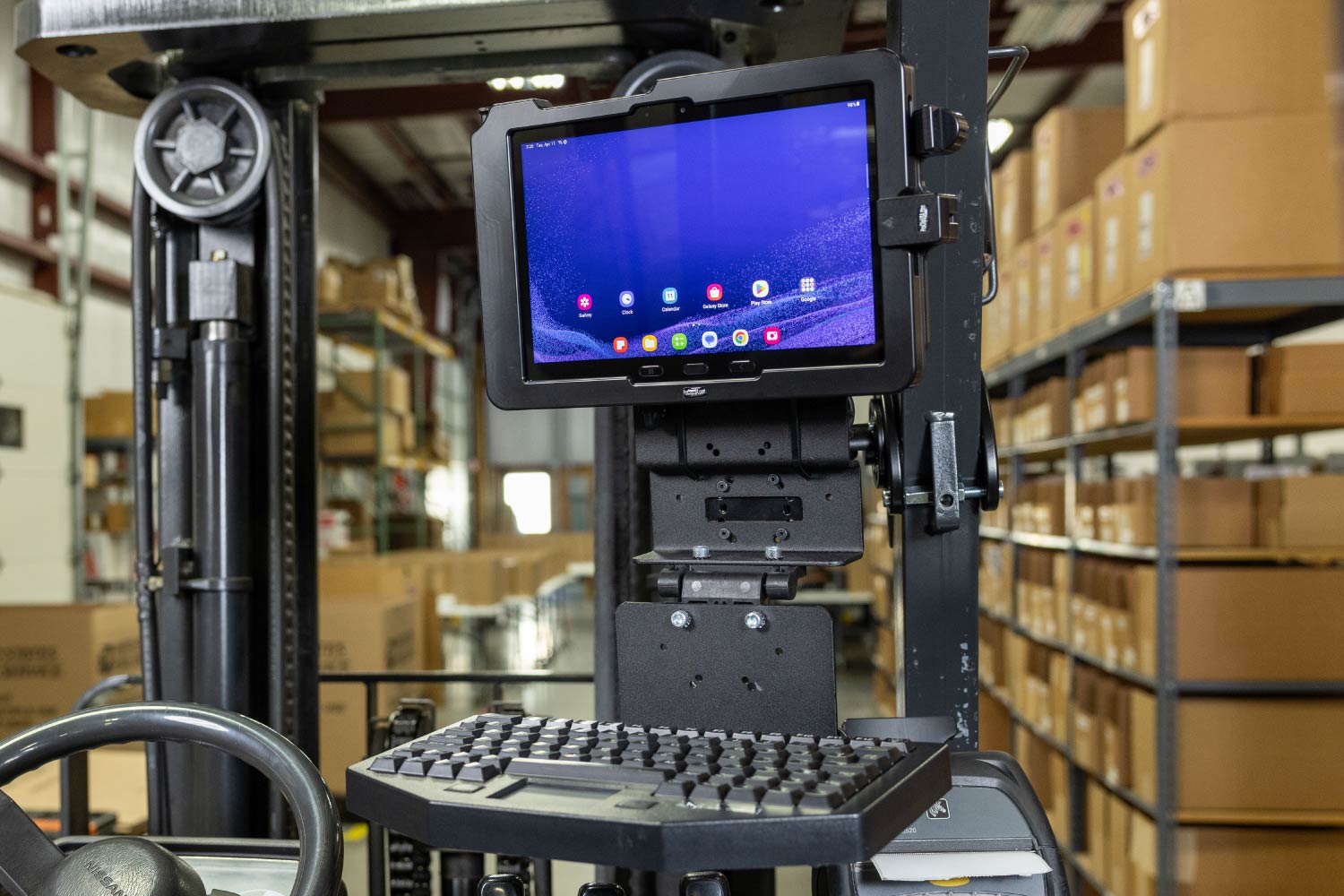

  • Forklift and warehouse tablet stations
  • Workstation docking for shared rugged tablets
  • Deployments that route USB data and charging through the dock

Specifications

Design

Fit
Exact-Fit
Locking
Optional Add-On
Case Use
Install on bare tablet (no case)

General

MPN
216444
Brand
ProClip USA
Patent
Case: US Patent 11,815,224
Product Name
ModTek Hard Case for Samsung Galaxy Tab Active5 Pro or Active4 Pro
Product Type
Device Holders
Item Description
ModTek Hard Case

Package

Sold Separately
Dock and power supply sold separately
Included Fasteners
10 screws; T10 Torx screwdriver required

Physical

Shipping Weight
1.19 lb

Durability

Testing
Independent third-party tested: thermal shock, 16Gmrs vibration, 20K USB-C insertions, 6 ft drop to concrete

Connectivity

Charging
Charges while docked
Data Rate
Up to 5Gbps, backward compatible with USB 2.0

Compatibility

Compatible Devices
Galaxy Tab Active Pro, Tab Active4 Pro, Tab Active5 Pro (manufacturer list)
Dock Compatibility
ModTek Dock 216410 / 216412 (sold separately)
Compatible With Installation Sheet
Samsung Galaxy Tab Active4 Pro

Questions buyers ask

Which tablets does the 216444 fit?

It is made for the Samsung Galaxy Tab Active5 Pro and Galaxy Tab Active4 Pro. ProClip's compatibility list also includes the Galaxy Tab Active Pro.

Does the case include the ModTek Dock?

No. The ModTek Dock 216410 or 216412 and power supply 216406, 945031 or 945032 are sold separately.

How fast is the data connection through the dock?

ModTek supports connections up to 5Gbps, with backward compatibility to USB 2.0 devices, while charging the tablet at the same time.

Can the tablet keep its screen protector inside the case?

No. The case is device specific and should be installed on the tablet without any skin, case or screen protector.
