WilsonPro Enterprise 4330 Cell Signal Amplifier Wall Mount Kit (462075)

The WilsonPro Enterprise 4330 Wall Mount Kit (462075) packages everything needed for a four-antenna in-building cellular coverage system. Wilson positions it for enhanced 4G LTE and 5G coverage inside buildings where outdoor signal does not penetrate. The result is fewer dropped calls, better voice quality and faster data for every phone and cellular device on all US and Canadian carriers, including smaller regional providers.

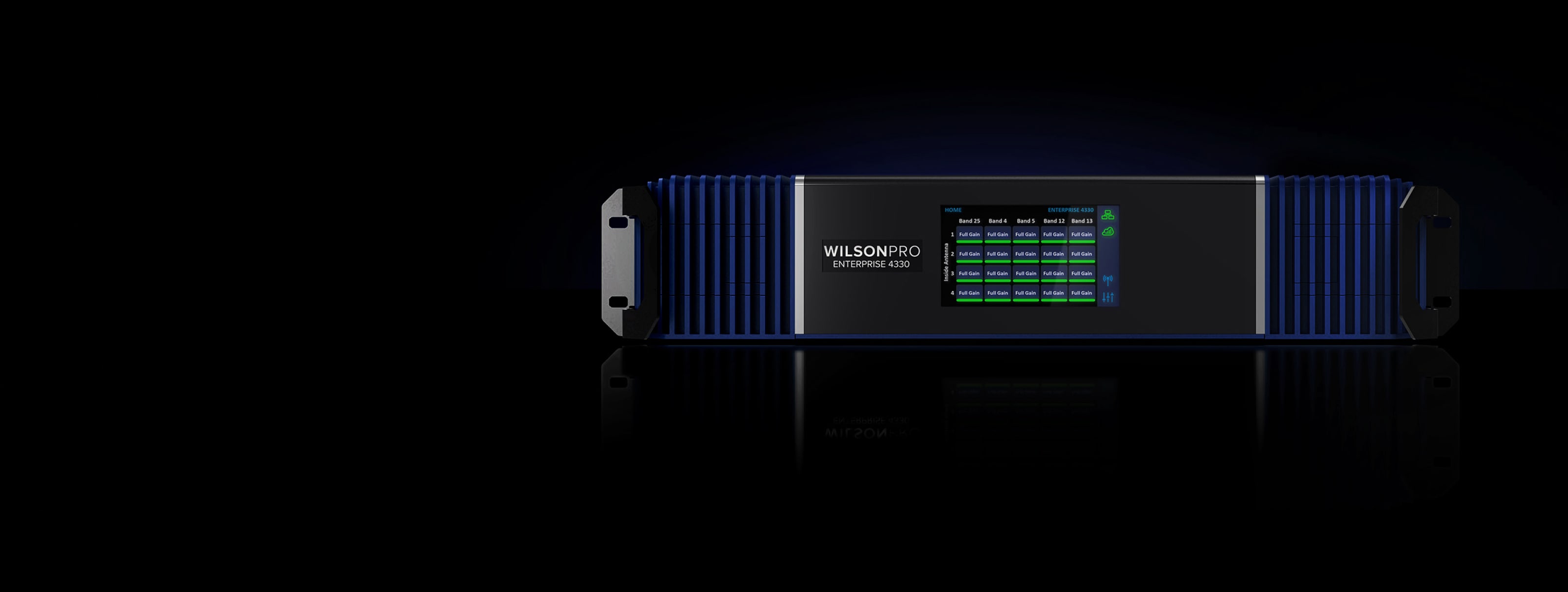

At its core is the wall-mount Enterprise 4330 amplifier (460075). It covers Band 12/17 and 13 (700 MHz), Band 5 (850 MHz), Band 4 (1700/2100 MHz) and Band 25 (1900 MHz). It provides 70 dB maximum gain, up to 26 dBm uplink power and 17 dBm downlink power on each of its four ports. Channelization lets installers filter and amplify specific sub-blocks within a band. This matters when a strong outside carrier signal interferes, or when only one carrier should be boosted. Split mode, also called multi-tower targeting, supports separate outdoor antennas for different bands. XDR (eXtended Dynamic Range) continuously scans and adjusts so the system does not shut down from strong signal.

Setup and monitoring run from a color LCD touchscreen with network scanning for real-time signal measurements. Remote access is available through the WilsonPro Cloud service over Ethernet or the unit's internal, pre-activated LTE modem.

The kit includes the amplifier, a 314411 wideband directional outside antenna, four 304412 dome inside antennas, five 100 ft Wilson 400 cables, a 2 ft Wilson 400 jumper and an 859902 50-ohm lightning surge protector. It ships in one box, is assembled in the USA, and carries a 3-year warranty from purchase. A manufacturer spec sheet is available.
