weBoost Drive Reach 470154 12V In-Vehicle Cell Signal Booster Kit

MPN 470154
  • Vehicle
$499.99

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The weBoost Drive Reach (470154) is weBoost's most powerful in-vehicle cell signal booster kit. It delivers the maximum boost allowed by the FCC, with up to 50 dB of gain. It strengthens talk, text and data for every phone, hotspot and cellular tablet in a car, truck, van or SUV. It works on all U.S. carriers at the same time, including 4G LTE and 5G, and installs without tools from the vehicle's 12V outlet.

  • Up to 50 dB maximum gain, the maximum cell signal boost allowed by the FCC
  • Boosts Band 12/17 and 13 (700 MHz), Band 5 (850 MHz), Band 4 (1700/2100 MHz) and Band 25/2 (1900 MHz)
  • Amplifies all available network speeds, including 4G LTE and 5G
  • Works with all cellular devices on all U.S. carriers at the same time
  • Reaches cell towers up to 74% farther than the weBoost Drive X
  • Kit includes magnetic outside antenna, slim inside antenna and 12V power supply
  • Tool-free installation; 12V 1.8A power; SMA female connectors
  • Fewer dropped calls and clearer voice on rural highways, forest roads and mountain routes where signal is weak but present

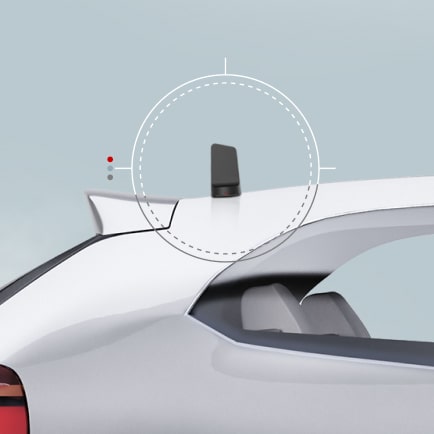

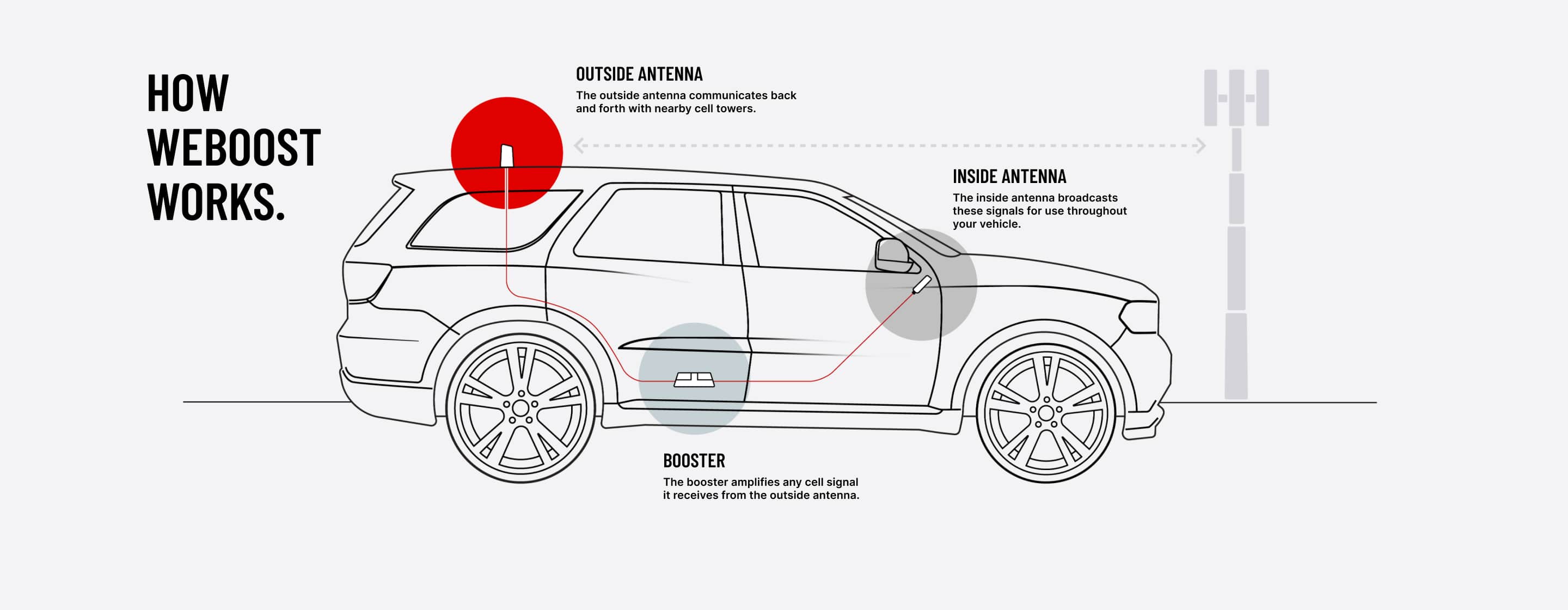

The weBoost Drive Reach is the most powerful vehicle booster from Wilson Electronics. It is built for drivers, field crews and fleet operators who lose calls and data on rural highways, forest roads and mountain routes. A low-profile magnetic outside antenna on the roof picks up signal from distant towers. The booster amplifies it by up to 50 dB, and a slim inside antenna rebroadcasts it to every device in the cabin. The same path carries each device's signal back to the tower, so outgoing calls and uploads benefit as well.

weBoost rates the Drive Reach to reach towers up to 2X farther than standard models and up to 74% farther than the Drive X. It also raises uplink output power by almost 5 dB. It covers Band 12/17 and Band 13 (700 MHz), Band 5 (850 MHz), Band 4 (1700/2100 MHz) and Band 25/2 (1900 MHz). It boosts all available network speeds, including 4G LTE and 5G. Verizon, AT&T, T-Mobile, UScellular and more than 90 regional carriers are boosted simultaneously, with no app or phone setup required. The booster amplifies existing signal. It cannot create coverage where no tower is within reach.

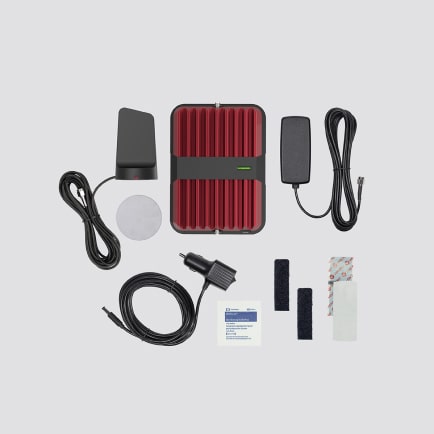

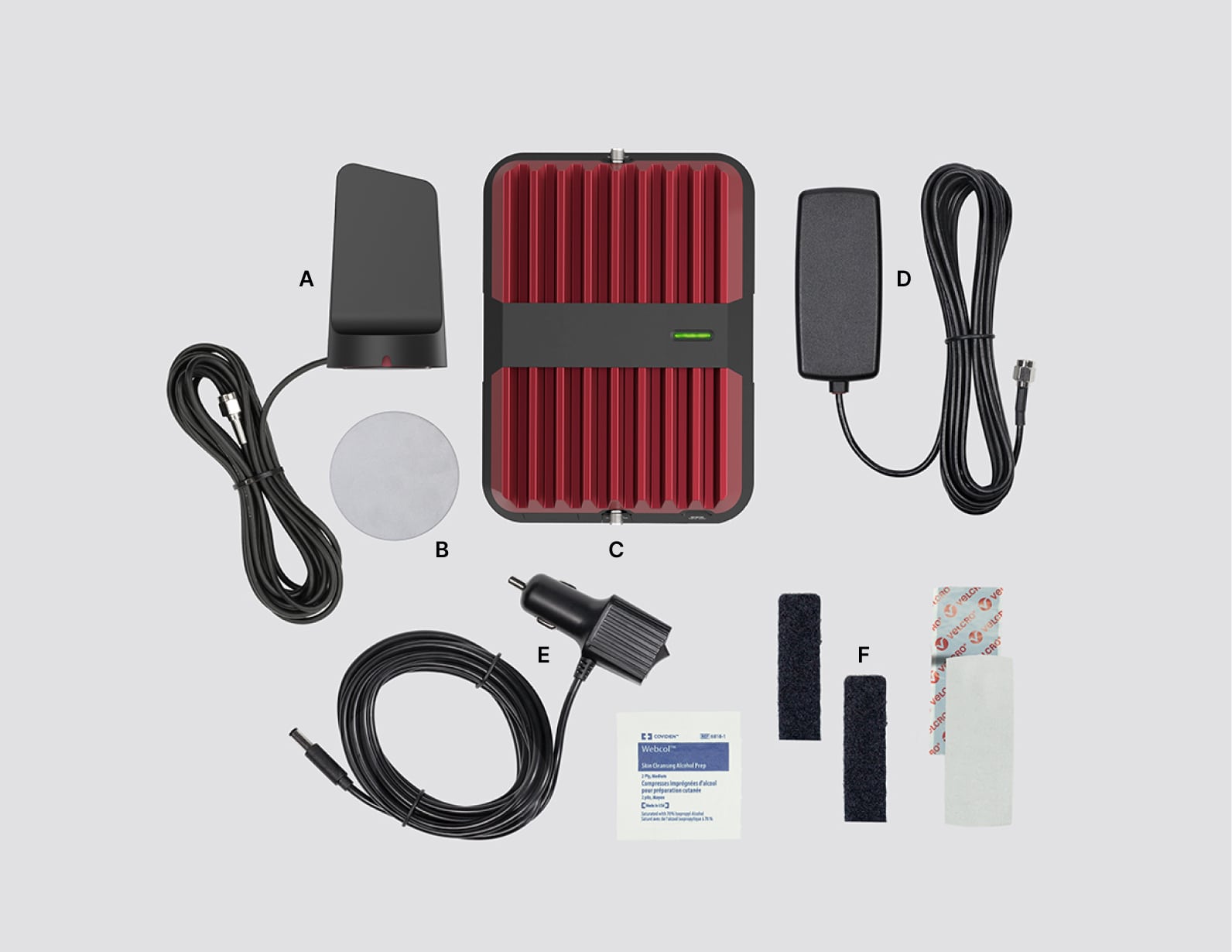

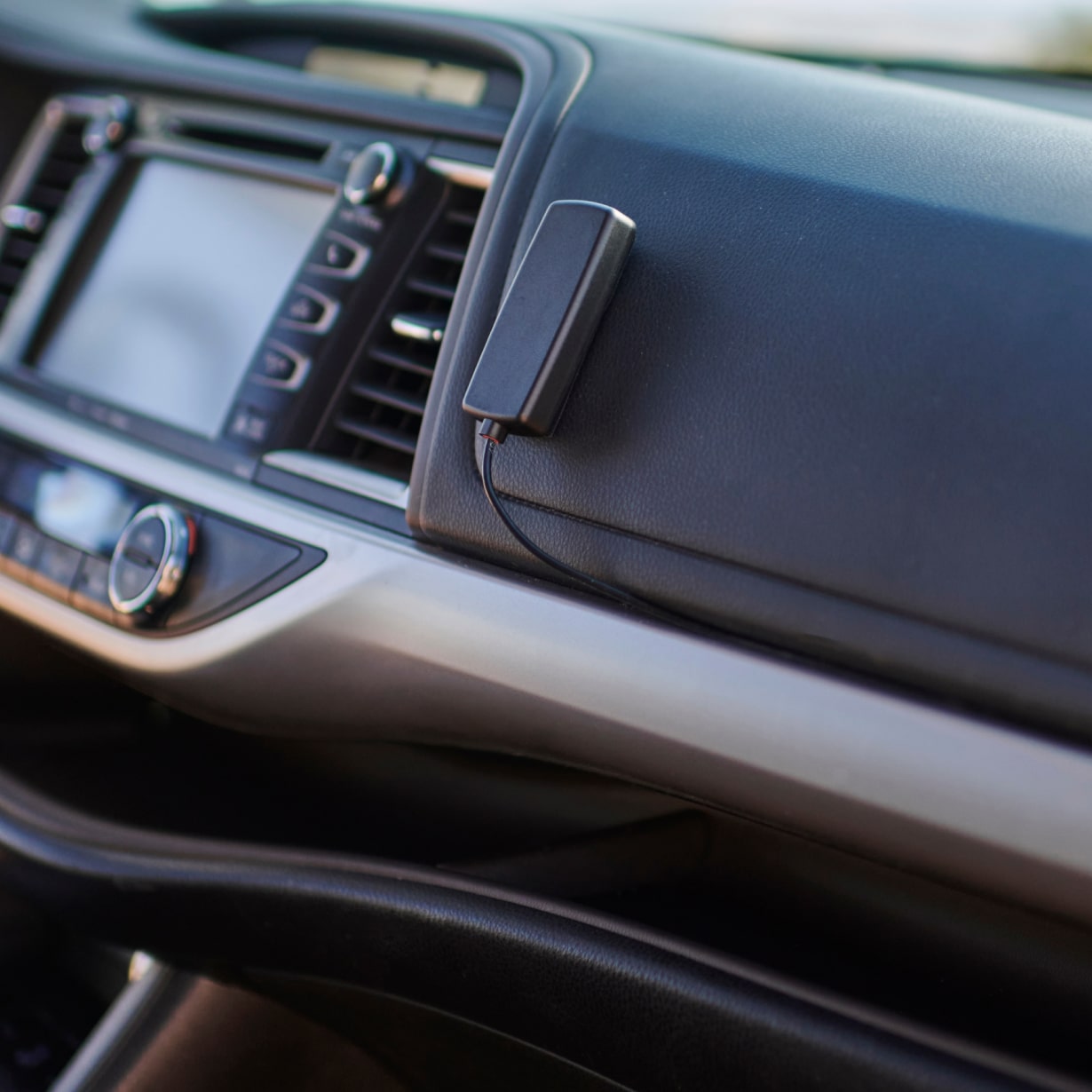

The kit includes the booster, the Drive Magnetic Outside Antenna (311216), the Slim Low Profile Inside Antenna (314401) and the 12V power supply (850029). Installation is tool-free: • Place the magnetic antenna on the roof. • Route the cable through a door jamb. • Mount the inside antenna on the dash. • Secure the booster under or behind a seat. • Plug into the 12V outlet.

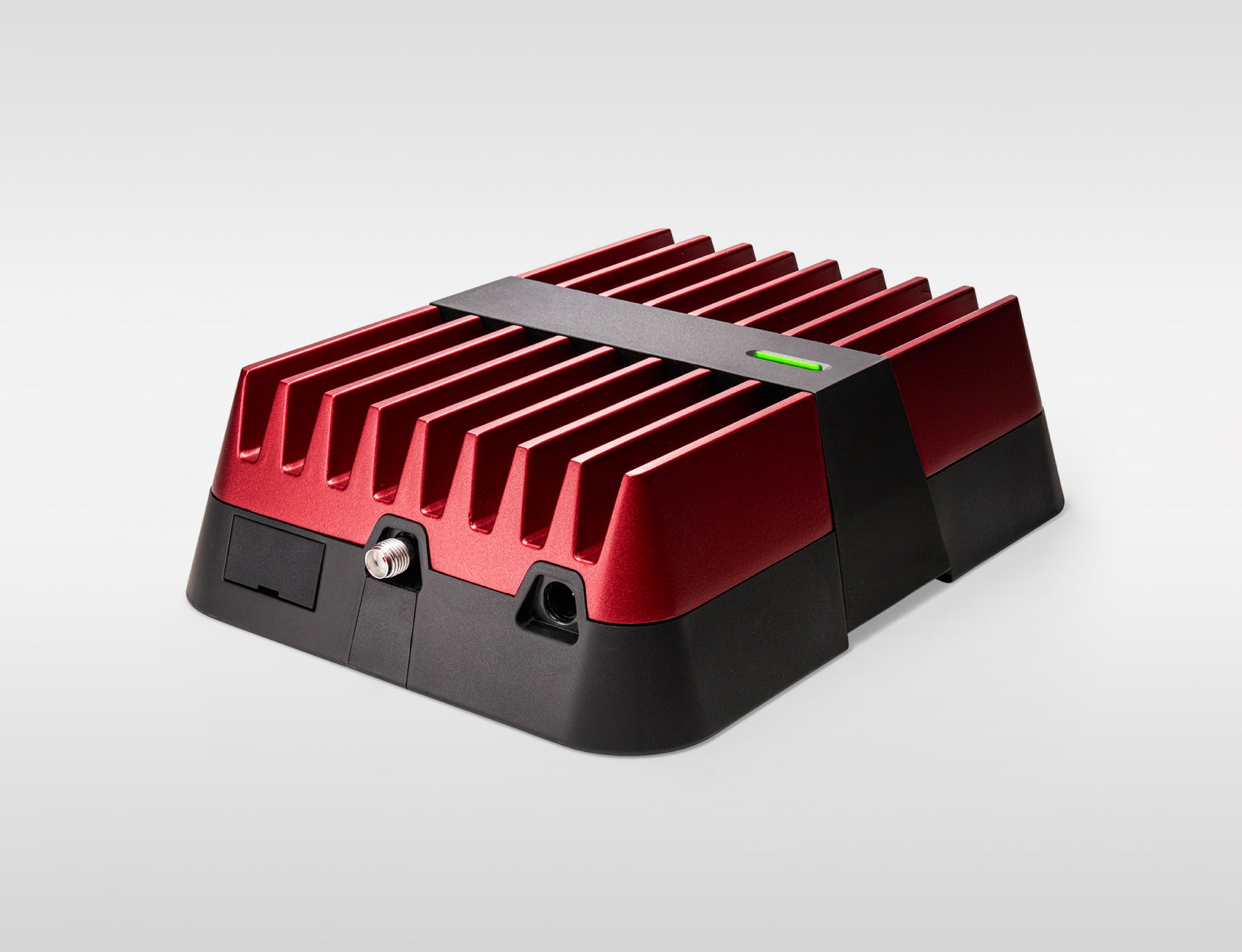

SMA female connectors hold the antenna cables securely, and the finned metallic red housing dissipates heat. A spec sheet and installation guide are available for the kit. The weBoost App adds how-to videos and before-and-after signal readings. weBoost backs the booster with a 2-year warranty.

Ideal for

  • Staying connected on rural highways and remote routes with weak cell coverage
  • Field service and utility crews working from trucks and vans away from towers
  • Road trips and family travel with multiple passengers on different carriers
  • Mobile workers running a phone hotspot from the vehicle
  • Navigation, calls and messaging in forests and mountainous terrain

Specifications

General

MPN
470154
UPC
811815029618
Brand
Wilson Electronics
Product Line
weBoost
Product Name
Drive Reach
Product Type
In-Vehicle Cell Signal Booster Kit

Package

IN The Box
Drive Reach Booster (470154), Drive Magnetic Outside Antenna (311216), Slim Low Profile Inside Antenna (314401), Power Supply (850029)
Package Weight
2.5 lbs
Package Dimensions
4.3 x 5.6 x 7.9 in
Master Carton 3 Pack
13.75 x 9 x 7 in, 11 lbs
Master Carton 10 Pack
22 x 18 x 8 in, 21.9 lbs

Support

Warranty
2-year manufacturer warranty

Compatibility

Devices
Phones, tablets, mobile hotspots and other cellular devices
Carriers
All U.S. carriers simultaneously (Verizon, AT&T, T-Mobile, UScellular, 90+ regional carriers)
Vehicles
car, truck, van or SUV
Network Speeds
All available network speeds, including 4G LTE and 5G

Specifications

Power
12V, 1.8A
Max Gain
50 dB
Frequency
Band 12/17 700 MHz; Band 13 700 MHz; Band 5 850 MHz; Band 4 1700/2100 MHz; Band 25/2 1900 MHz (*Band 25 newly utilized by Drive Reach)
Impedance
50 Ohm
Connectors
SMA Female
Model Number
470154
Booster Weight
1.80 lbs
Booster Dimensions
6 x 4.5 x 1.5 in

Performance BY Distance TO Tower

Long
Good talk/text/data
Short
Max performance
Medium
Better talk/text/data
Out OF Range
None

Questions buyers ask

Does the Drive Reach work with Verizon, AT&T and T-Mobile?

Yes. It boosts all U.S. carriers simultaneously, including Verizon, AT&T, T-Mobile, UScellular and more than 90 regional carriers. It covers all available network speeds, including 4G LTE and 5G.

Will it work where I have zero bars?

The Drive Reach amplifies existing weak signal. It cannot create signal in a true dead zone where no tower is reachable. In areas with even very weak signal, it can deliver usable talk, text and data.

How is the Drive Reach installed?

Installation is tool-free and takes about 15-20 minutes. Place the magnetic antenna on the roof, using the included adhesive disk for aluminum roofs. Route the cable through a door jamb and mount the inside antenna on the dash. Secure the booster under or behind a seat, then plug it into the 12V outlet.

Why is the booster light red or blinking red?

A red light means the booster has detected oscillation, usually because the inside and outside antennas are too close. Unplug the booster and increase the distance between the two antennas. Then reconnect power and wait for a solid green light.

Does it boost Starlink or other satellite internet?

No. The Drive Reach only amplifies cellular signals from carrier towers. It can be used in the same vehicle as a satellite service to keep calls, texts and mobile data reliable.
