Compulocks Bow Tilting Wall Mount with Apex Enclosure for Galaxy Tab S9/S9 FE/S10 FE/S10 Lite/S11 - Black

MPN 505B109GAPXB
  • Wall

Fits Galaxy Tab S9, Galaxy Tab S9 FE, Galaxy Tab S10 FE, Galaxy Tab S11

$187.58$209.00Save $21.42

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

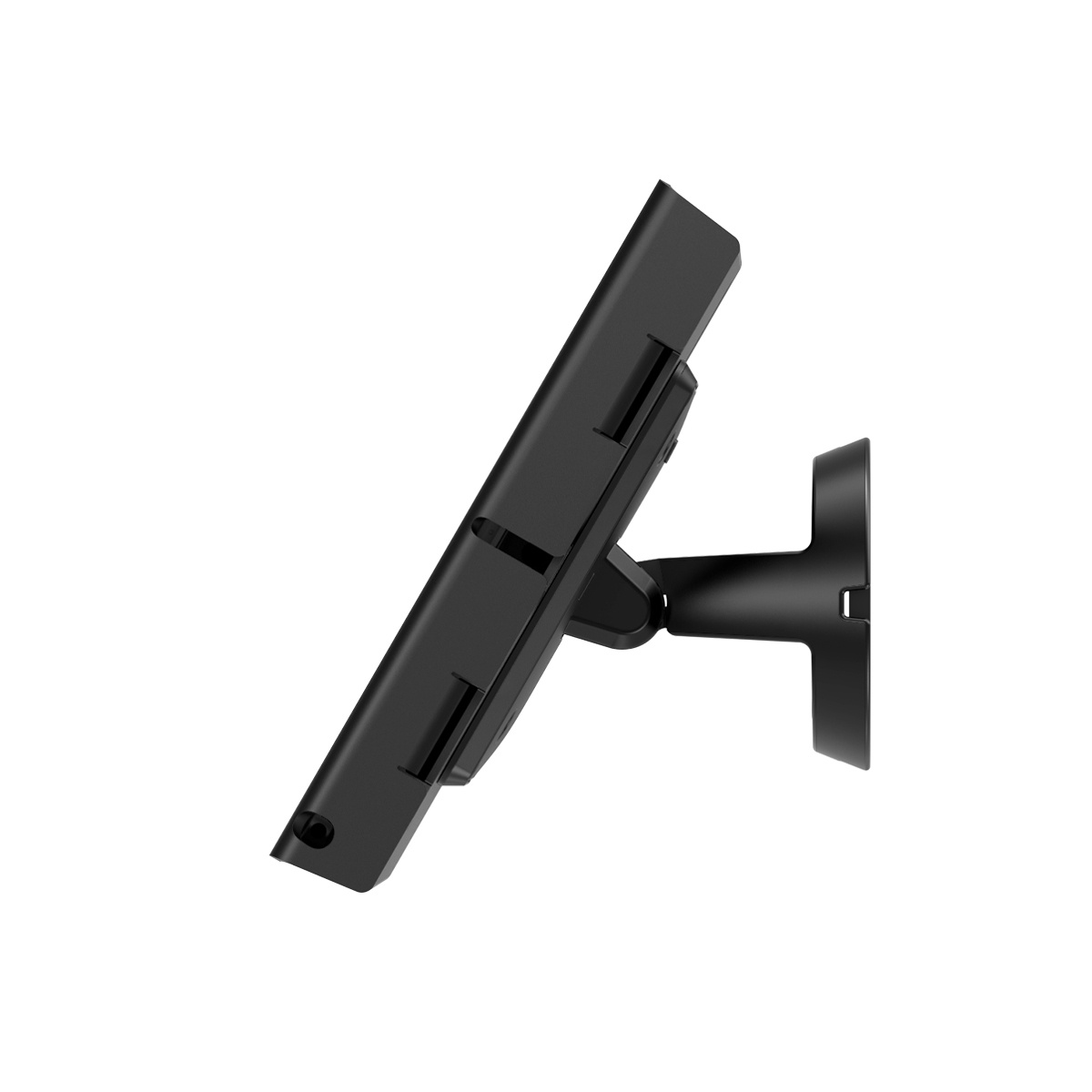

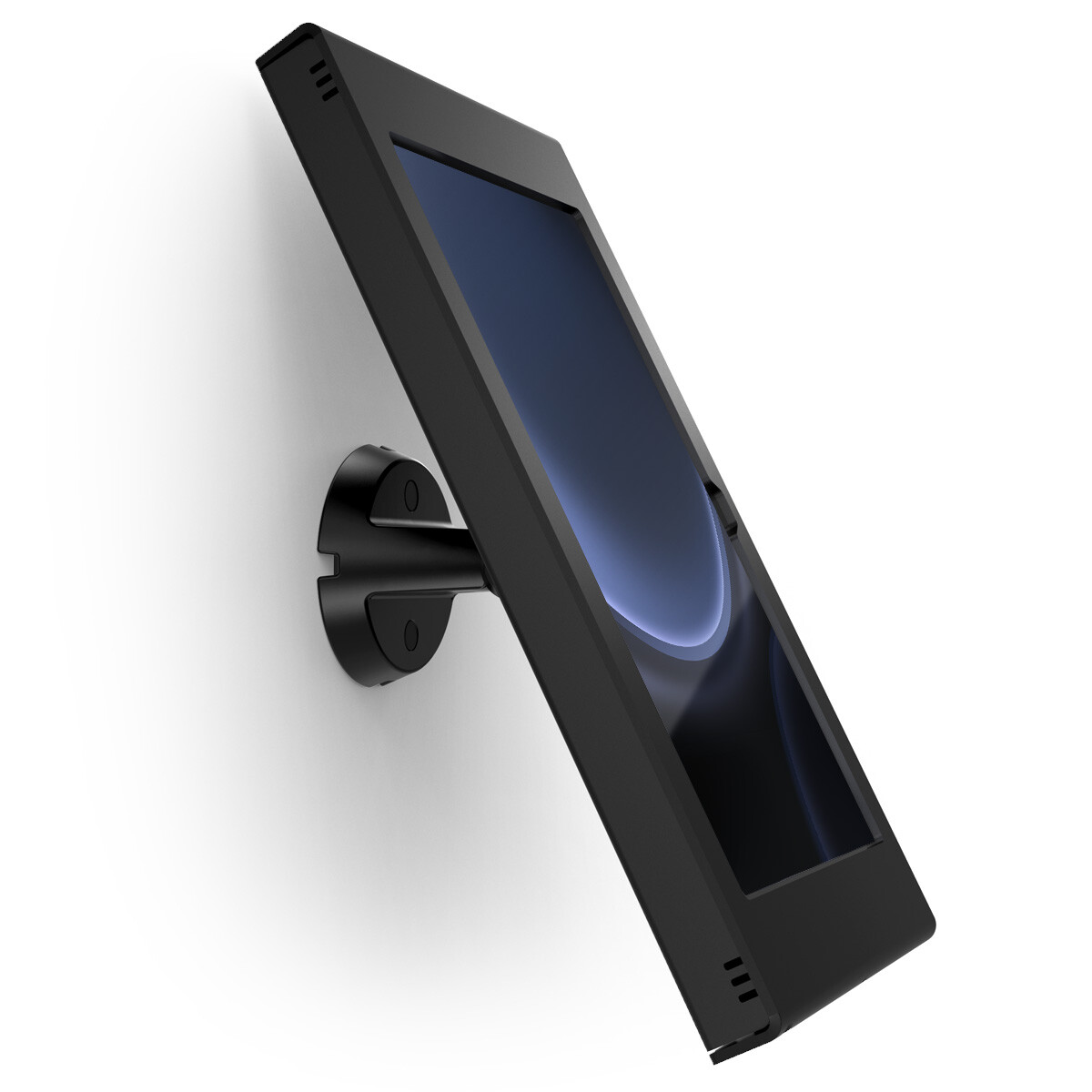

The Compulocks 505B109GAPXB combines the Bow VESA tilting wall mount with a black Apex enclosure. The enclosure fits the Galaxy Tab S9, S9 FE, S10 FE, S10 Lite and S11. The aluminum Bow arm tilts through 130° and pans, and it holds the tablet 4 inches from the wall in an ADA-compliant profile. The keyed Apex frame secures the tablet while leaving its cameras and sensors usable. Cables run through the arm so the tablet stays charged.

  • Bundle of Compulocks 505B Bow VESA Tilting Wall Mount and 109GAPXB Apex enclosure, both black
  • Fits Galaxy Tab S9, S9 FE, S10 FE, S10 Lite and S11 (models listed by SM number)
  • 130° tilt range with panning and hinge tension adjustment
  • Holds the tablet 4 inches from the wall in an ADA-compliant profile
  • Through-arm cable management with up to four base exit points
  • Metal Apex frame with individually keyed quick lock; cameras and sensors exposed

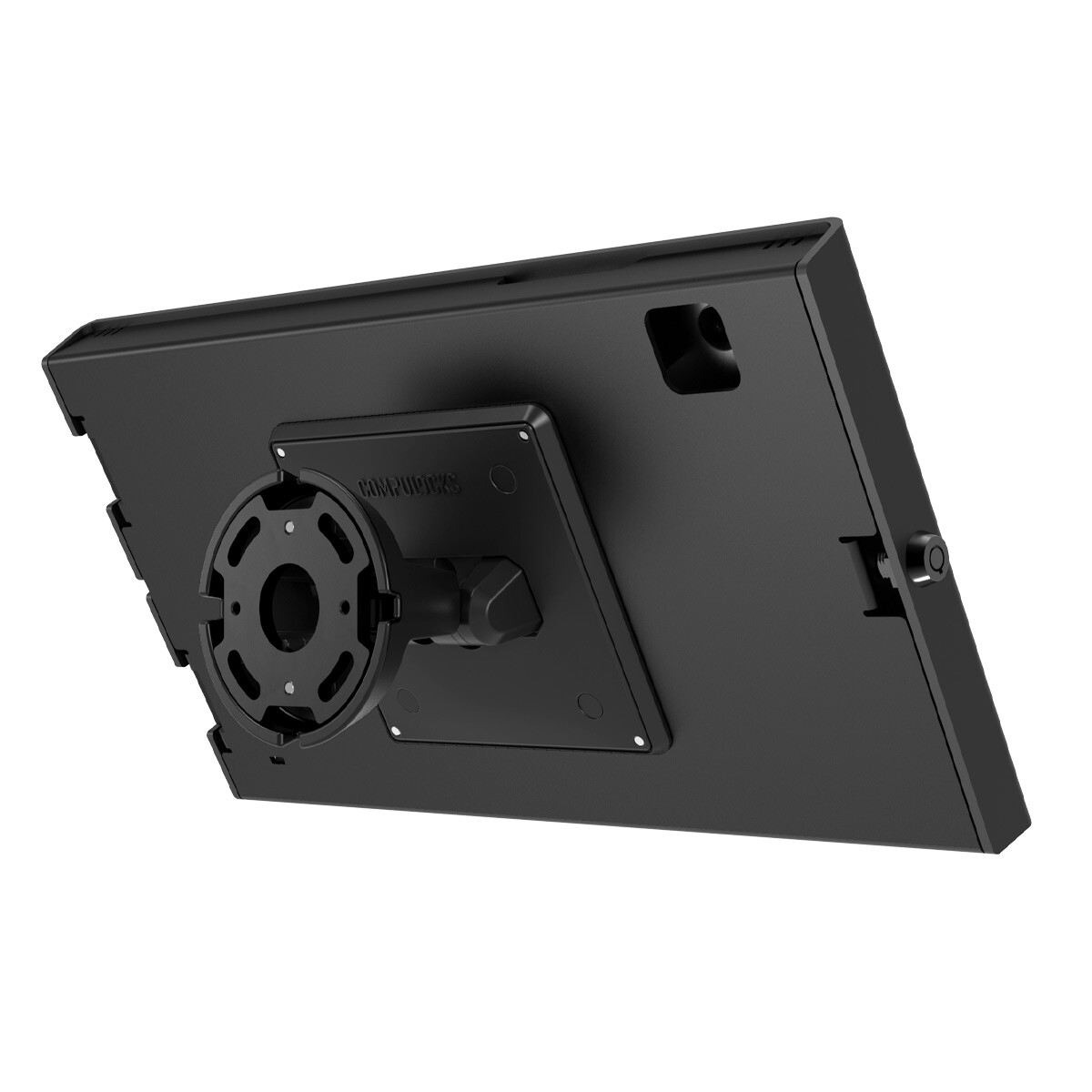

  • 75 x 75 mm and 100 x 100 mm VESA, 4-screw wall pattern, lock slot, portrait or landscape
  • Angle the screen toward standing or seated users and lock it in place

The Compulocks 505B109GAPXB is a Samsung Galaxy Tab tilting wall mount. It bundles two parts: the 505B VESA Tilting Wall Mount (Bow) in black and the 109GAPXB Apex Secured Enclosure Wall Mount in black. The enclosure supports five 10.9- and 11-inch Galaxy Tab models: - Galaxy Tab S9 FE (SM-X516B, SM-X510) - Galaxy Tab S10 FE (SM-X520, SM-X526, SM-X526B) - Galaxy Tab S10 Lite (SM-X400, SM-X406, SM-X406B) - Galaxy Tab S9 (SM-X716B, SM-X710) - Galaxy Tab S11 (SM-X730, SM-X736, SM-X736B)

The Bow mount is made from durable aluminum. It offers a 130° tilt range plus panning, and easy-access hinge tension adjustments let you hold the display at the angle you set. With an enclosure fitted, the tablet sits 4 inches from the wall, which meets ADA accessibility standards. Cables route through the arm, with up to four exit points at the base or a center-base option. The mount has a 4-screw wall pattern, 75 x 75 mm and 100 x 100 mm VESA support and an integrated lock slot. The display can be installed in portrait or landscape.

The Apex enclosure has a metal frame with individually keyed quick lock-and-unlock access. Dedicated openings for charging cables keep the tablet powered, and the front and rear cameras and sensors stay fully functional. A keyed-alike upgrade and, for bulk customers, a master key are available.

The bundle comes with product sheets for both parts and installation instructions. It suits customer-facing check-in points, wayfinding screens and patient-room tablets.

Ideal for

  • Patient-room or nurse-station tablet in hospitals and clinics
  • Self-service check-in at reception desks
  • Wall-mounted wayfinding or signage screen
  • Meeting room scheduling display
  • Retail or hospitality customer-feedback kiosk

Specifications

General

MPN
505B109GAPXB
UPC
810157342645
Brand
Compulocks
Color
Black
Product Name
Samsung Galaxy Tab Tilting Wall Mount
Bundle Contents
505B Bow Tilting Wall Mount + 109GAPXB Apex Enclosure
Enclosure Family
Apex

Package

Documents
Product Sheets and Installation Instructions
Shipping Weight
3.35 lbs

Mount 505b

Pan
Yes
Sku
505B
UPC
810157341198
Name
VESA Tilting Wall Mount - Black
Colour
Black
Weight
1.35 lbs
Material
Aluminum
Security
Integrated Lock Slot
Tilt Range
130°
Orientation
Portrait or Landscape
Ada Compliant
Yes
Wall Distance
Distance from Wall (with enclosure): 4 in
Cable Management
Through-Arm Routing, Up to 4 Base Exits
Mounting Pattern
4-Screw Wall Mounting Pattern
Compatible Devices
100 x 100 mm and 75 x 75 mm VESA

Product Sheets

Bow Sku
505B (Black), 505W (White)
Apex Sku
109GAPXB (Black), 109GAPXW (White)
Bow Weight
1.04 lb
Apex Weight
1.25 lb
Bow Version
REV E
Apex Version
REV A
Apex Tablet Model
Galaxy Tab S11 (2025), S9 (2023), S10 FE (2025)

Enclosure 109gapxb

Sku
109GAPXB
UPC
810157340214
Lock
Individually Keyed Quick Lock/Unlock
Name
Galaxy Tab S9/S9FE/S10FE/S10 Lite/S11 Apex Secured Enclosure - Black
Colour
Black
Weight
1.60 lbs
Charging
Charging Cable Openings
Camera Access
Front/Rear Cameras and Sensors Exposed
Galaxy Tab Model
Galaxy Tab S9/S9 FE/S10 FE/S10 Lite/S11
Compatible Devices
Galaxy Tab S9 FE, S10 FE, S10 Lite, S9, S11

Questions buyers ask

Which Galaxy Tab models does this fit?

Galaxy Tab S9 FE (SM-X516B, SM-X510), S10 FE (SM-X520, SM-X526, SM-X526B), S10 Lite (SM-X400, SM-X406, SM-X406B), S9 (SM-X716B, SM-X710) and S11 (SM-X730, SM-X736, SM-X736B).

How far does the mount adjust?

The Bow arm tilts through 130° and pans. Hinge tension adjustments hold the display at the angle you set.

Is it ADA-compliant?

Yes. With an enclosure fitted, the tablet sits 4 inches from the wall, which meets ADA accessibility standards.

How are cables handled?

Cables route through the arm, with up to four exit points at the base or a center-base option. The Apex enclosure has openings for charging cables.

Can it be installed in portrait?

Yes. It can be mounted in portrait or landscape orientation.
