CompulocksAccessories

Compulocks Bow Tilting Wall Mount with Swell Enclosure for Galaxy Tab A9+/A11+ 11" - Black

MPN 505B11GSWL9B
  • Wall

Fits Galaxy Tab A9+

$166.06$185.00Save $18.94

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

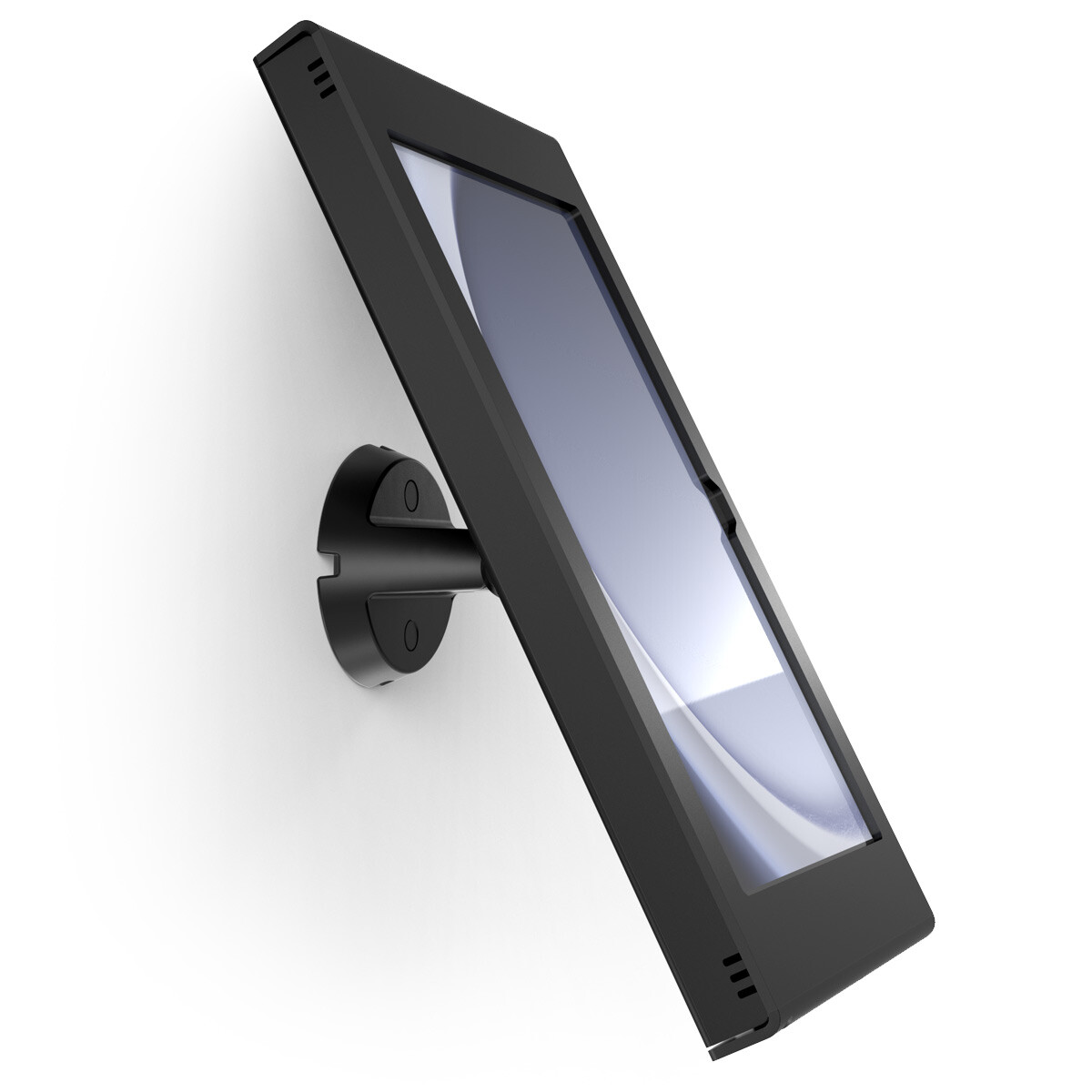

The Compulocks 505B11GSWL9B pairs the Bow VESA tilting wall mount with a black Swell enclosure for the Galaxy Tab A9+ and Galaxy Tab A11+ 11-inch tablets. Swell closes with two tamper-resistant security screws for a fixed, minimal installation. The aluminum Bow arm tilts through 130°, pans, and holds the tablet 4 inches from the wall in an ADA-compliant profile. Cameras stay exposed, and cables run through the arm for continuous charging.

  • Bundle of Compulocks 505B Bow VESA Tilting Wall Mount and 11GSWL9B Swell enclosure, both black
  • Fits Galaxy Tab A9+ (SM-X210, SM-X215, SM-X216B) and Galaxy Tab A11+ (SM-X230, SM-X235, SM-X236B)
  • Swell enclosure closed with two tamper-resistant security screws; matching driver included
  • Front and rear cameras exposed, with routing for continuous charging
  • 130° tilt range with panning and hinge tension adjustment
  • ADA-compliant 4-inch wall profile with through-arm cable management
  • Fixed, tool-secured installation suits high-traffic public spaces
  • Minimal, close-fitting frame keeps the display looking clean and professional

The Compulocks 505B11GSWL9B is a Samsung Galaxy Tab tilting wall mount built around the Swell enclosure family. It bundles two parts: the 505B VESA Tilting Wall Mount (Bow) in black and the 11GSWL9B Galaxy Tab A9+/A11+ 11" Swell Secured Enclosure Wall Mount in black, locked with screws. It fits the Galaxy Tab A9+ (2023; SM-X210, SM-X215, SM-X216B) and the Galaxy Tab A11+ (2025; SM-X230, SM-X235, SM-X236B).

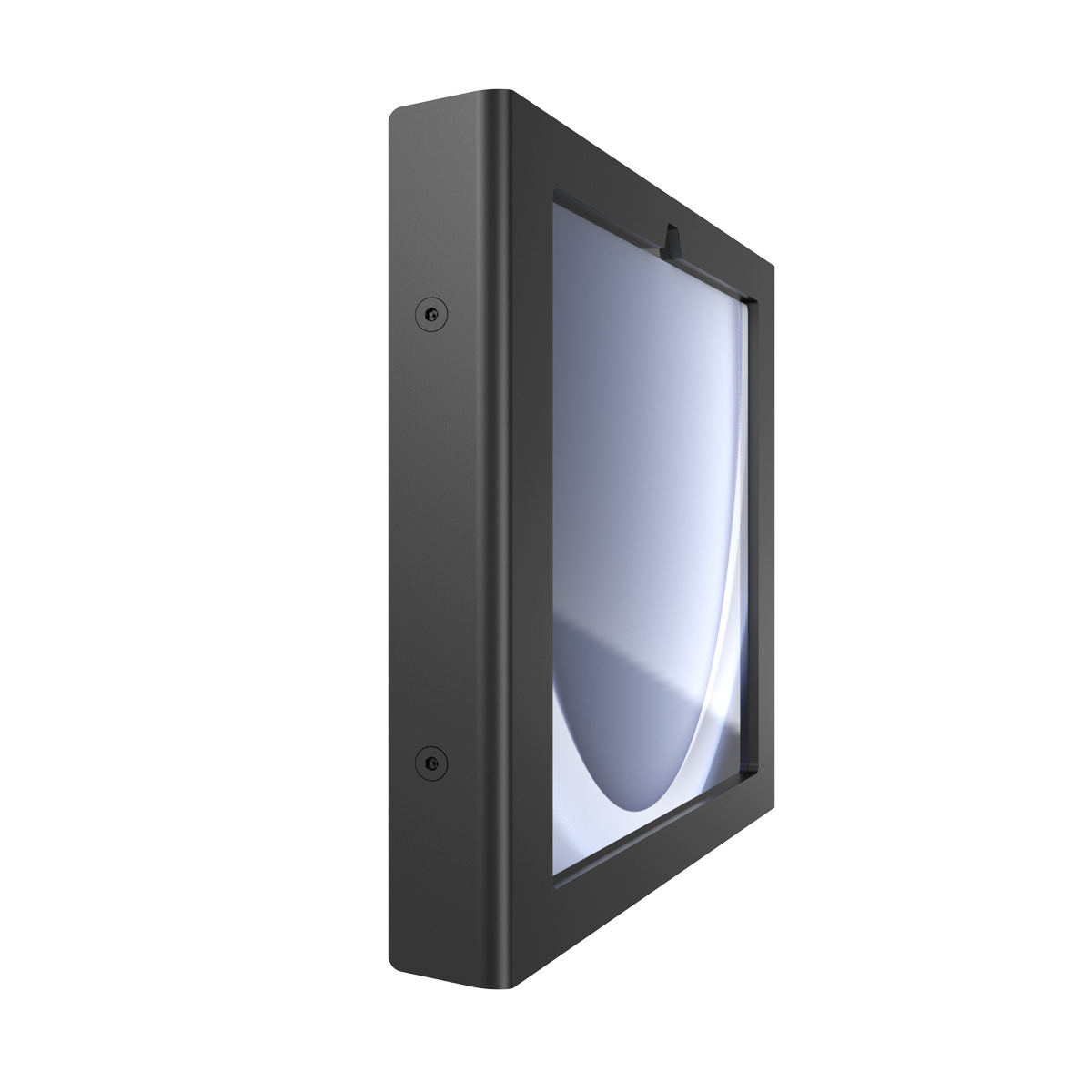

Swell has a minimalist, close-fitting metal frame. It is closed with two tamper-resistant screws that have a unique security head, and the matching driver is included. The screws lock into reinforced points for a rigid installation. That makes Swell the better fit where the tablet stays put and a refined look matters. The front and rear cameras remain visible, and the enclosure includes routing for continuous charging while mounted.

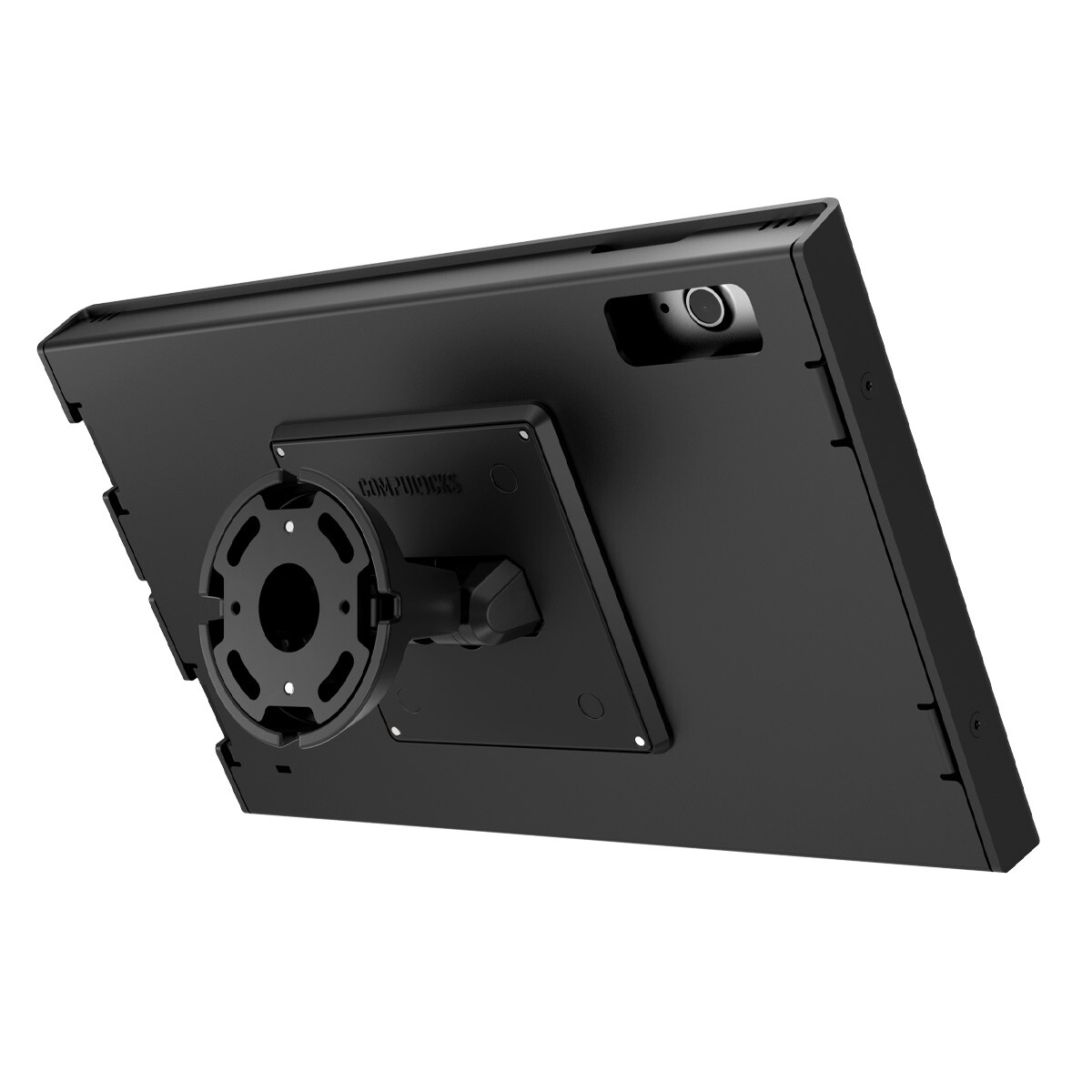

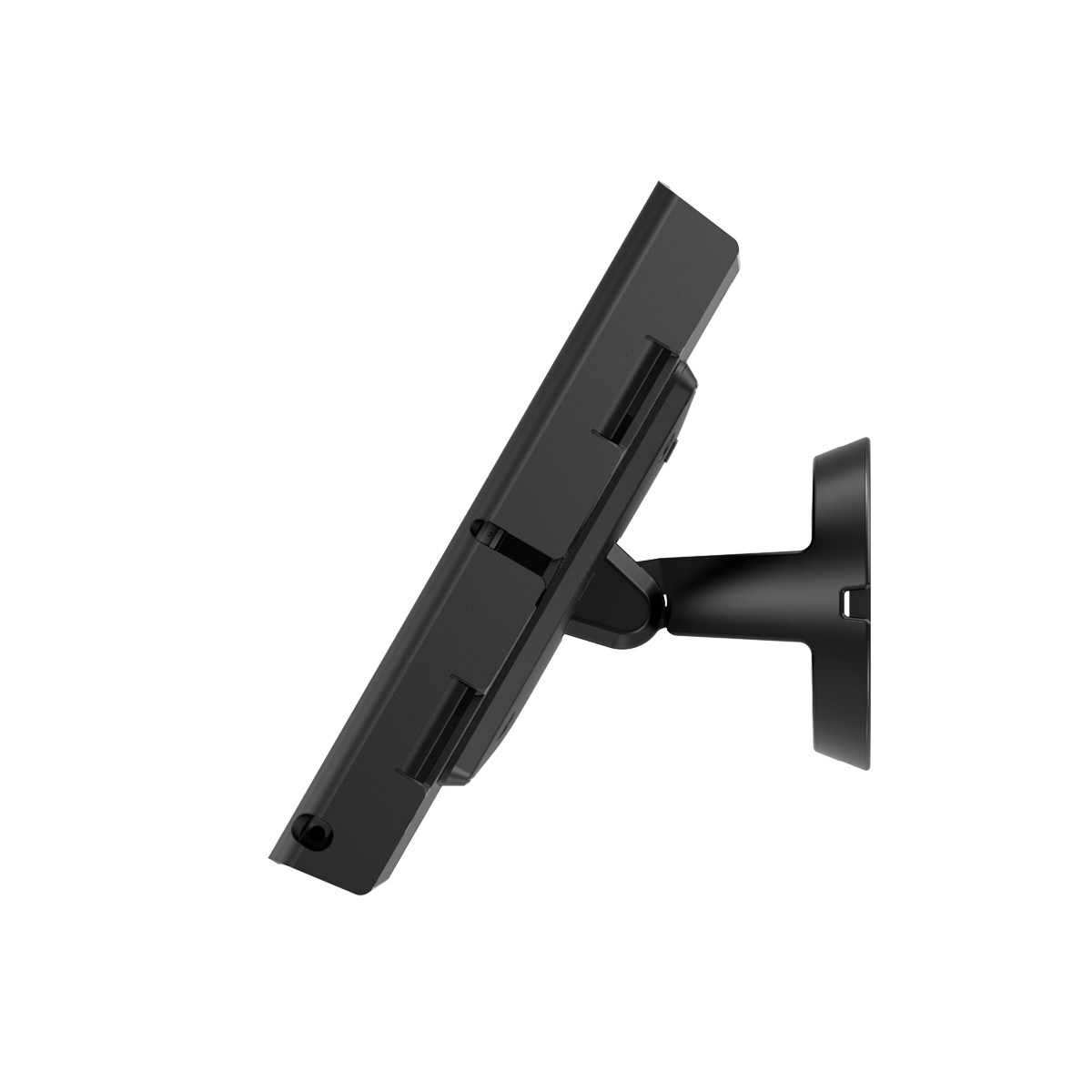

The Bow mount is made from durable aluminum. It tilts through 130°, pans, and offers hinge tension adjustments. With the enclosure fitted, the tablet sits 4 inches from the wall, which meets ADA accessibility standards. Cables route through the arm to up to four exit points at the base, or through a center-base option. The mount uses a 4-screw wall pattern, supports 75 x 75 mm and 100 x 100 mm VESA and has an integrated lock slot. Portrait or landscape installation is supported.

Product sheets for both parts and installation instructions accompany this bundle.

Ideal for

  • Permanent public check-in or information kiosk
  • Hotel lobby or retail wall display
  • Healthcare waiting-room or patient-room tablet
  • Corporate wayfinding and room signage
  • Customer-feedback station in high-traffic areas

Specifications

General

MPN
505B11GSWL9B
UPC
810157342898
Brand
Compulocks
Color
Black
Product Name
Samsung Galaxy Tab Tilting Wall Mount
Bundle Contents
505B Bow Tilting Wall Mount + 11GSWL9B Swell Enclosure
Enclosure Family
Swell

Package

Documents
Product Sheets and Installation Instructions
Shipping Weight
3.65 lbs

Mount 505b

Pan
Yes
Sku
505B
UPC
810157341198
Name
VESA Tilting Wall Mount - Black
Colour
Black
Weight
1.35 lbs
Material
Aluminum
Security
Integrated Lock Slot
Tilt Range
130°
Orientation
Portrait or Landscape
Ada Compliant
Yes
Wall Distance
Distance from Wall (with enclosure): 4 in
Cable Management
Through-Arm Routing, Up to 4 Base Exits
Mounting Pattern
4-Screw Wall Mounting Pattern
Compatible Devices
100 x 100 mm and 75 x 75 mm VESA

Product Sheets

Bow Sku
505B (Black), 505W (White)
Swell Sku
11GSWL9B (Black), 11GSWL9W (White)
Bow Weight
1.04 lb
Bow Version
REV E
Swell Weight
1.30 lb
Swell Version
REV A
Swell Tablet Model
Galaxy Tab A11+ (2025); Galaxy Tab A9+ (2023)

Enclosure 11gswl9b

Sku
11GSWL9B
UPC
810157342232
Name
Galaxy Tab A9+/A11+ 11" Swell Secured Enclosure - Black (Locked with Screws)
Colour
Black
Weight
2.30 lbs
Charging
Continuous Charging Cable Routing
Security
2 Tamper-Resistant Screws, Driver Included
Camera Access
Front/Rear Cameras Exposed
Galaxy Tab Model
Galaxy Tab A9+/A11+ 11" (Locked with Screws)
Compatible Devices
Galaxy Tab A9+ (SM-X210, SM-X215, SM-X216B); A11+ (SM-X230, SM-X235, SM-X236B)

Questions buyers ask

Which tablets does this fit?

The Galaxy Tab A9+ 11" (SM-X210, SM-X215, SM-X216B) and Galaxy Tab A11+ 11" (SM-X230, SM-X235, SM-X236B).

How is the Swell enclosure secured?

It closes with two tamper-resistant screws that have a unique security head. The matching driver is included, and the screws lock into reinforced points.

Can the tablet charge and use its cameras?

Yes. The front and rear cameras stay visible, and the enclosure includes routing for continuous charging while mounted.

How is Swell different from Apex?

Swell is a minimalist, screw-secured enclosure intended for fixed installations. Apex uses a keyed quick lock for faster tablet access.

Does the mount tilt?

Yes. The Bow arm tilts through 130°, pans, and has hinge tension adjustments.
