Compulocks Apex Bow Tilting Wall Mount for Galaxy Tab S10 FE+ 13.1-Inch - Black

MPN 505B131GAPXB
  • Wall

Fits Galaxy Tab S10 FE+

$204.92$229.00Save $24.08

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

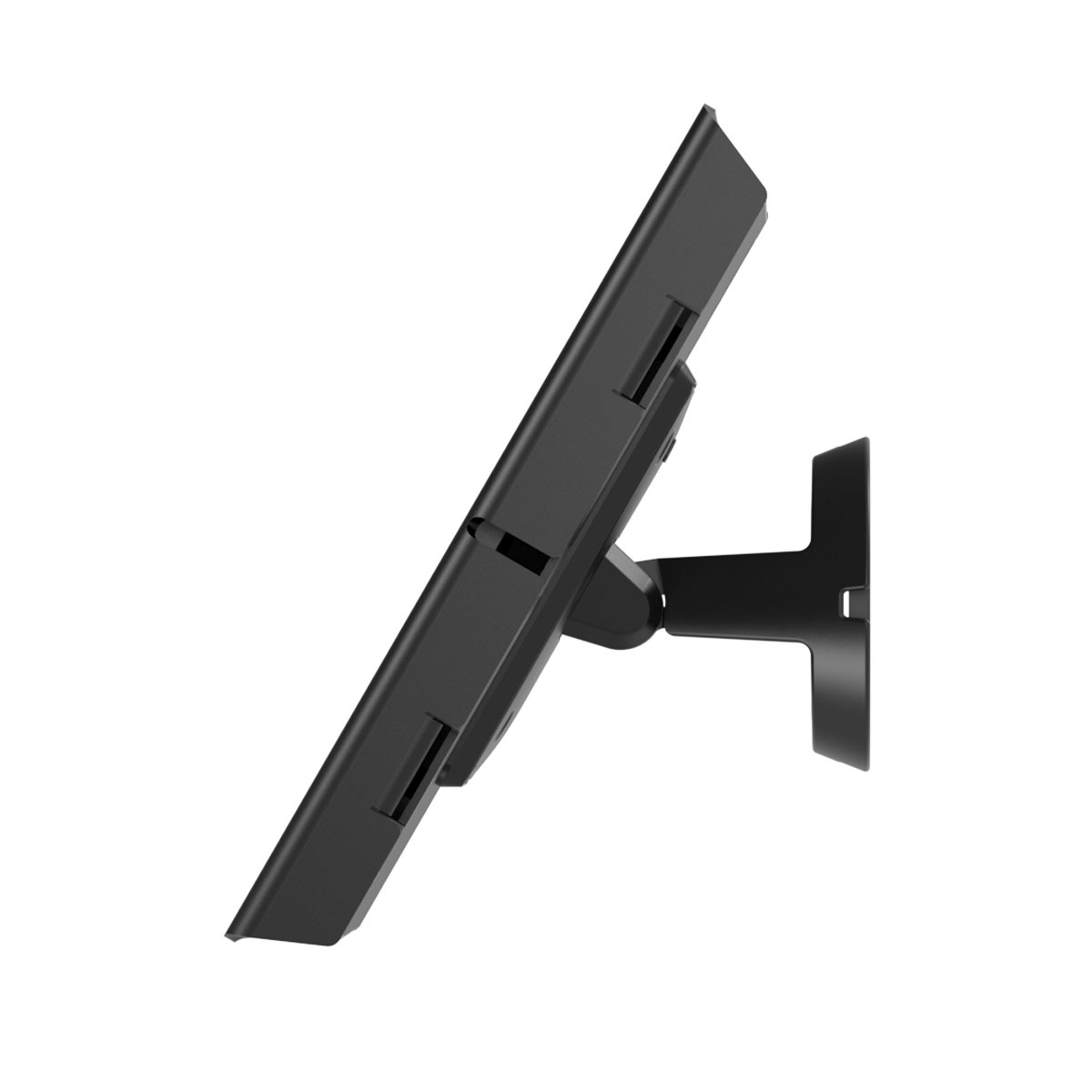

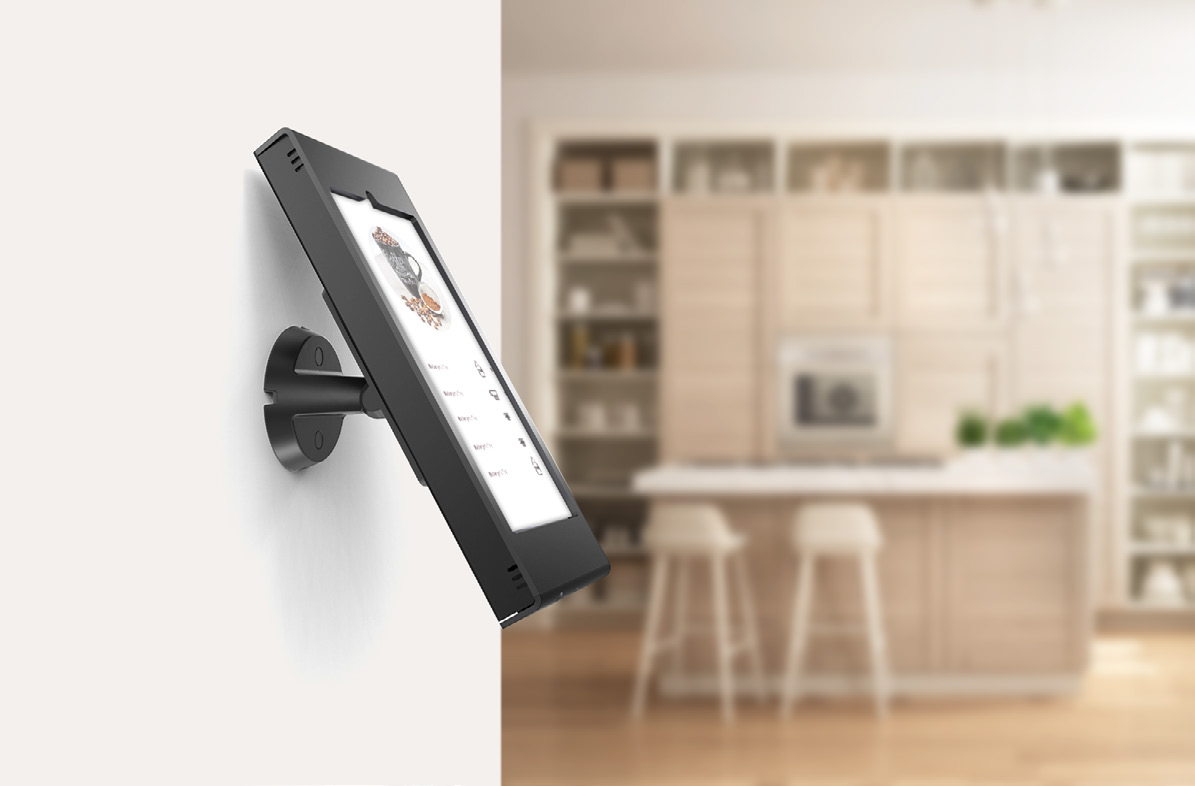

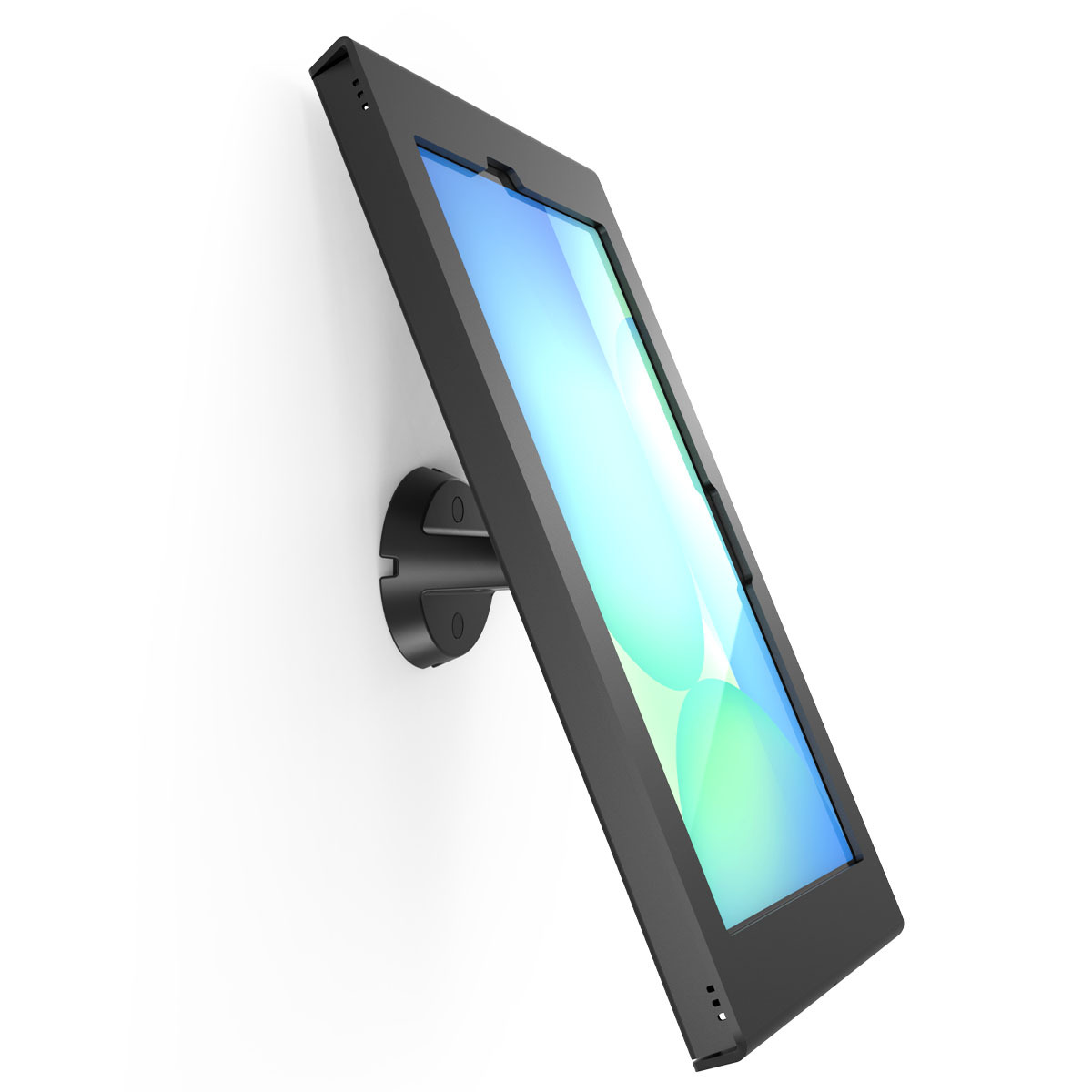

The Compulocks 505B131GAPXB pairs the Apex secured enclosure for the Samsung Galaxy Tab S10 FE+ 13.1" with the aluminum Bow tilting wall mount. It gives you a locked, wall-mounted tablet display with 130° tilt and panning. The ADA-compliant profile holds the tablet 4 inches from the wall. Cables run through the arm so the tablet stays charged, and the front and rear cameras and sensors stay exposed.

  • Apex secured enclosure for Galaxy Tab S10 FE+ 13.1" (SM-X620, SM-X626, SM-X626B)
  • Quick keyed lock and unlock with individually keyed enclosures and a T-bar lock slot
  • Aluminum Bow wall mount with 130° tilt, panning and hinge tension adjustment
  • ADA-compliant profile that holds the tablet 4 inches from the wall
  • Through-arm cable management with up to four base exit points for continuous charging
  • 75 x 75 mm and 100 x 100 mm VESA compatible with a 4-screw wall mounting pattern
  • Keeps a shared Galaxy Tab S10 FE+ locked to the wall and protected from casual removal
  • Lets you angle the screen for standing or seated users and hold it in place with tension adjustment

The Compulocks 505B131GAPXB is a two-part bundle for businesses that need a Galaxy Tab S10 FE+ fixed securely to a wall. It combines the 505B VESA Tilting Wall Mount, known as the Bow, with the 131GAPXB Apex Secured Enclosure. The enclosure is built for the Galaxy Tab S10 FE+ 13.1" (2025) and fits models SM-X620, SM-X626 and SM-X626B. The finish is black.

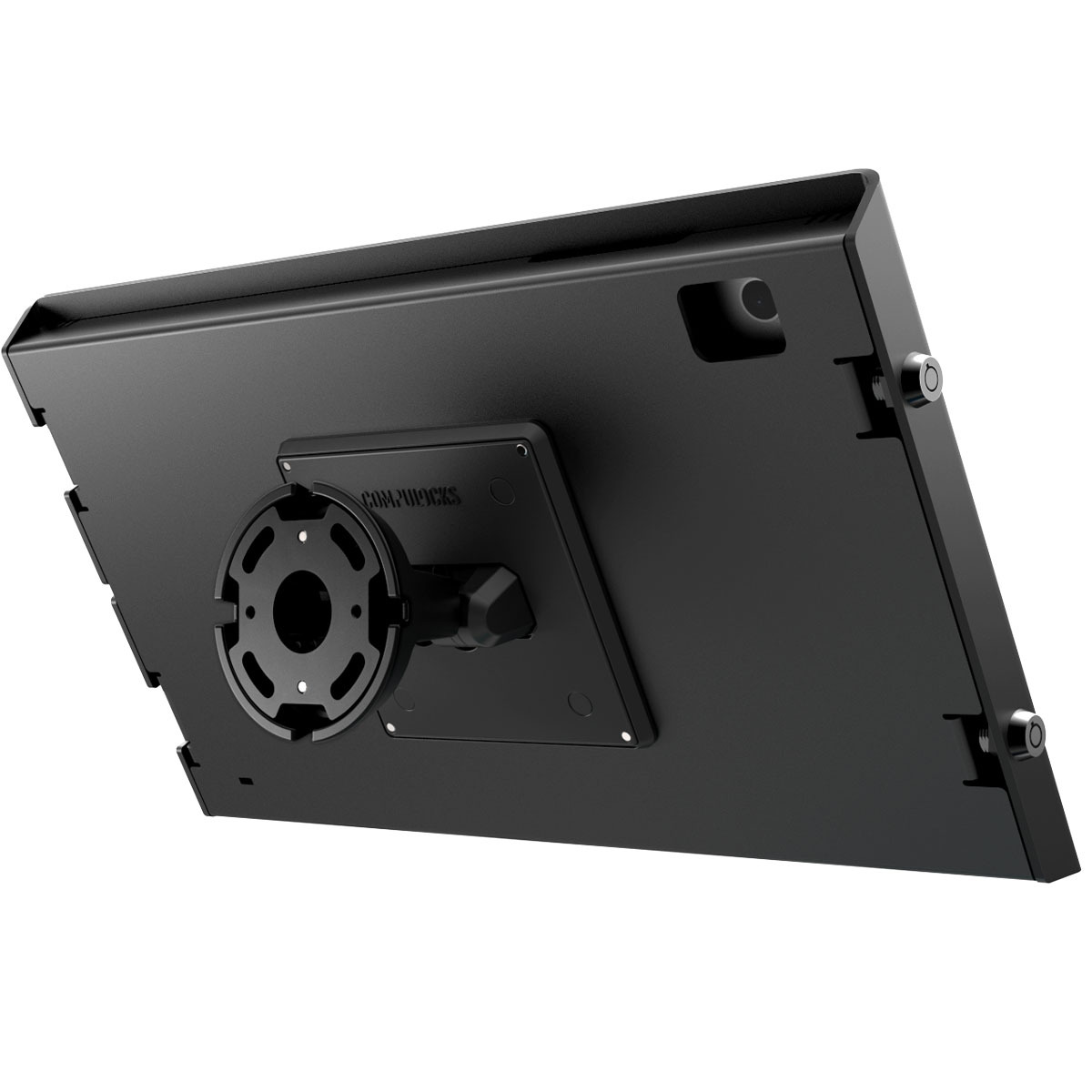

The Apex enclosure frames the tablet in a sleek metal frame with quick keyed lock and unlock. Each enclosure is individually keyed, and a T-bar lock slot adds another layer of security. Dedicated openings for charging cables let the tablet charge continuously while mounted. The front and rear cameras and sensors stay exposed, so check-in, scanning and video apps keep working.

The Bow mount is made from durable aluminum. It tilts through 130° and pans, and easy-access hinge tension adjustments hold the display at the angle you set. When paired with the enclosure, it positions the tablet just 4 inches from the wall, which meets ADA accessibility standards for walkways and corridors. Cables route through the arm, with up to four exit points at the base and an option for center-base routing. The mount uses a 4-screw wall pattern, supports 75 x 75 mm and 100 x 100 mm VESA and includes an integrated lock slot.

The tablet can be mounted in portrait or landscape orientation. Compulocks product sheets for both components and installation instructions are available for planning the install.

Ideal for

  • Wall-mounted visitor check-in and sign-in stations
  • Room scheduling and wayfinding displays in corridors
  • Retail product information and customer self-service points
  • Patient-room and nurse-station tablets in clinics
  • Employee time clocks and shop-floor dashboards

Specifications

General

MPN
505B131GAPXB
UPC
810157345660
Brand
Compulocks
Colour
Black
Enclosure Family
Apex
Bundle Components
505B VESA Tilting Wall Mount + 131GAPXB Apex Secured Enclosure

Package

Shipping Weight
2.60 lb

Stand Mount 505b

Sku
505B
UPC
810157341198
Name
VESA Tilting Wall Mount - Black
Colour
Black
Material
Durable aluminum
Security
Integrated lock slot
Tilt Range
130° tilt with panning
Wall Offset
4 in from wall (ADA-compliant, with enclosure)
Weight Listed
1.35 lb (as listed on compulocks.com)
Cable Management
Through-arm routing, up to 4 base exits, center-base option
Mounting Pattern
4-screw mounting pattern
Compatible Devices
100 x 100 mm and 75 x 75 mm VESA compatible

Enclosure 131gapxb

Sku
131GAPXB
UPC
810157345608
Lock
Quick keyed lock, T-bar lock slot
Name
Galaxy Tab S10 FE+ 13.1", Apex Secured Enclosure Wall Mount - Black
Colour
Black
Camera Access
Exposed front and rear cameras and sensors
Weight Listed
2.05 lb (as listed on compulocks.com)
Galaxy Tab Model
Galaxy Tab S10 FE+ 13.1"
Compatible Devices
Galaxy Tab S10 FE+ 13.1" (2025): SM-X620, SM-X626, SM-X626B

Product Sheet Bow Stand

Sku
505B (Black), 505W (White)
Weight
1.04 lb
Version
REV E

Product Sheet Apex Galaxy Tab S10 FE Plus

Sku
131GAPXB (Black), 131GAPXW (White)
Weight
1.56 lb
Version
REV A
Tablet Model
Samsung Galaxy Tab S10 FE+ 13.1" (2025)

Questions buyers ask

Which tablets does this mount fit?

It fits the Samsung Galaxy Tab S10 FE+ 13.1" (2025), models SM-X620, SM-X626 and SM-X626B.

Can I change the viewing angle after installation?

Yes. The Bow mount offers a 130° tilt range and panning. Easy-access tension adjustments hold the display at the angle you choose.

Can the tablet charge while mounted?

Yes. The Apex enclosure has dedicated openings for charging cables, and the Bow mount routes cables through the arm. Up to four exit points at the base keep the tablet powered continuously.

Is the mount ADA-compliant?

Yes. When paired with the enclosure, the Bow mount holds the tablet 4 inches from the wall, which meets ADA accessibility standards.

Is each enclosure keyed differently?

Yes. Each enclosure is individually keyed. Compulocks also offers a keyed-alike upgrade so one key opens multiple enclosures.
