Compulocks Apex Bow Tilting Wall Mount for Galaxy Tab S9/S10/S11 Ultra 14.6-Inch - Black

MPN 505B146GUAPXB
  • Wall

Fits Galaxy Tab S9 Ultra, Galaxy Tab S10 Ultra, Galaxy Tab S11 Ultra

$205.67$229.00Save $23.33

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

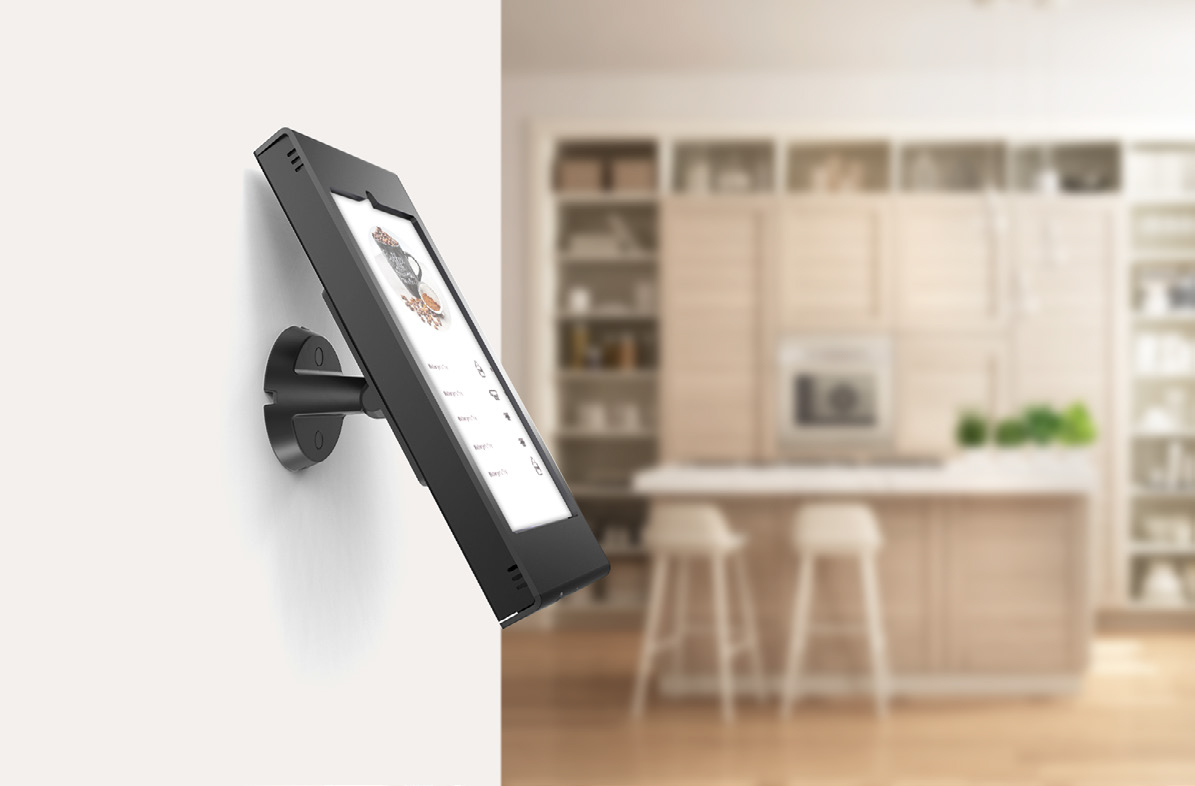

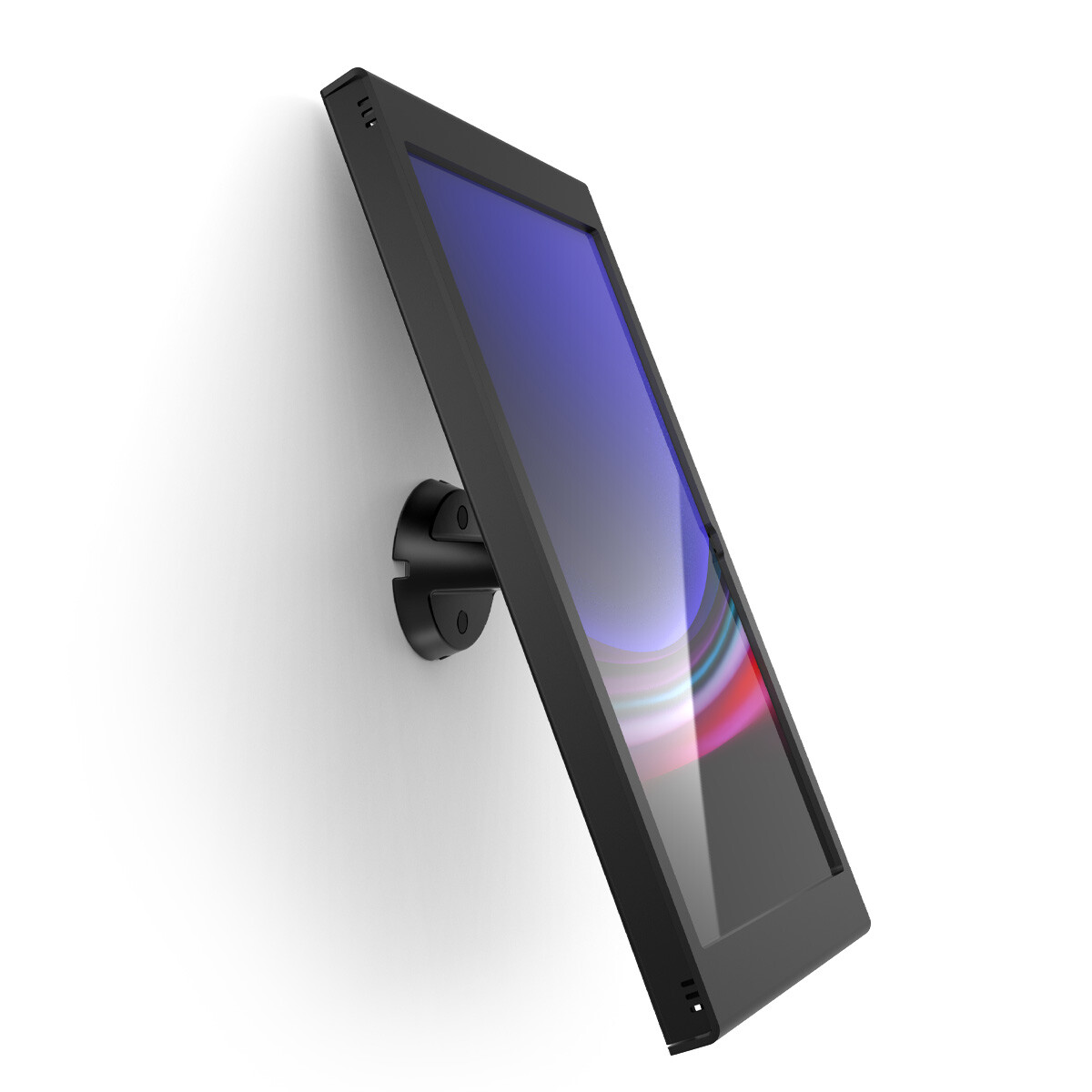

The Compulocks 505B146GUAPXB combines the Apex secured enclosure for the Samsung Galaxy Tab S9, S10 and S11 Ultra 14.6" with the aluminum Bow tilting wall mount. The result is a locked, large-format tablet display that tilts 130° and pans. It sits 4 inches from the wall in an ADA-compliant profile. Through-arm cable routing keeps the tablet charged, and the cameras and sensors stay exposed.

  • Apex secured enclosure for Galaxy Tab S9 Ultra, S10 Ultra and S11 Ultra 14.6"
  • Quick keyed lock and unlock, individually keyed, with a T-bar lock slot
  • Aluminum Bow mount with 130° tilt, panning and adjustable hinge tension
  • ADA-compliant 4-inch wall profile when paired with the enclosure
  • Through-arm cable routing with up to four base exit points for continuous charging
  • 75 x 75 mm and 100 x 100 mm VESA compatible with a 4-screw wall pattern
  • Puts a 14.6-inch touchscreen on the wall for dashboards, maps and forms that need screen space
  • Carries forward across S9, S10 and S11 Ultra refreshes without new wall hardware

The Compulocks 505B146GUAPXB is a black bundle for deploying Samsung's largest tablets on a wall. It pairs the 505B VESA Tilting Wall Mount, known as the Bow, with the 146GUAPXB Apex Secured Enclosure for the 14.6" Ultra series. Supported models are the Galaxy Tab S9 Ultra (SM-X910, SM-X916B, SM-X918U), the Galaxy Tab S10 Ultra (SM-X920, SM-X926B, SM-X926N, SM-X920N) and the Galaxy Tab S11 Ultra (SM-X930, SM-X936B, SM-X936N, SM-X930N). A single enclosure spans three tablet generations, so fleets can be refreshed without replacing wall hardware.

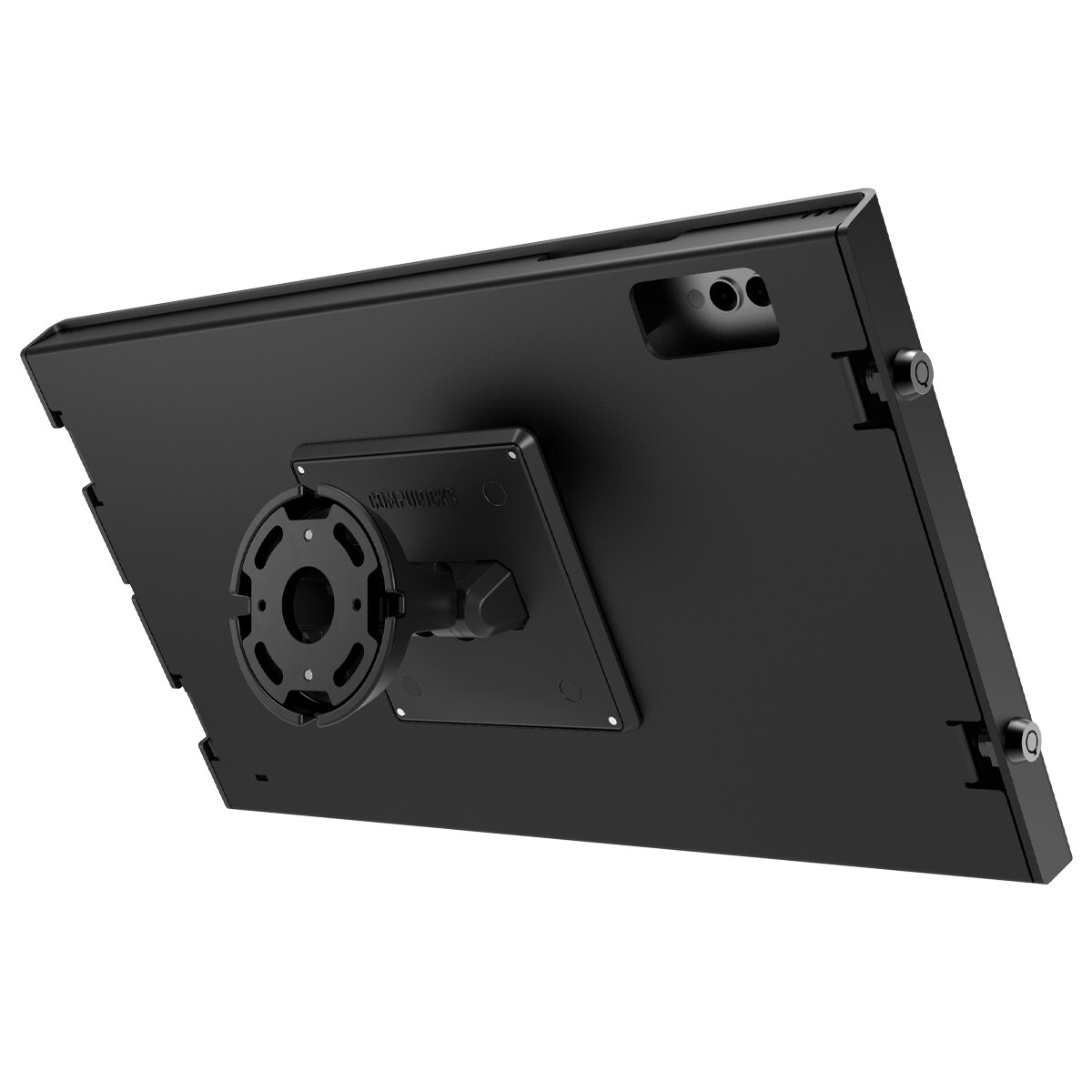

The Apex enclosure uses a sleek metal frame with quick keyed lock and unlock. Each enclosure is individually keyed, and a T-bar lock slot adds another layer of security. Dedicated openings for charging cables let the tablet charge continuously while mounted. The front and rear cameras and sensors stay uncovered.

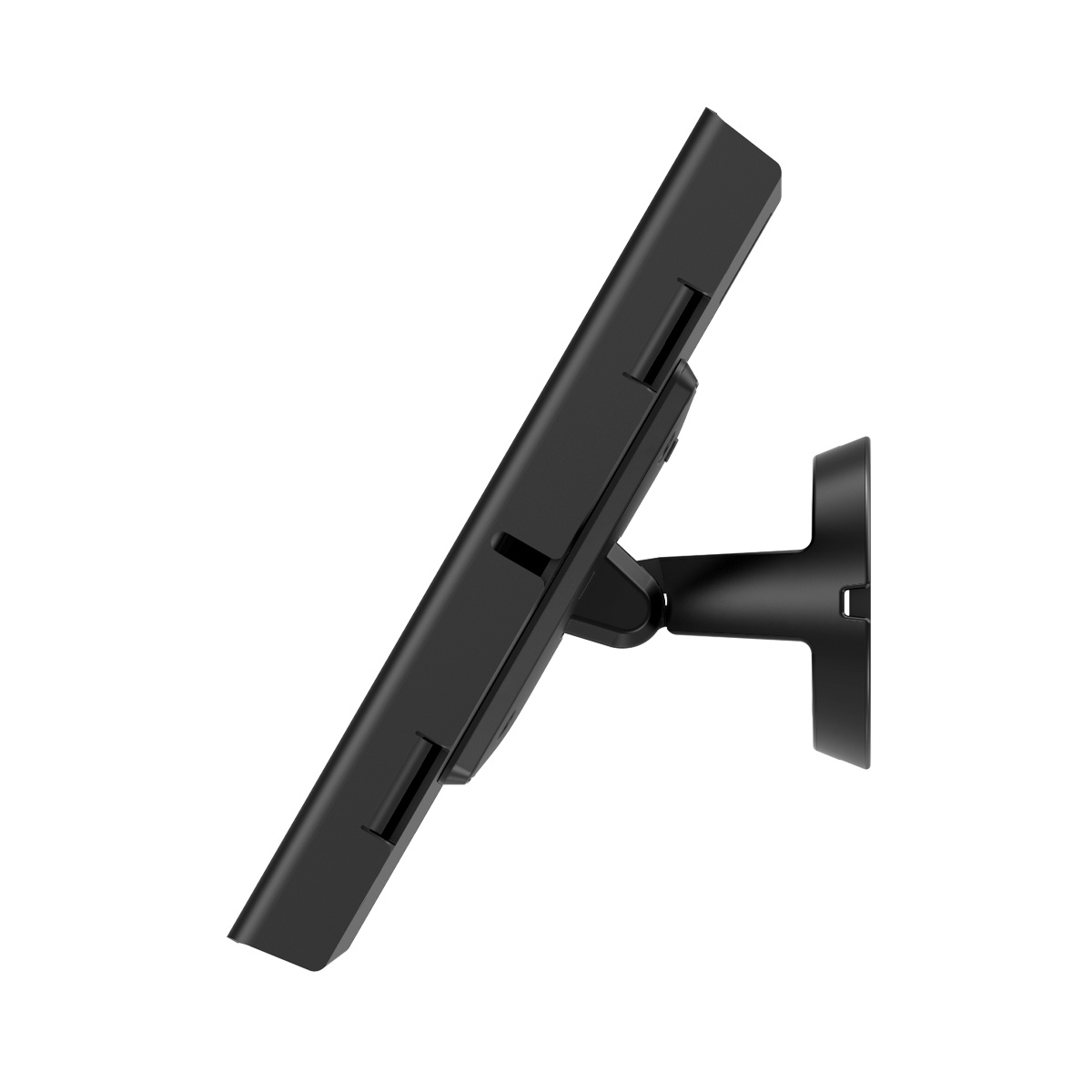

The Bow mount is durable aluminum and offers 130° of tilt, panning and adjustable hinge tension to hold the chosen angle. Mounted with the enclosure, the tablet sits 4 inches from the wall to meet ADA accessibility standards. Cables run through the arm to up to four exit points at the base, with an optional center-base route. The mount uses a 4-screw wall pattern, supports 75 x 75 mm and 100 x 100 mm VESA and includes a lock slot.

The tablet mounts in portrait or landscape. Compulocks product sheets for both parts and installation instructions are available.

Ideal for

  • Large-screen wayfinding and directory displays
  • Conference room booking panels and lobby check-in
  • Manufacturing and warehouse dashboards
  • Retail catalogue and product-configurator stations
  • Clinic reception and self-check-in kiosks

Specifications

General

MPN
505B146GUAPXB
UPC
810157342669
Brand
Compulocks
Colour
Black
Enclosure Family
Apex
Bundle Components
505B VESA Tilting Wall Mount + 146GUAPXB Apex Secured Enclosure

Package

Shipping Weight
3.95 lb

Stand Mount 505b

Sku
505B
UPC
810157341198
Name
VESA Tilting Wall Mount - Black
Colour
Black
Material
Durable aluminum
Security
Integrated lock slot
Tilt Range
130° tilt with panning
Wall Offset
4 in from wall (ADA-compliant, with enclosure)
Weight Listed
1.35 lb (as listed on compulocks.com)
Cable Management
Through-arm routing, up to 4 base exits, center-base option
Mounting Pattern
4-screw mounting pattern
Compatible Devices
100 x 100 mm and 75 x 75 mm VESA compatible

Enclosure 146guapxb

Sku
146GUAPXB
UPC
810157340238
Lock
Quick keyed lock, T-bar lock slot
Name
Galaxy Tab S9/S10/S11 Ultra 14.6" Apex Secured Enclosure Wall Mount - Black
Colour
Black
Camera Access
Exposed front and rear cameras and sensors
Weight Listed
2.05 lb (as listed on compulocks.com)
Galaxy Tab Model
Galaxy Tab S9/S10/S11 Ultra 14.6"
Compatible Devices
S9 Ultra (2023): SM-X910, SM-X916B, SM-X918U; S10 Ultra (2024): SM-X920, SM-X926B, SM-X926N, SM-X920N; S11 Ultra (2025): SM-X930, SM-X936B, SM-X936N, SM-X930N

Product Sheet Bow Stand

Sku
505B (Black), 505W (White)
Weight
1.04 lb
Version
REV E

Product Sheet Apex Galaxy Tab Ultra 14 6

Sku
146GUAPXB (Black), 146GUAPXW (White)
Weight
1.76 lb
Version
REV C
Tablet Model
Samsung Galaxy Tab S11 Ultra 14.6" (2025); Samsung Galaxy Tab S8 Ultra 14.6" (2022)

Questions buyers ask

Which Galaxy Tab models fit this enclosure?

It fits the Galaxy Tab S9 Ultra (SM-X910, SM-X916B, SM-X918U), the Galaxy Tab S10 Ultra (SM-X920, SM-X926B, SM-X926N, SM-X920N) and the Galaxy Tab S11 Ultra (SM-X930, SM-X936B, SM-X936N, SM-X930N).

How far does the tablet sit from the wall?

With the enclosure attached, the Bow mount holds the tablet 4 inches from the wall. This meets ADA accessibility standards.

Can it be mounted in portrait?

Yes. The tablet can be mounted in portrait or landscape orientation.

How are charging cables handled?

The enclosure has dedicated charging cable openings, and cables route through the Bow arm to up to four exit points at the base. Center-base routing is also available.
