Inseego J-Arm Mount for Wavemaker FW2000e, FW2010e and FW3000 Outdoor CPE

MPN 649496 02570 0

Made for Inseego

$51.80$60.00Save $8.20

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Overview

The Inseego J-arm mount (649496 02570 0) is an adjustable roof and wall bracket for the Inseego Wavemaker FW2000e, FW2010e and FW3000 outdoor CPEs. It fixes to vertical, horizontal or slanted exterior surfaces with four lag screws through the base. Positioning bolts then let installers fine-tune the unit's horizontal and vertical angle for the best cellular signal.

  • J-arm mount for Inseego Wavemaker FW2000e, FW2010e and FW3000 outdoor CPEs
  • Adjustable for vertical, horizontal and slanted exterior surfaces

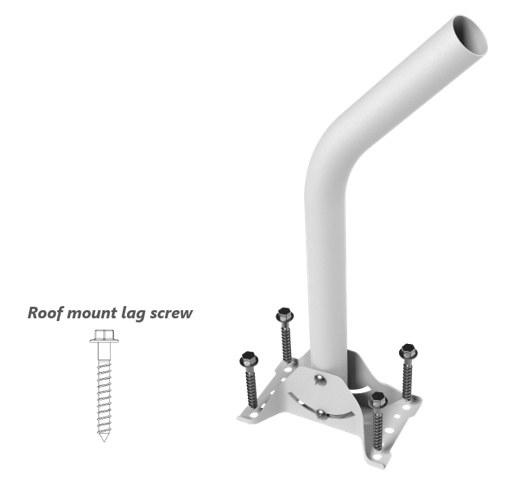

  • Base secures with four roof-mount lag screws in the corners
  • Positioning bolts adjust horizontal and vertical aiming angle
  • Approximately 2 lb bracket for roof, wall and outdoor use
  • Raises the outdoor CPE onto roofs or walls where cellular signal is stronger
  • Lets installers aim the unit precisely, then lock the angle at 15.0 Nm
  • Handles flat, vertical or pitched surfaces with one bracket

Outdoor 5G CPE performs best when it is mounted high and aimed precisely. The Inseego J-arm mount is the optional mounting accessory Inseego specifies for its Wavemaker FW2000e, FW2010e and FW3000 outdoor units. It gives installers a firm, adjustable base on roofs and exterior walls.

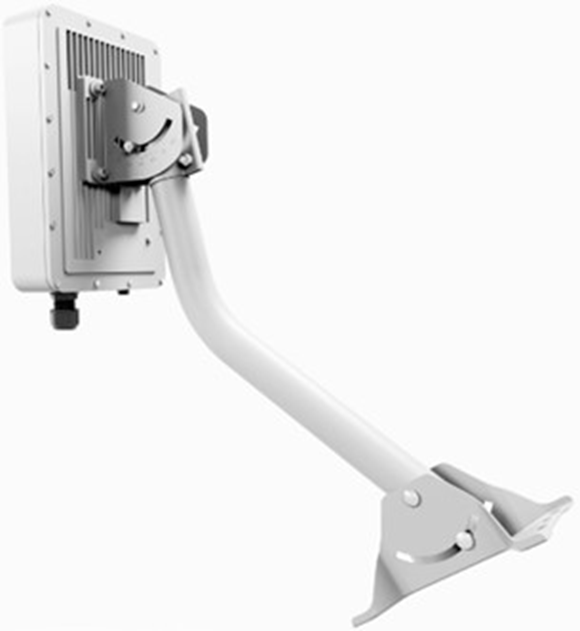

The mount is adjustable and fits vertical, horizontal and slanted exterior surfaces. The base attaches with four roof-mount lag screws, one in each corner, into pre-drilled holes. For concrete or brick, Inseego's installation guide calls for concrete anchors. The CPE fastens to its device elevation bracket, which then bolts to the J-arm with square neck bolts tightened to 2.0 Nm (1.48 ft/lb).

For aiming, positioning bolts on the device elevation bracket and at the bottom of the mount adjust the horizontal and vertical angle. Installers typically use the Inseego Mobile app to read signal while fine-tuning. Once the best orientation is found, the positioning bolts are tightened to 15.0 Nm (11 ft/lb) to hold it in place. The flex-and-rotate design makes repositioning straightforward and stays firm once set.

The bracket weighs approximately 2 lb and is made in Taiwan. Use it only with the Inseego FW2000e, FW2010e and FW3000.

Ideal for

  • Rooftop installation of an Inseego FW2000e, FW2010e or FW3000
  • Exterior wall mounting of Wavemaker outdoor CPE at homes and businesses
  • Pitched-roof installs where the CPE must be aimed toward a cell site
  • Concrete or brick building installs using anchors

Specifications

General

MPN
649496 02570 0
UPC
649496025700
Brand
Inseego
Product Type
J-Arm Mounting Bracket
Country OF Origin
Taiwan

Package

Shipping Weight
5.65 lb

Mounting

Aiming
Horizontal and vertical adjustment via positioning bolts
Masonry
Concrete anchors for concrete or brick mounting
Surfaces
Vertical, horizontal and slanted exterior surfaces
Application
Roof, wall, outdoor
Base Fixing
Four roof-mount lag screws in the corners of the base
Bracket Bolt Torque
Elevation Bracket to J-Arm Bolts: 2.0 Nm (1.48 ft/lb)
Positioning Bolt Torque
Positioning Bolts: 15.0 Nm (11 ft/lb)

Physical

Weight
Approx. 2 lb

Compatibility

Compatible Models
Compatible with: Inseego Wavemaker FW2000e, FW2010e, FW3000 outdoor CPE

Questions buyers ask

Which devices does this J-arm mount fit?

The Inseego Wavemaker FW2000e, FW2010e and FW3000 outdoor CPEs.

What surfaces can it be installed on?

It is adjustable for vertical, horizontal and slanted exterior surfaces, including roofs and walls. Inseego's guide calls for concrete anchors on concrete or brick.

How do I aim the CPE after mounting?

Use the positioning bolts on the device elevation bracket and the bottom of the mount to set the horizontal and vertical angle. The Inseego Mobile app helps read signal while you adjust. Then tighten the bolts to 15.0 Nm (11 ft/lb).

How is the base secured?

With four roof-mount lag screws, one in each corner of the base, driven into pre-drilled holes.
