Compulocks Space Enclosure Swing Wall Mount with PlusHub for Galaxy Tab A8 10.5-Inch - Black

MPN 827B105GA8SBH01
  • Wall

Fits Galaxy Tab A8

$308.79$344.00Save $35.21

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Compulocks 827B105GA8SBH01 bundles the Space enclosure for the Samsung Galaxy Tab A8 10.5 (2022, SM-X200 and SM-X205), the black 827B Swing Wall Mount Arm and the H01 PlusHub VESA Box. The hub adds USB-C Power Delivery input up to 90 W, HDMI at 3840 x 2160 30 Hz, USB-A 3.0 and 2.0, USB-C and RJ45 Ethernet. This turns a wall-mounted tablet into a connected kiosk or point-of-sale station.

  • Space enclosure for Samsung Galaxy Tab A8 10.5 (2022, SM-X200, SM-X205) with quick keyed lock
  • H01 PlusHub with PD 2.0 input up to 90 W, USB-C 2.0, HDMI, 2 x USB-A and RJ45
  • HDMI output at 3840 x 2160 30 Hz; USB-A 3.0 at 5 Gbps and USB-A 2.0 at 480 Mbps
  • 100 Mbps RJ45 Ethernet, hot-swap support and a built-in lock slot on the hub
  • 827B Swing arm with tilt, pan and swing and 4.8 lb maximum load
  • Cable routing for continuous tablet charging while mounted
  • Connects barcode scanners, printers and other USB peripherals at the mounting point
  • Adds wired Ethernet for kiosks and POS stations where Wi-Fi is unreliable

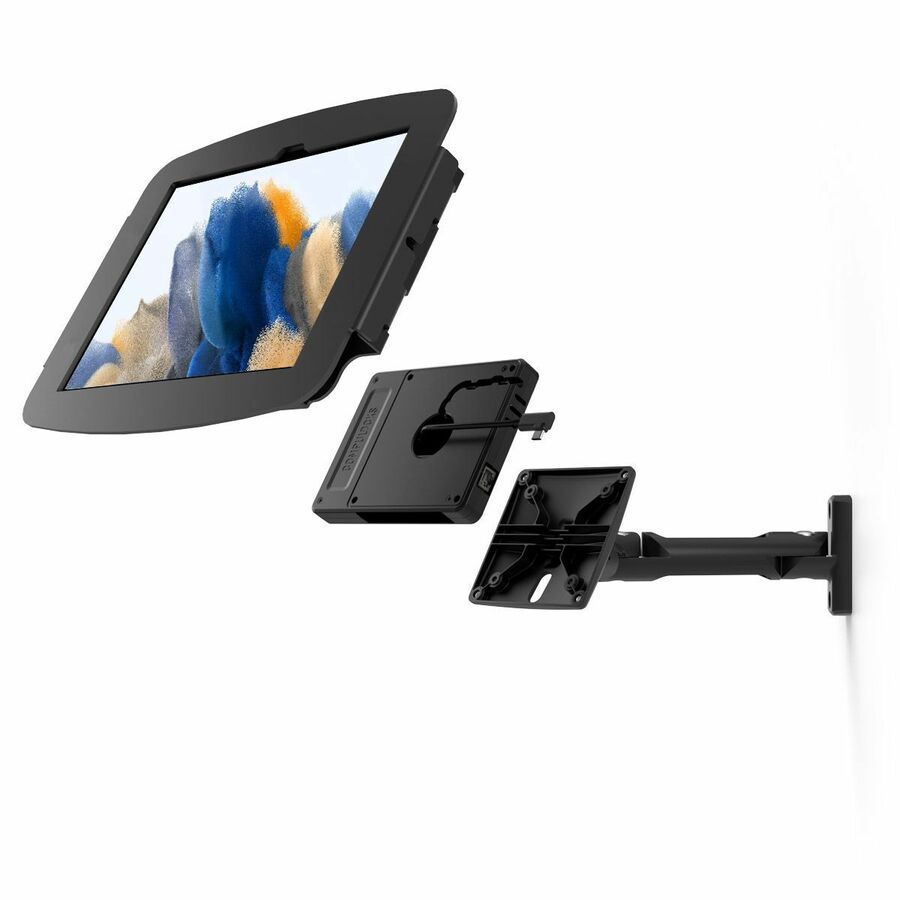

The Compulocks 827B105GA8SBH01 is a three-part bundle for turning a Galaxy Tab A8 into a secured, wired workstation. It combines the 105GA8SB Space enclosure for the Galaxy Tab A8 10.5 (2022, SM-X200 and SM-X205), the 827B Swing Wall Mount Arm and the H01 PlusHub VESA Box, all in black.

The PlusHub mounts on the 100 x 100 mm VESA pattern and provides six ports: - A PD 2.0 input rated to 90 W maximum (charging in only) - A USB-C 2.0 port (charging out only) - HDMI supporting 3840 x 2160 at 30 Hz, with downward compatibility - One USB-A 3.0 port at 5 Gbps and one USB-A 2.0 port at 480 Mbps - RJ45 Ethernet at 100 Mbps

The hub supports USB-C in / HDMI out and hot-swap. When PD power is connected, the two USB-A ports share 1.9 A combined output, a single USB-A port supplies 1.5 A and the USB-C port supplies 0.5 A. Its 1000 mm cable leaves 300 mm outside the box and routes through the backplate. The hub also has ventilation holes and a built-in lock slot.

The Space enclosure is high-grade aluminum with rounded edges and open corners for ventilation, a quick keyed lock and an exposed camera. The tablet can charge continuously while enclosed. The 827B arm tilts, pans and swings and is rated for a maximum load of 4.8 lb. Product sheets for all three components and installation instructions are available.

Ideal for

  • Point-of-sale stations with barcode scanners and receipt printers
  • Interactive retail and self-service kiosks with wired Ethernet
  • Healthcare check-in or nurse station tablets with connected peripherals
  • Work-area terminals that mirror content to an external HDMI display

Specifications

General

MPN
827B105GA8SBH01
UPC
819472029545
Brand
Compulocks
Colour
Black
Product Type
Enclosure + Swing Wall Mount + PlusHub Bundle
Enclosure Family
Space
Bundle Components
827B Swing Arm + 105GA8SB Space Enclosure + H01 PlusHub

Package

Documents
Product Sheets and Installation Instructions
Shipping Weight
5.60 lb

Warranty

Manufacturer Warranty
2-Year Manufacturer Warranty

Plushub H01

Sku
H01
UPC
819472028630
Hdmi
HDMI 3840 x 2160 @ 30 Hz
Name
PlusHub VESA Box
Ports
PD, USB-C, HDMI, 2 x USB-A, RJ45
USB C
USB-C 2.0 (Charging Out Only)
Colour
Black
Ethernet
RJ45 Ethernet, 100 Mbps
Hot Swap
Hot-Swap Supported
Mounting
100 x 100 mm VESA
PD Input
PD 2.0, 90 W Max (Input Only)
Security
Built-in Lock Slot
USB A 2 0
USB-A 2.0, 480 Mbps
USB A 3 0
USB-A 3.0, 5 Gbps
Video Mode
USB-C In / HDMI Out
Ventilation
Ventilation Holes
Cable Length
1000 mm (300 mm Exposed)
Weight Listed
0.60 lb (compulocks.com)
Drawing Dimensions
6.06 in / 4.65 in (118.1 mm) / 1.37 in / 83.5 mm
Weight Product Sheet
0.41 lb (product sheet)
Product Sheet Version
H
Output When PD Charging
2x USB-A 1.9 A Combined / USB-A 1.5 A / USB-C 0.5 A

Compatibility

Applications
POS / Work Area / Wall / Kiosk
Tablet Model
Galaxy Tab A8 10.5 in (2022)
Model Numbers
SM-X200, SM-X205

Swing Arm 827b

Sku
827B
UPC
854340005504
Name
Swing Wall Mount Arm - Black
Colour
Black
Max Load
4.8 lb
Adjustment
Tilt, Pan and Swing
Max Screen
15 in
Weight Listed
1.90 lb (compulocks.com)
Vesa Compatibility
100 x 100 mm VESA Compatible Mount
Weight Product Sheet
1.74 lb (product sheet)
Product Sheet Version
V01

Enclosure 105ga8sb

Sku
105GA8SB
UPC
819472024267
Lock
Quick Keyed Lock and Unlock
Name
Galaxy Tab A8 10.5 in Space Enclosure - Black
Colour
Black
Design
Rounded Edges, Open Corners, Ventilated
Material
High-Grade Aluminum
Weight Listed
1.60 lb (compulocks.com)

Questions buyers ask

What ports does the PlusHub provide?

The hub has six ports: a PD 2.0 input up to 90 W, a USB-C 2.0 charging-out port, HDMI at 3840 x 2160 30 Hz, one USB-A 3.0 port at 5 Gbps, one USB-A 2.0 port at 480 Mbps and RJ45 Ethernet at 100 Mbps.

How much power do the USB ports supply?

With PD power connected, the two USB-A ports share 1.9 A combined output. A single USB-A port supplies 1.5 A, and the USB-C port supplies 0.5 A.

How does the hub attach and connect?

The PlusHub mounts on the 100 x 100 mm VESA pattern. Its 1000 mm cable leaves 300 mm outside the box and routes through the backplate for a tidy installation.

Which tablet does the enclosure fit?

The 105GA8SB Space enclosure fits the Samsung Galaxy Tab A8 10.5 (2022), models SM-X200 and SM-X205.
