Compulocks Apex Enclosure Swing Wall Mount for Galaxy Tab S9, S9 FE, S10 FE, S10 Lite and S11 - Black

MPN 827B109GAPXB
  • Wall

Fits Galaxy Tab S9, Galaxy Tab S9 FE, Galaxy Tab S10 FE, Galaxy Tab S11

$242.20$269.00Save $26.80

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

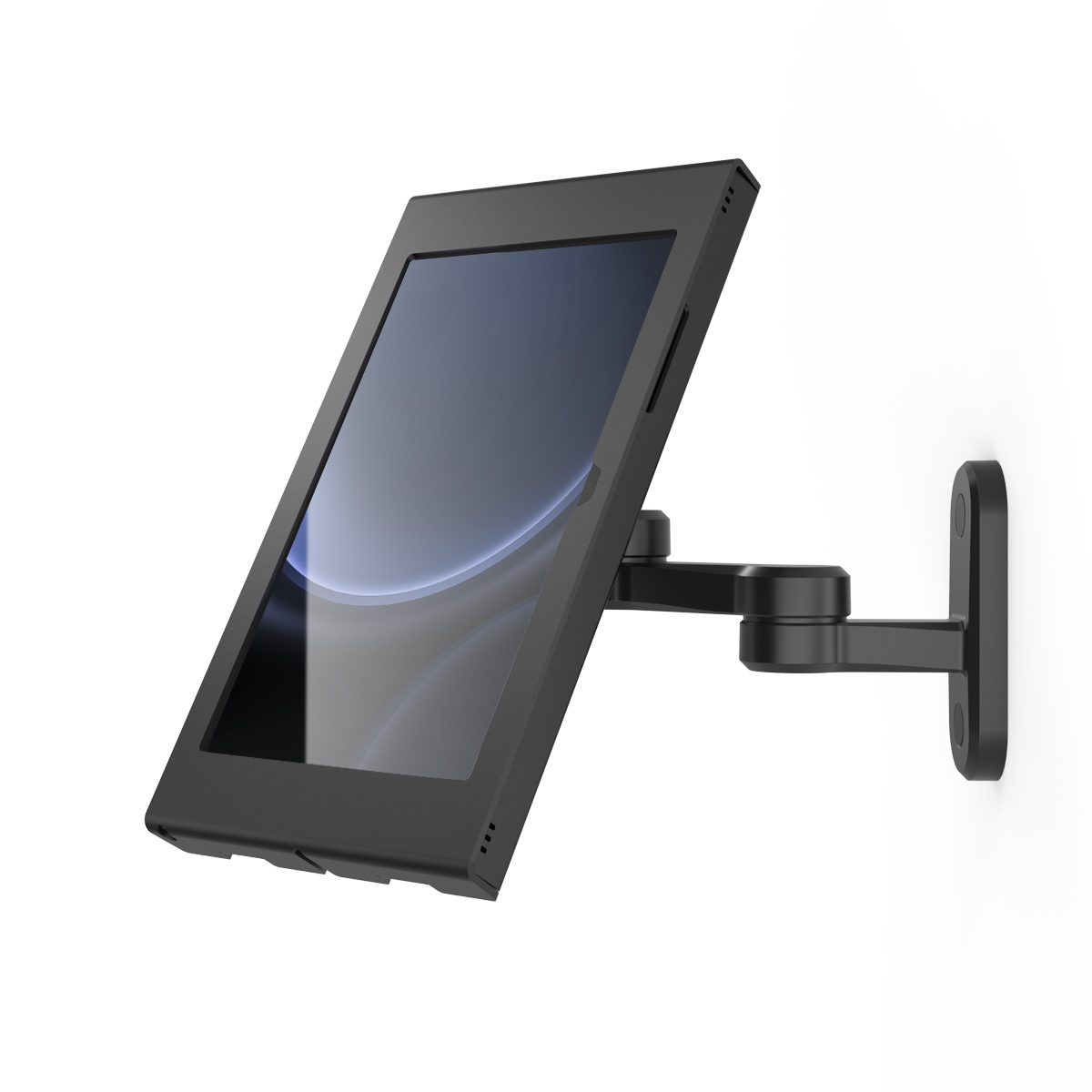

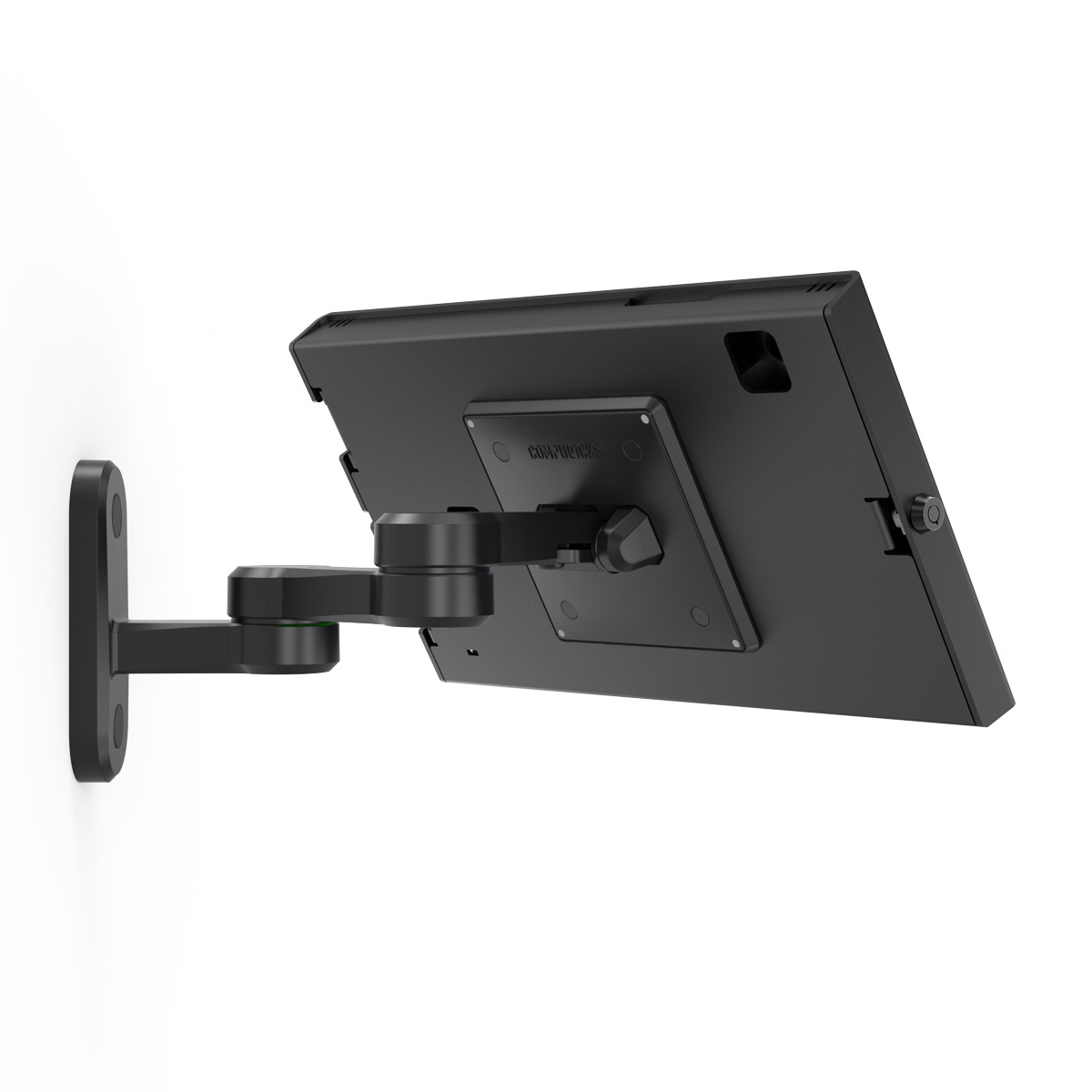

The Compulocks 827B109GAPXB pairs the black Apex enclosure for the Samsung Galaxy Tab S9, S9 FE, S10 FE, S10 Lite and S11 with the 827B Swing Wall Mount Arm. The metal-frame enclosure has a quick keyed lock, exposed front and rear cameras and sensors, and cable management for continuous charging. The arm tilts, pans and swings, and extends 4.5 to 10.2 in from the wall.

  • Apex enclosure for Galaxy Tab S9, S9 FE, S10 FE, S10 Lite and S11
  • Metal frame with quick keyed lock and unlock and a T-bar lock slot
  • Front and rear cameras and sensors left exposed
  • Cable management for continuous charging while mounted
  • 100 x 100 mm and 75 x 75 mm VESA patterns, with direct wall mounting support
  • 827B Swing arm with tilt, pan and swing, 4.5-10.2 in reach and 4.8 lb maximum load
  • Standardizes on one enclosure across five current Galaxy Tab S models
  • Keeps cameras available for video consultations, check-in photos and scanning

The Compulocks 827B109GAPXB is built for organizations running Galaxy Tab S-series tablets in shared or customer-facing spaces. It combines the 109GAPXB Apex Secured Enclosure with the 827B Swing Wall Mount Arm, both in black. One enclosure covers five models: - Galaxy Tab S9 FE 10.9 in (2023, SM-X516B, SM-X510) - Galaxy Tab S10 FE 10.9 in (2025, SM-X520, SM-X526, SM-X526B) - Galaxy Tab S10 Lite 10.9 in (2025, SM-X400, SM-X406, SM-X406B) - Galaxy Tab S9 11 in (2023, SM-X716B, SM-X710) - Galaxy Tab S11 11 in (2025, SM-X730, SM-X736, SM-X736B)

The Apex enclosure uses a metal frame with quick keyed lock and unlock, plus a T-bar lock slot for tethering. The tablet's front and rear cameras and sensors stay exposed, so video calls, scanning and ambient-light features keep working. Cable management lets the tablet charge continuously while mounted. The enclosure accepts 100 x 100 mm and 75 x 75 mm VESA patterns and also supports direct wall mounting. Each mount is individually keyed.

The 827B Swing arm holds up to 4.8 lb (1.95 kg) and screens up to 15 in. It extends from 4.5 to 10.2 in (11.5-26 cm) from the wall and tilts, pans and swings for multiple display angles. Integrated cable management with optional through-wall routing, a locking VESA plate and a lock slot make it suited to corners and the space under cabinets. Product sheets and installation instructions are available.

Ideal for

  • Telehealth and patient check-in stations in clinics and hospitals
  • Retail clienteling and product-lookup displays
  • Corporate reception and visitor sign-in kiosks
  • Wall-mounted room scheduling or information panels in tight spaces

Specifications

General

MPN
827B109GAPXB
UPC
810157340672
Brand
Compulocks
Colour
Black
Product Type
Tablet Enclosure + Swing Wall Mount Bundle
Enclosure Family
Apex
Bundle Components
827B Swing Arm + 109GAPXB Apex Enclosure

Package

Documents
Product Sheets and Installation Instructions
Shipping Weight
5.90 lb

Warranty

Manufacturer Warranty
2-Year Manufacturer Warranty

Compatibility

Galaxy Tab S9
Galaxy Tab S9 11 in (2023) - SM-X716B, SM-X710
Galaxy Tab S11
Galaxy Tab S11 11 in (2025) - SM-X730, SM-X736, SM-X736B
Galaxy Tab S9 FE
Galaxy Tab S9 FE 10.9 in (2023) - SM-X516B, SM-X510
Galaxy Tab S10 FE
Galaxy Tab S10 FE 10.9 in (2025) - SM-X520, SM-X526, SM-X526B
Galaxy Tab S10 Lite
Galaxy Tab S10 Lite 10.9 in (2025) - SM-X400, SM-X406, SM-X406B

Swing Arm 827b

Sku
827B
UPC
854340005504
Name
Swing Wall Mount Arm - Black
Colour
Black
Material
Durable, Highly Recyclable Materials
Max Load
4.8 lb (1.95 kg)
Security
Locking VESA Plate, Lock Slot
Adjustment
Tilt, Pan and Swing
Max Screen
15 in
Weight Listed
1.90 lb (compulocks.com)
Wall Extension
4.5-10.2 in (11.5-26 cm)
Cable Management
Integrated, Optional Through-Wall Routing
Vesa Compatibility
75 x 75 mm and 100 x 100 mm VESA
Weight Product Sheet
1.74 lb (product sheet)
Product Sheet Version
V01

Enclosure 109gapxb

Sku
109GAPXB
UPC
810157340214
Lock
Quick Keyed Lock, Individually Keyed
Name
Galaxy Tab S9/S9FE/S10FE/S10 Lite/S11 Apex Secured Enclosure - Black
Frame
Metal Frame
Colour
Black
Charging
Continuous Charging While Mounted
Lock Slot
T-Bar Lock Slot
Vesa Pattern
100 x 100 mm and 75 x 75 mm VESA
Weight Listed
1.60 lb (compulocks.com)
Cameras Sensors
Exposed Front/Rear Cameras and Sensors
Direct Wall Mount
Direct Wall Mounting Supported
Product Sheet Skus
109GAPXB (Black), 109GAPXW (White)
Weight Product Sheet
1.25 lb (product sheet)
Product Sheet Version
REV A

Questions buyers ask

Which Galaxy Tab models fit the 109GAPXB Apex enclosure?

It fits five models: Galaxy Tab S9 FE (SM-X516B, SM-X510), S10 FE (SM-X520, SM-X526, SM-X526B), S10 Lite (SM-X400, SM-X406, SM-X406B), S9 (SM-X716B, SM-X710) and S11 (SM-X730, SM-X736, SM-X736B).

Can I still use the tablet cameras when it is enclosed?

Yes. The Apex enclosure leaves the front and rear cameras and sensors exposed.

Do you offer keyed-alike options for multiple kiosks?

Yes. Each mount is individually keyed. Compulocks offers a keyed-alike upgrade so one key opens multiple enclosures, and a master key is available on request for bulk customers.

How much can the Swing arm support?

The 827B arm supports up to 4.8 lb (1.95 kg) and screens up to 15 in. It extends 4.5 to 10.2 in from the wall.
