Compulocks Apex Swing Arm Wall Mount for Galaxy Tab S9, S10 and S11 Ultra 14.6-Inch, Black

MPN 827B146GUAPXB
  • Wall

Fits Galaxy Tab S9 Ultra, Galaxy Tab S10 Ultra, Galaxy Tab S11 Ultra

$259.75$289.00Save $29.25

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

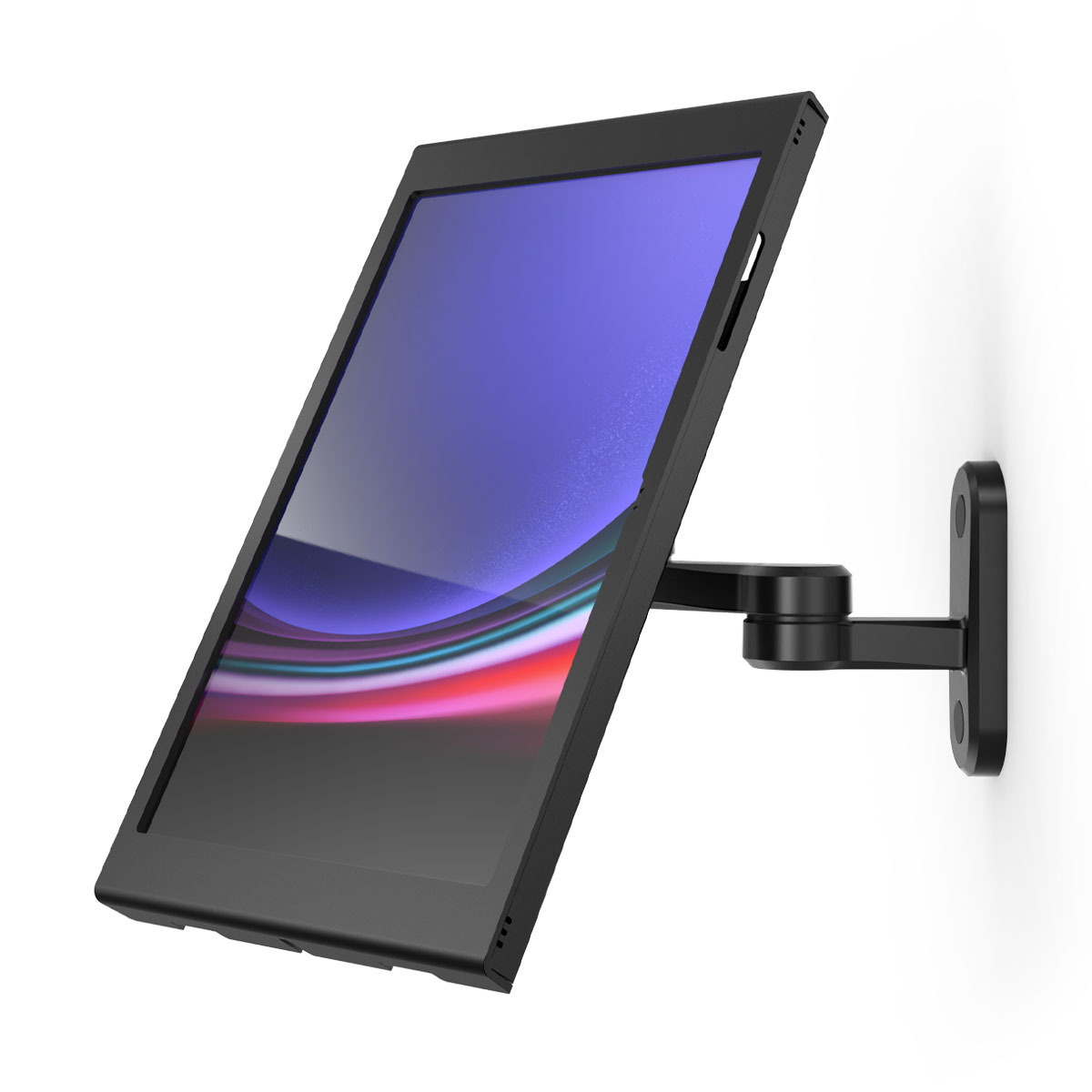

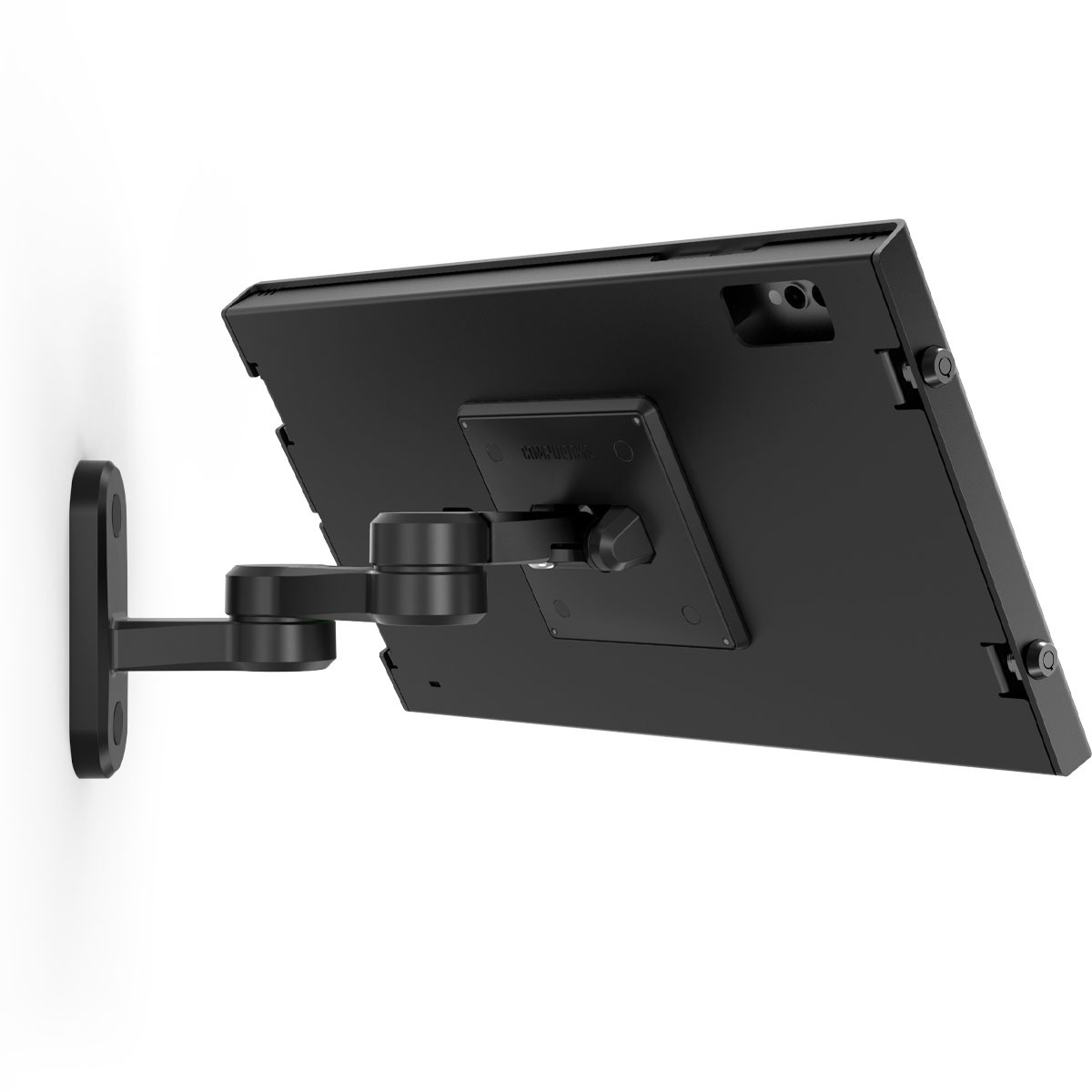

The Compulocks 827B146GUAPXB mounts a 14.6-inch Samsung Galaxy Tab S9 Ultra, S10 Ultra or S11 Ultra on the wall. It pairs the black 827B Swing Wall Mount Arm with the 146GUAPXB Apex Secured Enclosure. The keyed metal enclosure leaves cameras and sensors exposed and supports continuous charging. The arm extends 4.5 to 10.2 inches and tilts, pans and swings, giving large-screen kiosks and signage a secure, adjustable home.

  • Bundle of the 827B Swing Wall Mount Arm and the 146GUAPXB Apex Secured Enclosure, both in black
  • Fits Galaxy Tab S9 Ultra, S10 Ultra and S11 Ultra 14.6-inch
  • Metal frame with quick keyed lock and unlock and a T-bar lock slot
  • Front and rear cameras and sensors left exposed
  • Arm extends 4.5–10.2 in (11.5–26 cm) with tilt, pan and swing
  • Supports up to 4.8 lb (1.95 kg) and screens up to 15 in
  • Cable management for continuous charging, with optional through-wall routing
  • Puts a 14.6-inch Galaxy Tab Ultra on the wall for large-format interactive displays

The Compulocks 827B146GUAPXB is a wall-mount kit for Samsung's largest Galaxy Tab models: the 14.6-inch Galaxy Tab S9 Ultra, S10 Ultra and S11 Ultra. It combines the 827B Swing Wall Mount Arm in black with the 146GUAPXB Galaxy Tab S9/S10/S11 Ultra 14.6-inch Apex Secured Enclosure Wall Mount in black. The enclosure is listed for models SM-X910, SM-X916B, SM-X918U, SM-X920, SM-X926B, SM-X926N, SM-X920N, SM-X930, SM-X936B, SM-X936N and SM-X930N.

The Apex enclosure uses a metal frame with a quick keyed lock and unlock and a T-bar lock slot. It leaves the tablet's front and rear cameras and sensors exposed. Integrated cable management lets the tablet charge continuously while mounted. The enclosure carries a 100 x 100 mm and 75 x 75 mm VESA pattern and can also be mounted directly to a wall.

The 827B Swing Arm extends from 4.5 to 10.2 inches (11.5–26 cm) from the wall. It holds up to 4.8 lb (1.95 kg) and is rated for screens up to 15 inches, which covers a 14.6-inch Ultra in its enclosure. Tilt, pan and swing movement lets you position the large display for interactive use. A locking VESA plate, a lock slot and optional through-wall cable routing round out the installation. The arm is made from durable, highly recyclable materials.

The Compulocks product sheets for the 827B arm and the 146GUAPXB enclosure, plus installation instructions, are available for this kit.

Ideal for

  • Large-screen self-service kiosks
  • Telehealth and patient check-in stations
  • Interactive product catalogs and retail displays
  • Meeting room booking and wayfinding panels

Specifications

General

MPN
827B146GUAPXB
UPC
810157340962
Brand
Compulocks
Color
Black
Bundle Contents
827B Swing Wall Mount Arm (Black) + 146GUAPXB Apex Secured Enclosure (Black)
Enclosure Family
Apex

Package

Shipping Weight
5.40 lb

Stand Mount 827b

Sku
827B
UPC
854340005504
Name
Swing Wall Mount Arm - Black
Colour
Black
Adjustment
Tilt, pan and swing
Weight Listed
1.90 lb (as listed on compulocks.com)
Compatible Devices
100 x 100 mm VESA compatible mount
Extension From Wall
4.5–10.2 in (11.5–26 cm)

Product Sheet 827b

Sku
827B (Black)
Weight
1.74 lb
Version
V01
Max Load
4.8 lb (1.95 kg)
Max Screen
15 in

Enclosure 146guapxb

Sku
146GUAPXB
UPC
810157340238
Name
Galaxy Tab S9/S10/S11 Ultra 14.6 in Apex Secured Enclosure Wall Mount - Black
Colour
Black
Security
Quick keyed lock and unlock, T-bar lock slot
Vesa Pattern
100 x 100 mm and 75 x 75 mm
Weight Listed
2.05 lb (as listed on compulocks.com)
Galaxy Tab Model
Galaxy Tab S9 / S10 / S11 Ultra 14.6 in
Compatible Devices
Galaxy Tab S9 Ultra (2023): SM-X910, SM-X916B, SM-X918U; Galaxy Tab S10 Ultra (2024): SM-X920, SM-X926B, SM-X926N, SM-X920N; Galaxy Tab S11 Ultra (2025): SM-X930, SM-X936B, SM-X936N, SM-X930N

Product Sheet 146guapxb

Sku
146GUAPXB (Black), 146GUAPXW (White)
Weight
1.76 lb
Version
REV C
Tablet Model
Samsung Galaxy Tab S11 Ultra 14.6 in (2025); Samsung Galaxy Tab S8 Ultra 14.6 in (2022)

Questions buyers ask

Which Galaxy Tab Ultra models fit?

The 146GUAPXB enclosure is listed for the Galaxy Tab S9 Ultra (SM-X910, SM-X916B, SM-X918U), S10 Ultra (SM-X920, SM-X926B, SM-X926N, SM-X920N) and S11 Ultra (SM-X930, SM-X936B, SM-X936N, SM-X930N), all 14.6-inch.

Can the swing arm handle a 14.6-inch tablet?

Yes. The 827B Swing Arm is rated for screens up to 15 inches and a maximum load of 4.8 lb (1.95 kg).

Will the cameras work while the tablet is enclosed?

Yes. The Apex enclosure leaves the front and rear cameras and sensors exposed.

Can the tablet stay charged while mounted?

Yes. Cable management in the enclosure and arm supports continuous charging, with optional through-wall routing.

What warranty does Compulocks provide?

Compulocks states that its products come with a 2-year manufacturer's warranty.
