Wilson Electronics 970024-10 Solderless Captive-Pin N-Male Connector for LMR-400 Cable (10-Pack)

MPN 970024-10
  • LMR-400
  • No cable
$61.57$115.59Save $54.02

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Wilson Electronics 970024-10 is a 10-pack of the 970024 solderless field-termination N connector. A gold-plated captive center pin lets installers terminate LMR-400-class cable without soldering or crimping. The connectors work on Wilson-400, LMR-400, CNT-400 and TWS-400 cable with a solid conductor and are rated 0-3.0 GHz at 50 Ω. They suit indoor or outdoor installations.

  • Solderless, no-crimp termination via gold-plated captive center pin
  • Terminates Wilson-400, LMR-400, CNT-400 and TWS-400 cable
  • 0-3.0 GHz supported frequencies, 50 Ω impedance
  • VSWR ≤ 1.18 at 0-3.0 GHz; withstanding voltage ≥ 1500 V
  • Nickel-plated brass body, acceptable for indoor or outdoor use

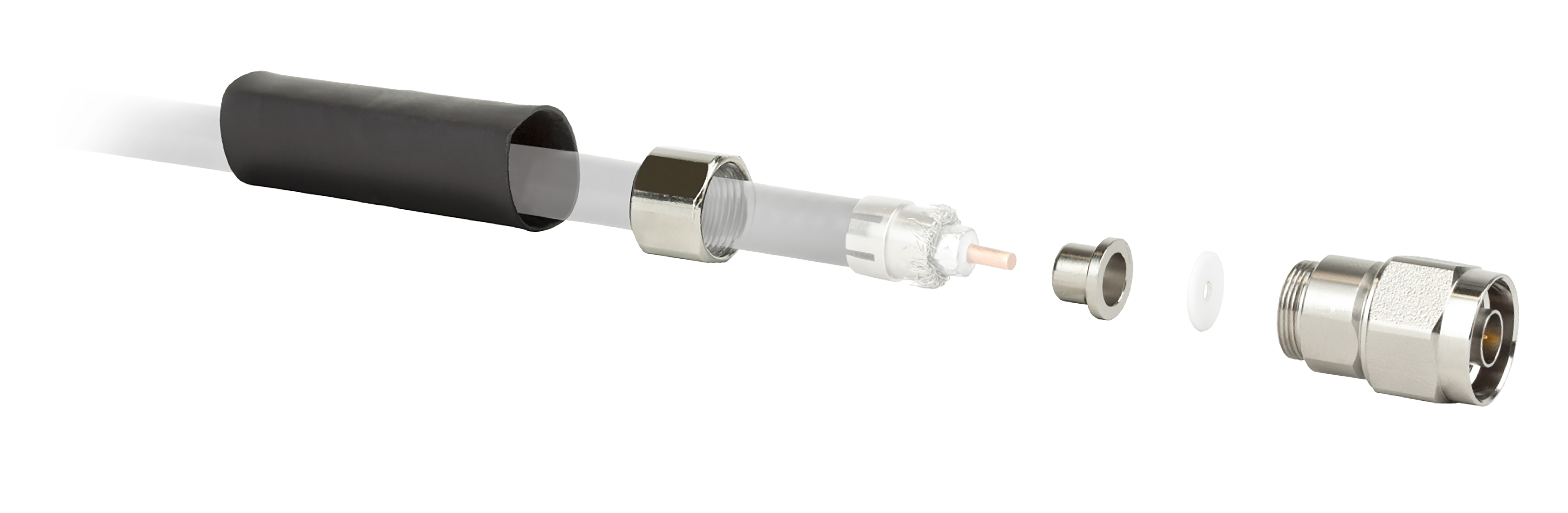

  • Each kit includes connector body, nut, clamp, bushing, insulator and shrink boot
  • 10 connector kits per pack
  • Build exact cable lengths on site instead of pre-measuring and shop-building runs

The 970024 Solderless Field Termination Captive Pin N Connector is designed to let installers build custom cable lengths on location. It removes the need to measure every run in advance and pre-build cables in the shop. The gold-plated captive center pin allows the cable to be terminated without soldering or crimping, which makes a good termination easier to achieve in the field. This SKU packs 10 connector kits together.

Each kit includes the connector body, nut, clamp, bushing, insulator and shrink boot. The connectors terminate LMR-400 or equivalent cable and are specified for Wilson-400, LMR-400, CNT-400 and TWS-400. They can only be used on cables with a solid center conductor. Construction is nickel-plated brass, and Wilson rates the connector as acceptable for indoor or outdoor use.

Electrically, Wilson specifies 0-3.0 GHz supported frequencies, 50 Ω impedance, VSWR of 1.18 or less across 0-3.0 GHz, and a withstanding voltage of at least 1500 V. Wilson backs the connector with a 2 year warranty, and a manufacturer spec sheet is available for the part. With ten kits per pack, one order covers five complete two-ended cable runs.

Ideal for

  • Field-terminating custom-length Wilson-400 or LMR-400 runs on site
  • Repairing or shortening an existing 400-series cable run
  • Indoor and outdoor antenna feed lines for signal booster installations
  • Stocking installer kits for jobs where run lengths are not known in advance

Specifications

General

MPN
970024-10
Brand
Wilson Electronics
Product Name
Solderless Field Termination Captive Pin N Connectors
Connector Type
N-Male
UPC Single Kit
811815029359 (970024 single kit)
Base Part Number
970024 (single connector kit)
Country OF Origin
United States

Package

Master Carton
50 qty: 16 L x 12 W x 6 H, 5.88 lb
Pack Quantity
10 connector kits
Shipping Weight
0.9 lb (10-pack)
Single Kit Packaging
Sealed polybag, 3.0 in L x 5.5 in W
Single Kit Package Weight
0.10 lb

Support

Warranty
2 year warranty

Features

Material
Nickel-plated brass
Center Pin
Gold-plated captive center pin, no soldering or crimping
Environment
Acceptable for indoor or outdoor use
Compatible Cables
Wilson-400, LMR-400, CNT-400, TWS-400 (LMR-400 or equivalent)
Conductor Requirement
For cables with a solid conductor only

Electrical

Vswr
≤ 1.18 at 0-3.0 GHz
Impedance
50 Ω
Withstanding Voltage
≥ 1500 V
Supported Frequencies
0-3.0 GHz

Kit Includes

Components
Connector body, nut, clamp, bushing, insulator and shrink boot

Specifications

Weight
0.01 lb

Questions buyers ask

Which cables do these connectors fit?

They terminate LMR-400 or equivalent cable, specifically Wilson-400, LMR-400, CNT-400 and TWS-400. The cable must have a solid center conductor.

Do I need to solder or crimp?

No. The gold-plated captive center pin allows termination without soldering or crimping.

What is included in each kit?

Each kit includes a connector body, nut, clamp, bushing, insulator and shrink boot. This SKU contains 10 kits.

What are the electrical ratings?

0-3.0 GHz supported frequencies, 50 Ω impedance, VSWR of 1.18 or less at 0-3.0 GHz, and a withstanding voltage of at least 1500 V.

Can the connectors be used outdoors?

Yes. Wilson states the nickel-plated brass connector is acceptable for indoor or outdoor use.
