SIIG AC-PW1R11-S1 150W 10-Port USB-A/C & Qi Wireless Charging Station with Ambient Light Deck
MPN AC-PW1R11-S1
- Over 100 W
- USB-C & USB-A
- 11+ devices
$125.40$179.99Save $54.59
In stockFree 2-day shipping
- Free shipping to the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Datasheets & documents
Overview
The SIIG AC-PW1R11-S1 is a 150W, 3-in-1 charging station with six USB-A ports (up to 12W each), four USB-C ports with PD up to 18W each, and a 5W Qi wireless charging area. Eight open slots hold devices up to an iPad Pro in a case, and a multi-color ambient light shows wireless charging status. It suits offices, schools and homes charging a mix of phones and tablets.
- 6 USB-A ports at DC 5V/2.4A (max 12W) each
- 4 USB-C ports with PD at 5V/3A, 9V/2A, 12V/1.5A (max 18W) each
- Qi wireless charging area at 5V/1A (max 5W)
- 150W total output from a DC 19V/7.8A power adapter
- 8 open slots hold devices up to an iPad Pro with case
- Ambient light shows wireless charging status
- Over-current, over-voltage, over-charge and short-circuit protection
- Four USB-C PD ports suit fleets of newer phones and tablets

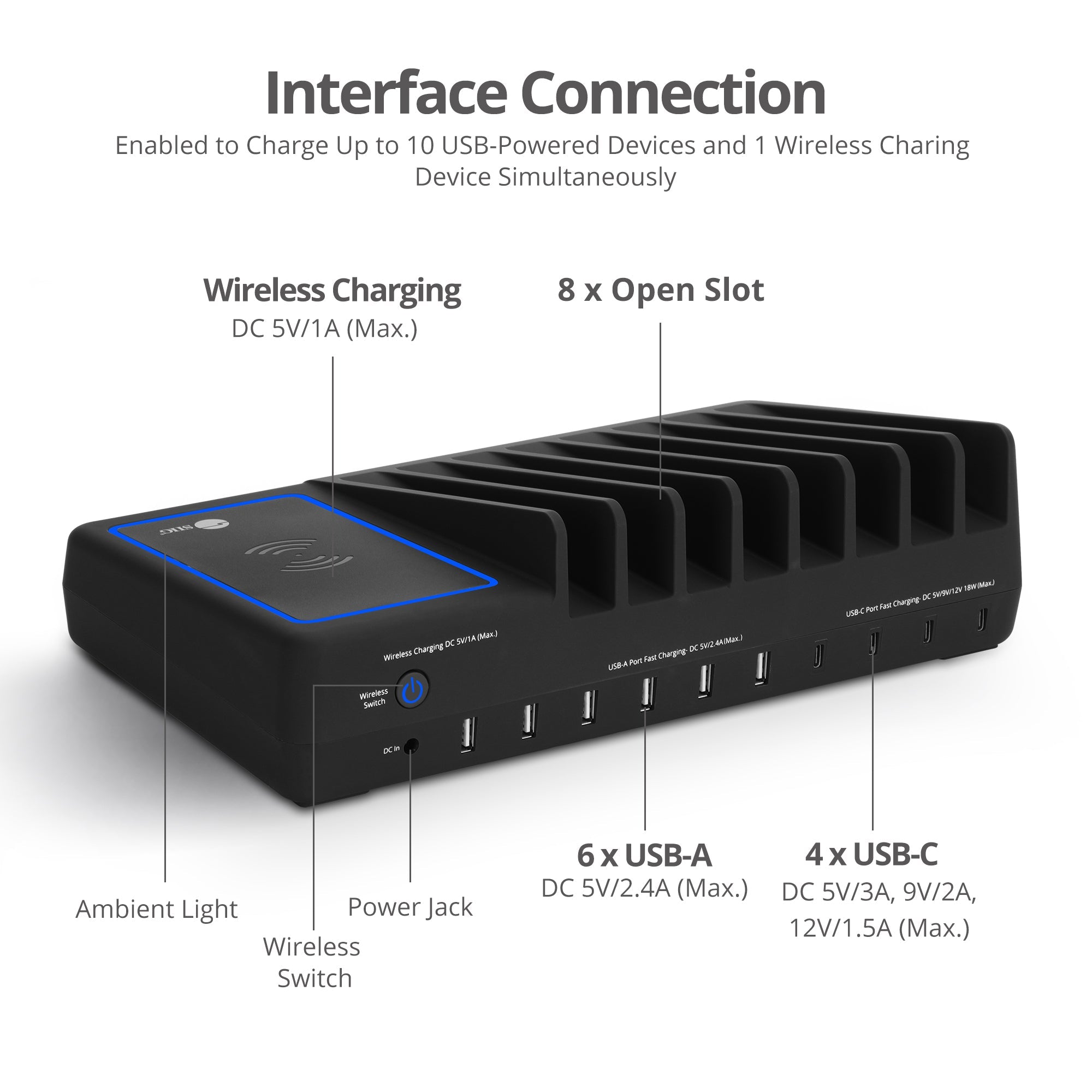

The SIIG AC-PW1R11-S1 is a 3-in-1 charging station that charges up to six USB-A devices, four USB-C devices and one Qi wireless-enabled phone at the same time. The USB-A ports supply DC 5V/2.4A (max 12W). The USB-C ports support PD at 5V/3A, 9V/2A or 12V/1.5A (max 18W per port). The wireless charging area supplies 5V/1A (max 5W). A built-in smart charging IC detects each connected device and provides the best output.

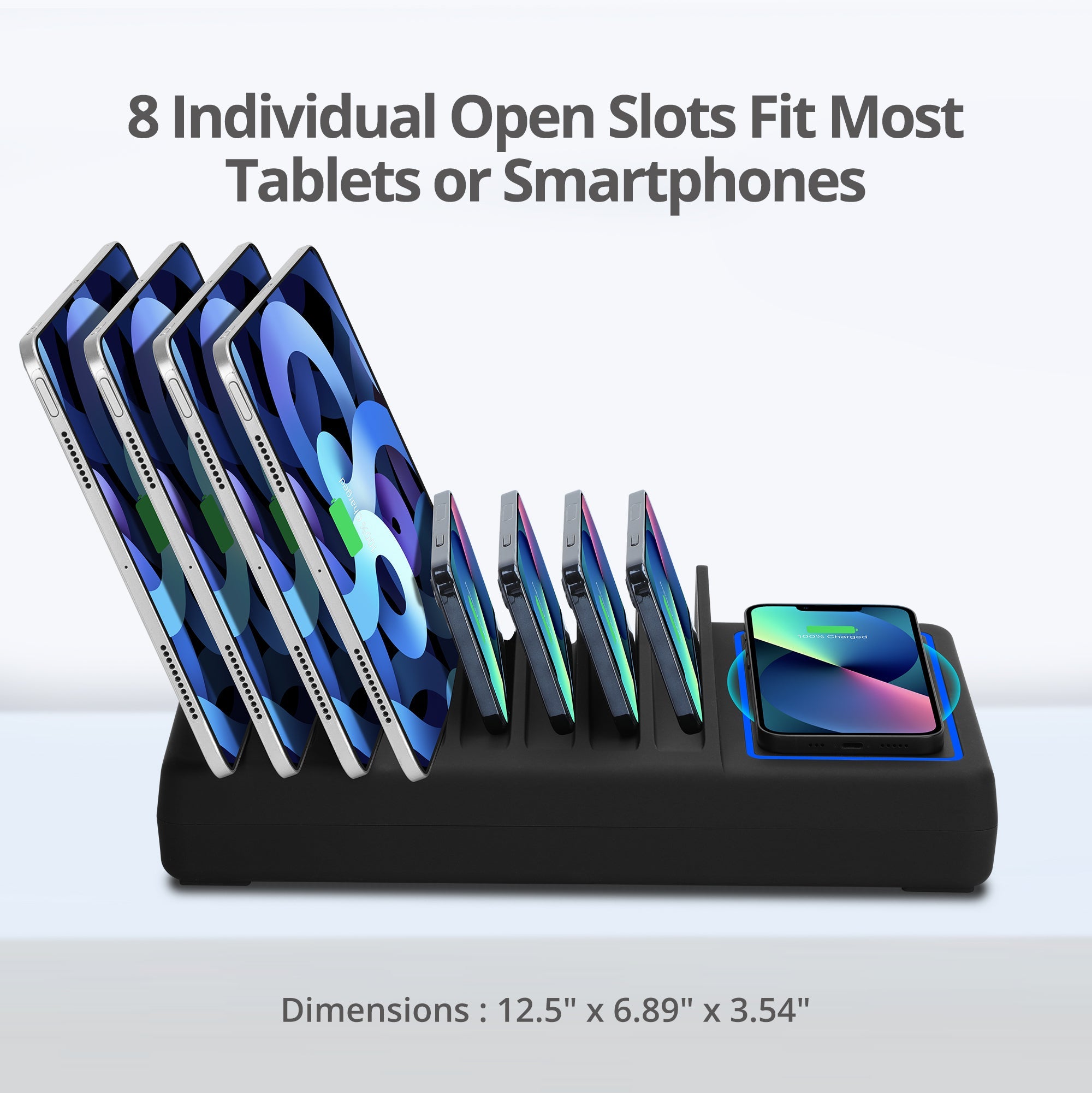

Eight open slots on top hold devices up to an iPad Pro in a case, so phones and tablets stay upright while they charge. A non-slip padded deck protects device chargers. The ambient light shows wireless charging status: green for power on or charging complete, blue while charging, and off during standby. An on/off switch controls the light output.

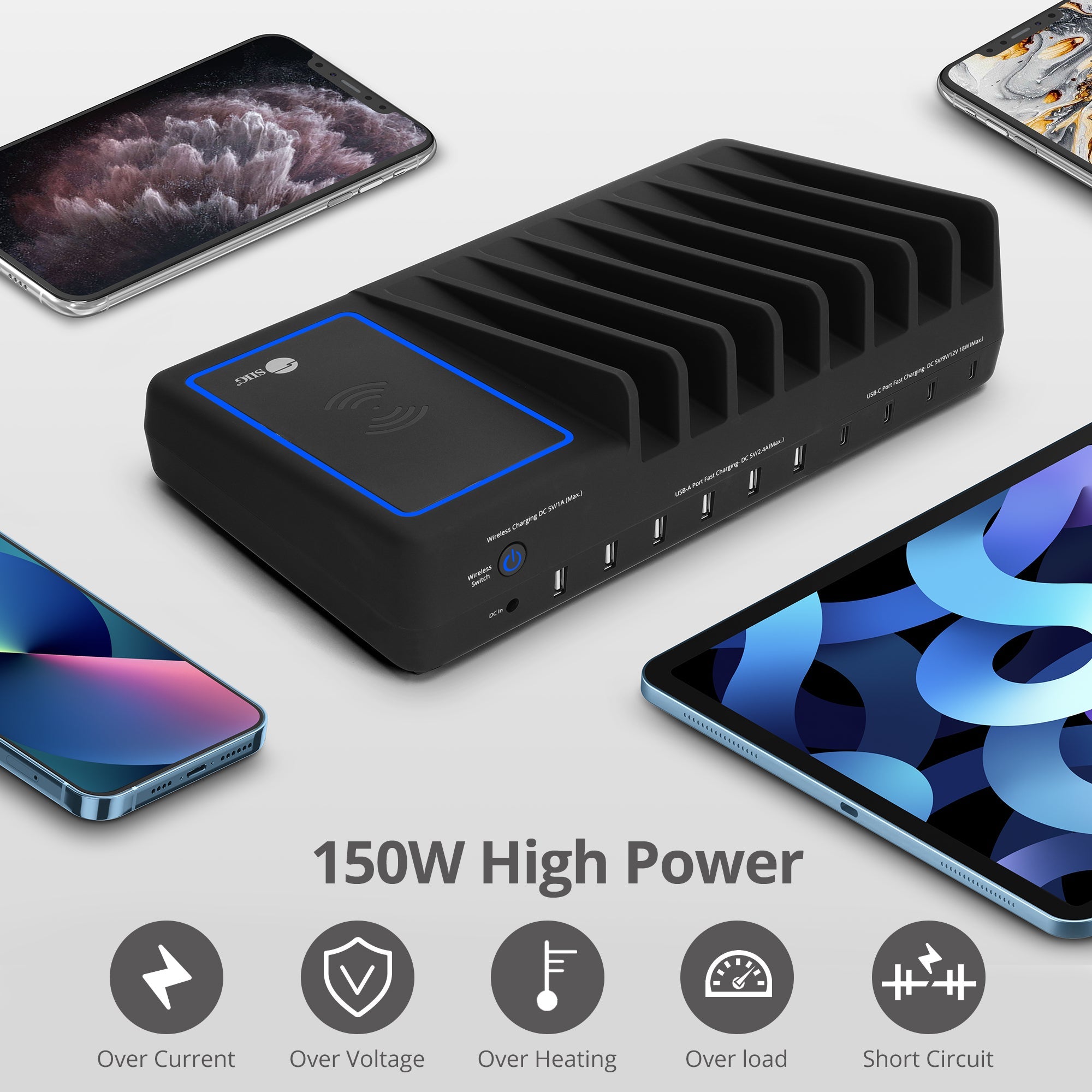

The included power adapter accepts AC 100-240V (50-60Hz) and outputs DC 19V/7.8A. The station has over-current, over-voltage, over-charge and short-circuit protection. The ABS plastic housing is designed for heat dissipation.
The station measures 12.60 x 3.54 x 7.09 in and weighs 1.14 lbs. It is Qi, FCC, CE, RoHS and REACH certified.
Ideal for
- Charging hub for mixed USB-C and USB-A device fleets
- Shared office or IT staging area for phones and tablets
- Classroom charging and storage
- Family charging station at home
Specifications
Power
- Power Adapter
- Input: AC 100-240V / 50-60Hz, Output: DC 19V / 7.8A
- USB A Charging Ports
- x6, DC 5V / 2.4A (Max. 12W)
- USB C Charging Ports
- x4, DC 5V/3A, 9V/2A, 12V/1.5A (Max. 18W)
- Wireless Charging Area
- DC 5V / 1A (Max. 5W)
General
- MPN
- AC-PW1R11-S1
- UPC
- 662774-044866
- Brand
- SIIG
- Warranty
- 1 year limited
- Total Output
- 150W total
- Certifications
- Qi, FCC, CE, RoHS, REACH
- Package Contents

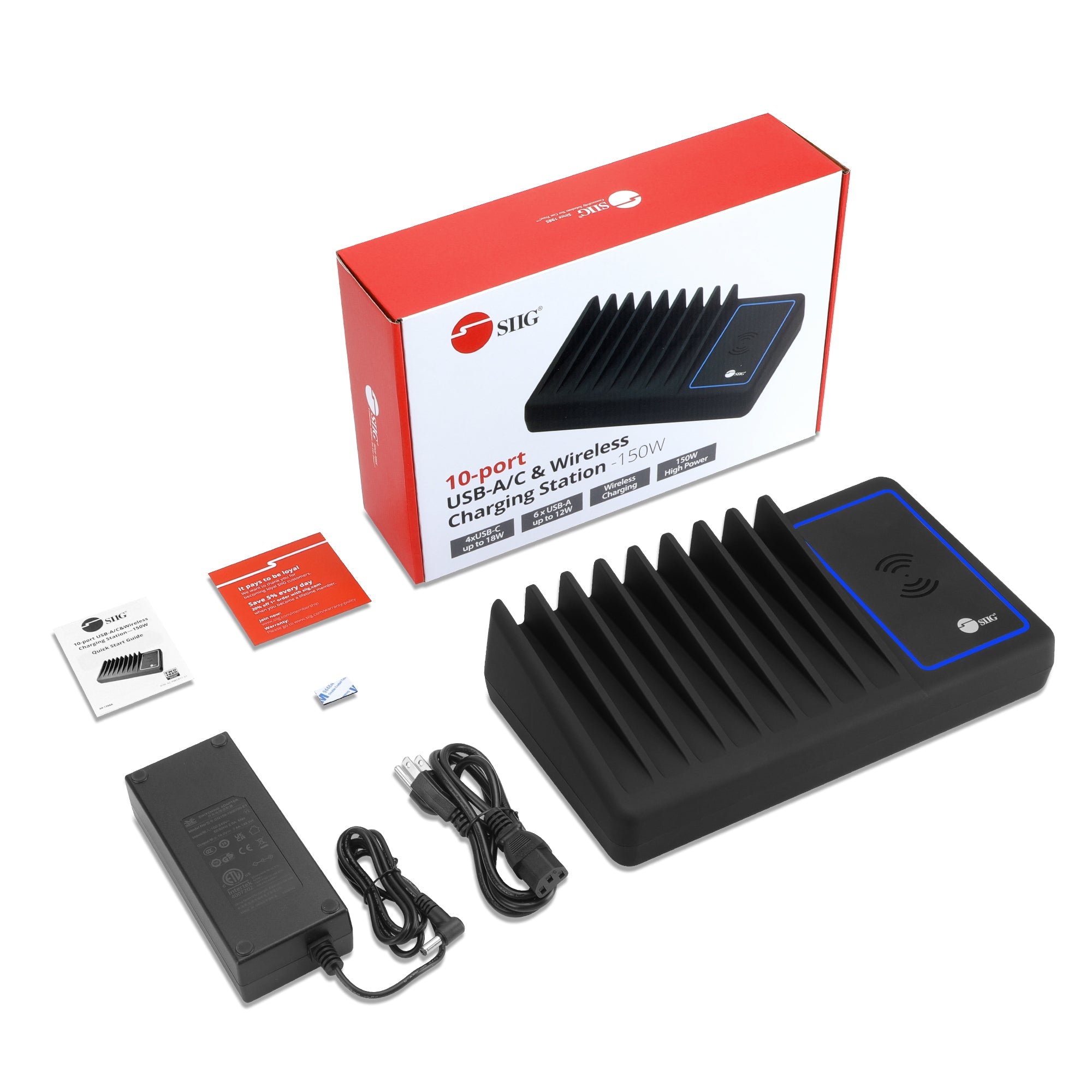

- Charging station, DC power adapter (19V/7.8A)
- Country OF Origin
- China
- Port Configuration
- 6A4C plus Qi wireless area
- Protection Circuit Module
- Over-current, over-voltage, over-charge and short-circuit protection
Product
- Color
- Black
- Weight
- 1.14 lbs (0.64 kg)
- Dimensions Lxhxw
- 12.60 x 3.54 x 7.09 in (32.00 x 8.99 x 18.01 cm)
- Housing Material
- Plastic
Unit Package
- Weight
- 3.42 lbs (1.55 kg)
- Dimensions Lxhxw
- 13.39 x 3.74 x 8.78 in (34.01 x 9.50 x 22.30 cm)
Ambient Light
- Blue
- wireless charging
- None
- Off: wireless standby
- Green
- wireless power on or charging complete
Master Carton
- Weight
- 37.40 lbs (16.96 kg)
- Quantity
- 10 pcs per carton
- Dimensions Lxhxw
- 18.90 x 14.17 x 20.08 in (48.01 x 35.99 x 51.00 cm)
Environmental Conditions
- Relative Humidity
- 10% to 95% RH (non-condensing)
- Storage Temperature
- 4°F to 165°F
- Operating Temperature
- 32°F to 104°F
Questions buyers ask
How many USB-C ports does the AC-PW1R11-S1 have?
Four USB-C ports, each supporting PD at 5V/3A, 9V/2A or 12V/1.5A (max 18W), plus six USB-A ports.
How fast is the wireless charging?
The wireless charging area supplies 5V/1A, up to 5W.
What do the ambient light colors mean?
Green means wireless charging is powered on or complete, blue means a device is charging wirelessly, and no light means wireless standby.
What power adapter is included?
A DC power adapter that accepts AC 100-240V and outputs DC 19V/7.8A.
