SIIG AC-PW1V11-S1 200W GaN PD Combo Charger, 3 USB-C + 1 USB-A

MPN AC-PW1V11-S1
  • Over 100 W
  • USB-C & USB-A
$125.40$159.99Save $34.59

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

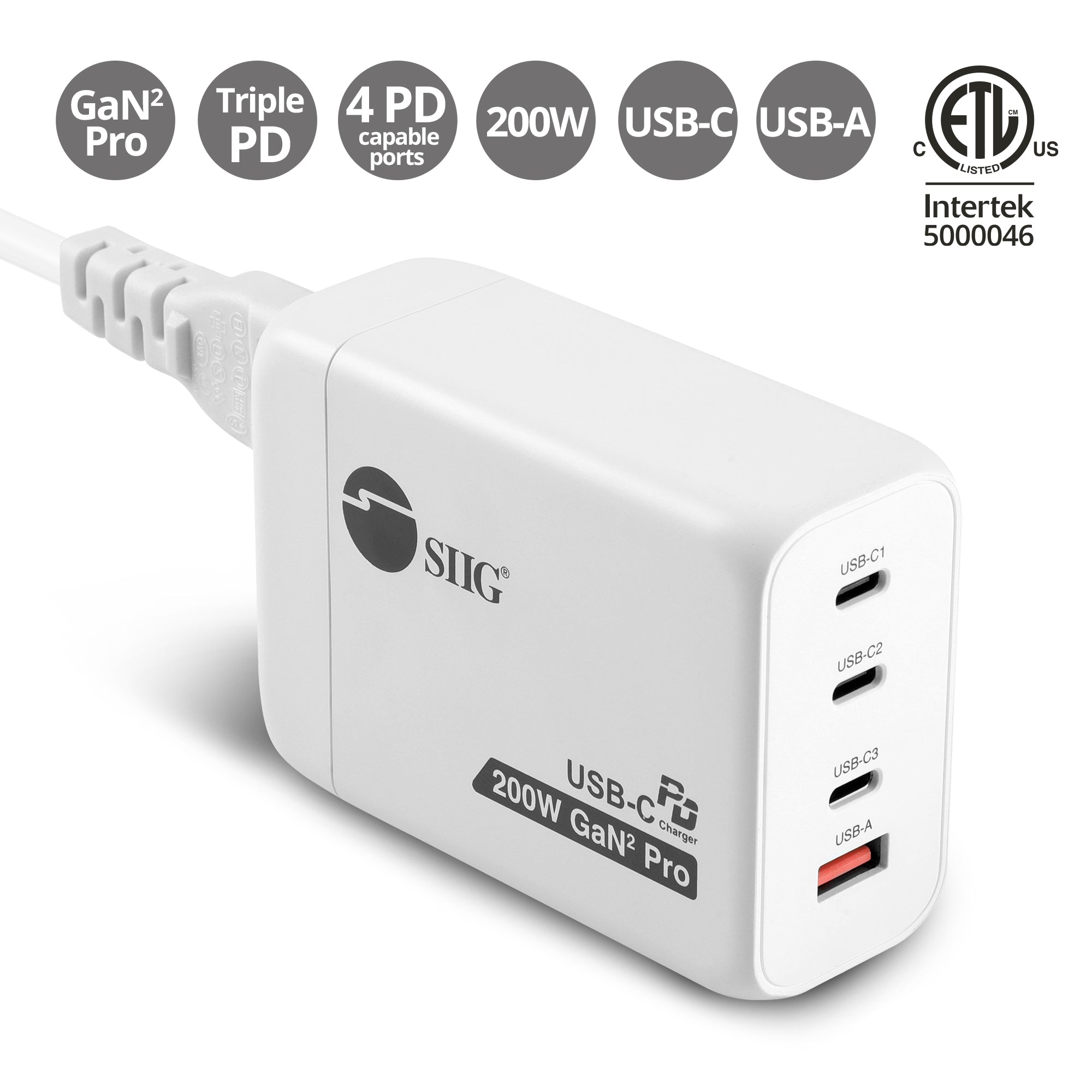

The SIIG AC-PW1V11-S1 is a 200W GaN desktop and travel charger with four ports. USB-C1 and C2 deliver up to 100W each, USB-C3 up to 65W, and USB-A up to 60W with Quick Charge 3.0. The USB-C ports support PD 3.0, Fast Charge 2.0 and PPS. PFC, ETL certification and a carrying pouch make it a good fit for laptop-heavy desks and mobile professionals.

  • 200W total output across 3 USB-C ports and 1 USB-A port
  • USB-C1 and C2 up to 100W each (20V/5A); USB-C3 up to 65W
  • USB-A up to 60W with Quick Charge 3.0
  • USB-C PD 3.0, Fast Charging 2.0 and PPS support

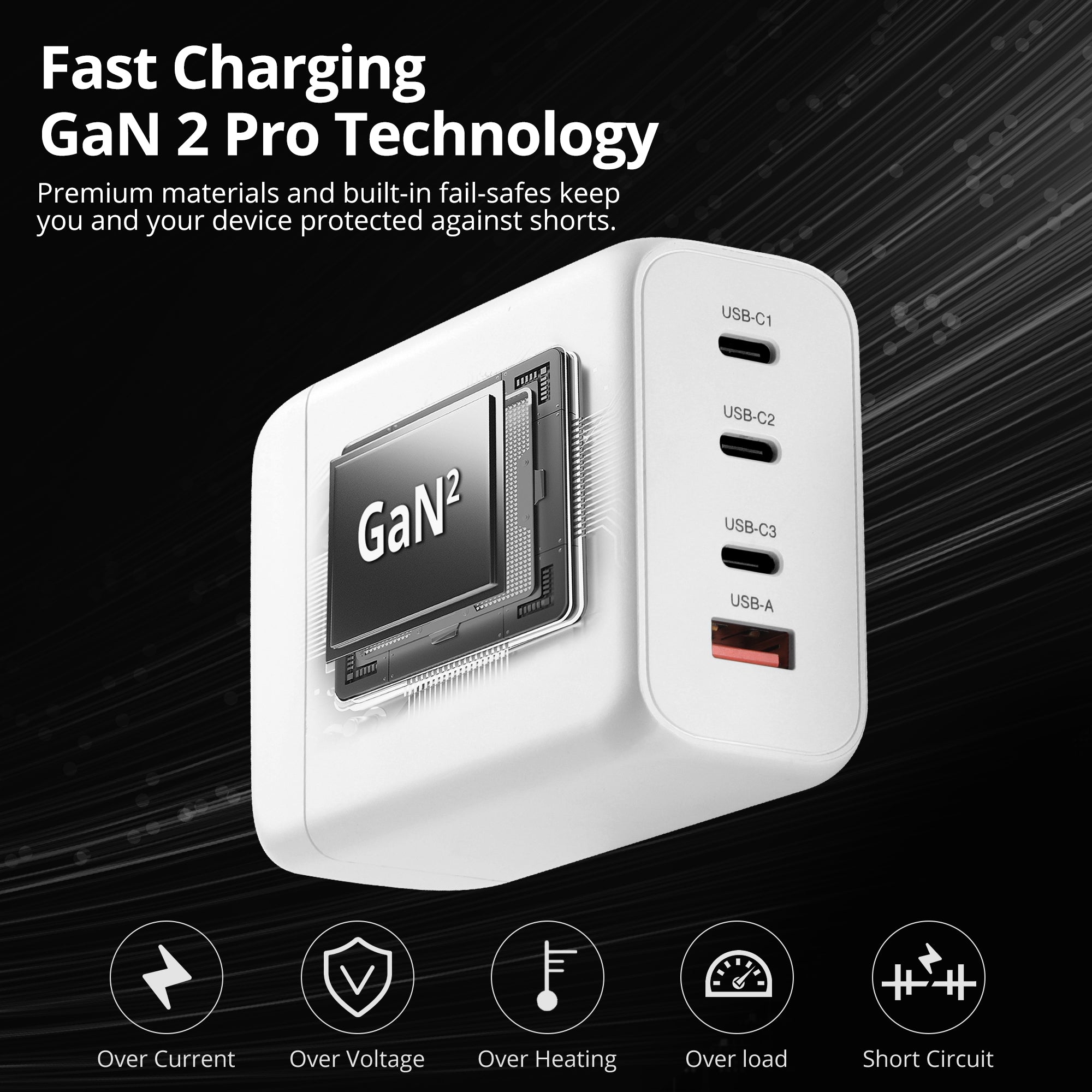

  • GaN2 Pro semiconductor design with PFC
  • ETL certified with over-load, over-current, over-voltage and short-circuit protection
  • Charge two 100W laptops at full speed from one compact brick
  • Replace several laptop and phone adapters on a desk or in a travel bag

The SIIG AC-PW1V11-S1 is a 4-port GaN charger for laptops, tablets and smartphones. It provides 200W total output. USB-C1 and USB-C2 each deliver up to 100W (20V/5A), USB-C3 up to 65W (20V/3.25A), and the USB-A port up to 60W. The USB-C ports support USB Power Delivery 3.0, Fast Charging 2.0 and Programmable Power Supply (PPS). The USB-A port supports Quick Charge 3.0.

Power is allocated automatically based on which ports are in use. Two laptops on USB-C1 and C2 each receive 100W. With three ports in use, typical splits are 100W + 65W + 30W. With all four ports in use, output is 100W + 65W, with USB-C3 and USB-A sharing 24W. The full distribution table appears in the specifications below.

GaN2 Pro semiconductor material keeps heat low and the housing compact at 3.26 x 1.38 x 2.48 in. Power factor correction (PFC) improves energy efficiency. Protection covers over-load, over-current, over-voltage, over-charge and short-circuit conditions. The charger accepts AC 100-240V (50-60Hz) input and is FCC, CE, RoHS, REACH and ETL certified (Intertek 5000046).

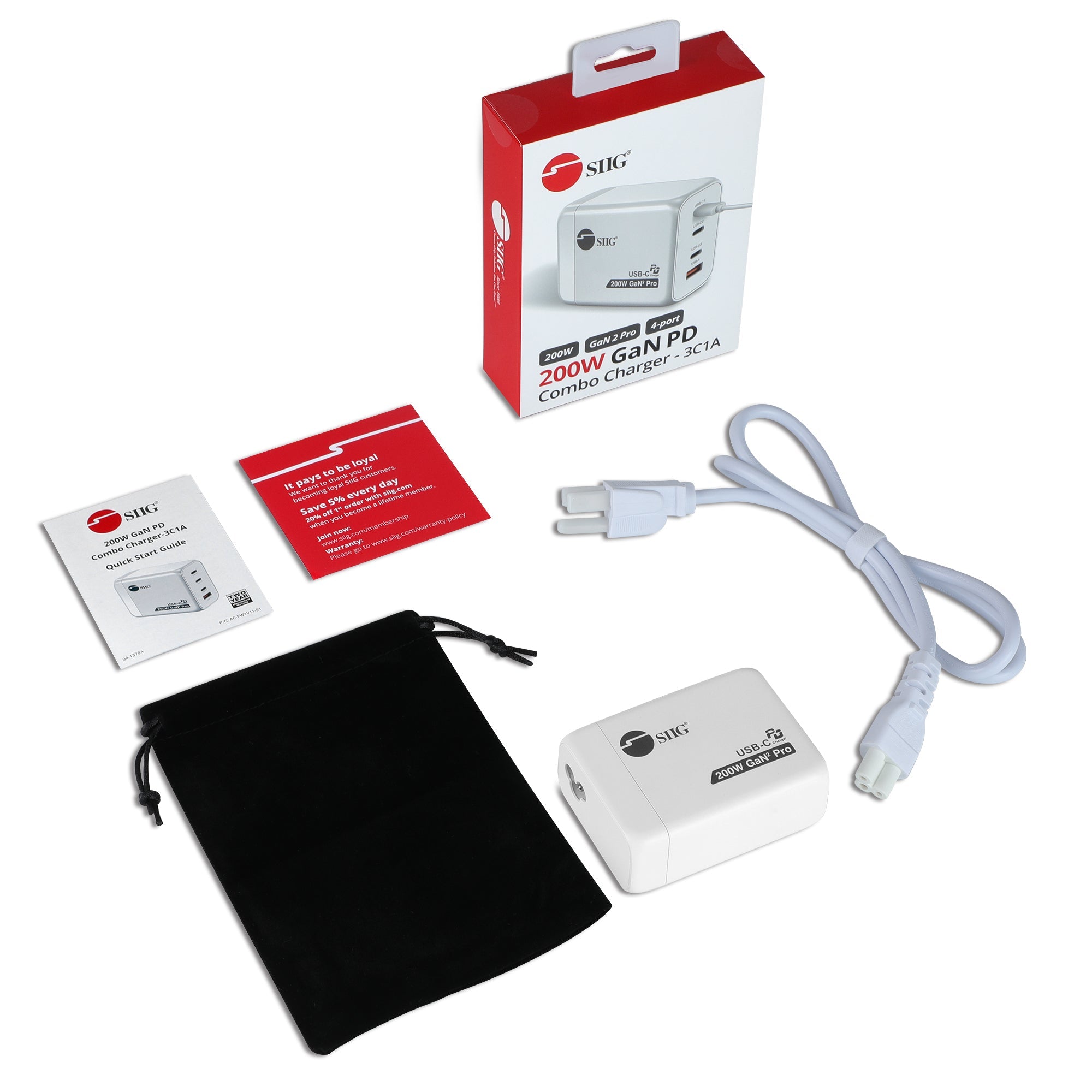

The white ABS housing is designed for heat dissipation. The package includes a 1m AC power cord, a carrying pouch and a user reference guide.

Ideal for

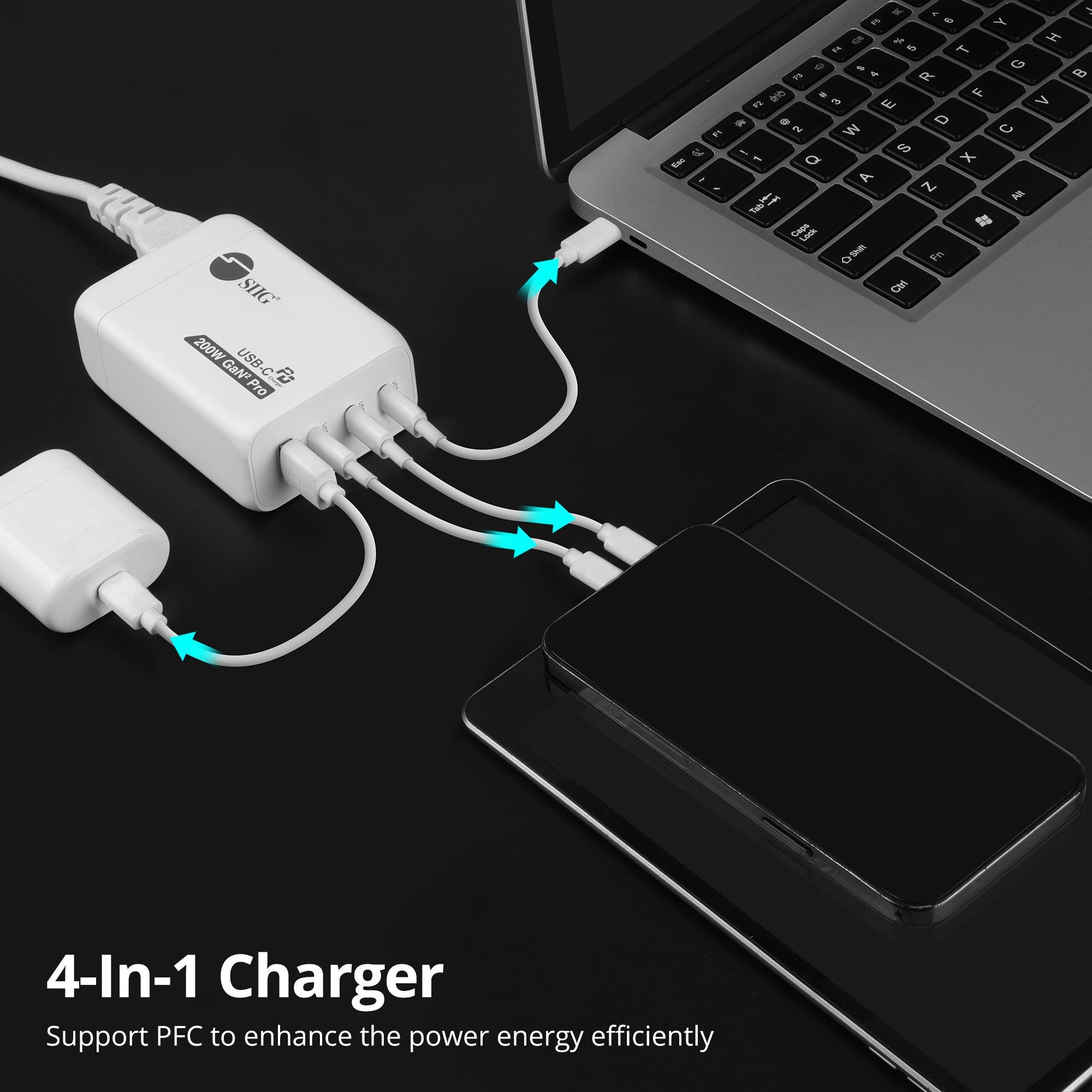

  • Desk charger for two USB-C laptops plus a phone
  • Travel kit for mobile professionals and field staff
  • Hot-desk and conference room charging
  • Charging a laptop, tablet and USB-A accessory from one outlet

Specifications

General

MPN
AC-PW1V11-S1
UPC
662774-045344
Brand
SIIG
AC Input
AC 100-240V / 50-60Hz
Material
New Gallium Nitride (GaN) Pro semiconductor material
Warranty
2 years limited
AC Output
200W
USB A Qc3
DC 5V/4.5A, 5V/3A, 9V/3A, 12V/3A, 20V/3A (Max. 60W)
USB C3 PD
DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (Max. 65W)
USB C1 C2 PD
DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (Max. 100W)
Certifications
FCC, CE, RoHS, REACH, ETL (Intertek 5000046)
Package Contents
Charger, 1m AC power cord, carrying pouch, user reference guide
Country OF Origin
China
Protection Circuit Module
Over-current, over-voltage, over-charge and short-circuit protection

Product

Color
White
Dimensions Wxhxd
3.26 x 1.38 x 2.48 in (8.28 x 3.50 x 6.30 cm)
Housing Material
Plastic

Unit Package

Weight
1.05 lbs (0.48 kg)
Dimensions Wxhxd
4.72 x 1.57 x 6.30 in (11.99 x 3.99 x 16.00 cm)

Master Carton

Weight
22.05 lbs (10.00 kg)
Quantity
20 pcs per carton
Dimensions Wxhxd
16.73 x 8.11 x 10.12 in (42.49 x 20.60 x 25.70 cm)

Environmental Conditions

Relative Humidity
5% to 95% RH (non-condensing)
Storage Temperature
-4°F to 158°F
Operating Temperature
14°F to 104°F

Auto Adjustment Power Delivery

One Port
USB-C1 100W; USB-C2 100W; USB-C3 65W; USB-A 60W
Two Port
C1+C2 100W+100W; C1+C3 100W+65W; C1+A 100W+60W; C2+C3 100W+65W; C2+A 100W+60W; C3+A 12W+12W (share 24W)
Four Port
C1+C2+C3+A 100W+65W+(12W+12W, share 24W)
Three Port
C1+C2+C3 100W+65W+30W; C1+C2+A 100W+65W+30W; C2+C3+A 100W+(12W+12W, share 24W)

Questions buyers ask

Can the AC-PW1V11-S1 charge two laptops at full power?

Yes. With USB-C1 and USB-C2 in use together, each receives up to 100W.

What happens when all four ports are used?

Output is allocated as 100W + 65W to the first two USB-C ports, with USB-C3 and USB-A sharing 24W (12W + 12W).

Which fast-charging standards are supported?

The USB-C ports support PD 3.0, Fast Charging 2.0 and PPS. The USB-A port supports Quick Charge 3.0.

What comes in the box?

The charger, a 1m AC power cord, a carrying pouch and a user reference guide.
