Overview
The SIIG AC-PW1X11-S1 is a 240W GaN charger with three USB-C ports and one USB-A port. USB-C1 supports USB Power Delivery 3.1 at up to 140W (28V/5A), USB-C2 and C3 support PD 3.0 at up to 100W each, and USB-A delivers up to 30W with Quick Charge 3.0. It can run a 140W laptop and a 100W laptop at the same time, and ships with a stand and carrying pouch.
- 240W total output shared across 3 USB-C ports and 1 USB-A port
- USB-C1 with USB PD 3.1 up to 140W (28V/5A)
- USB-C2 and C3 with PD 3.0 up to 100W (20V/5A) each
- USB-A with Quick Charge 3.0 up to 30W
- GaN Pro design with 95% power conversion rate
- Over-load, over-voltage, over-current, over-heating and short-circuit protection
- Stand and carrying pouch included
- Charge a 140W-class laptop and a second 100W laptop at the same time

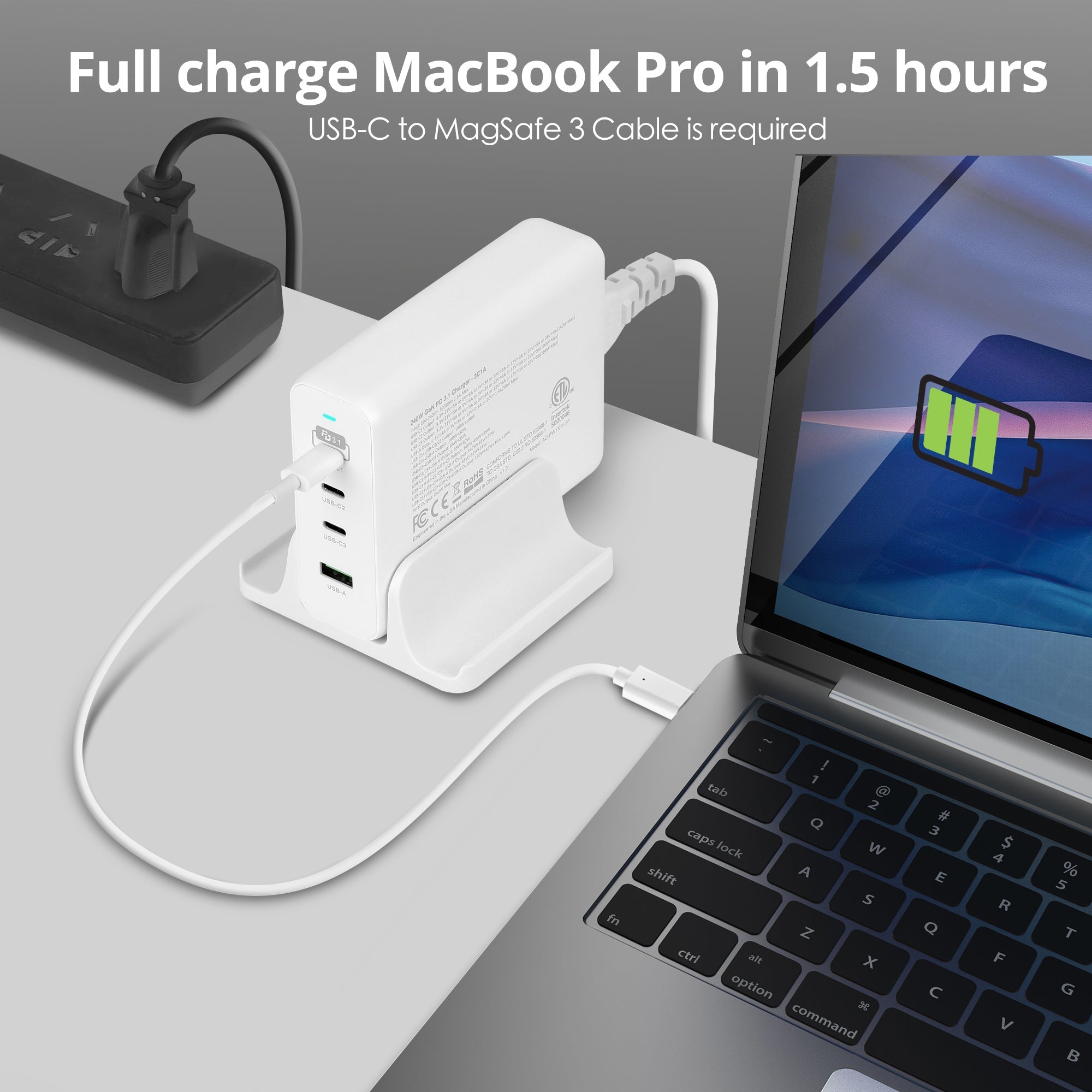

The SIIG AC-PW1X11-S1 is built for users who need to run high-wattage laptops from one charger. Its USB-C1 port supports USB Power Delivery 3.1 and delivers up to 140W at 28V/5A. That is enough for a 16-inch MacBook Pro when used with a USB-C to MagSafe 3 cable (not included). USB-C2 and USB-C3 support PD 3.0 up to 100W (20V/5A), and all USB-C ports are Fast Charger 2.0/PPS compatible. The USB-A port supports Quick Charge 3.0 up to 30W.

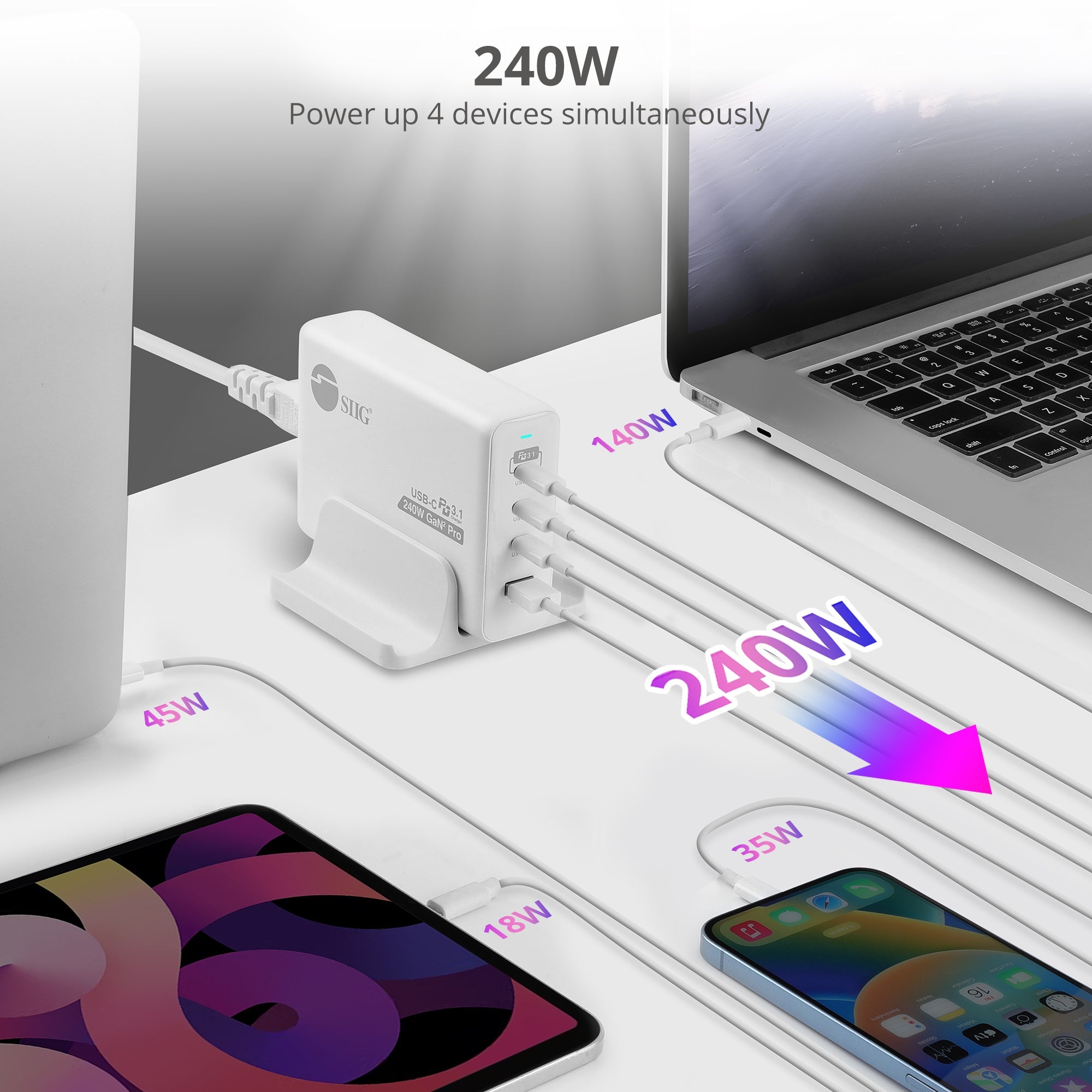

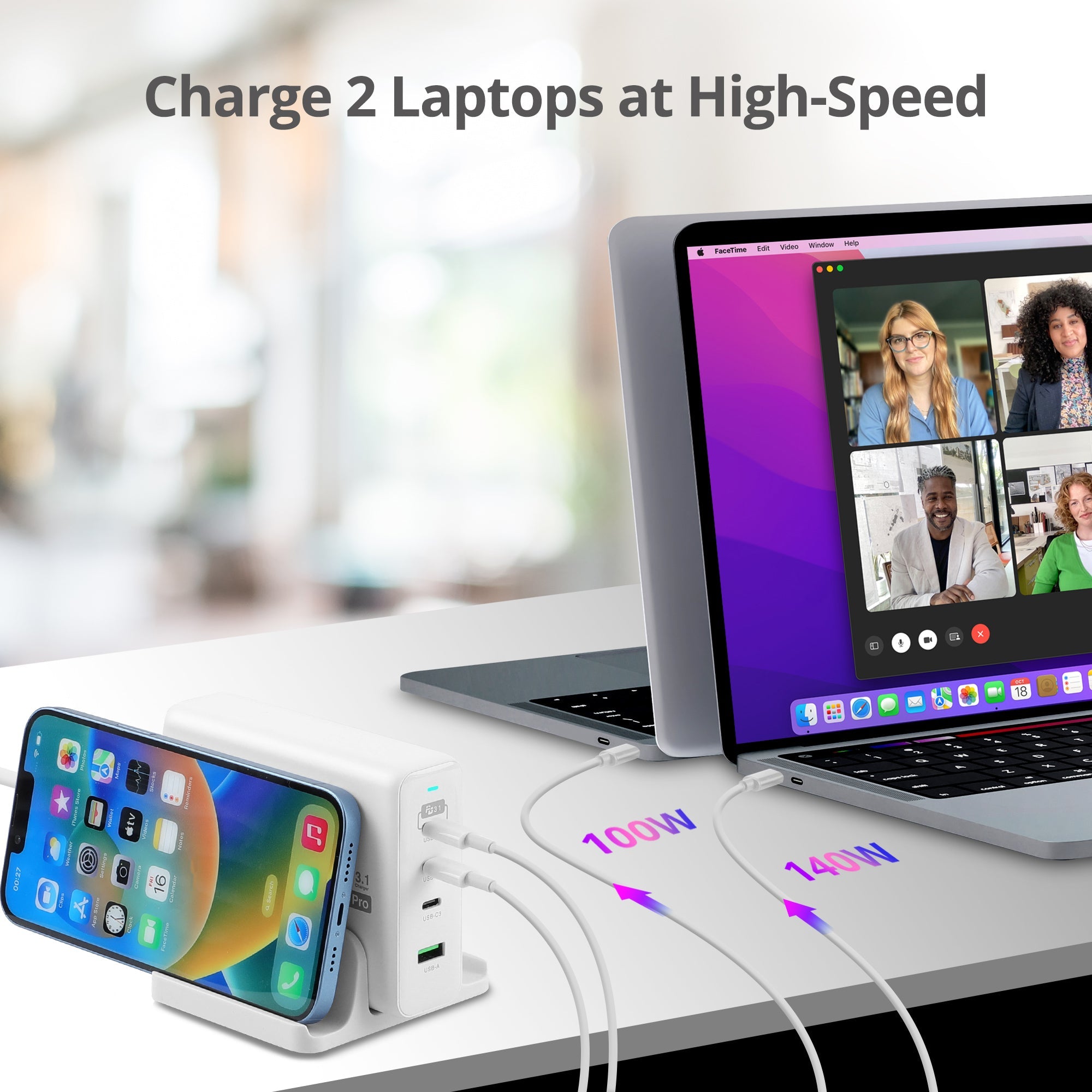

The 240W total is shared automatically among the ports. USB-C1 plus USB-C2 or C3 delivers 140W + 100W, so two laptops charge at full speed. With all four ports in use, output is 140W + 45W + 35W + 18W. The full distribution table is listed in the specifications.

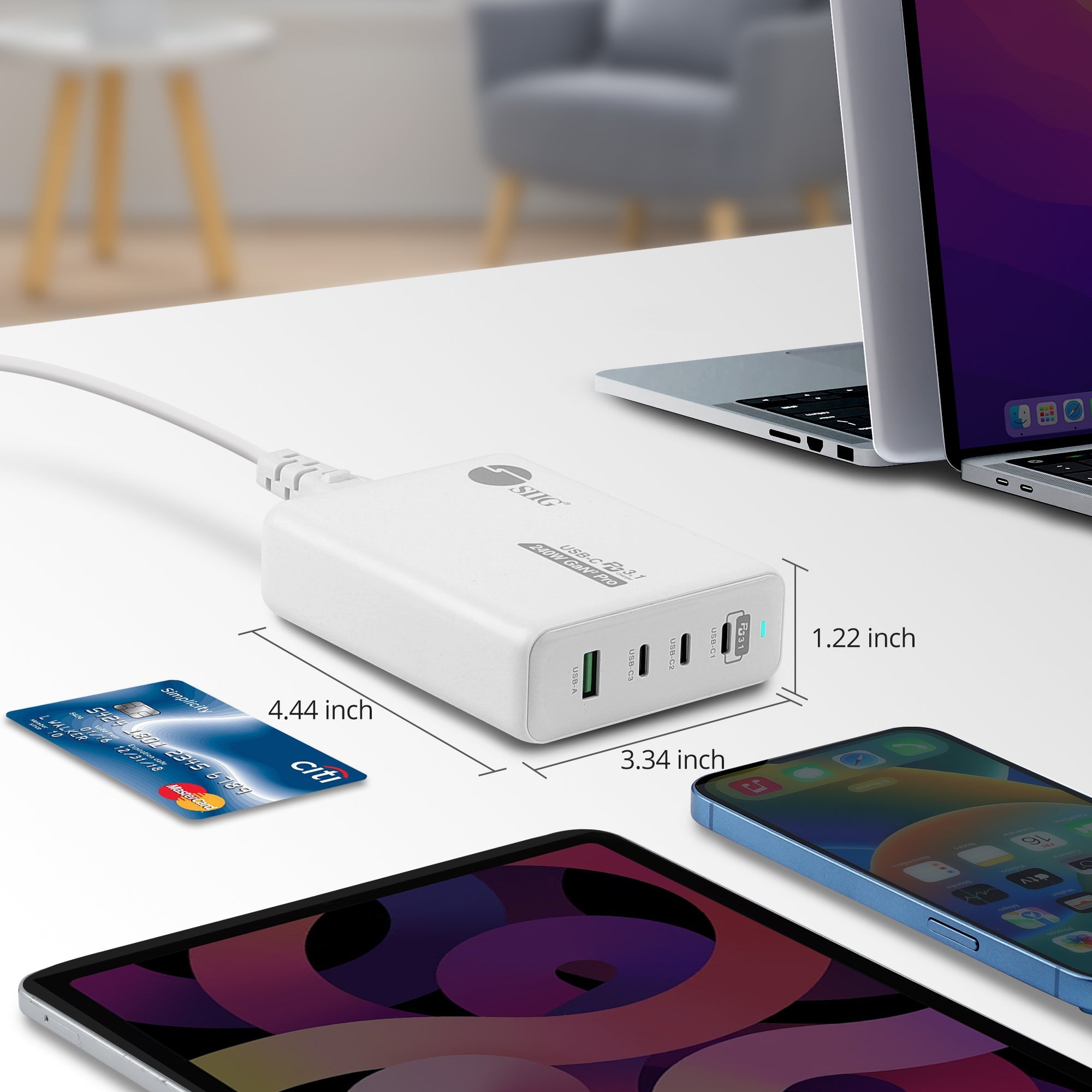

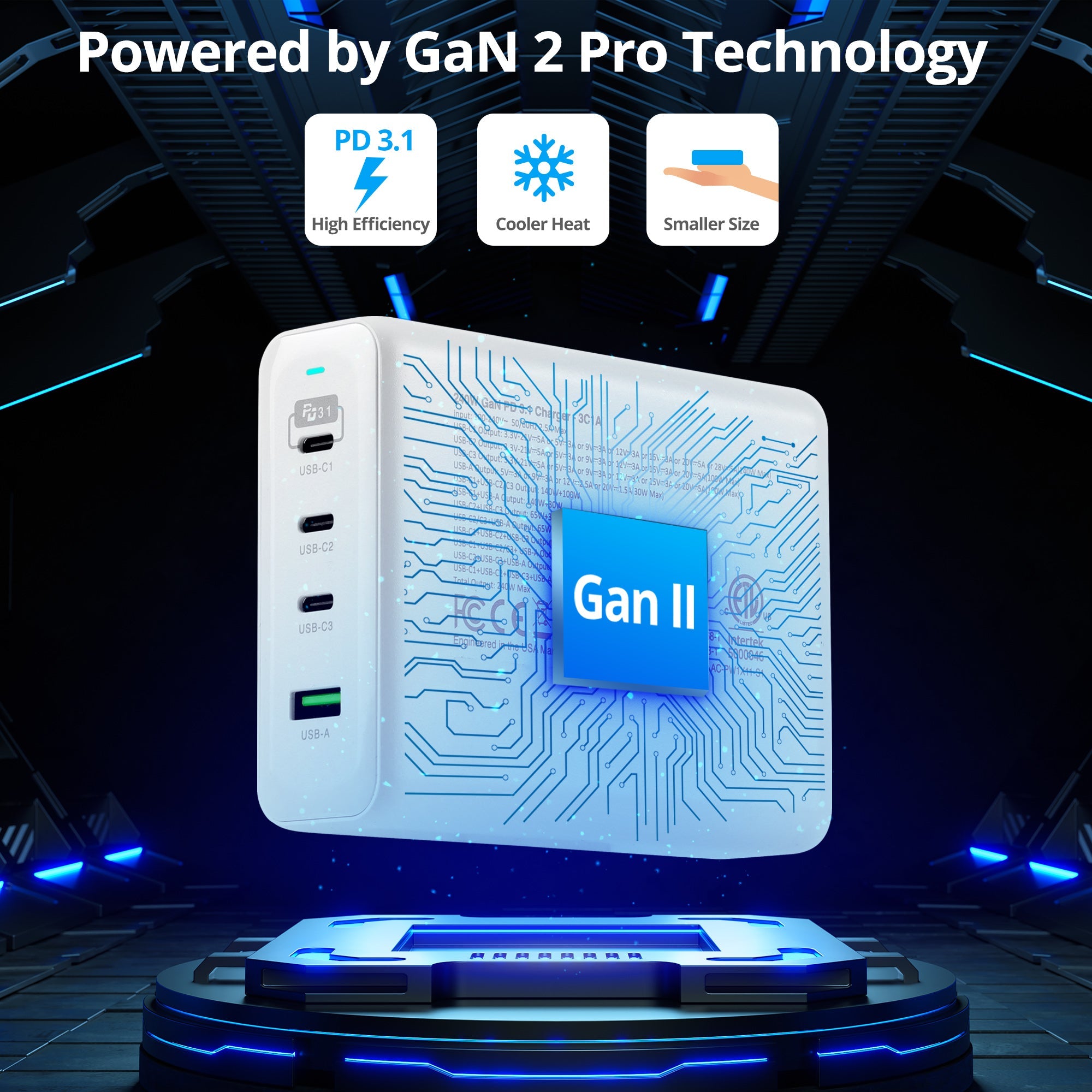

GaN Pro technology gives a 95% power conversion rate and a housing 35% smaller than traditional chargers, according to SIIG. The unit measures 4.45 x 1.28 x 3.39 in and weighs 1.26 lbs. It accepts AC 100-240V, 50/60Hz, 2.5A input. Protection covers over-load, over-voltage, over-current, over-heating and short-circuit conditions.

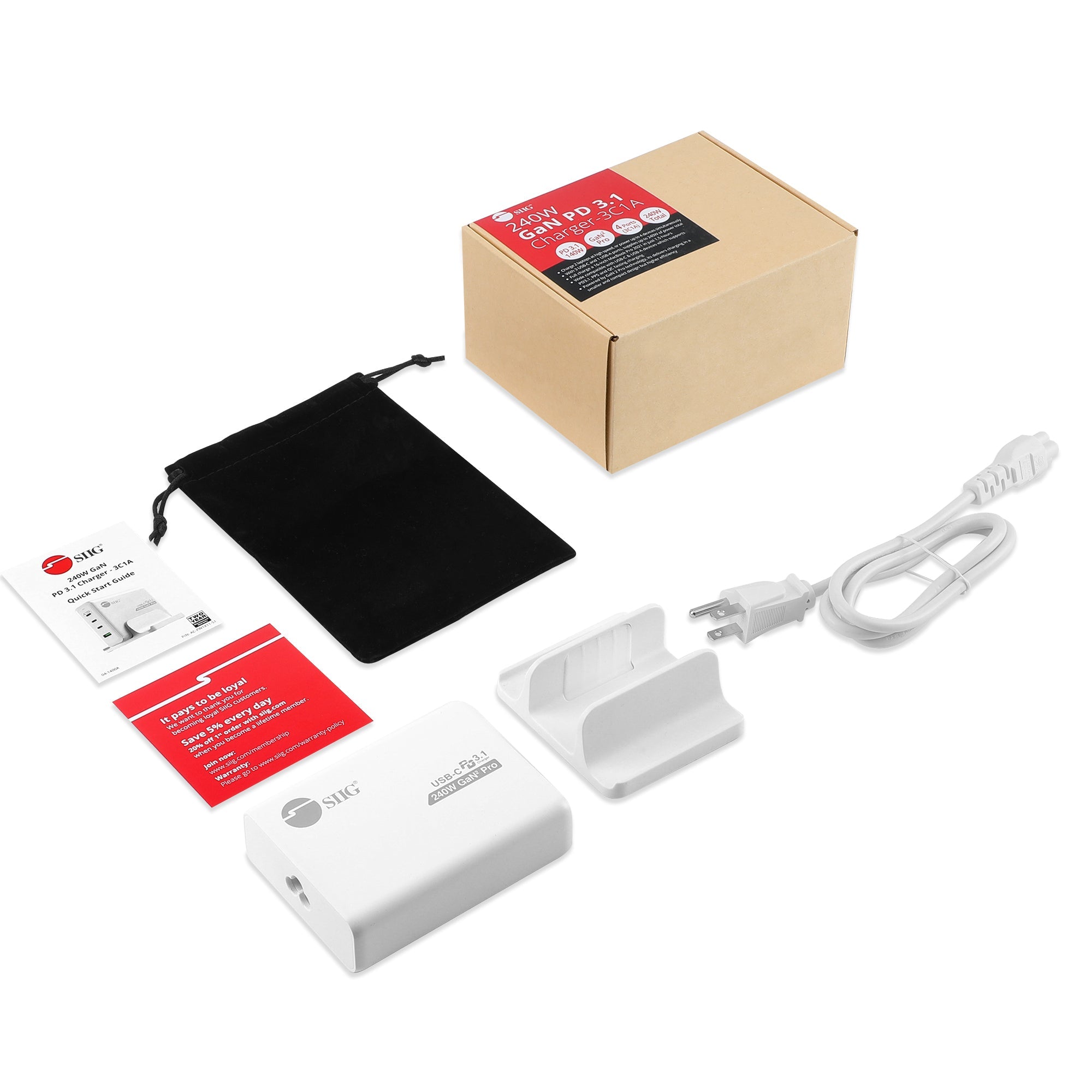

The white charger is FCC, CE, RoHS and ETL certified (Intertek 5000046). It ships with an AC power cord, a stand, a carrying pouch and a quick start guide.
Ideal for
- Powering a 140W laptop and a second laptop from one desk charger
- Travel charger for professionals carrying a laptop, tablet and phone
- Executive and engineering workstations with high-wattage USB-C laptops
- Conference rooms serving multiple laptop users
Specifications
General
- MPN
- AC-PW1X11-S1
- UPC
- 662774-045795
- Brand
- SIIG
- USB A
- Quick Charger 3.0 protocol
- USB C1
- USB Power Delivery 3.1; Fast Charger 2.0/PPS compatible
- AC Input
- AC 100-240V, 50/60Hz, 2.5A
- Material
- New Gallium Nitride (GaN) Pro semiconductor material
- Warranty
- 2 years limited
- USB C2 C3
- USB Power Delivery 3.0; Fast Charger 2.0/PPS compatible
- Connectors
- 1x AC input; 3x USB-C (24-pin) female; 1x USB-A (4-pin) female
- Protection
- Over-load, over-voltage, over-current, over-heating and short-circuit
- Certifications
- FCC, CE, RoHS, ETL (Intertek 5000046)
- Package Contents
- Charger, AC power cord, stand, carrying pouch, quick start guide
- Country OF Origin
- China
Product
- Color
- White
- Weight
- 1.26 lbs (0.57 kg)
- Dimensions Wxhxd
- 4.45 x 1.28 x 3.39 in (11.30 x 3.25 x 8.61 cm)
- Housing Material
- Plastic
Power Output
- Dual Port
- C1+C2 140W+100W; C1+C3 140W+100W; C1+A 140W+30W; C2+C3 65W+35W; C2+A 65W+30W; C3+A 65W+30W
- Quad Port
- All four ports: 140W+45W+35W+18W
- Single Port
- USB-C1 140W; USB-C2 100W; USB-C3 100W; USB-A 30W
- Triple Port
- C1+C2+C3 140W+65W+35W; C1+C2+A 140W+65W+30W; C1+C3+A 140W+65W+30W; C2+C3+A 45W+35W+18W
- Total Power Output
- 240W shared among all charging ports
Unit Package
- Weight
- 1.85 lbs (0.84 kg)
- Dimensions Wxhxd
- 6.38 x 3.46 x 5.04 in (16.20 x 8.79 x 12.80 cm)
Master Carton
- Weight
- 19.62 lbs (8.90 kg)
- Quantity
- 10 pcs per carton
- Dimensions Wxhxd
- 18.31 x 7.09 x 11.02 in (46.51 x 18.01 x 27.99 cm)
Environmental Conditions
- Relative Humidity
- 5% to 90% RH (non-condensing)
- Storage Temperature
- -4°F to 158°F
- Operating Temperature
- 14°F to 104°F
Questions buyers ask
Can the AC-PW1X11-S1 fast-charge a 16-inch MacBook Pro?
Yes. USB-C1 supports USB PD 3.1 at up to 140W. For 140W MagSafe charging you need a USB-C to MagSafe 3 cable, which is not included.
Can it charge two laptops at once?
Yes. USB-C1 with USB-C2 or C3 delivers 140W + 100W.
What is the output with all four ports in use?
140W + 45W + 35W + 18W.
What is included?
The charger, an AC power cord, a stand, a carrying pouch and a quick start guide.
