SIIG AC-PW2511-S1 100W GaN PD Combo Charger, 3 USB-C + 1 USB-A

MPN AC-PW2511-S1
  • 46–100 W
  • USB-C & USB-A
$56.09$79.99Save $23.90

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The SIIG AC-PW2511-S1 is a compact 100W GaN charger with three USB-C ports and one USB-A port. USB-C1 or C2 alone delivers up to 100W, USB-C3 up to 65W, and USB-A up to 30W, with PD 3.0, Fast Charge 2.0, PPS and Quick Charge 3.0 support. Smart distribution shares the 100W as devices connect. ETL certification, 100-240V input and a carrying pouch suit desks and travel.

  • 100W total output across 3 USB-C ports and 1 USB-A port
  • USB-C1/C2 up to 100W, USB-C3 up to 65W, USB-A up to 30W when used alone
  • USB PD 3.0, Fast Charger 2.0/PPS on all USB-C ports; Quick Charge 3.0 on USB-A
  • GaN semiconductor design for higher efficiency and lower heat
  • ETL certified with over-load, over-voltage, over-current, over-heating and short-circuit protection
  • Universal 100-240V input with a detachable power cord
  • Charge a 100W USB-C laptop from a charger that weighs 0.44 lbs
  • Top up a phone, tablet and earbuds alongside your laptop

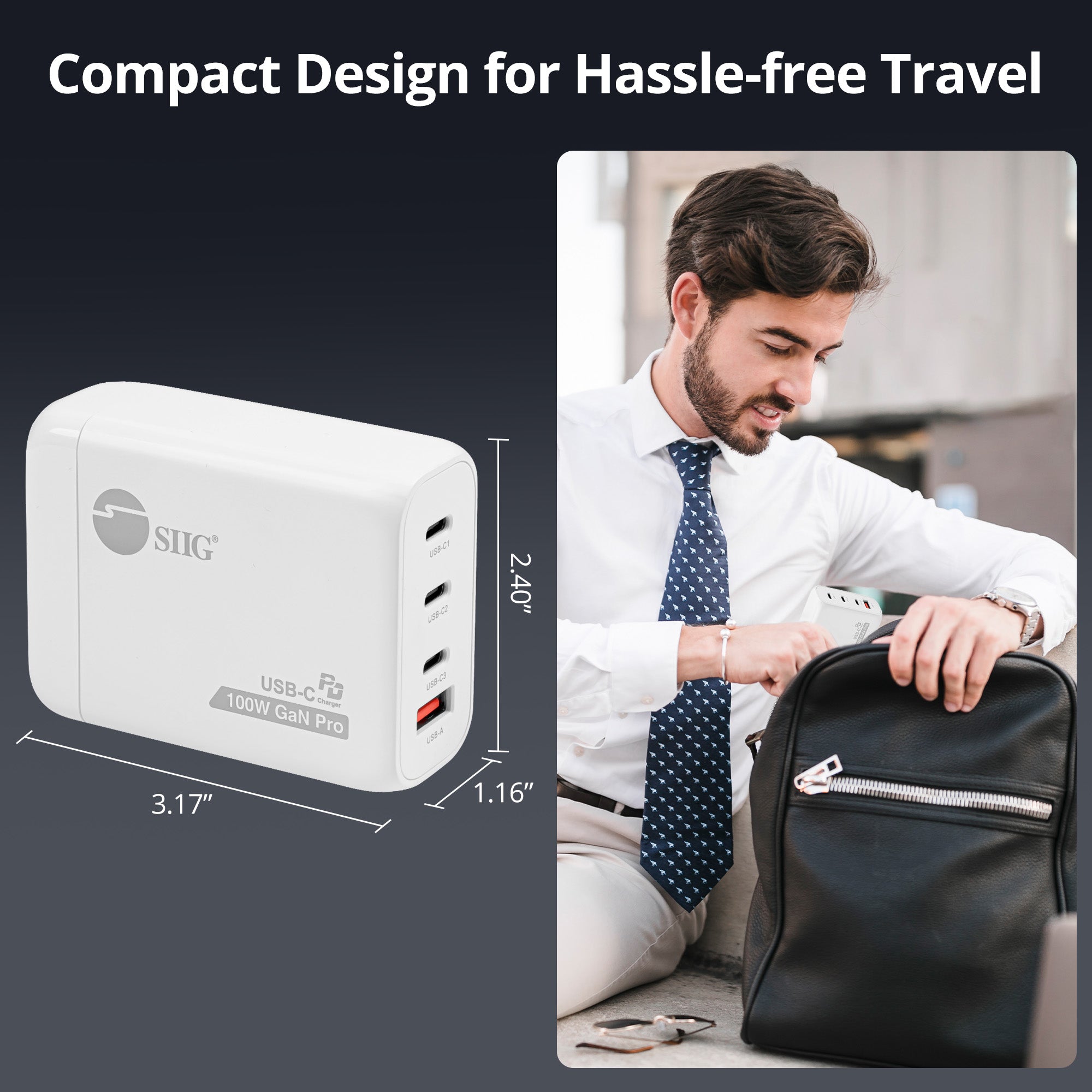

The SIIG AC-PW2511-S1 packs 100W of GaN charging into a 3.17 x 1.16 x 2.40 in body that weighs 0.44 lbs. It has three USB-C ports and one USB-A port for up to four devices at once. Used alone, USB-C1 or USB-C2 delivers up to 100W for a laptop, USB-C3 up to 65W, and USB-A up to 30W. All USB-C ports support USB Power Delivery 3.0 and are Fast Charger 2.0/PPS compatible. The USB-A port supports Quick Charge 3.0.

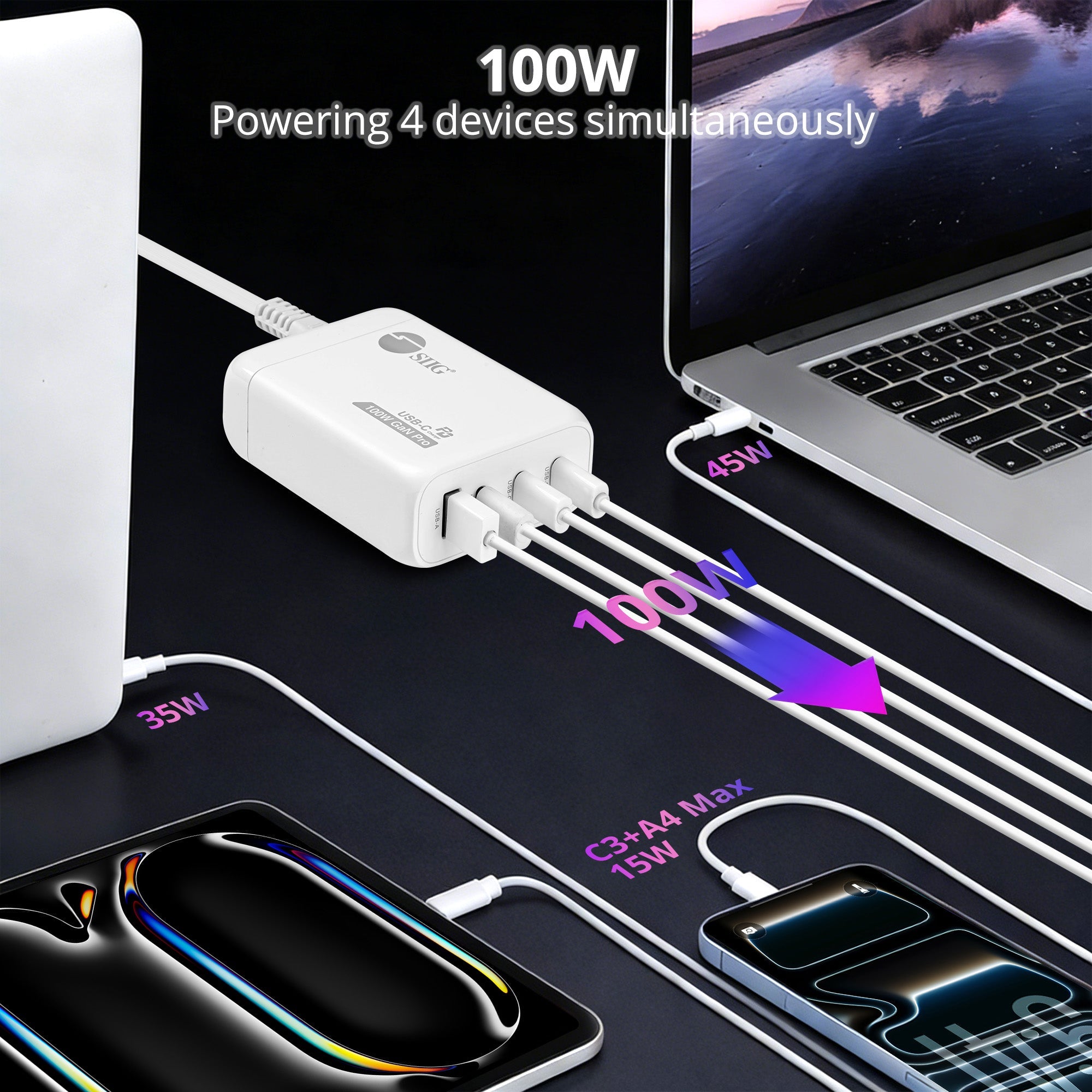

The 100W total is shared among the ports in use. Two USB-C devices typically receive 65W + 35W. A USB-C device plus the USB-A port receives 65W + 30W. With all four ports connected, output is 45W + 35W + 15W. The full table is in the specifications.

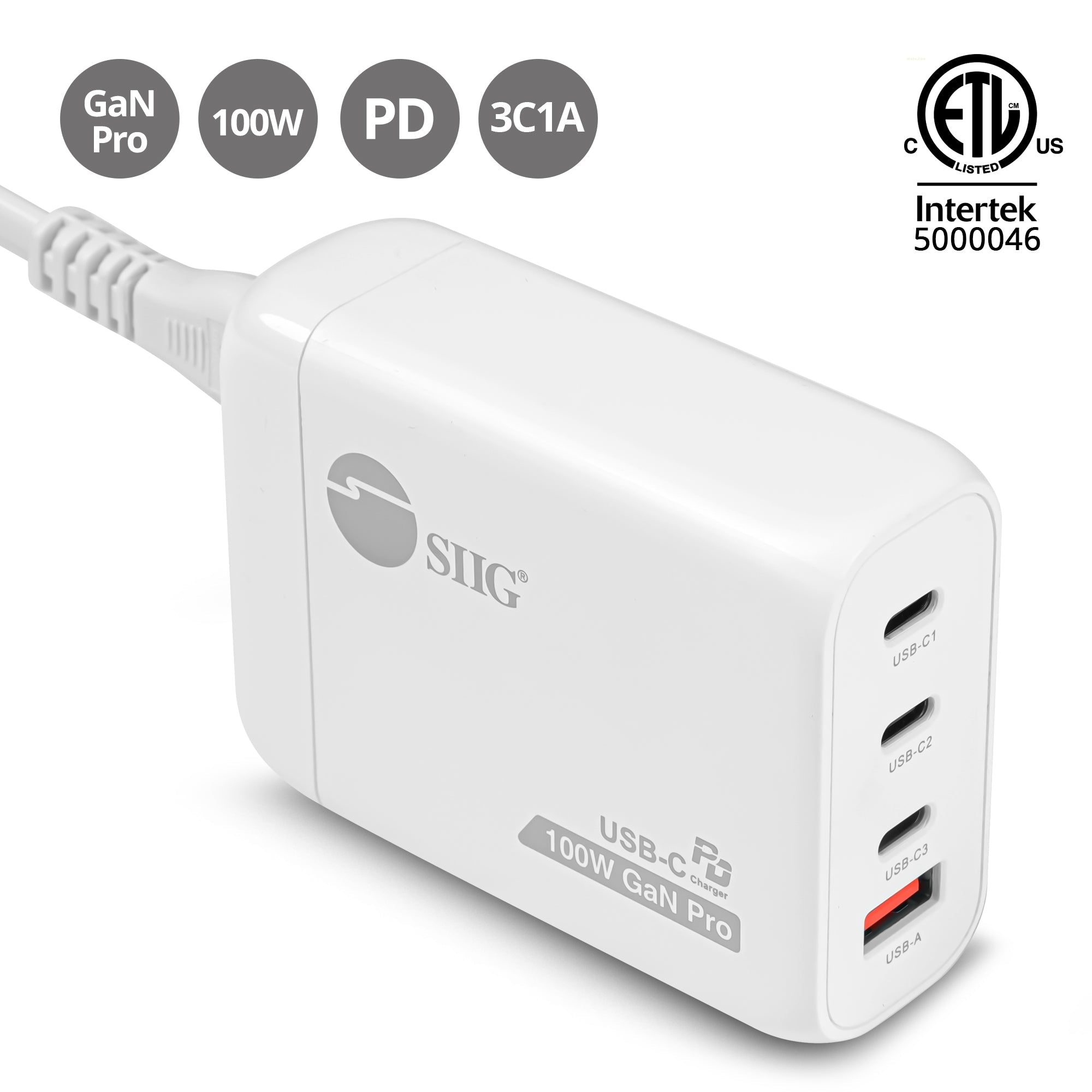

GaN technology improves efficiency, lowers heat and allows a compact design. The charger is ETL certified (Intertek 5000046) and carries FCC, CE and RoHS marks. It has built-in protection against over-load, over-voltage, over-current, over-heating and short circuits. Input is AC 100-240V, 50/60Hz, 1.5A max, through a detachable power cord.

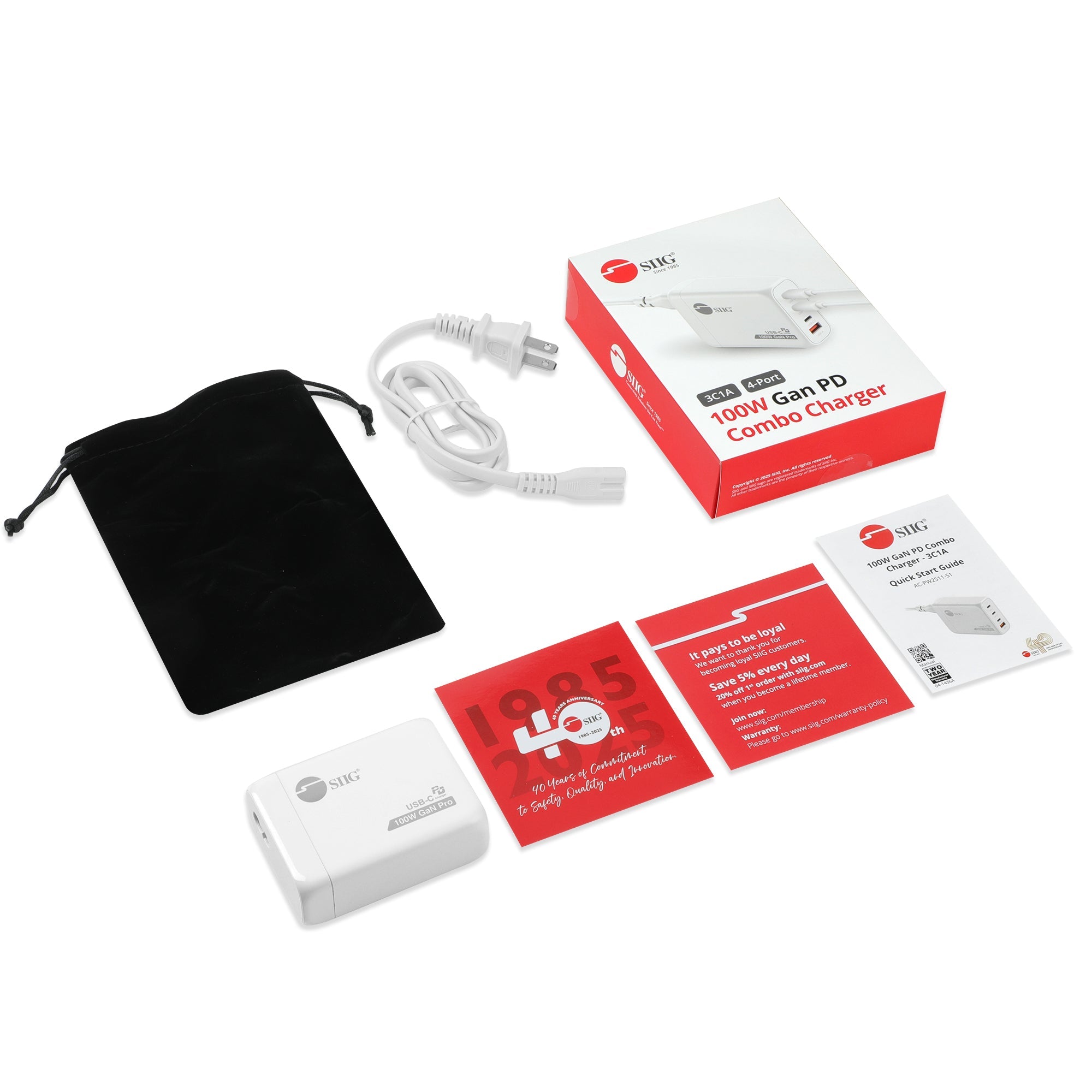

The charger works with iOS, Android and Windows devices and other USB-C equipment, including laptops, phones, tablets, Nintendo Switch, game consoles and cameras. The white charger ships with a power cord, a carrying pouch and a user manual.

Ideal for

  • Single travel charger for a laptop, phone and tablet
  • Compact desk charger for hybrid workers
  • Field kit charger for tablets, phones and cameras
  • Replacement for multiple OEM adapters in a laptop bag

Specifications

General

MPN
AC-PW2511-S1
UPC
662774-046815
Brand
SIIG
USB A
Quick Charger 3.0 protocol
AC Input
AC 100-240V, 50/60Hz, 1.5A max
Material
New Gallium Nitride (GaN) Pro semiconductor material
Warranty
2 years limited
Connectors
1x AC input; 3x USB-C (24-pin) female; 1x USB-A (4-pin) female
Protection
Over-load, over-voltage, over-current, over-heating and short-circuit
USB C1 C2 C3
USB Power Delivery 3.0; Fast Charger 2.0/PPS compatible
Certifications
FCC, CE, RoHS, ETL (Intertek 5000046)
Package Contents
Charger, power cord, carrying pouch, user manual
Country OF Origin
China

Product

Color
White
Weight
0.44 lbs
Dimensions Lxhxw
3.17 x 1.16 x 2.40 in
Housing Material
Plastic

Power Output

Dual Port
C1+C2/C3 65W+35W; C1/C2+A 65W+30W; C2+C3 65W+35W; C3+A 5V/3A (15W max)
Quad Port
All four ports: 45W+35W+15W
Single Port
USB-C1/C2 100W; USB-C3 65W; USB-A 30W
Triple Port
C1+C2+C3 45W+35W+20W; C1+C2+A 45W+35W+18W; C1/C2+C3+A 65W+18W
Total Power Output
100W shared among all charging ports

Unit Package

Weight
0.75 lbs
Dimensions Lxhxw
4.72 x 1.57 x 6.89 in

Master Carton

Weight
31.30 lbs
Quantity
40 pcs per carton
Dimensions Lxhxw
17.13 x 10.43 x 14.57 in

Environmental Conditions

Relative Humidity
5% to 90% RH (non-condensing)
Storage Temperature
-4°F to 158°F
Operating Temperature
14°F to 104°F

Questions buyers ask

Can the AC-PW2511-S1 charge a 100W laptop?

Yes. USB-C1 or USB-C2 delivers up to 100W when it is the only port in use.

How is power shared with multiple devices?

The 100W total is shared. For example, two USB-C devices receive 65W + 35W, and all four ports receive 45W + 35W + 15W.

Which charging standards are supported?

USB PD 3.0 and Fast Charger 2.0/PPS on the USB-C ports, and Quick Charge 3.0 on the USB-A port.

What is included?

The charger, a power cord, a carrying pouch and a user manual.
