Lantronix ACC-G526-1 G526 Accessory Bundle with LTE/GNSS Antenna, Wi-Fi Antenna, Power Supply and DIN Rail Clip

The Lantronix ACC-G526-1 G526 Accessory Bundle collects the antennas, power and mounting hardware a G526 cellular gateway needs into a single part number. Integrators and field teams can order one SKU per gateway instead of sourcing four components separately. The bundle does not include the G526 gateway.

Cellular and location coverage comes from the A33M0, a three-in-one antenna that combines two LTE elements with GPS/GLONASS/BD reception. It uses an adhesive mount and a 3000 mm RG174 cable terminated in three SMA male connectors, so the antenna can sit on a cabinet top, window or panel away from the gateway for better signal. For local wireless, the A21H0 is a 2.4/5.8 GHz dipole antenna for ISM and WLAN with a hinged RP-SMA male connector, so it can be angled to suit the enclosure.

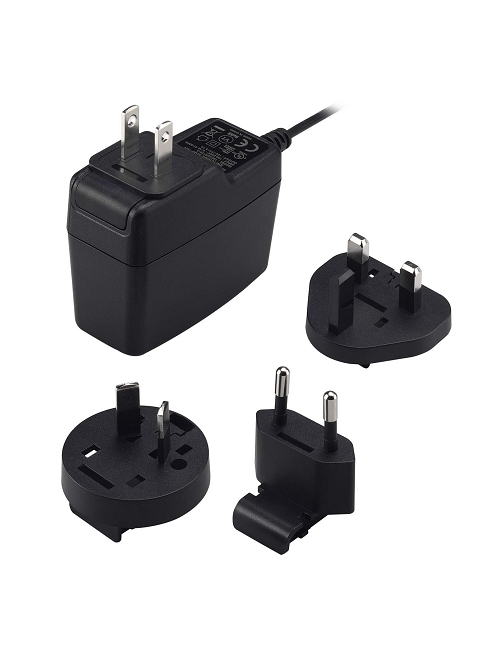

Power comes from the ACC-520-0165-00, a 12VDC 12W wall-cube supply with four AC plugs. It is rated Level 6, carries the PSE marking and has a 1x3 3.0 mm latched output connector that holds the power connection in place. The BR351 DIN rail clip is a single-mount clip with a 7½ U width for mounting the gateway on standard DIN rail in control cabinets and equipment panels.

This bundle is a practical way to standardize G526 deployments for remote monitoring, industrial IoT and asset-tracking projects, with each site getting the same Lantronix-specified antennas, power and mount.
