Cradlepoint MC400-1200M-B LTE Advanced Pro Modular Modem (1200 Mbps), AER2200 Kit BA-MC400-1200M-B

MPN BA-MC400-1200M-B

Made for Cradlepoint

$530.73$708.00Save $177.27

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

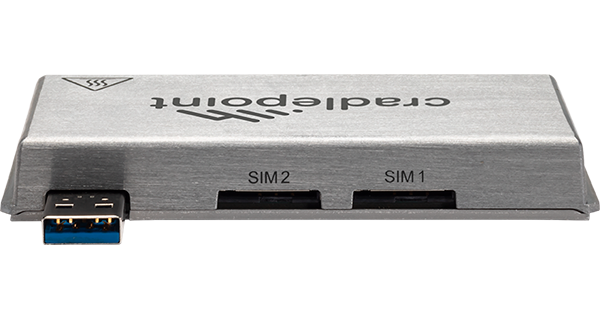

The Cradlepoint BA-MC400-1200M-B is the MC400-1200M-B LTE Advanced Pro modular modem in its AER2200 kit code. It installs in the modem slot of MC400-capable Ericsson Cradlepoint routers. Use it to upgrade a router's cellular capability without replacing the router, or to add a second modem for failover. The modem is rated for up to 1.2 Gbps LTE downlink and 150 Mbps uplink, with dual SIM slots and 4x4 MIMO.

  • Cat 18 LTE Advanced Pro modem with peak rates of 1.2 Gbps downlink and 150 Mbps uplink
  • Up to 5 downlink and 2 uplink carrier aggregation, 4x4 MIMO and up to 256 QAM
  • Dual 2FF SIM slots with SIM-based auto-carrier selection
  • Carrier certified for AT&T and Verizon; FirstNet Capable and Verizon Frontline certified
  • Private cellular network support, including FCC Part 96 (CBRS Band 48)
  • Operating range of -30 °C to 70 °C, powered over USB by the host router
  • Upgrade an MC400-capable router's cellular modem without replacing the router
  • Add a second modem for failover and higher availability at critical sites

The Ericsson Cradlepoint MC400-1200M-B is a Gigabit-class LTE Advanced Pro modular modem for MC400-capable branch, vehicle and IoT routers. This SKU, BA-MC400-1200M-B, is the AER2200 kit code. It gives network teams two options: upgrade a router to newer modem technology, or install a second modem to raise availability and coverage. Either way, the original router hardware stays in service. The package includes the MC400 modem and modem door covers.

According to the data sheet, the modem is a Cat 18 LTE Advanced Pro design on 3GPP Release 12. It supports up to 5 downlink and 2 uplink carrier aggregation, 4x4 MIMO and up to 256 QAM. Peak LTE rates are 1.2 Gbps down and 150 Mbps up, with WCDMA/DC-HSPA+ fallback. Dual 2FF SIM slots support SIM-based auto-carrier selection. The router can switch to the second SIM when the primary plan's data cap is reached, which helps control data costs.

The modem is carrier certified on AT&T and Verizon, and holds PTCRB and GCF standards approval. For public safety, it is FirstNet Capable and certified for Verizon Frontline. It also supports private cellular networks, including FCC Part 96 CBRS Band 48. Active GPS and SMS are supported.

The MC400 operates from -30 °C to 70 °C and draws power over USB from the host router. When installed in an IBR1700, in a COR Extensibility Dock on an IBR900, or in an R1900 with an RX30-MC, it is compliant with MIL-STD-810G and SAE J1455. Supported endpoints include the AER1600, AER2200, CBA850, IBR1700, E300, E3000, R1900, R920 and others. The Cradlepoint MC400 datasheet is available.

Ideal for

  • Adding a second LTE modem to an AER2200 branch router for failover
  • Upgrading an MC400-capable router's modem without replacing the router
  • Dual-carrier resilience for retail, branch and remote sites
  • Public safety deployments on FirstNet and Verizon Frontline
  • Private LTE connectivity on CBRS Band 48

Specifications

Power

Required
Provided through USB by the host

General

MPN
BA-MC400-1200M-B
UPC
810007800929
Brand
Ericsson Cradlepoint
Model
MC400-1200M-B Modular Modem
Kit Code
BA- kit code (AER2200)
Accessory Family
Modular
Region Availability
North America, Europe, Asia-Pacific (MC400 family)

Package

Contents
MC400 Modular Modem, modem door covers

Cellular

3g
WCDMA/DC-HSPA+
SIM
Dual 2FF SIM slots, SIM-based auto-carrier selection
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 8, 9, 19
Antennas
SMA female connectors; external 600 MHz – 6 GHz cellular paddle antennas (Qty 4, included)
GNSS GPS
Active GPS
Modulation
Up to 256 QAM
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
Cat 18 LTE Advanced Pro, 3GPP Release 12
5G NR Bands
N/A (LTE modem)
Peak Uplink
LTE 150 Mbps; DC-HSPA+ 5.76 Mbps
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
LTE 1.2 Gbps; DC-HSPA+ 42.2 Mbps
Transmit Power
LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)
Carrier Aggregation
Up to 5 CA downlink, 2 CA uplink
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada), GCF (Worldwide)
Public Safety Certifications
FirstNet Capable, Verizon Frontline
Network Operator Certifications
AT&T, Verizon

Physical

Size
93 x 74 x 13 mm (3.7 x 2.9 x 0.5 in)
Weight
0.104 kg (3.7 oz)

Compatibility

Supported Endpoints
AER1600, AER2200, CBA850, IBR1700, IBR900*, IBR600C*, E300, E3000, R1900 (RX30-MC), R500*, R920 (RX20-MC); *requires COR Extensibility Dock

Environmental

Storage Humidity
5% to 95%
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 60950-1, EN 62368-1
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL-STD-810G and SAE J1455 compliant when installed in an IBR1700, a COR Extensibility Dock on an IBR900, or an R1900 with RX30-MC

Questions buyers ask

Is the MC400-1200M-B a 5G modem?

No. It is an LTE Advanced Pro modem with a 1.2 Gbps peak downlink and WCDMA/DC-HSPA+ fallback. The MC400-5GB is the 5G variant.

Which routers support this modem?

Per the data sheet: AER1600, AER2200, CBA850, IBR1700, E300 and E3000. The IBR900, IBR600C and R500 require a COR Extensibility Dock, the R1900 requires an RX30-MC, and the R920 requires an RX20-MC.

What SIM size does it use?

It has dual SIM slots in the 2FF form factor, with SIM-based auto-carrier selection.

Which carriers is it certified on?

It is certified by AT&T and Verizon, is FirstNet Capable and is Verizon Frontline certified. It also carries PTCRB and GCF standards approval.

How is the modem powered?

Power is provided through USB by the host router.
