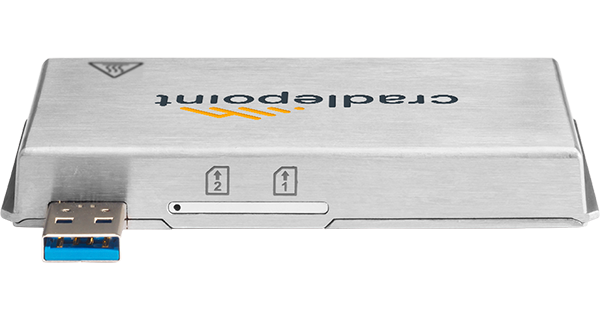

Cradlepoint MC400-5GB 5G Modular Modem Upgrade for AER2200 with Doors and 4 Antennas, BA-MC400-5GB

MPN BA-MC400-5GB

Made for Cradlepoint

$999.99

In stock · only 8 leftShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Cradlepoint BA-MC400-5GB is the MC400-5GB 5G modular modem, packaged as an upgrade kit for AER2200 branch routers with modem doors and four antennas. It adds 5G FR1 NSA/SA and LTE Advanced Pro Cat 20 to the router, with up to 4.14 Gbps peak downlink. Use it as an upgrade or as a second modem for failover. The modem uses dual 4FF (nano) SIM slots.

  • 5G FR1 NSA/SA and LTE Advanced Pro Category 20 on 3GPP Release 15
  • Peak rates up to 4.14 Gbps downlink and 660 Mbps uplink (manufacturer-stated conditions)
  • Dual 4FF SIM slots with SIM-based auto-carrier selection
  • 4x4 MIMO; LTE carrier aggregation up to 7 downlink and 2 uplink
  • Carrier certified for AT&T, T-Mobile and Verizon; FirstNet Capable, T-Mobile Connecting Heroes and Verizon Frontline
  • AER2200 upgrade kit with modem doors and four 600 MHz–6 GHz paddle antennas
  • Bring an existing AER2200 branch router up to 5G without replacing the router
  • Add a second modem for failover and higher uptime at branch sites

The Ericsson Cradlepoint MC400-5GB is a 5G modular modem for MC400-capable routers. This SKU, BA-MC400-5GB, is packaged as an upgrade for AER2200 branch routers and includes modem doors and four antennas. Install it in an AER2200 to move the branch to 5G without replacing the router, or add it as a second modem to raise availability and coverage.

The modem supports 5G FR1 in both NSA and SA modes, alongside LTE Advanced Pro Category 20 on 3GPP Release 15. Its 5G NR band set runs from n71 (600) through n77, n78 and n79. Peak rates reach 4.14 Gbps downlink and 660 Mbps uplink under the manufacturer's stated conditions. It uses 4x4 MIMO, up to 7 downlink carrier aggregation on LTE, and WCDMA/DC-HSPA+ fallback. Dual 4FF SIM slots support SIM-based auto-carrier selection. The router can fail over to the second SIM when the primary plan's data cap is reached. The four included 600 MHz–6 GHz paddle antennas connect via SMA female connectors.

The modem is certified by AT&T, T-Mobile and Verizon. It is FirstNet Capable and certified for T-Mobile Connecting Heroes and Verizon Frontline. It supports private cellular networks, including FCC Part 96 CBRS Band 48, and provides passive GNSS and SMS.

The MC400-5GB operates from -30 °C to 70 °C and draws power over USB from the host router. It is compliant with MIL-STD-810G and SAE J1455 when installed in an IBR1700, or in an R1900 with an RX30-MC. Supported endpoints are the AER2200, IBR1700, E300, E3000, R1900 (with RX30-MC) and R920 (with RX20-MC). The Cradlepoint MC400 datasheet is available.

Ideal for

  • Upgrading AER2200 branch routers to 5G
  • Adding a second 5G modem for dual-carrier failover at branch sites
  • Primary 5G WAN for new or temporary branch locations
  • Public safety connectivity on FirstNet, T-Mobile Connecting Heroes and Verizon Frontline
  • Private cellular deployments on CBRS Band 48

Specifications

Power

Required
Provided through USB by the host

General

MPN
BA-MC400-5GB
UPC
840292700925
Brand
Ericsson Cradlepoint
Model
MC400-5GB 5G Modular Modem
Accessory Family
Modular
Region Availability
North America, Europe, Asia-Pacific (MC400 family)

Package

Contents
MC400-5GB modem, modem doors, 4 cellular antennas
Designed For
Upgrade kit for AER2200 branch routers

Cellular

3g
WCDMA/DC-HSPA+
SIM
Dual 4FF (nano) SIM slots, SIM-based auto-carrier selection
SMS
Yes
MIMO
4x4 MIMO
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
Antennas
SMA female connectors; external 600 MHz – 6 GHz cellular paddle antennas (Qty 4, included only with supported Branch routers)
GNSS GPS
Passive GNSS (multiplexed with DIV/MIMO2 antenna ports)
Modulation
5G FR1: DL up to 256 QAM, UL up to 256 QAM (uplink 256 QAM only on particular carrier equipment)
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Technology
5G FR1 NSA/SA and 4G LTE, LTE Advanced Pro Cat 20, 3GPP Release 15
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps (2 layers LTE + TDD, 100 MHz BW, 256 QAM, SISO)
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
Up to 4.14 Gbps (20 layers LTE + TDD, 100 MHz BW, 256 QAM, 4x4)
Transmit Power
5G NR 23 dBm ± 1.5; ENDC 20 dBm ± 1; LTE 23 dBm ± 1; LTE HPUE 25 dBm ± 1 (B41 SA only); typical conducted
Carrier Aggregation
ENDC: 1 CA DL / 1 CA UL; LTE only: up to 7 CA DL / 2 CA UL
Private Cellular Network
Yes, includes FCC Part 96 (CBRS Band 48)
Network Operator Standards
PTCRB (U.S., Canada), GCF (Worldwide)
Public Safety Certifications
FirstNet Capable, T-Mobile Connecting Heroes, Verizon Frontline
Network Operator Certifications
AT&T, T-Mobile, Verizon

Physical

Size
93 x 74 x 13 mm (3.7 x 2.9 x 0.5 in)
Weight
0.104 kg (3.7 oz)

Compatibility

Supported Endpoints
AER2200, IBR1700, E300, E3000, R1900 (requires RX30-MC), R920 (requires RX20-MC)

Environmental

Storage Humidity
5% to 95%
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
MIL-STD-810G and SAE J1455 compliant when installed in an IBR1700, or an R1900 with RX30-MC

Questions buyers ask

Which router is this kit for?

BA-MC400-5GB is packaged as a 5G modem upgrade for AER2200 branch routers. The MC400-5GB modem is also supported in the IBR1700, E300, E3000, R1900 (with RX30-MC) and R920 (with RX20-MC).

What SIM does it require?

It uses dual 4FF (nano) SIM slots with SIM-based auto-carrier selection.

Does it support 5G standalone?

Yes. It supports 5G FR1 in both NSA and SA modes, plus LTE Advanced Pro Cat 20.

What is included?

The kit includes the MC400-5GB modular modem, modem doors and four 600 MHz–6 GHz cellular paddle antennas with SMA connections.

Which carriers is it certified on?

It is certified by AT&T, T-Mobile and Verizon, and is FirstNet Capable. It is also certified for T-Mobile Connecting Heroes and Verizon Frontline.
