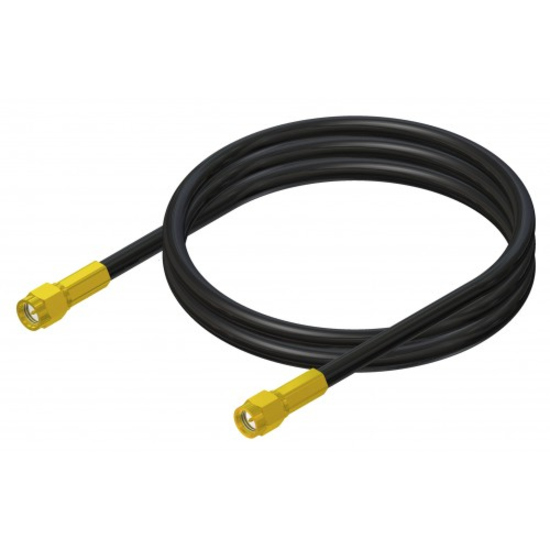

Panorama C29SP-5SJ 5 m CS29 Low-Loss Coax Extension Cable, SMA Male to SMA Female
MPN C29SP-5SJ
- 3–5 m
$19.63$27.00Save $7.37
In stockShips from the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Datasheets & documents
Overview
The Panorama Antennas C29SP-5SJ is a 5 m (16.4 ft) coaxial extension cable built on Panorama's CS29 ultra-low-loss, double-shielded 5 mm cable. It has an SMA male connector on one end and an SMA female connector on the other, for extending antenna connections to routers and modems. The 50 Ω cable is specified for cellular, WLAN and other applications up to 3 GHz, including 3G UMTS and 4G LTE.
- 5 m (16.4 ft) CS29 coaxial extension cable, SMA male to SMA female
- Double shielded: tin-plated copper braid (≥95% coverage) over aluminium foil
- Typical attenuation of 4 dB per 10 m at 1 GHz and 5.5 dB per 10 m at 2 GHz
- 50 Ω impedance, specified for cellular (including 3G UMTS and 4G LTE), WLAN and other applications up to 3 GHz
- Halogen-free cable with a black TPE jacket
- Flexible stranded copper centre conductor and cellular polyethylene dielectric
- Rated -40°C to +80°C
- Moves an antenna up to 5 m farther from the router or modem for a better signal position
The C29SP-5SJ is a 5 m (16.4 ft) Panorama Antennas extension cable with an SMA male connector on one end and an SMA female connector on the other. It extends the connection between an antenna and a router or modem when equipment and antenna sit farther apart than the original lead allows. Panorama describes the extra shielding of its CS29 cable as reducing loss at higher frequencies, making it well suited to 3G UMTS and 4G LTE. The cable is halogen free.
The assembly uses CS29 cable (part SR1-029-B), a 5 mm (0.20 in) double-shielded design. A tin-plated copper braid with no less than 95% coverage sits over an aluminium foil inner shield. Typical attenuation is 2.2 dB per 10 m at 400 MHz, 4 dB per 10 m at 1 GHz and 5.5 dB per 10 m at 2 GHz. Shielding effectiveness is better than -95 dB to IEC 61196-1 at 400 MHz, and braid resistance is less than 160 mΩ per 10 m.
Impedance is 50 Ω ± 2 Ω at 1 GHz and 50 Ω ± 4 Ω at 2 GHz. The stranded plain copper centre conductor and white cellular polyethylene dielectric keep the cable flexible for routing. The black TPE outer jacket is rated from -40°C to +80°C (-40°F to 176°F). The cable is rated for 1000 VDC voltage withstand and a 3000 V RMS jacket spark test.
Panorama's CS29 cable datasheet provides the full construction and electrical data.
Ideal for
- Relocating a cellular antenna to a window or ceiling position away from the router
- Extending LTE antenna leads to modems in comms closets or cabinets
- Adding reach between a Wi-Fi or cellular antenna and an SMA-equipped gateway
- Small-business and home-office installs where the router sits away from the best signal spot
Specifications
Cable
- Cable Type
- Ultra low loss double shielded coaxial
- Cable Series
- Panorama CS29
- Halogen Free
- Halogen free
- Application Range
- Cellular, WLAN and other applications up to 3 GHz
- Cable Part Number
- SR1-029-B
General
- MPN
- C29SP-5SJ
- UPC
- 5019738266164
- Brand
- Panorama Antennas
- Product Type
- Coaxial extension cable
Package
- Shipping Weight
- 0.40 lb
Assembly
- Length
- 5 m (16.4 ft)
- Connector 1
- SMA male (plug)
- Connector 2
- SMA female (jack)
- Devices Supported
- Antenna, router, modem
Dielectric
- Diameter
- 2.6 mm (0.10 in)
- Material
- White cellular polyethylene
Electrical
- Jacket Spark
- 3000 V RMS
- Impedance 1ghz
- 50 Ω ± 2 Ω at 1 GHz
- Impedance 2ghz
- 50 Ω ± 4 Ω at 2 GHz
- Attenuation 1ghz
- 4 dB per 10 m at 1 GHz
- Attenuation 2ghz
- 5.5 dB per 10 m at 2 GHz
- Braid Resistance
- Less than 160 mΩ per 10 m
- Voltage Withstand
- 1000 VDC
- Attenuation 400mhz
- 2.2 dB per 10 m at 400 MHz
- Shielding Effectiveness
- <-95 dB (IEC 61196-1, at 400 MHz)
Outer Jacket
- Colour
- Black
- Diameter
- 5.0 mm (0.20 in)
- Material
- TPE
Environmental
- Operating Temperature
- -40°C to +80°C (-40°F to 176°F)
Inner Conductor
- Diameter
- 0.96 mm (0.04 in)
- Material
- Plain copper strand
Inner Shielding
- Diameter
- 2.82 mm (0.11 in)
- Material
- Aluminium foil
Outer Conductor
- Diameter
- 3.3 mm (0.12 in)
- Material
- Tin plated copper braid
- Wire Coverage
- No less than 95%
Questions buyers ask
Is the C29SP-5SJ an extension cable?
Yes. With an SMA male connector on one end and an SMA female connector on the other, it extends an existing SMA antenna connection by 5 m (16.4 ft).
Is it suitable for 4G LTE?
Yes. Panorama describes the CS29 cable as ideal for 3G UMTS and 4G LTE, and specifies it for cellular, WLAN and other applications up to 3 GHz.
How much loss does a 5 m run add?
Using Panorama's typical figures, about 2.0 dB at 1 GHz and 2.75 dB at 2 GHz.
Is the cable halogen free?
Yes, the cable is halogen free and has a black TPE outer jacket.
