Eaton Tripp Lite CSD32USB Locking Charging Station for 32 Smartphones with USB Charging and Sync
MPN CSD32USB
- 11+ devices
$1,265.72$2,141.82Save $876.10
In stockFree ground shipping
- Free shipping to the US
- 30-day returns on unopened devices
- Secure checkout · pay by card
Datasheets & documents
Overview

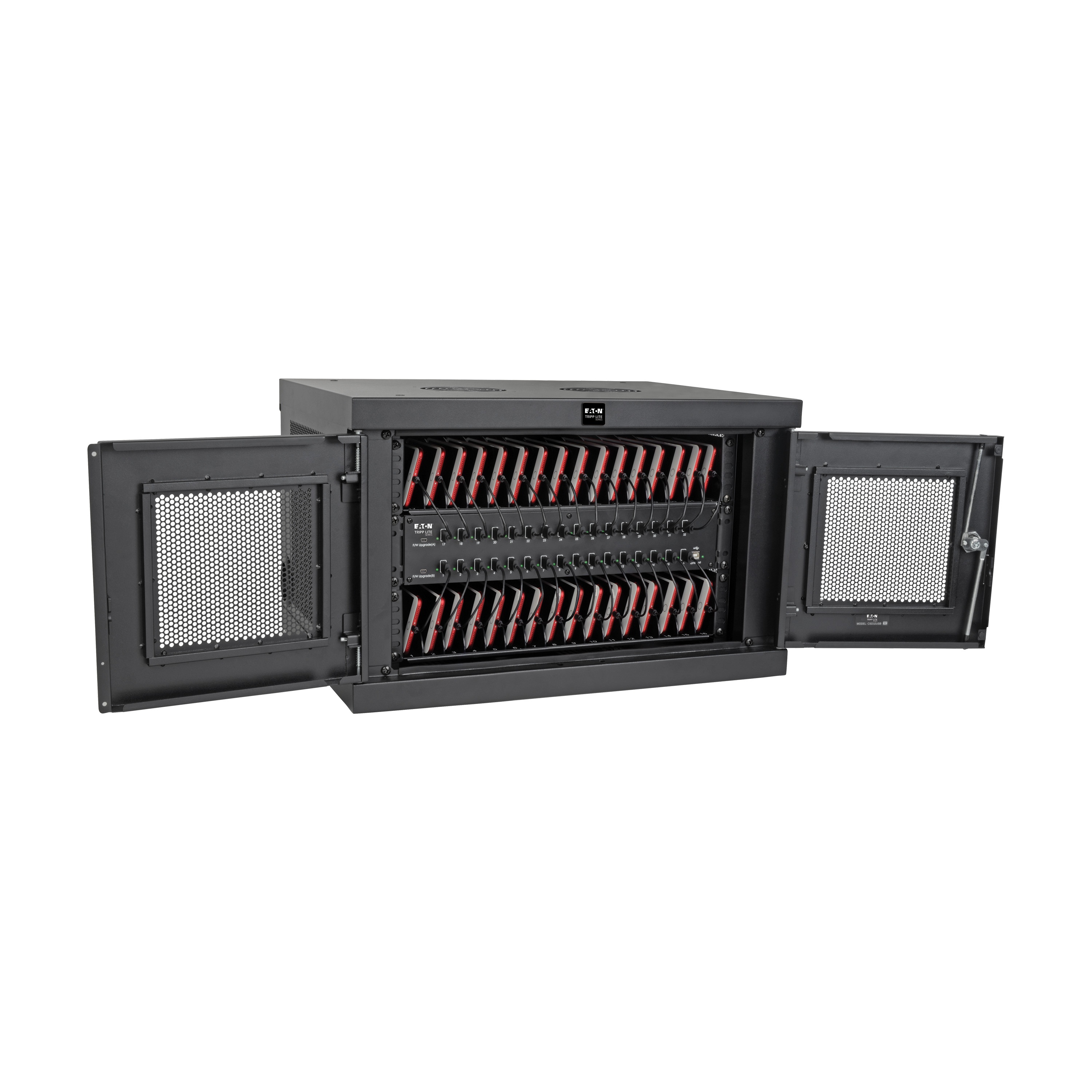

The Eaton Tripp Lite series CSD32USB is a locking charging station that charges, syncs and secures up to 32 smartphones or other USB devices. Its 32 USB-A ports deliver up to 2.4A each through user-supplied cables. The vented steel cabinet holds phones in cases up to 7 x 3.65 x 1 in on two shelves, supports wired and wireless syncing, and mounts on a wall or desktop.
- 32 USB-A charging ports at up to 2.4A per port
- Charge, secure and sync functions with wired and wireless syncing support
- Locking powder-coated steel cabinet with two keys and a padlock hasp

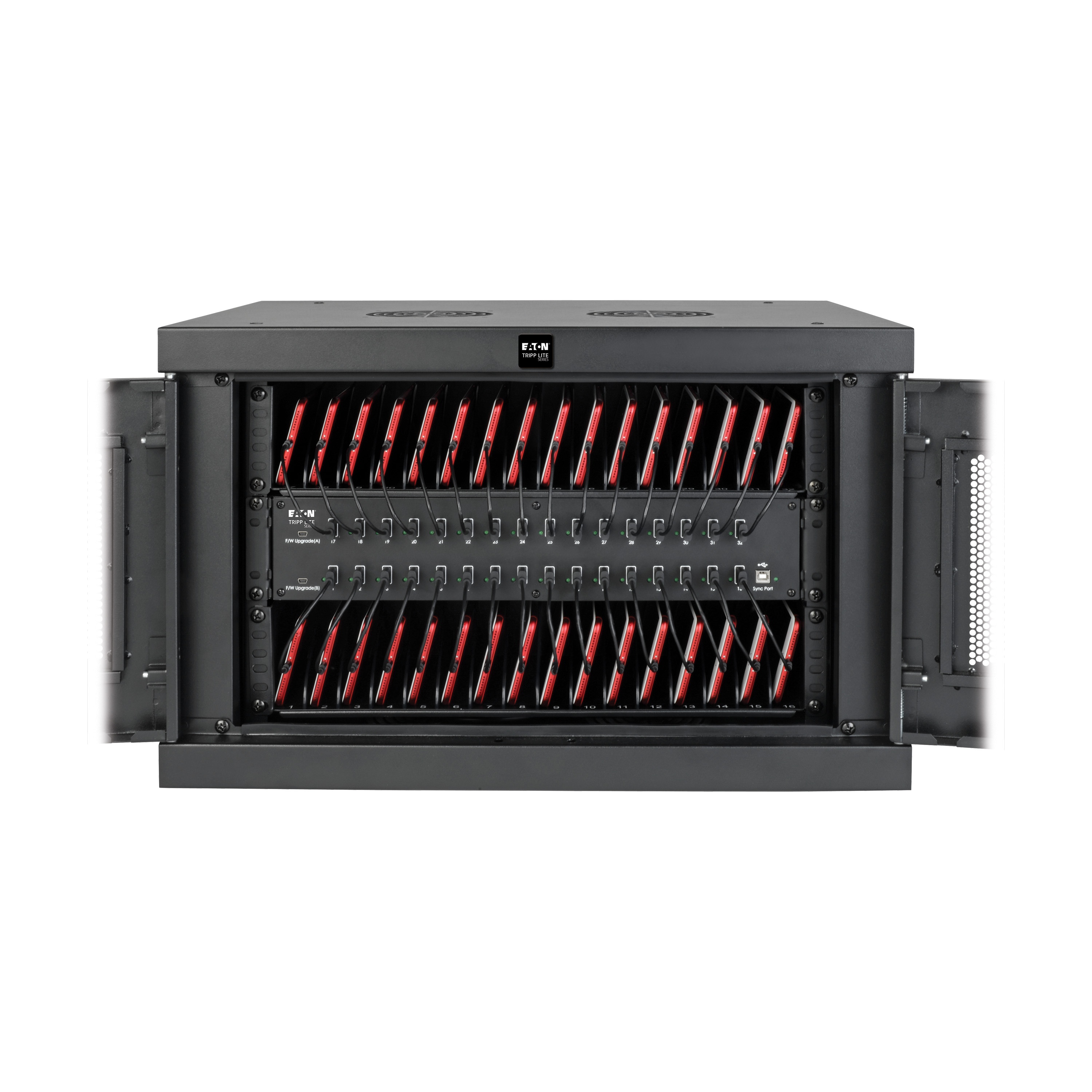

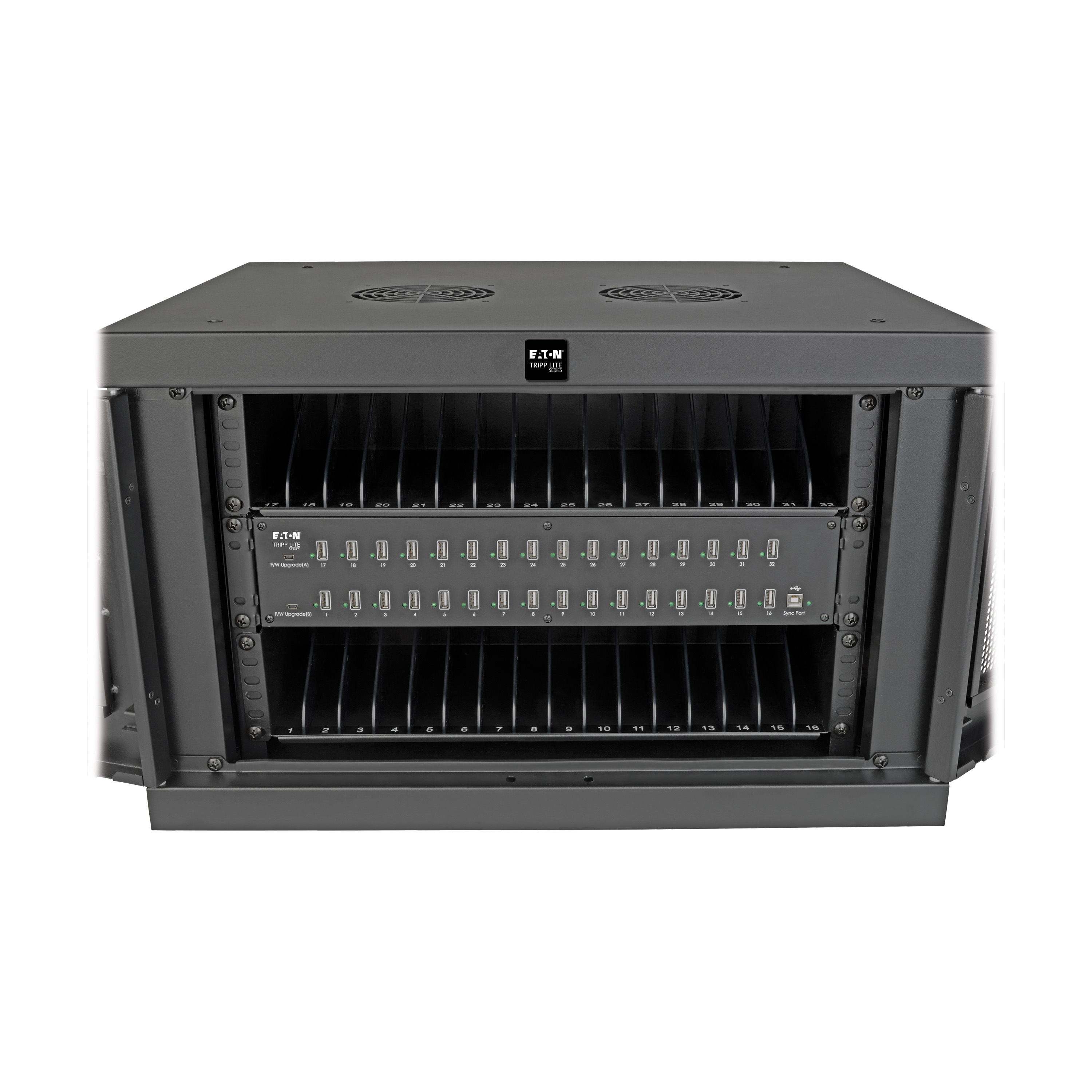

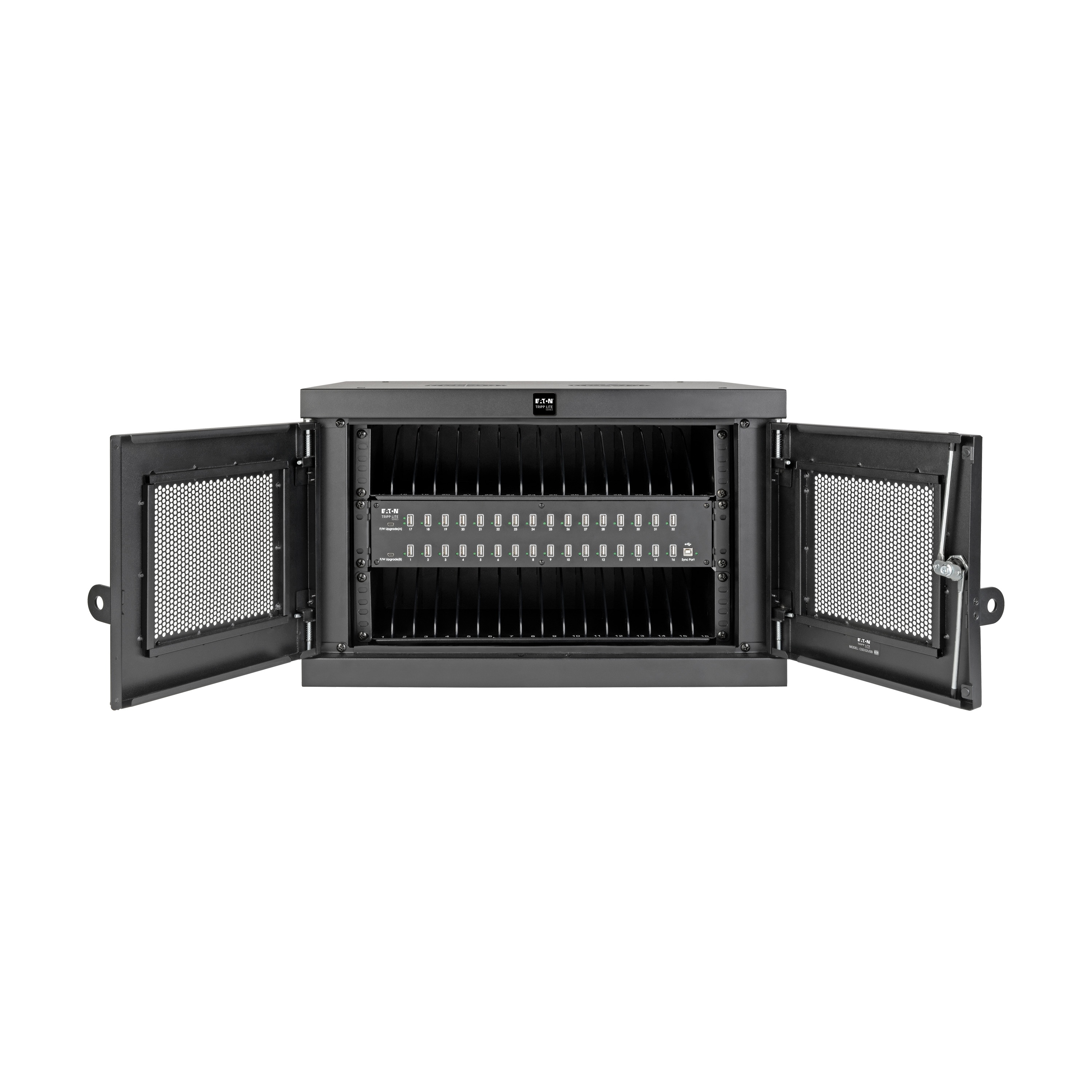

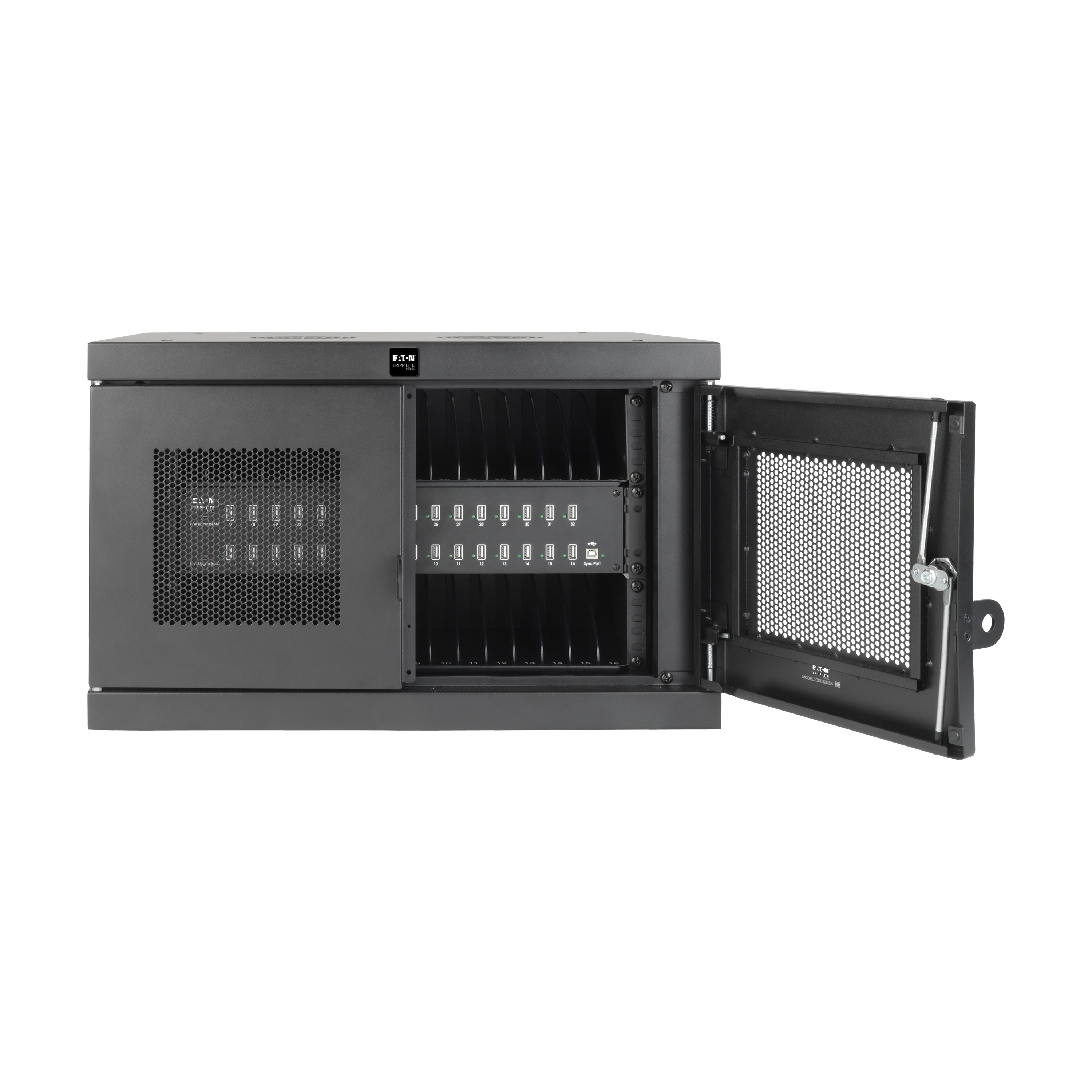

- Two shelves with dividers for smartphones in cases up to 7 x 3.65 x 1 in
- Overcurrent, overcharge and EMI/RFI protection with a built-in circuit breaker
- Wall-mountable or desktop placement with flow-through ventilation and fan attachment points

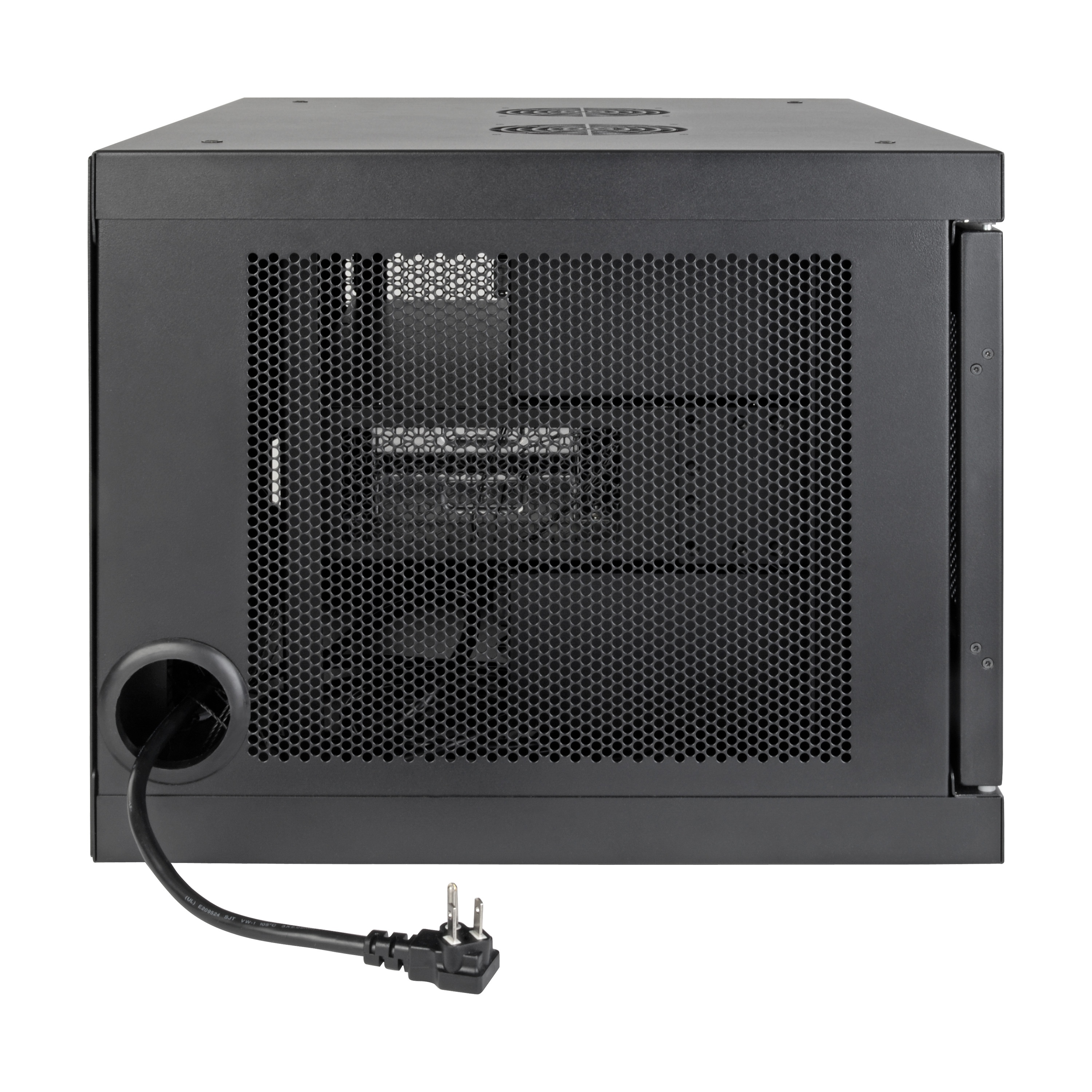

- Detachable 10 ft AC cord with right-angle NEMA 5-15P plug
- Keep a 32-phone fleet charged and ready in one managed location
The Eaton Tripp Lite series CSD32USB is a stationary charging cabinet for organizations that issue smartphones in bulk, including schools, offices, retail stores, clinics, government agencies and industrial sites. It charges, secures and organizes up to 32 phones or other USB devices in one locking steel enclosure, so the fleet is ready at the start of every shift or class.
Each of the 32 USB-A ports delivers the fastest charge each device supports, up to 2.4A per port, through user-supplied USB cables. Two shelves with dividers hold phones in cases up to 7 x 3.65 x 1 in, and built-in cord management keeps cables neat and accessible. The station supports wired and wireless syncing for updating devices. Built-in protection includes overcurrent and overcharge protection, EMI/RFI line noise protection and a built-in circuit breaker.

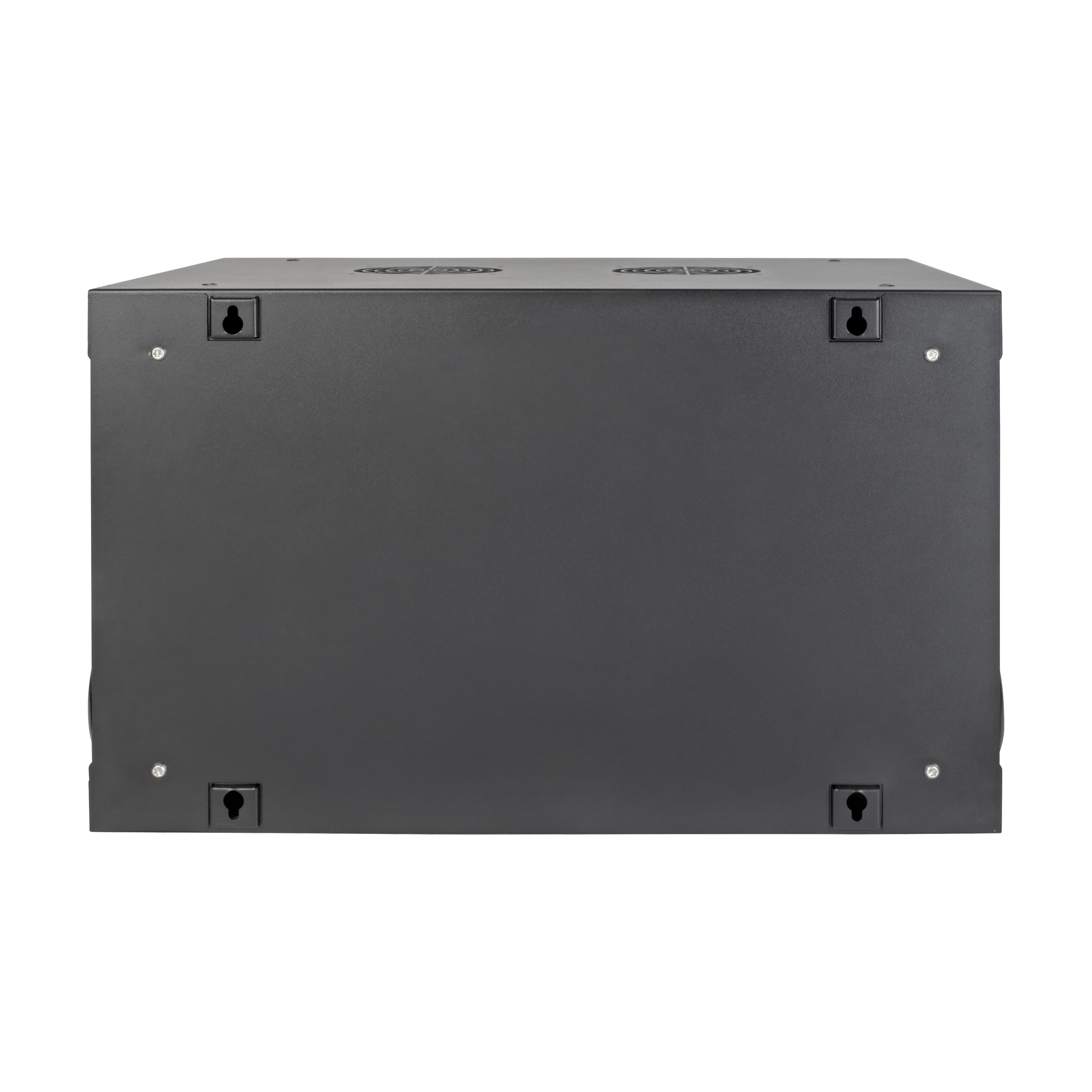

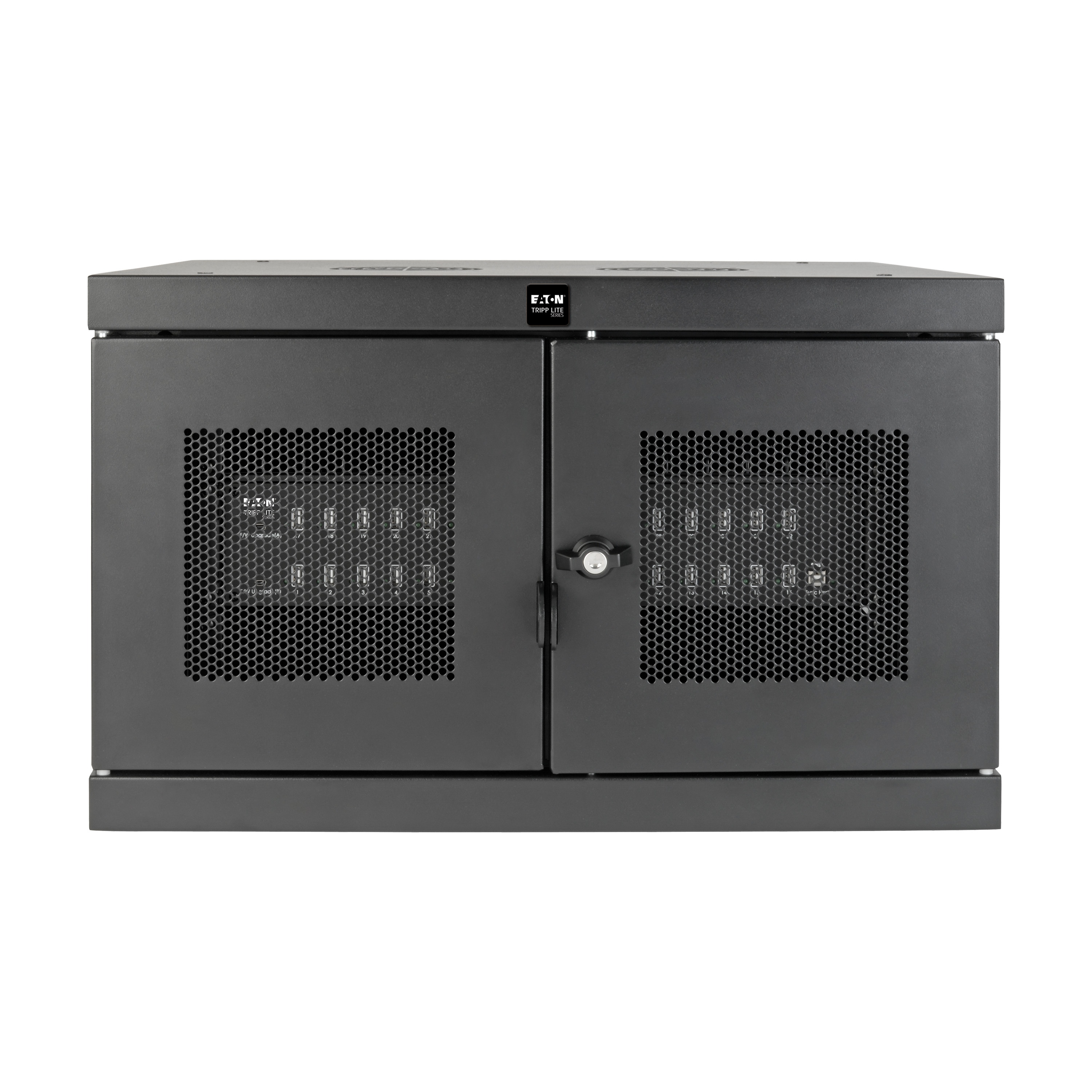

The powder-coated black steel cabinet locks with the two included keys, and a padlock hasp is supplied for extra security. Flow-through ventilation helps manage heat, and attachment points are provided for mounting cooling fans. The station measures 23.8 in wide, 14.91 in high and 18.96 in deep and weighs 60.91 lb. It ships fully assembled and can be mounted on a wall or placed on a desktop.
A detachable 10 ft AC input cord with a right-angle NEMA 5-15P plug reaches distant outlets. The station runs on 120 VAC, 50/60 Hz, and draws 112 W. It is UL 60950-1 and CSA C22.2 certified and carries a 2-year limited warranty. An owner's manual is included, and Eaton publishes a specification sheet and a product flyer.
Ideal for

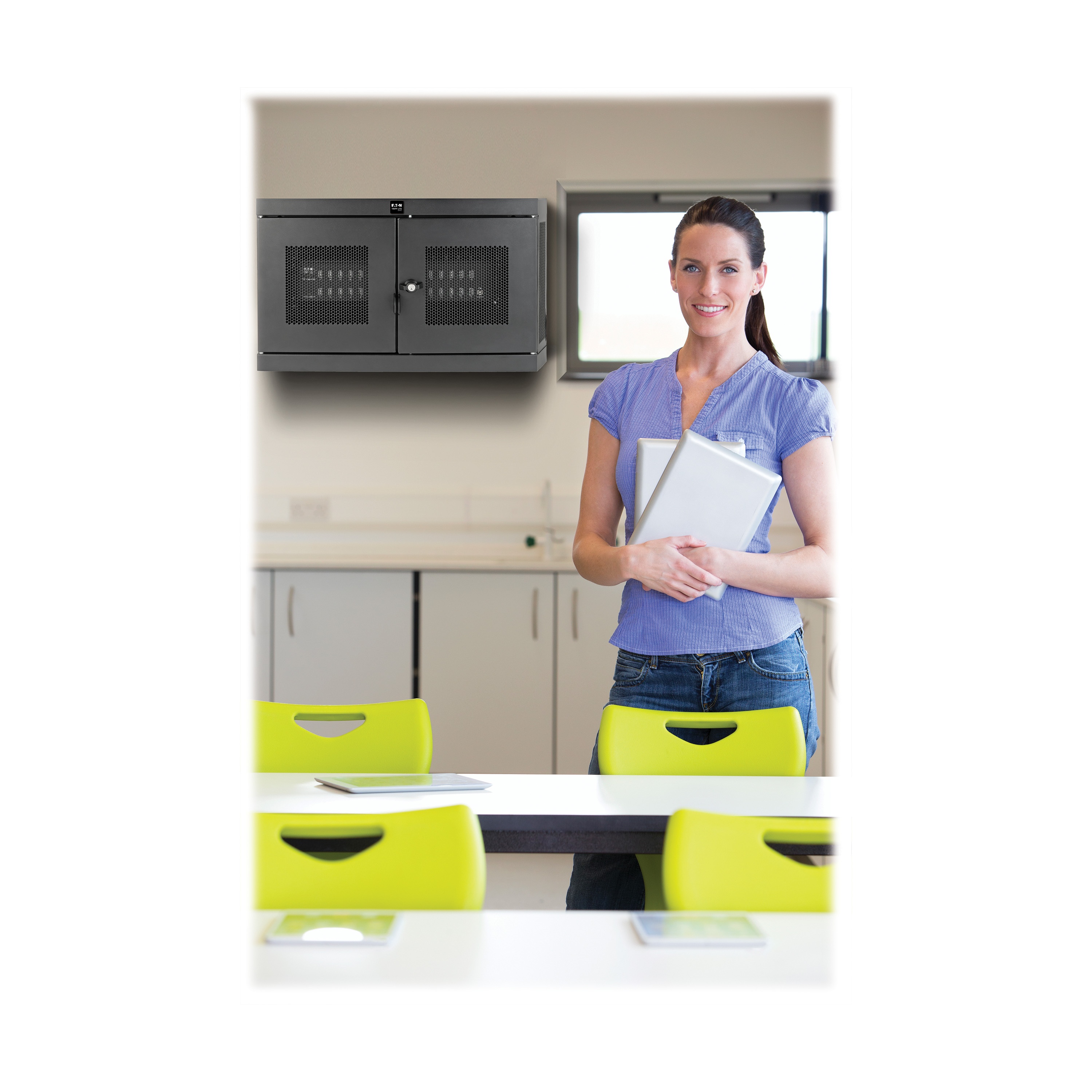

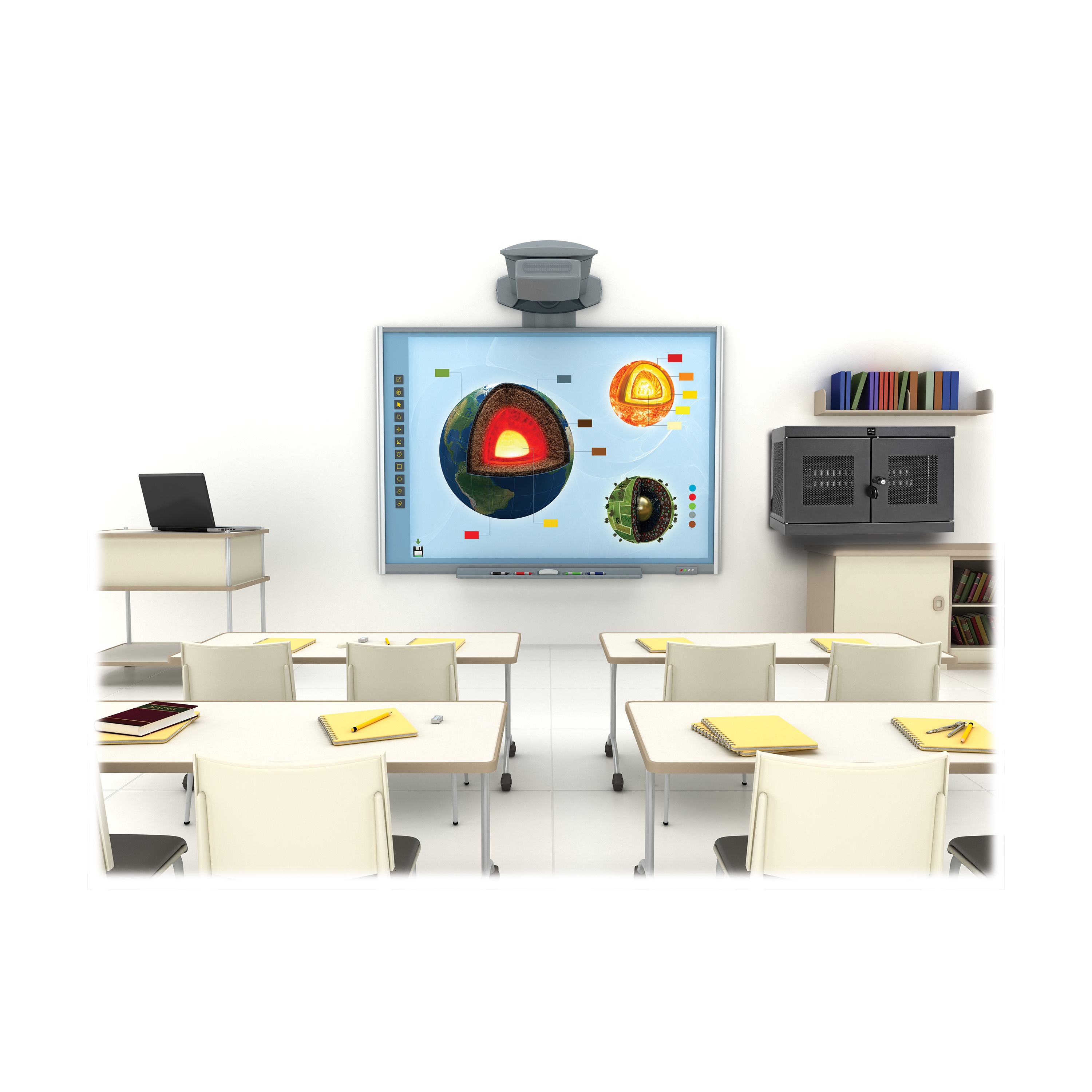

- Overnight charging and storage of classroom smartphone sets
- Shift-based phone checkout for retail, hospitality or field teams
- Secure charging of clinical smartphones in healthcare settings
- Charging and software updates for corporate or government device fleets
Specifications
General
- UPC
- 037332222275
- Brand
- Eaton (Tripp Lite series)
- Warranty
- 2-year limited
- Compliances
- CE Marked, REACH, RoHS, FCC Class B, FCC Compliant
- Product Name
- Eaton Tripp Lite series stationary charging station
- Product Type
- Stationary charging station
- Product Width
- 23.8 in
- Catalog Number
- MPN: CSD32USB
- Certifications
- NOM, UL 60950-1, CSA Std. C22.2
- Global Catalog
- CSD32USB
- Product Height
- 14.91 in
- Product Weight
- 60.91 lb
- Product Length Depth
- 18.96 in
Product
- Lock
- Key
- Color
- Black
- Features
- Flex Center
- Material
- Steel
- Device Slots
- 32
- Product Type
- Multi-device charger
- Charging Method
- USB
- Input Frequency
- 50/60 Hz (auto-select)
- Input Plug Type
- NEMA 5-15P
- Charger Function
- Charge, secure, sync
- Frequency Rating
- 50/60 Hz (auto-select)
- Package Contents
- Charging station, detachable 10 ft (3.05 m) AC cord with right-angle NEMA 5-15P plug, padlock hasp, 2 keys, owner's manual
- Product Features
- Overcurrent protection, EMI/RFI line noise protection, locking, cord management, flow-through ventilation, overcharge protection, built-in circuit breaker
- Input Cord Length
- 10 ft
- Number OF Shelves
- 2
- Power Consumption
- 112 W
- Charging Port Type
- USB A (female)
- Charging Ports Amps
- 2.4A
- Charging Form Factor
- Stationary cabinet
- Device Compatibility
- Phone
- Input Nominal Voltage
- 120 VAC
- Charging Amps Per Port
- 2.4 A
- Charging Ports Details
- Pass through
- Frequency Compatibility
- 50/60 Hz
- Number OF Charging Ports
- 32
- Voltage Compatibility Vac
- 110, 120 VAC
- Charging Station Form Factor
- Stationary cabinet
Compatibility
- Mounting
- Wall-mountable or desktop
- Max Device Size With Case
- Smartphones with cases up to 7 x 3.65 x 1 in
Questions buyers ask
How many devices does the CSD32USB charge?
It has 32 USB-A ports and 32 device slots on two shelves. Each port delivers up to 2.4A through user-supplied USB cables.
What size phones fit?
The station holds smartphones in cases up to 7 x 3.65 x 1 in.
Can devices be updated while charging?
Yes. The station supports wired and wireless syncing for updating devices.
How is the cabinet secured and installed?
It locks with two included keys and comes with a padlock hasp. It ships fully assembled and can be mounted on a wall or used on a desktop.
What power does it need?
It runs on 120 VAC, 50/60 Hz, draws 112 W, and connects through a detachable 10 ft cord with a right-angle NEMA 5-15P plug.
