Socket Mobile XtremeScan Grip XG930 Rugged 1D Laser Barcode Scanner with Pistol Grip for iPhone (Cable Only)

MPN CX4183-3250

Fits iPhone 14, iPhone 13, iPhone 12, iPhone 14 Pro, iPhone 13 Pro, iPhone 12 Pro

$691.77

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

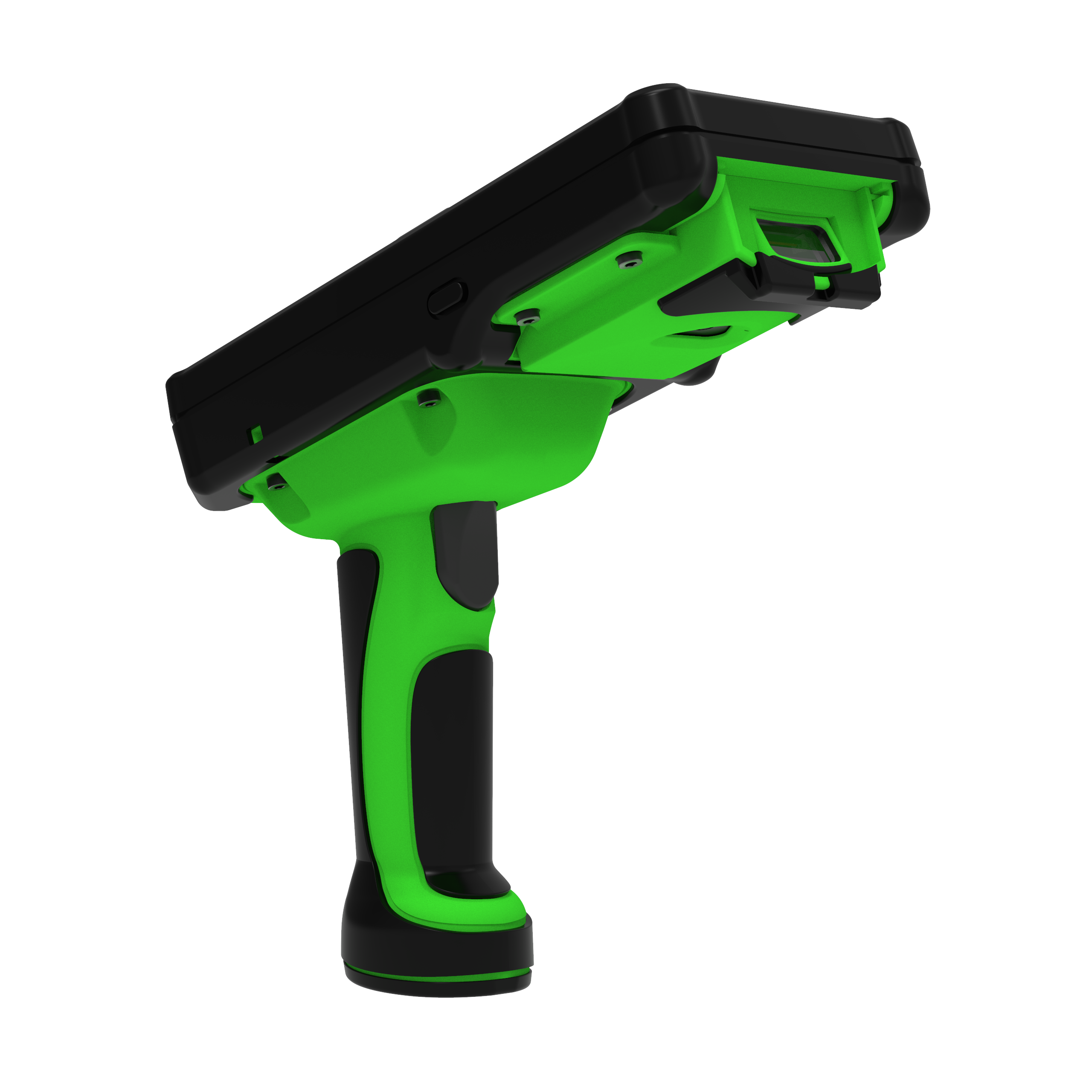

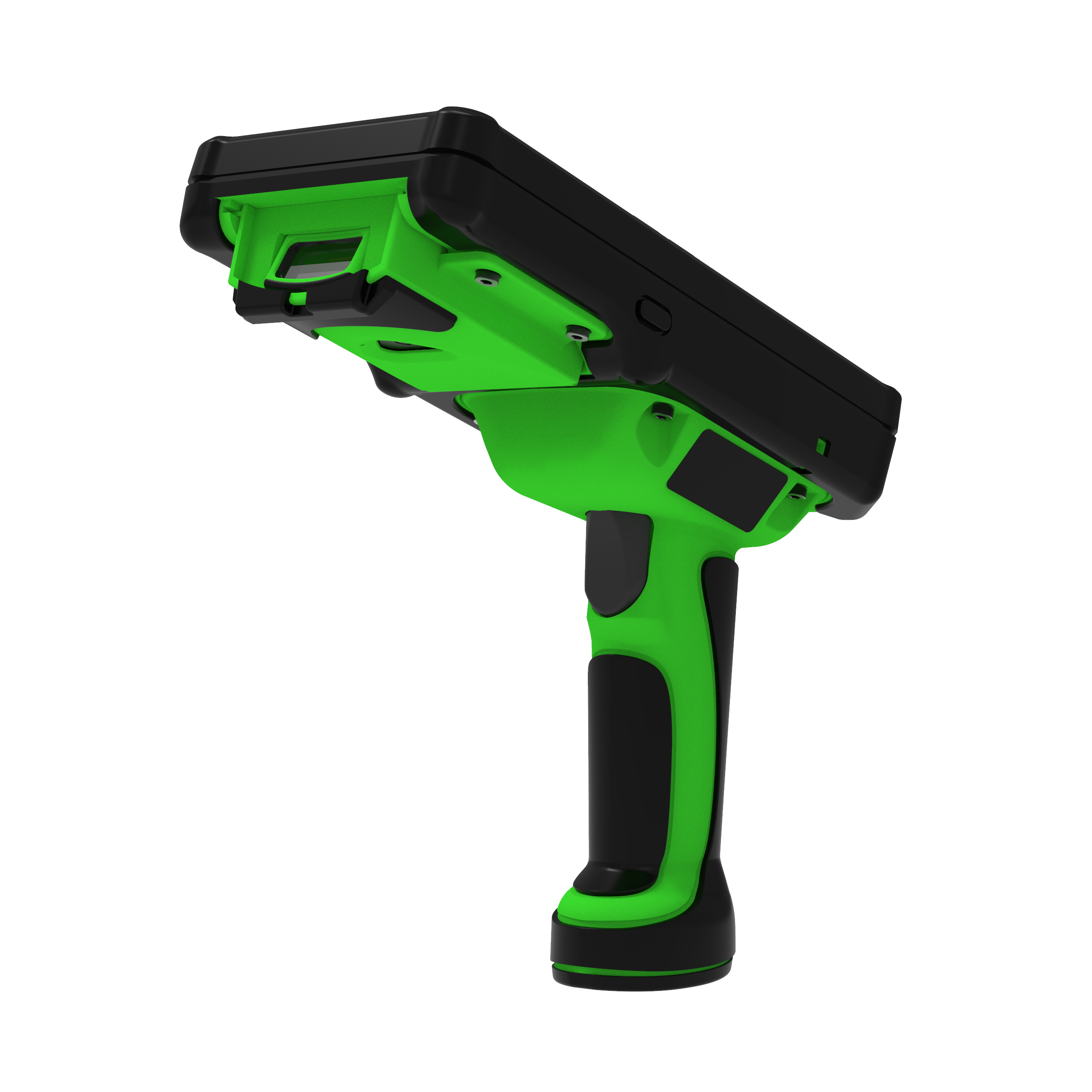

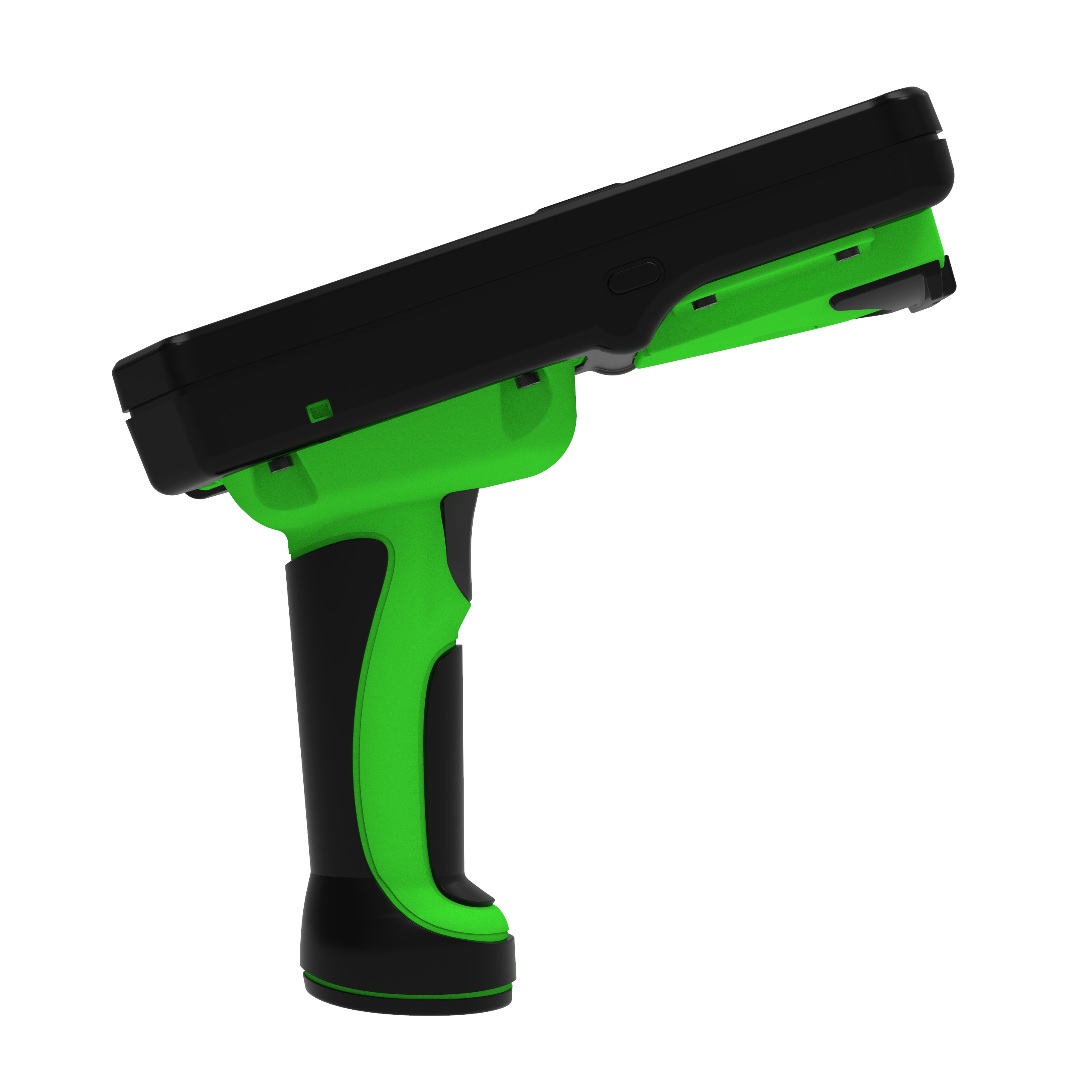

The Socket Mobile XtremeScan Grip XG930 (CX4183-3250, Cable Only) combines an iPhone case, a Class 2 1D laser scanner and a pistol-grip handle in one rugged unit. It reads barcodes from 1.2 in to 180 in, scans through plastic or glass, carries an IP67 rating and is drop-rated to 10 ft per MIL-STD-810G. The case charges both the iPhone and the scanner.

  • Class 2 1D laser reads from 1.2 in to 180 in (3.0 to 457.2 cm), depending on barcode
  • IP67 sealed housing, rated for 10 ft (3.1 m) drops per MIL-STD-810G
  • Pistol-grip handle combined with an iPhone case for one-handed point-and-shoot scanning
  • Integrated charger charges both the iPhone and the scanner in the case
  • Field-replaceable 700 mAh Li-polymer battery: up to 10,000 scans in 11 hours
  • Bluetooth Classic 2.1 + EDR with CaptureSDK (2.0.29 or higher) app integration
  • Scans through plastic or glass in lighting from 0 to 100,000 lux

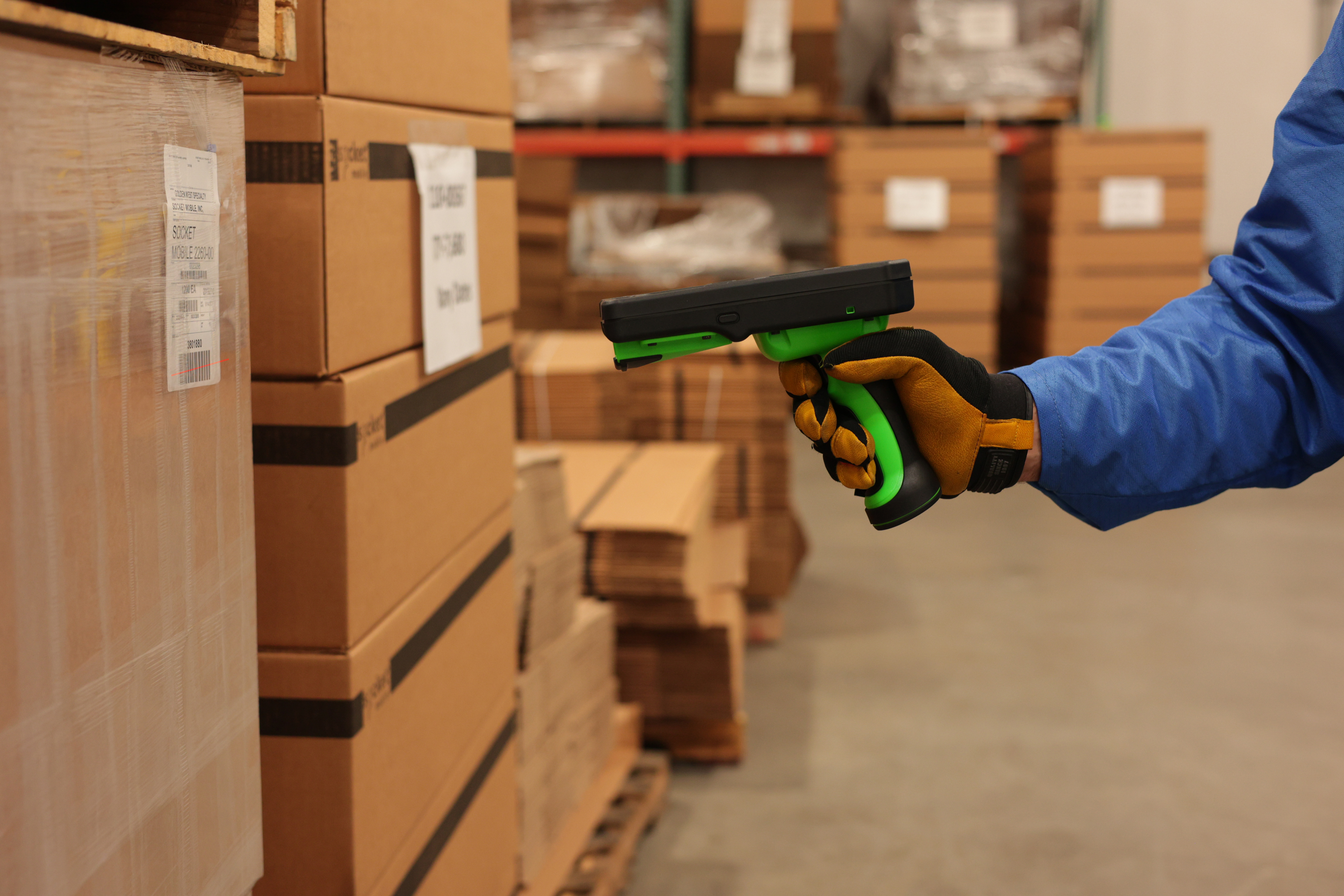

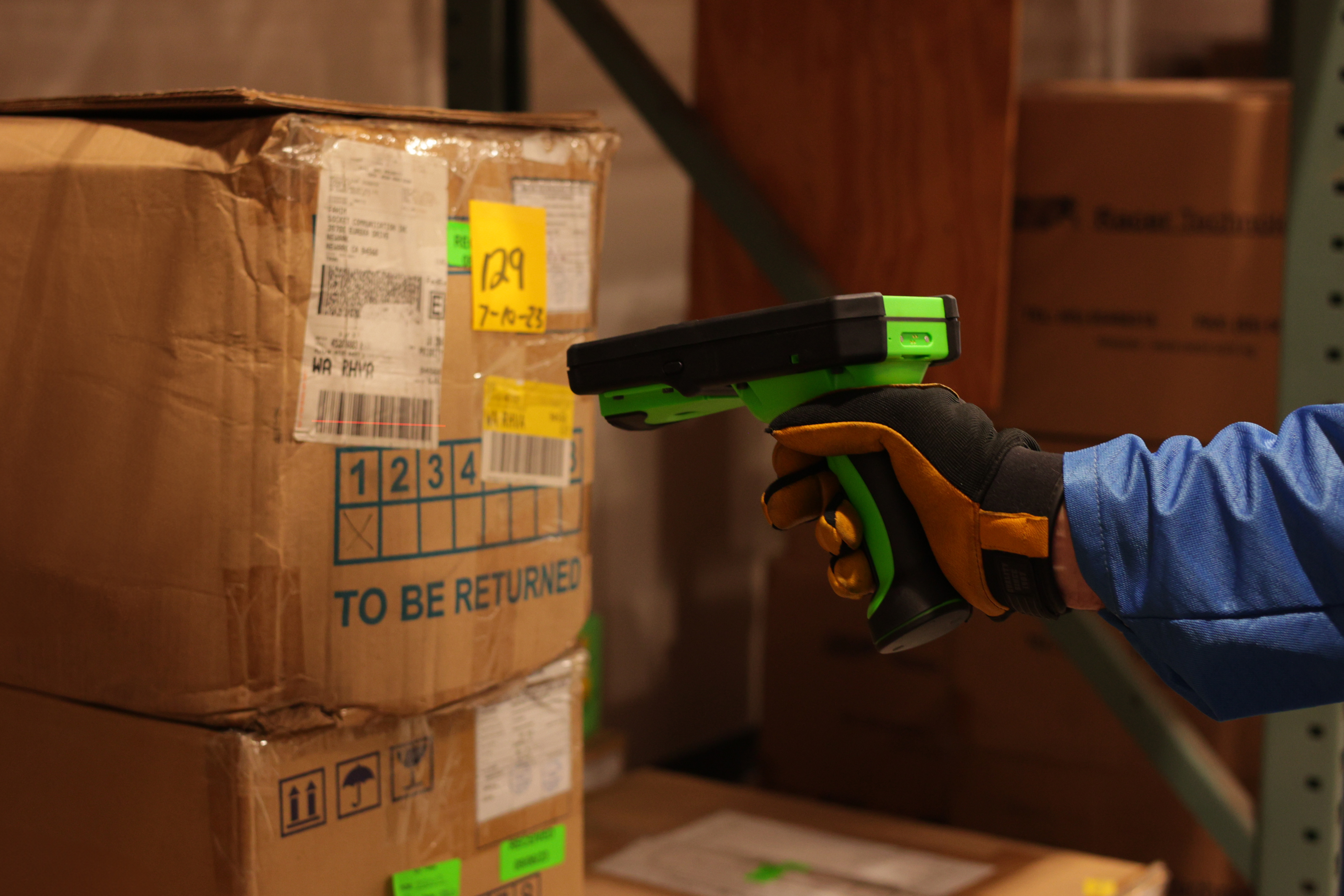

  • Reads rack and floor labels from a distance, which cuts climbing and bending in warehouses

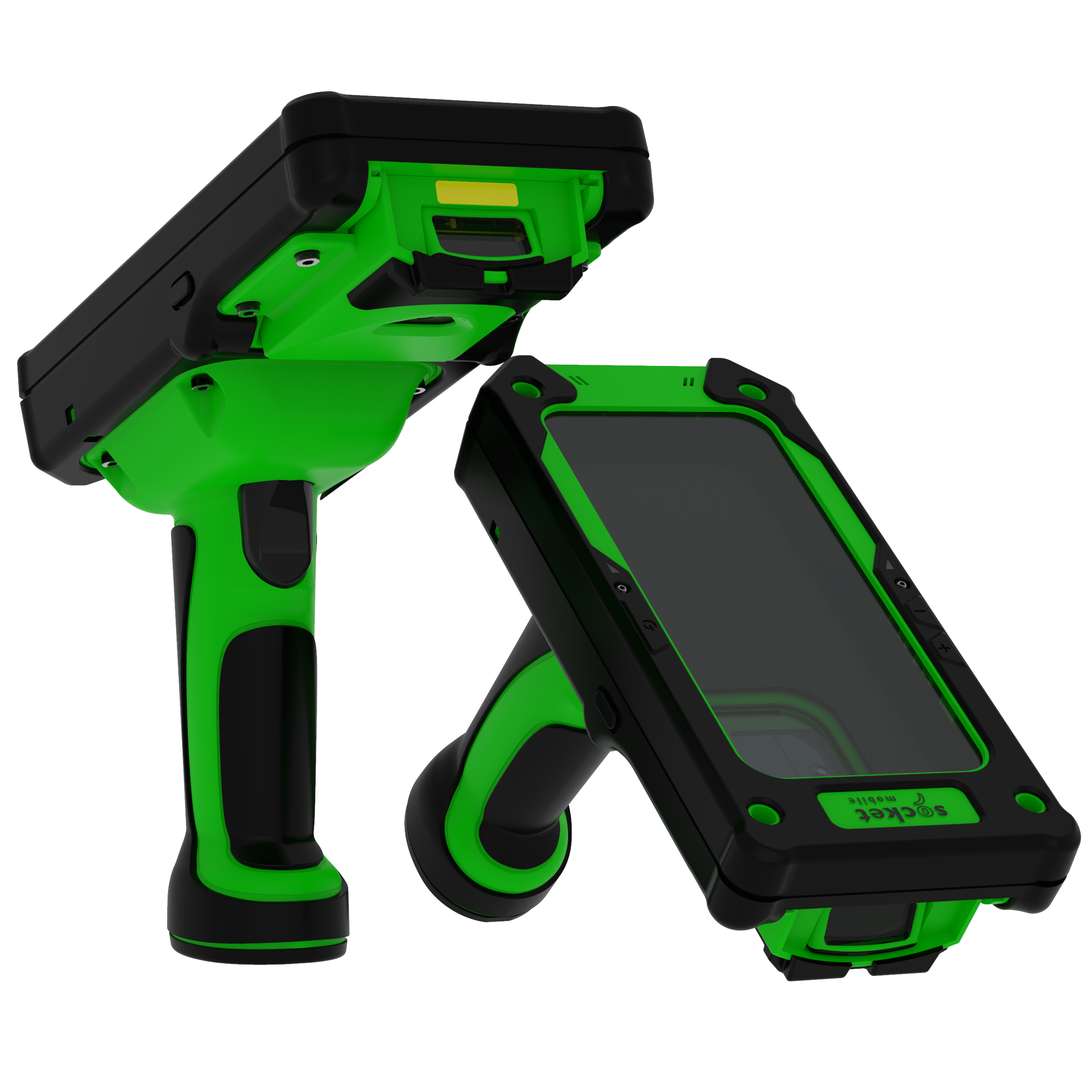

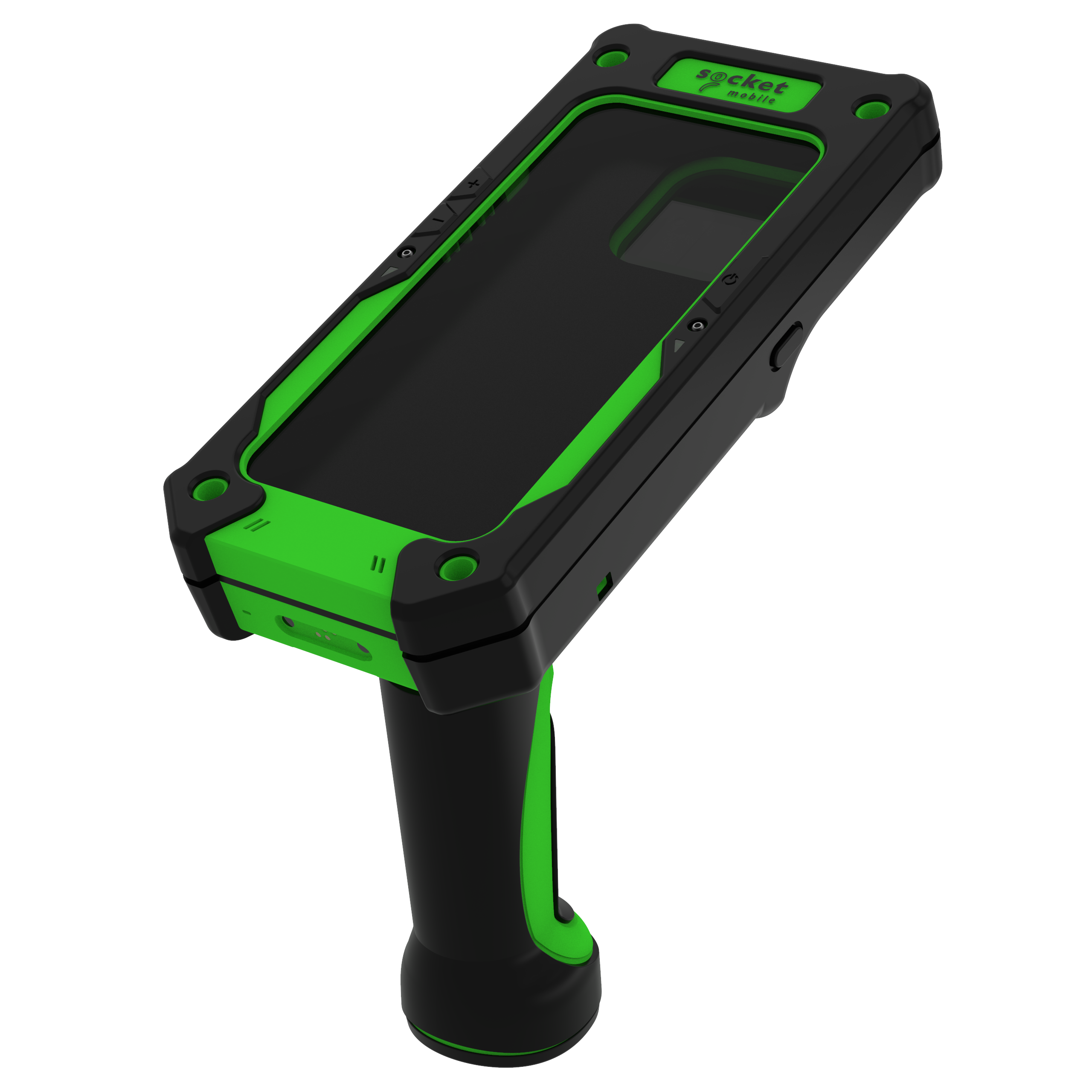

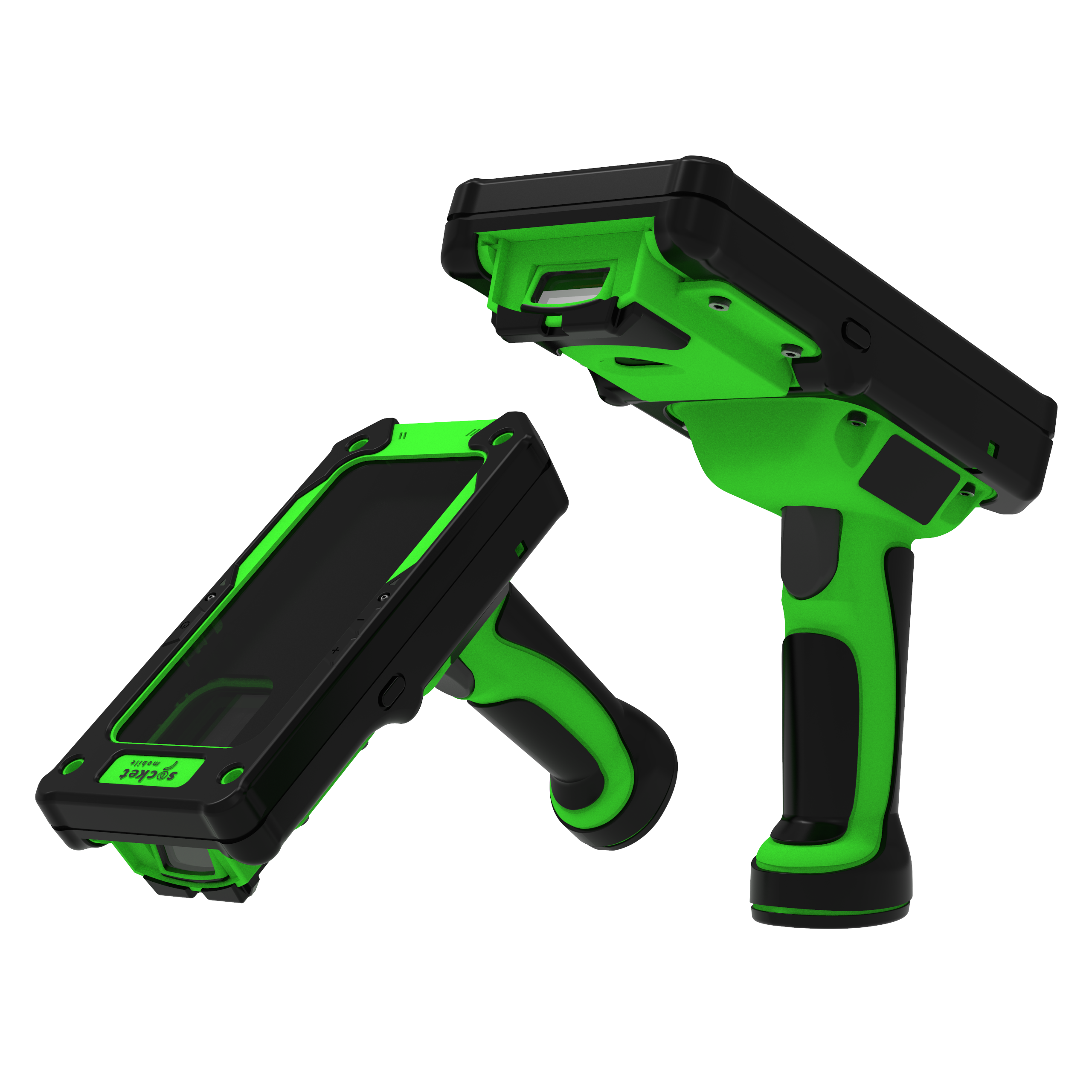

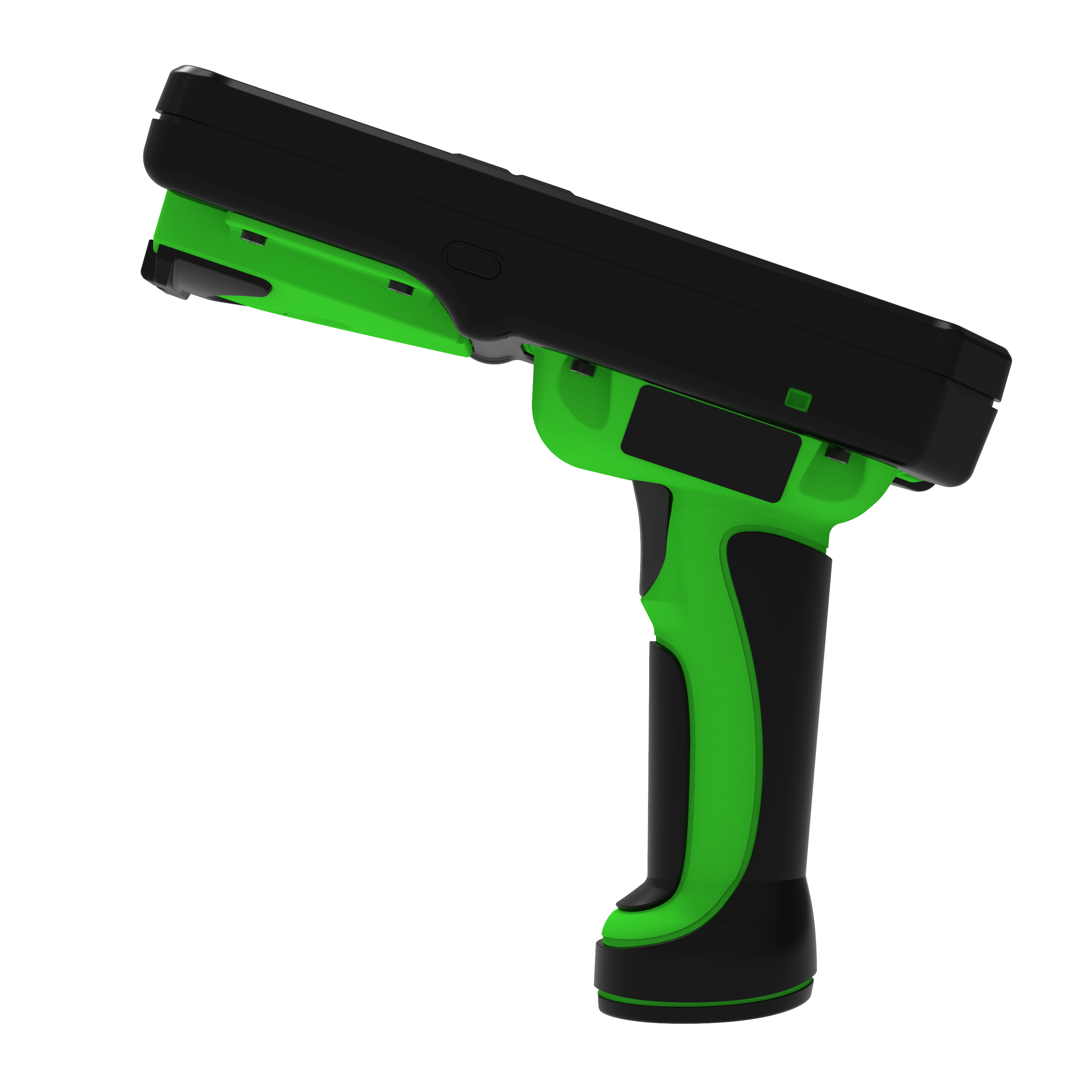

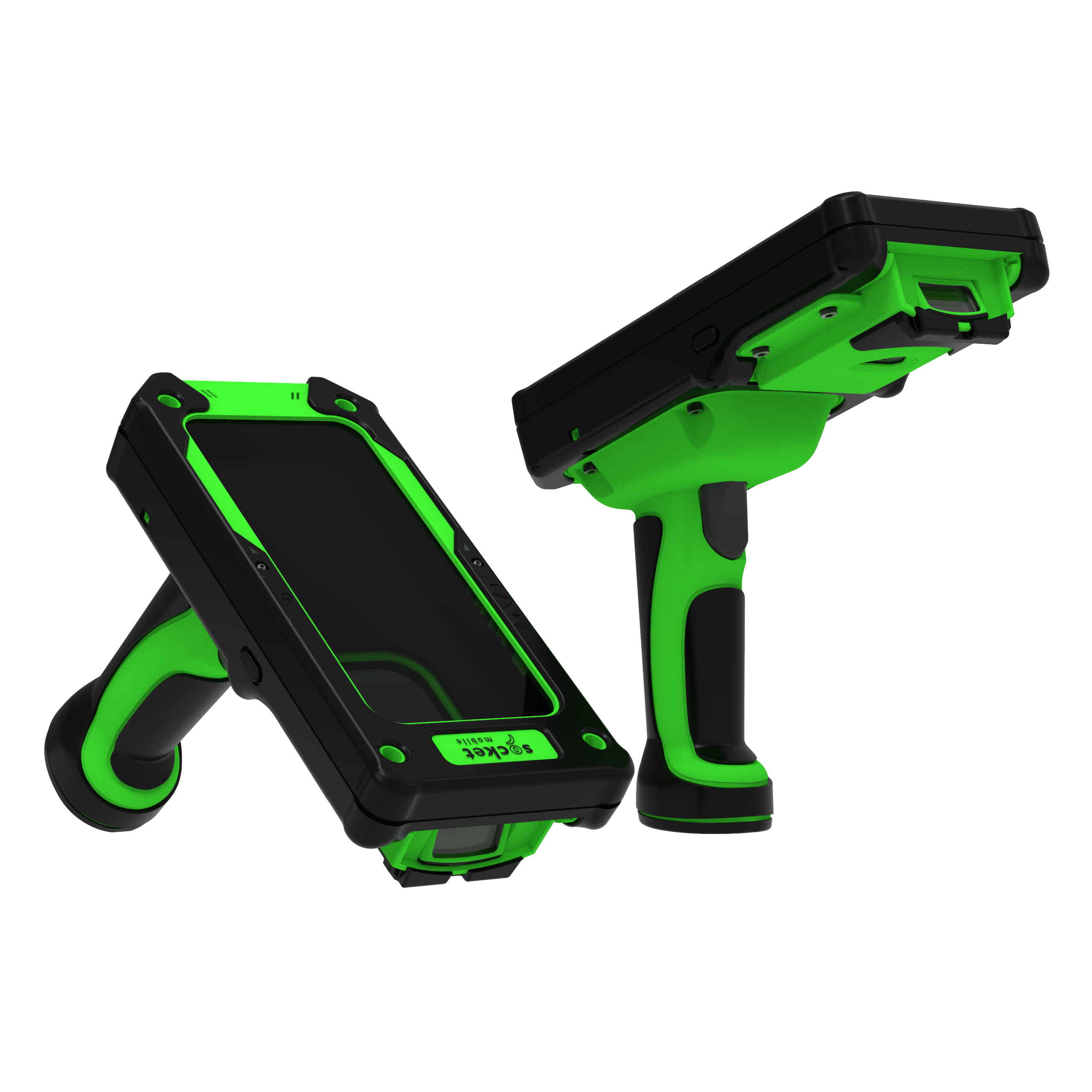

The XtremeScan Grip XG930 is Socket Mobile's industrial point-and-shoot scanner for iPhone. It combines a heavy-duty iPhone case, a 1D laser barcode scanner and a pistol-grip handle into one modular handheld. Socket Mobile lists it as compatible with iPhone 17e, 16e, 16 and 15. This SKU, CX4183-3250, is the Cable Only configuration and ships with a USB-C to 4-pin charging cable.

The Class 2 laser handles moderate to rigorous workloads of thousands of scans per day. Depending on symbology, barcode size and label media, it reads from 1.2 in (3.0 cm) out to 180 in (457.2 cm), so high rack labels and floor labels are within reach. It scans through plastic or glass, in lighting from pitch black to direct sunlight, and at imperfect barcodes held sideways or upside down. An LED aimer projects a rectangular illumination field for precise targeting.

The housing is IP67 sealed against dust and water immersion. It is rated for 10 ft (3.1 m) drops at room temperature and 8 ft and 7 ft drops to concrete across temperature, per MIL-STD-810G. The case includes an integrated charger that charges the iPhone and the scanner without removing the phone. The field-replaceable 700 mAh lithium polymer battery provides up to 10,000 scans in 11 hours.

The XG930 pairs over Bluetooth Classic 2.1 + EDR and works out of the box with apps built on Socket Mobile's CaptureSDK (version 2.0.29 or higher). Socket Mobile designs and assembles the unit in Fremont, California, includes a 1-year warranty, and publishes a user guide, quick start guide and programming guide.

Ideal for

  • Warehouse scanning of high rack labels and floor labels
  • Manufacturing and industrial track-and-trace
  • Transportation and logistics, including luggage and parcel handling
  • Inspections and audits in harsh or wet environments

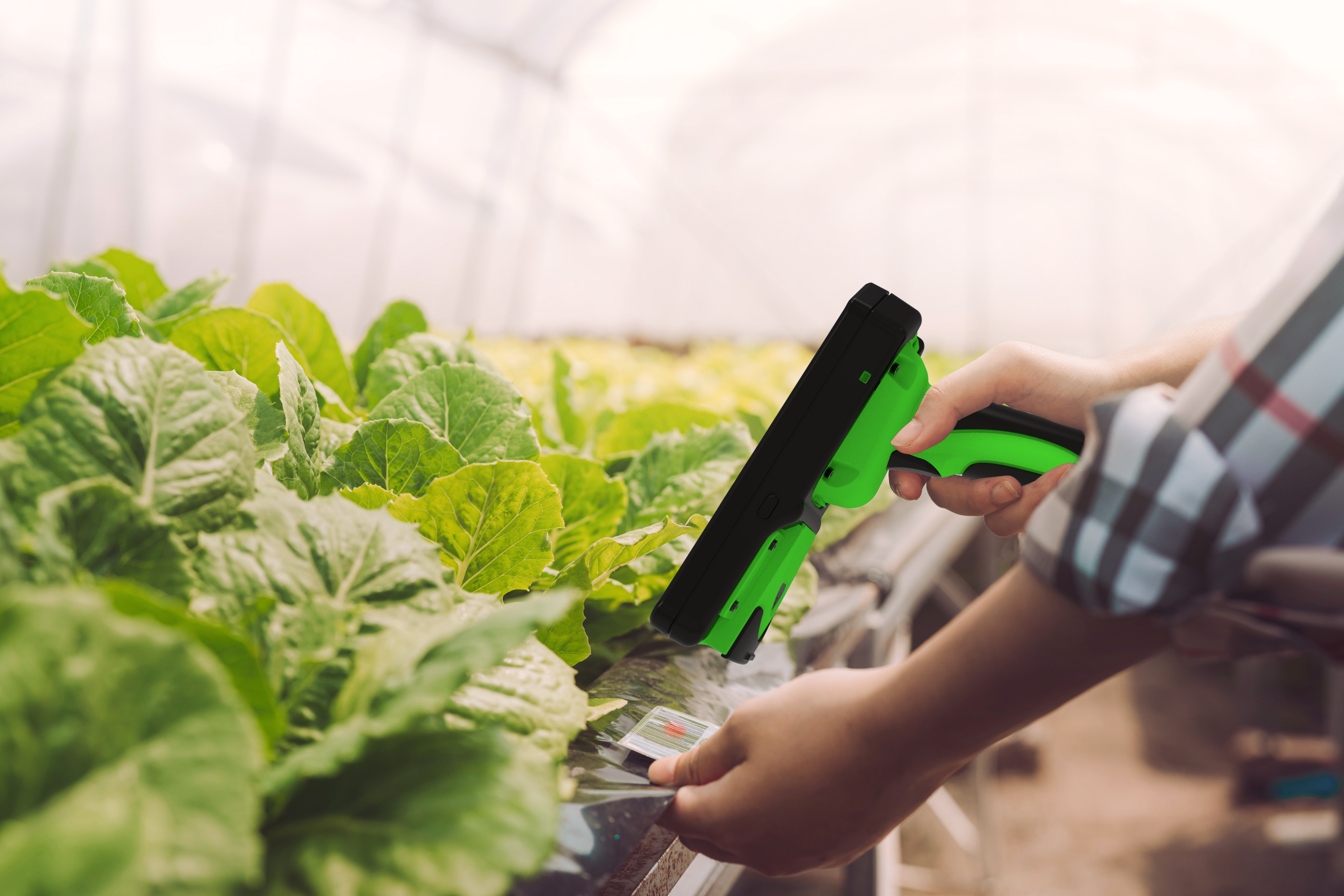

  • Agriculture and farming inventory

Specifications

Battery

Voltage
3.7 V
Capacity
700 mAh
Cell Type
Proprietary
Charge Time
8 hours
Battery Type
1 rechargeable Li-ion polymer, replaceable
Battery Weight
12.5 g
Commodity Code
8507.60.0000
Lithium Content
4.5 g
Rohs Compliance
Yes, included with scanner
Hazmat UN Number
UN3481, P.I. 967
Cells Per Battery
1
Watts Per Battery
2.59 W
Percentage Lithium
36.3%
Battery Life Cycles
500 charge-discharge cycles
Chemical Composition
Lithium-polymer
Life Per Full Charge
25 h standby; 10,000 scans in 11 h (one scan every 4 s); varies with temperature, light and battery age
Battery Country OF Origin
China

General

MPN
CX4183-3250
UPC
758497123206
Brand
Socket Mobile
Model
XtremeScan Grip XG930
Reads
1D barcodes
Warranty
1-year warranty included; extended options available
Scan Engine
High-performance Class 2 1D laser
Configuration
XG930 (Cable Only)

Package

Contents
Data reader, USB-C to 4-pin charging cable, holster, insert
Shipping Weight
1.65 lbs

Bluetooth

Bluetooth Radio
Class 2 Bluetooth 2.1 + EDR, 56-bit encryption
Bluetooth Range
Up to 10 m (33 ft), depending on environment and host device
Bluetooth Profiles
HID (Basic), SPP (Application), iOS Application Mode (default); some hosts support only one profile

Compatibility

Sdk
Socket Mobile CaptureSDK (version 2.0.29 or higher)
Operating System
Apple iOS
Compatible Iphones
iPhone 17e, 16e, 16 and 15

Certifications

Emi Rfi
FCC Part 15 Class C, RSS 210, ICES 003, C-Tick, CISPR 22, CE EN55022, EN55024, TELEC; FCC ID LUBMA41; IC ID 2529A-MA41M9
LED Safety
IEC 60825-1; EN 60825-1
Bluetooth Sig
Declaration ID D030529; QD ID 82009
Environmental
RoHS EN 50581
Electrical Safety
EN 62368-1:2020 + A11:2020; IEC 62368-1:2018; UL 62368-1:2019 R10.21; CSA C22.2 No. 62368-1:19

User Environments

Sealing
IP67 dust and water ingress protection (IEC / EN60529)
Ambient Light
From 0 to 100,000 lux (pitch black to direct sunlight)
Relative Humidity
95% at 60° C (140° F), non-condensing
Drop Specifications
10 ft (3.1 m) at room temperature; 8 ft (2.4 m) and 7 ft (2.1 m) to concrete across temperature, per MIL-STD-810G
Storage Temperature
-40° to 70° C (-40° to 158° F)
Charging Temperature
Charging above 40° C / 100° F may result in charging issues
Operating Temperature
0° to 45° C (32° to 113° F)

Reading Performance

Scan Angle
Wide 47° (default), Medium 35°, Narrow 10°
Decode Range
1D codes 1.2 to 180 in (3.05 to 457.2 cm); depends on width, barcode size, symbology and label media
Print Contrast
Minimum 25% absolute dark/light reflectance at 650 nm
Optical Resolution
0.005 in minimum element width
Decode Range 5 Mil Code 39
1.2 in to 10.5 in
Decode Range 13 Mil 100 UPC
1.8 in to 25.0 in
Decode Range 20 Mil Code 39
1.4 in to 46.0 in
Decode Range 55 Mil Code 39
3.4 in to 70.0 in
Decode Range 5 Mil Code 128
1.4 in to 7.0 in
Default Barcode Symbologies
1D: Bookland EAN, Codabar, Code 128, Code 39, Code 93, EAN/JAN 13, EAN/JAN 8, GS1 128, GS1 DataBar Expanded/Limited/Omnidirectional, Interleaved 2 of 5, ISBT 128 UDI, Trioptic, UPC-A, UPC-E
Decode Range 100 Mil Code 39
24 in to 180.0 in
Decode Range 10 Mil Code 128
1.2 in to 16.0 in
Decode Range 15 Mil Code 128
2.0 in to 26.0 in
Decode Range 7 5 Mil Code 39
1.2 in to 16.5 in
Supported Barcode Symbologies
1D: Chinese 2 of 5, Code 11, Matrix 2 of 5, MSI

Questions buyers ask

Which iPhones does the XG930 work with?

Socket Mobile lists the XtremeScan Grip XG930 as compatible with iPhone 17e, iPhone 16e, iPhone 16 and iPhone 15.

How far away can it read a barcode?

From 1.2 in (3.0 cm) to 180 in (457.2 cm), depending on symbology, barcode width and size, and label media. For example, a 100 mil Code 39 label reads out to 180 in.

Does it read 2D or QR codes?

No. The XG930 uses a 1D laser and reads 1D barcodes such as Code 128, Code 39, UPC and GS1 DataBar.

How durable is it?

It has an IP67 rating for dust and water immersion and is rated for 10 ft (3.1 m) drops at room temperature and 8 ft and 7 ft drops to concrete across temperature, per MIL-STD-810G.

How long does the battery last?

The replaceable 700 mAh battery provides about 25 hours of standby or 10,000 scans within 11 hours at one scan every 4 seconds, and recharges in 8 hours.
