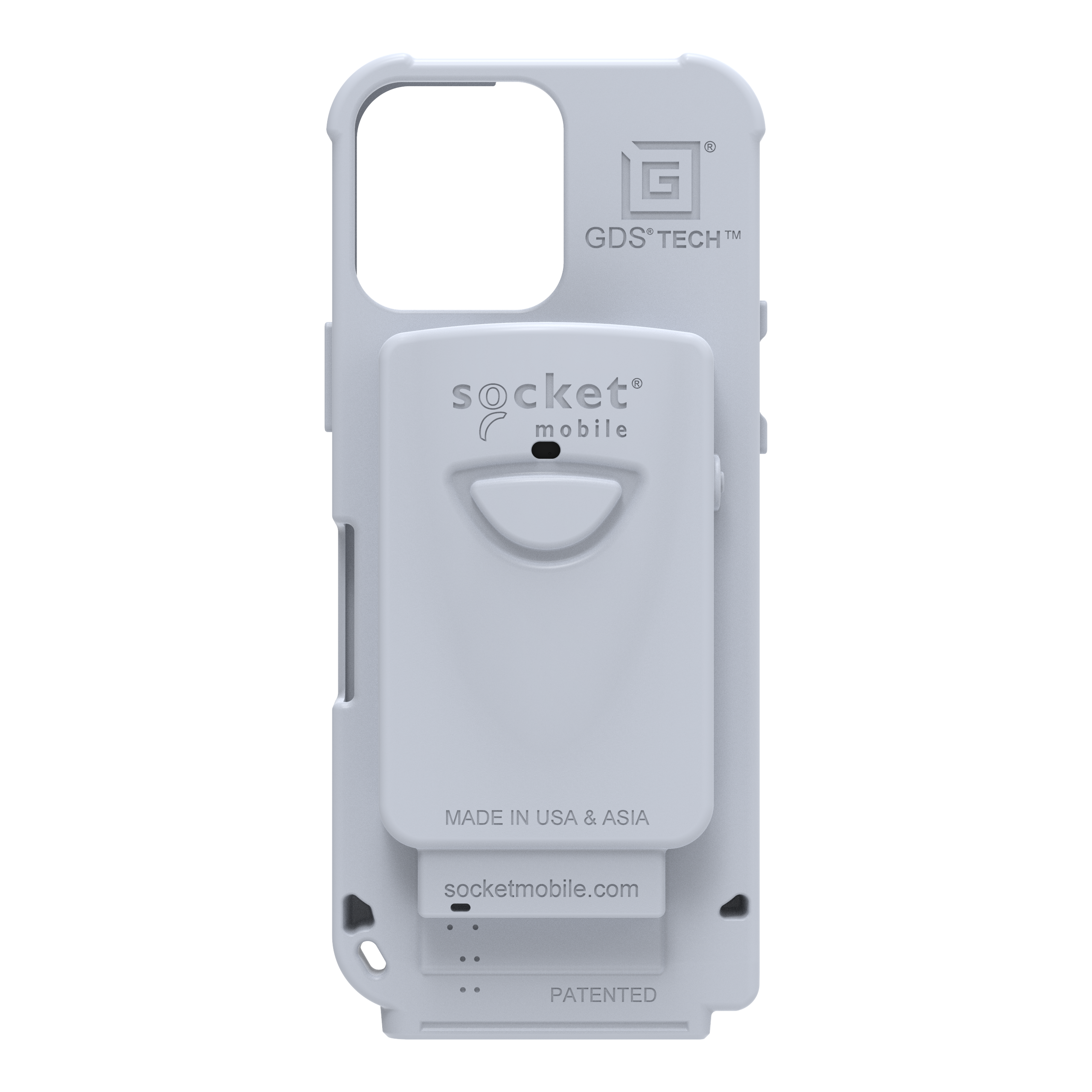

Socket Mobile DuraSled DS840 1D/2D Barcode Sled Scanner for iPhone 16 and 15 with Charging Dock, Cloud

MPN CX4301-3432

Fits iPhone 16, iPhone 15

$434.79$499.00Save $64.21

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Socket Mobile DuraSled DS840 (CX4301-3432) is a 1D/2D barcode sled scanner in Cloud for iPhone 16 and iPhone 15, bundled with a charging dock that charges the reader and phone together. It reads printed and on-screen barcodes, including postal codes, from 1.2 to 19.5 in, and its rubber case protects the phone from drops. It pairs over Bluetooth Classic and is natively supported in Square and Shopify.

  • 1D/2D imager reads printed and on-screen barcodes plus postal codes, with omnidirectional scanning
  • Rubber sled case for iPhone 16 and iPhone 15, rated for 2,500 tumble cycles at 1 m
  • Includes Charging Dock that charges the reader and the iPhone together
  • Field-replaceable 700 mAh battery: up to 10,000 scans in 11 hours
  • Bluetooth Classic 2.1 + EDR; native support in Square and Shopify
  • CaptureSDK (2.0.29 or higher) integration for native and web-based apps
  • Scans mobile tickets, coupons and on-screen codes as well as printed labels, which suits retail and hospitality
  • Protects the iPhone from everyday drops without a separate case

The DuraSled DS840 is Socket Mobile's performance sled scanner for iPhone. It combines a 1D/2D barcode imager with a rubber case, so an iPhone 16 or iPhone 15 becomes a durable handheld data-capture device. This SKU, CX4301-3432, is the Cloud version for iPhone 16/15 and includes the Charging Dock, which charges the reader and the phone at the same time. The iPhone is not included.

The DS840 reads printed and on-screen barcodes with omnidirectional scanning. Supported codes include QR, Data Matrix, PDF417, Aztec and MaxiCode, all common 1D retail symbologies, and postal codes such as USPS Intelligent Mail. Reading distance runs from 1.2 to 19.5 in (3.0 to 49.5 cm), depending on barcode size, symbology and label media. The 1280 x 960 sensor works in light levels from pitch black to direct sunlight.

The rubber casing adds drop protection and is rated for 2,500 tumble cycles at 3.3 ft (1 m). A field-replaceable 700 mAh battery delivers up to 10,000 scans in 11 hours. The DuraSled platform keeps the core components and accessories consistent across iPhone models, so a deployment can move to newer phones without replacing everything.

The scanner pairs over Bluetooth Classic 2.1 + EDR. It is natively supported in Square and Shopify, and it works out of the box with any app built on Socket Mobile's CaptureSDK (version 2.0.29 or higher). The package includes the data reader, wrist strap, charging dock and Get Started Guide. Socket Mobile designs and assembles the DS840 in Fremont, California, and includes a 1-year warranty.

Ideal for

  • Retail point of sale and inventory with Square or Shopify on iPhone
  • Mobile delivery services and logistics scanning, including postal barcodes
  • Ticketing and hospitality check-in from on-screen barcodes
  • Healthcare and food handling track-and-trace
  • Inspections, audits and asset tracking

Specifications

Battery

Voltage
3.7 V
Capacity
700 mAh
Cell Type
Proprietary
Charge Time
8 hours
Battery Type
1 rechargeable Li-ion polymer, replaceable
Battery Weight
12.5 g
Commodity Code
8507.60.0000
Lithium Content
4.5 g
Rohs Compliance
Yes, included with scanner
Hazmat UN Number
UN3481, P.I. 967
Cells Per Battery
1
Watts Per Battery
2.59 W
Percentage Lithium
36.3%
Battery Life Cycles
500 charge-discharge cycles
Chemical Composition
Lithium-polymer
Life Per Full Charge
25 h standby; 10,000 scans in 11 h (one scan every 4 s); varies with temperature, light and battery age
Battery Country OF Origin
China

General

MPN
CX4301-3432
UPC
758497124814
Brand
Socket Mobile
Color
Cloud
Model
DuraSled DS840 for Apple
Reads
1D barcodes, 2D barcodes, postal codes (printed and on-screen)
Warranty
1-year warranty included; extended options available
Configuration
DS840 (Cloud), iPhone 16/15, Charging Dock

Package

Not Included
iPhone not included; charging cable/adapter sold separately
Shipping Weight
1.70 lbs
Data Reader With 6 Bay Charger
6-bay configuration: data reader, wrist strap, 6-bay charger, Get Started Guide
Data Reader With Charging Dock
This configuration: data reader, wrist strap, charging dock, Get Started Guide
Data Reader With Charging Cable
Cable configuration: data reader, wrist strap, charging cable, Get Started Guide

Bluetooth

Bluetooth Radio
Class 2 Bluetooth 2.1 + EDR, 56-bit encryption
Bluetooth Range
Up to 10 m (33 ft), depending on environment and host device
Bluetooth Profiles
HID (Basic), SPP (Application), iOS Application Mode (default); some hosts support only one profile

Dimensions

Charging Dock
16.9 oz (478.5 g); 186.2 x 28.4 x 82.0 mm
USB 2 0 Cable
~2.72 oz (77.1 g); 1.2 m
Durasled For Iphone 15
~4.2 oz (113.5 g); 147.6 x 71.6 x 7.8 mm
Durasled For Iphone 16e
~4.2 oz (113.5 g); 147.6 x 71.6 x 7.8 mm

Compatibility

Sdk
Socket Mobile CaptureSDK (version 2.0.29 or higher)
Fits
iPhone 16 and iPhone 15
Operating System
Apple iOS
Native App Support
Square, Shopify

Certifications

Emi Rfi
FCC Part 15 Class C, RSS 210, ICES 003, C-Tick, CISPR 22, CE EN55022, EN55024
LED Safety
IEC/EN 62471 (Exempt Group); FCC ID LUBMA41; IC ID 2529A-MA41S8; TELEC ID R 201-125709
Bluetooth Sig
Declaration ID D030473; QDID 82009
Environmental
RoHS compliant
Electrical Safety
IEC 60950-1; UL 60950-1; CAN/CSA C22.2

User Environments

Ambient Light
From 0 to 100,000 lux (pitch black to direct sunlight)
Relative Humidity
95% at 60° C (140° F), non-condensing
Storage Temperature
-40° to 70° C (-40° to 158° F)
Charging Temperature
Charging above 40° C / 100° F may result in charging issues
Tumble Specification
2,500 tumbles at 3.3 ft (1 m) to a metal plate (IEC 60068-2-31, IEC 60068-2-32)
Operating Temperature
0° to 45° C (32° to 113° F)

Reading Performance

Scan Angle
44.5° horizontal, 33.5° vertical
Decode Range
1.2 to 19.5 in (3.0 to 49.5 cm); depends on barcode size, symbology, label media
Print Contrast
Down to 25%-20%
Reading Distance
1.2 to 19.5 in (3.0 to 49.5 cm); depends on barcode size, symbology, label media
Sensor Resolution
1280 horizontal x 960 vertical pixels
Decode Range 5 Mil Code 39
2.2 in to 4.5 in
Decode Range 13 Mil UPC Ean
2.2 in to 11.0 in
Decode Range 15 Mil QR Code
1.6 in to 7.9 in
Default Barcode Symbologies
1D: Bookland EAN, Codabar, Code 128, Code 39, Code 93, EAN/JAN 13/8, GS1 128, GS1 DataBar Expanded/Limited/Omnidirectional, Interleaved 2 of 5, ISBT 128 UDI, Trioptic, UPC-A, UPC-E. 2D: Aztec, Composite, Data Matrix, Han Xin, MaxiCode, MicroPDF417, Micro QR, PDF417, QR
Decode Range 15 Mil Code 128
2.2 in to 15.0 in
Supported Barcode Symbologies
1D: Code 11, Matrix 2 of 5, MSI. Postal: Australia Post, Japan Postal, Mailmark, Netherlands KIX, UK Postal, US Planet, US Postnet, USPS 4CB / Intelligent Mail
Decode Range 10 Mil Datamatrix
1.6 in to 3.9 in

Questions buyers ask

Is an iPhone included?

No. The DS840 is sold without an iPhone. This configuration includes the data reader, wrist strap, charging dock and Get Started Guide. The charging cable/adapter is sold separately.

Which iPhone models does this version fit?

CX4301-3432 is the iPhone 16/15 version. Socket Mobile offers separate DS840 SKUs for iPhone 17e/16e.

Can it scan barcodes on a phone screen?

Yes. The DS840 reads both printed and on-screen 1D and 2D barcodes, including QR, Data Matrix, PDF417 and Aztec, as well as postal codes.

Does it work with Square or Shopify?

Yes, the DS840 is natively supported in Square and Shopify. It also works with any app that integrates Socket Mobile's CaptureSDK version 2.0.29 or higher.

What does the charging dock do?

The dock charges the scanner and the iPhone at the same time. It weighs 16.9 oz (478.5 g) and measures 186.2 x 28.4 x 82.0 mm.
