Socket Mobile DuraSled DS840 Barcode Sled Scanner for iPhone 16 & 15, 6-Pack with 6-Bay Charger

MPN CX4304-3435

Fits iPhone 16, iPhone 15

$2,395.13$3,169.00Save $773.87

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

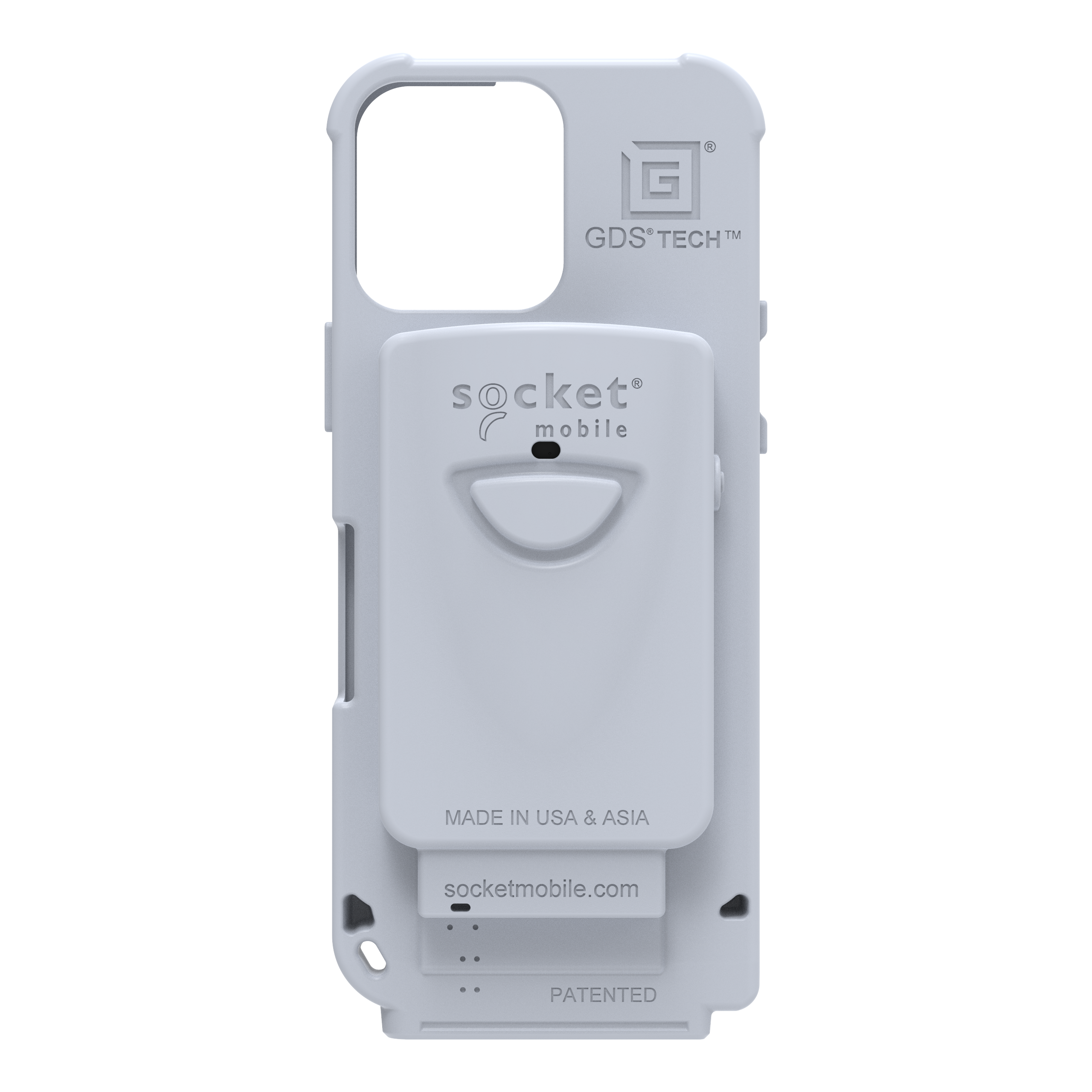

The Socket Mobile DuraSled DS840 fleet bundle (CX4304-3435) packs six DS840 barcode sled scanners for iPhone 16 and iPhone 15 in the Cloud color with a 6-bay charger. It is the North America and Japan version. Each sled wraps the iPhone in a rubber drop-protective case and adds a 1D/2D imager that reads printed and on-screen barcodes. A field-replaceable battery is rated for a full shift, and the charger powers all six sleds at once.

  • Six DuraSled DS840 sled scanners for iPhone 16 and iPhone 15 plus a 6-bay charger that charges six units at once
  • Omnidirectional 1D/2D imager (1280 x 960) reads printed and on-screen barcodes, plus postal codes
  • Rubber drop-protective casing tested to 2,500 tumbles at 1 m onto a metal plate
  • Field-replaceable 700 mAh battery rated for 10,000 scans within 11 hours
  • Class 2 Bluetooth 2.1 + EDR with up to 10 m range; iOS Application, HID and SPP modes
  • Native support in Square and Shopify; CaptureSDK 2.0.29 or higher for custom apps
  • North America and Japan version in the Cloud color
  • Equip a six-person team in one order, with shared charging that keeps every sled ready at shift start

The DuraSled DS840 turns an iPhone 16 or iPhone 15 into a dedicated data-capture device. This bundle (CX4304-3435) equips a team with six DS840 sled scanners in the Cloud color and a 6-bay charger that charges up to six DuraSleds and DuraScan 800 Series scanners at the same time. It is the North America and Japan configuration. Socket Mobile sells separate Europe, United Kingdom and Australia versions. iPhones are not included.

Each sled uses a 1280 x 960 imager with omnidirectional decoding for 1D, 2D and postal symbologies. That covers UPC/EAN, Code 128, GS1 DataBar, QR, Data Matrix, PDF417 and more. It reads printed labels as well as barcodes shown on a screen, from 1.2 to 19.5 in depending on barcode size and media. It is rated for ambient light from pitch black to direct sunlight. The rubber casing is tested to 2,500 tumble cycles at 1 m onto a metal plate, and LEDs confirm each good read and show charging status.

The 700 mAh lithium-polymer battery is field-replaceable and rated for 10,000 scans within 11 hours or 25 hours of standby. The sled connects over Class 2 Bluetooth 2.1 + EDR with up to 10 m range. It works in iOS Application Mode by default, and HID and SPP modes are also available. Square and Shopify support it natively, and developers can add it to native or web apps with CaptureSDK 2.0.29 or higher. Accessories and the SDK stay the same across DuraSled models, so the investment carries forward when your iPhone fleet changes.

Each unit ships with a wrist strap and Get Started Guide. Socket Mobile includes a 1-year warranty, and the datasheet, user guide, programming guide and battery replacement guide are available.

Ideal for

  • Retail teams scanning inventory, price checks and mobile checkout on iPhone
  • Mobile delivery and logistics crews capturing package and proof-of-delivery barcodes
  • Ticketing and hospitality staff reading on-screen tickets and passes
  • Healthcare and food-handling track-and-trace workflows
  • Inspections, audits and asset tracking across multi-user shifts

Specifications

Battery

Voltage
3.7 V
Capacity
700 mAh
Cell Type
Proprietary
Charge Time
8 hours
Battery Type
1 rechargeable lithium-ion polymer, replaceable
Standby Time
25 hours standby
Battery Weight
12.5 g
Commodity Code
8507.60.0000
Life OF Battery
500 charge-discharge cycles
Lithium Content
4.5 g
Rohs Compliance
Yes, included with scanner
Active Scan Time
10,000 scans within 11 hours (one scan every 4 seconds); varies with ambient temperature, ambient light and battery age
Hazmat UN Number
UN3481, P.I. 967
Cells Per Battery
1
Watts Per Battery
2.59
Percentage Lithium
36.3%
Chemical Composition
Lithium-polymer
Battery Country OF Origin
China

General

MPN
CX4304-3435
UPC
758497124845
Brand
Socket Mobile
Color
Cloud
Model
DuraSled DS840 for Apple
Reads
1D barcodes, 2D barcodes, postal codes
Region
North America & Japan version
Configuration
DS840 (Cloud), iPhone 16/15, 6 DuraSled Units w/ 6-Bay Charging Dock
Units Included
6 DuraSled DS840 units

Bluetooth

Bluetooth Radio
Class 2 Bluetooth, version 2.1 + EDR with 56-bit data encryption
Bluetooth Range
Up to 10 m (33 ft), depending on environment and host device
Bluetooth Profiles
Basic Mode - HID; Application Mode - SPP; iOS Application Mode (default). Some OS or device models may support only one profile

Packaging

Shipping Weight
8.00 lbs
Data Reader With 6 Bay Charger
Data Reader, Wrist Strap, 6 Bay Charger, Get Started Guide
Data Reader With Charging Dock
Data Reader, Wrist Strap, Charging Dock (if selected), Get Started Guide
Data Reader With Charging Cable
Data Reader, Wrist Strap, Charging Cable, Get Started Guide

Dimensions

Charging Dock Size
7.33 x 1.12 x 3.23 in (186.2 x 28.4 x 82.0 mm)
Charging Dock Weight
16.9 oz (478.5 g)
USB 2 0 Cable Length
1.2 m
USB 2 0 Cable Weight
~2.72 oz (77.1 g)
Durasled Iphone 15 Size
L 5.77 x H 2.82 x W 0.31 in (147.6 x 71.6 x 7.8 mm)
Durasled Iphone 16e Size
L 5.77 x H 2.82 x W 0.31 in (147.6 x 71.6 x 7.8 mm)
Durasled Iphone 15 Weight
~4.2 oz (113.5 g)
Durasled Iphone 16e Weight
~4.2 oz (113.5 g)

Certification

Emi Rfi
FCC Part 15 Class CRSS 210, iCES 003, C-Tick, CISPR 22, CE EN55022, EN55024
LED Safety
IEC/EN 62471 (Exempt Group); FCC ID LUBMA41; IC ID 2529A-MA41S8; Telec ID R 201-125709
Bluetooth Sig
Declaration ID D030473; QDID 82009
Environmental
RoHS compliant
Electrical Safety
Certified to IEC 60950-1, UL 60950-1, CAN/CSA C22.2

Compatibility

Sdk
Socket Mobile CaptureSDK version 2.0.29 or higher
Native Support
Native support in Square and Shopify
Compatible With
Apple iOS, Bluetooth Classic
Operating System
Apple iOS
Compatible Iphones
iPhone 16 and iPhone 15

User Environments

Ambient Light
0 to 100,000 lux (pitch black to direct sunlight)
Relative Humidity
95% at 60° C (140° F), non-condensing
Storage Temperature
-40° to 70° C (-40° to 158° F)
Charging Temperature
Charging in an ambient temperature above 40° C / 100° F may result in charging issues
Tumble Specification
2,500 cycles at 3.3 ft (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32
Operating Temperature
0° to 45° C (32° to 113° F)

Reading Performance

Scan Angle
44.5° horizontal, 33.5° vertical
Decode Ranges
3.0 to 49.5 cm (1.2 to 19.5 in), depends on barcode size, symbology, label media
Print Contrast
Down to 25%-20%
Reading Distance
3.0 to 49.5 cm (1.2 to 19.5 in), depends on barcode size, symbology, label media
Sensor Resolution
1280 horizontal x 960 vertical pixels
Default Symbologies 1d
Bookland EAN, Codabar, Code 128, Code 39, Code 93, EAN/JAN 13, EAN/JAN 8, GS1 128, GS1 DataBar Expanded, GS1 DataBar Limited, GS1 DataBar Omnidirectional, Interleaved 2 of 5, ISBT 128 UDI, Trioptic, UPC-A, UPC-E
Default Symbologies 2d
Aztec, Composite, Data Matrix, Han Xin, MaxiCode, MicroPDF417, Micro QR, PDF417, QR
Supported Postal Codes
Australia Post, Japan Postal, Mailmark, Netherlands KIX, UK Postal, US Planet, US Postnet, USPS 4CB One Intelligent Mail
Supported Symbologies 1d
Code 11, Matrix 2 of 5, MSI
Decode Range 5 Mil Code 39
Near 2.2 in / 5.5 cm, Far 4.5 in / 11.5 cm
Decode Range 13 Mil UPC Ean
Near 2.2 in / 5.5 cm, Far 11.0 in / 28.0 cm
Decode Range 15 Mil QR Code
Near 1.6 in / 4.0 cm, Far 7.9 in / 20.0 cm
Decode Range 15 Mil Code 128
Near 2.2 in / 5.5 cm, Far 15.0 in / 38.0 cm
Decode Range 10 Mil Datamatrix
Near 1.6 in / 4.0 cm, Far 3.9 in / 10.0 cm

Questions buyers ask

Which iPhones does this DS840 bundle fit?

This configuration (CX4304-3435) is built for iPhone 16 and iPhone 15. iPhones are not included.

What is included in the bundle?

Six DuraSled DS840 sled scanners in the Cloud color and a 6-bay charger that charges up to six DuraSleds and DuraScan 800 Series scanners at the same time. Each data reader comes with a wrist strap and a Get Started Guide.

How long does the battery last?

Each sled's 700 mAh battery is rated for 10,000 scans within 11 hours (one scan every 4 seconds) or 25 hours of standby. It takes about 8 hours to charge and can be replaced in the field.

Will it work with my point-of-sale or custom app?

Square and Shopify support the DS840 natively. Custom native or web apps can integrate it with Socket Mobile CaptureSDK version 2.0.29 or higher, and HID keyboard mode is also available.

Can it scan barcodes on a phone screen?

Yes. The DS840 reads both printed and on-screen 1D and 2D barcodes, including QR codes on digital tickets and coupons.
