Socket Mobile DuraSled DS840 Barcode Sled Scanner for iPhone 17e/16e with Charging Dock, Black

MPN CX4388-3528

Fits iPhone 16e

$434.79

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

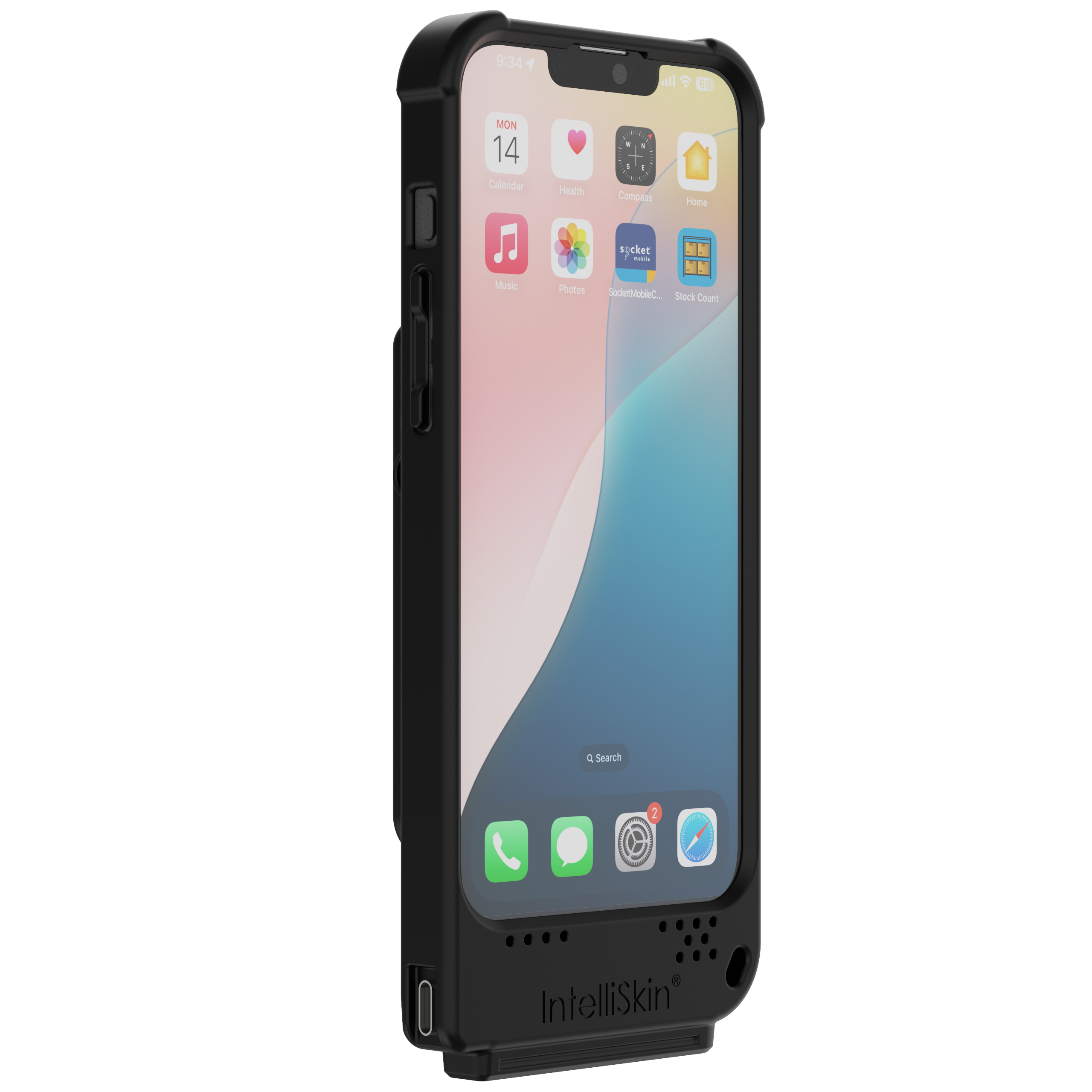

The Socket Mobile DuraSled DS840 (CX4388-3528) turns an iPhone 17e or iPhone 16e into a durable 1D/2D barcode scanner. The rubber sled protects the phone from drops. The omnidirectional imager reads printed and on-screen barcodes. The included charging dock charges the reader and the phone at the same time. It pairs over Bluetooth, works natively in Square and Shopify, and connects to custom apps through Socket Mobile's CaptureSDK.

  • Omnidirectional 1D/2D imager reads printed and on-screen barcodes at 3.0 to 49.5 cm (1.2 to 19.5 in)

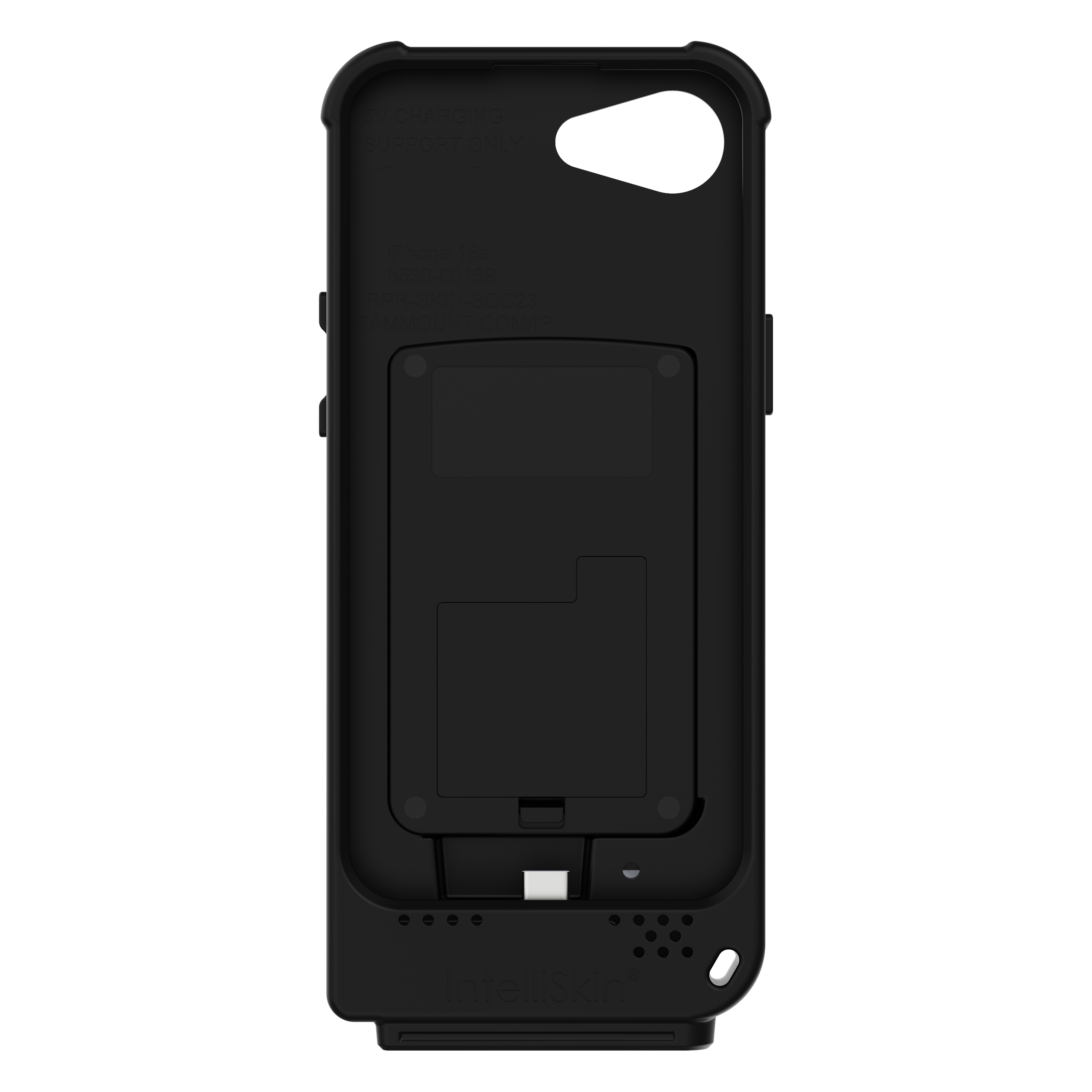

  • Rubber sled for iPhone 17e and iPhone 16e, rated for 2,500 tumbles at 1 m (3.3 ft) onto a metal plate
  • Field-replaceable 700 mAh battery rated for 10,000 scans within 11 hours and 25 hours of standby

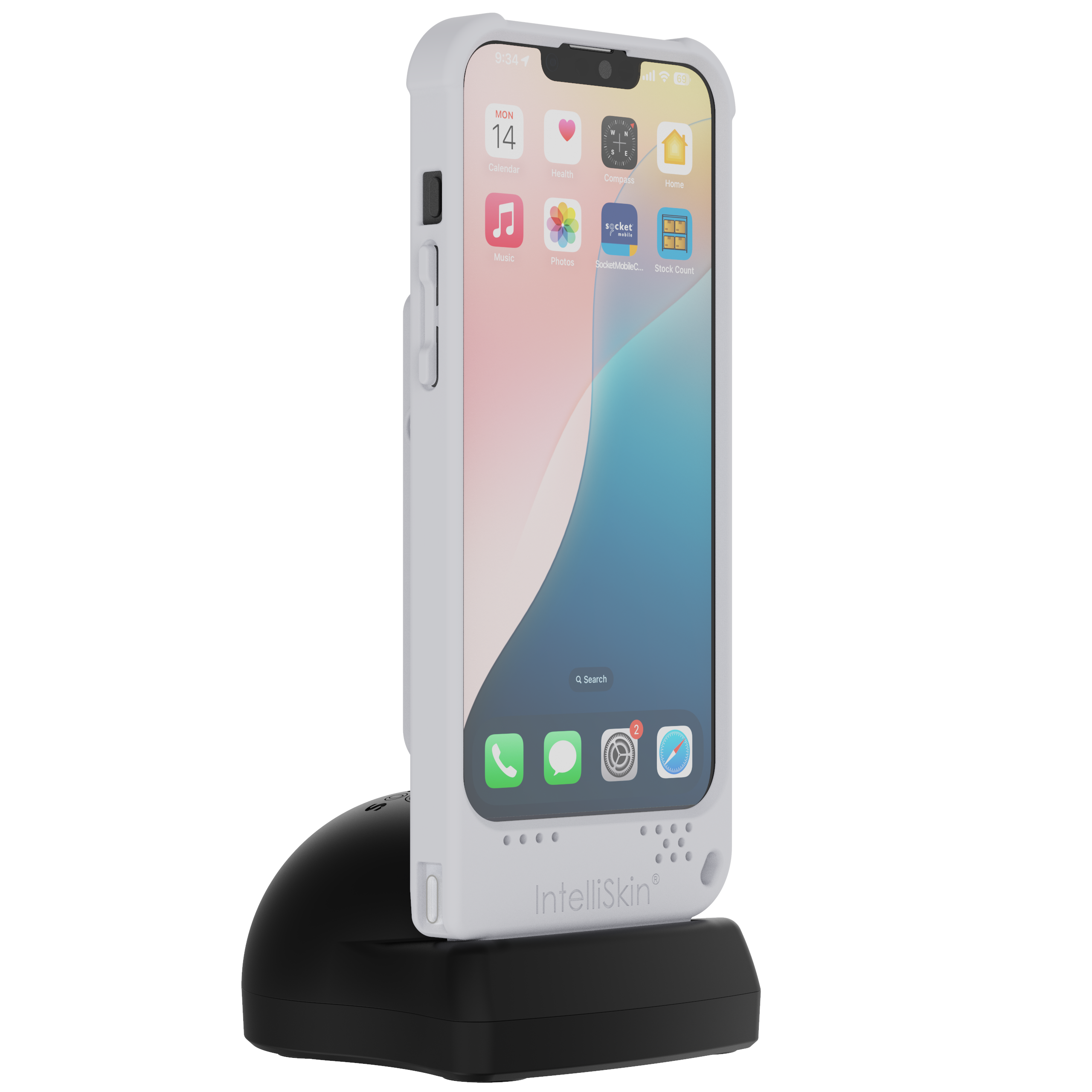

  • Charging dock included to charge the reader and the iPhone at the same time
  • Class 2 Bluetooth 2.1 + EDR with HID, SPP and iOS Application Mode profiles
  • Native support in Square and Shopify, plus CaptureSDK (2.0.29 or higher) for custom app integration
  • Adds dedicated barcode scanning to the iPhone 17e or iPhone 16e your team already carries, with no separate handheld to manage
  • Protects each phone from daily drops with a rubber sled built for 2,500 tumbles at 1 m

The DuraSled DS840 for Apple is Socket Mobile's performance 1D/2D barcode sled scanner for iPhone. This configuration, CX4388-3528, is the black sled for iPhone 17e and iPhone 16e, bundled with a charging dock. Insert the iPhone, pair the scanner over Bluetooth and it is ready to work. It suits delivery services, asset tracking, ticketing, retail, healthcare and any app-driven mobile workflow.

The imager uses a 1280 x 960 pixel sensor with a 44.5° horizontal by 33.5° vertical scan angle. It reads printed and on-screen barcodes omnidirectionally at 3.0 to 49.5 cm (1.2 to 19.5 in), depending on barcode size, symbology and label media. It reads in light levels from 0 to 100,000 lux, from pitch black to direct sunlight. Code 128, UPC/EAN, GS1 DataBar, QR, Data Matrix, PDF417 and Aztec are enabled by default. Postal codes, including USPS Intelligent Mail, are also supported.

The rubber casing is rated for 2,500 tumbles at 1 m (3.3 ft) onto a metal plate. The field-replaceable 700 mAh lithium-polymer battery is rated for 10,000 scans within 11 hours at one scan every 4 seconds, with 25 hours of standby. The charging dock charges the reader and the iPhone together, so each unit starts the shift full.

The DS840 connects over Class 2 Bluetooth 2.1 + EDR with a range of up to 10 m (33 ft). It supports HID, SPP and iOS Application Mode. Square and Shopify support it natively, and CaptureSDK 2.0.29 or higher adds scanning to native and web apps. DuraSled core components stay the same across iPhone models, so the same accessories and SDK carry forward when phones change. The DS840 is designed and assembled in Fremont, CA, and includes a 1-year warranty.

Ideal for

  • Retail point of sale and inventory counts on iPhone with Square or Shopify
  • Last-mile and mobile delivery proof-of-delivery scanning
  • Asset tracking, track-and-trace and inspections or audits
  • Event and travel ticketing, including on-screen mobile tickets
  • Healthcare and food-handling workflows that need reliable label capture

Specifications

General

MPN
CX4388-3528
UPC
758497125408
Fits
iPhone 17e / iPhone 16e
Brand
Socket Mobile
Color
Black
Model
DuraSled DS840 for Apple
Reads
1D Barcodes, 2D Barcodes, Postal Codes
Assembly
Designed and assembled in the USA (Fremont, CA)
Warranty
1-year warranty included (extended options available)
Highlights
Drop Protection | High-Volume Scanning | Scans on Screen
Product Type
Durable Performance 1D/2D Barcode Sled Scanner
Configuration
DS840 (Black), iPhone 17e/16e, Charging Dock

Packaging

Not Included
iPhone not included; charging cable/adapter sold separately
Data Reader With 6 Bay Charger
Data Reader, Wrist Strap, 6 Bay Charger, Get Started Guide
Data Reader With Charging Dock
Data Reader with Charging Dock (this SKU): Data Reader, Wrist Strap, Charging Dock, Get Started Guide
Data Reader With Charging Cable
Data Reader, Wrist Strap, Charging Cable, Get Started Guide

Dimensions

Shipping Weight
1.00 lbs
USB Cable Length
USB 2.0 cable, 1.2 m
USB Cable Weight
~2.72 oz (77.1 g)
Charging Dock Size
7.33 x 1.12 x 3.23 in (186.2 x 28.4 x 82.0 mm)
Charging Dock Weight
16.9 oz (478.5 g)
Durasled Iphone 15 Size
L 5.77 x H 2.82 x W 0.31 in (147.6 x 71.6 x 7.8 mm)
Durasled Iphone 16e Size
L 5.77 x H 2.82 x W 0.31 in (147.6 x 71.6 x 7.8 mm)
Durasled Iphone 15 Weight
~4.2 oz (113.5 g)
Durasled Iphone 16e Weight
~4.2 oz (113.5 g)

Compatibility

Sdk
Socket Mobile CaptureSDK version 2.0.29 or higher
Native Support
Square, Shopify
Compatible With
Apple iOS, Bluetooth Classic

Operating Systems

Supported
Apple iOS

User Environments

Ambient Light
0 to 100,000 lux (pitch black to direct sunlight)
Relative Humidity
95% at 60 °C (140 °F), non-condensing
Storage Temperature
-40° to 70 °C (-40° to 158 °F)
Charging Temperature
Charging above 40 °C / 100 °F ambient may result in charging issues
Tumble Specification
2,500 cycles at 3.3 ft (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32
Operating Temperature
0° to 45 °C (32° to 113 °F)

Battery Information

Voltage
3.7 V
Capacity
700 mAh
Cell Type
Proprietary
Charge Time
8 hours
Battery Type
1 rechargeable lithium-ion polymer, replaceable
Battery Weight
12.5 g
Commodity Code
8507.60.0000
Life Per Charge
Standby: 25 hours; Active: 10,000 scans within 11 hours (one scan every 4 seconds); varies with temperature, light and battery age
Lithium Content
4.5 g
Rohs Compliance
Yes, included with scanner
Hazmat UN Number
UN3481, P.I. 967
Cells Per Battery
1
Country OF Origin
China (battery)
Watts Per Battery
2.59
Battery Cycle Life
500 charge-discharge cycles
Percentage Lithium
36.3%
Chemical Composition
Lithium-polymer

Reading Performance

Scan Angle
44.5° (horizontal) x 33.5° (vertical)
Decode Range
3.0 to 49.5 cm (1.2 to 19.5 in), depends on barcode size, symbology, label media
Print Contrast
Down to 25%-20%
Reading Distance
3.0 to 49.5 cm (1.2 to 19.5 in), depends on barcode size, symbology, label media
Sensor Resolution
1280 horizontal x 960 vertical pixels
Decode 5 Mil Code 39
Near 2.2 in / 5.5 cm, Far 4.5 in / 11.5 cm
Decode 13 Mil UPC Ean
Near 2.2 in / 5.5 cm, Far 11.0 in / 28.0 cm
Decode 15 Mil QR Code
Near 1.6 in / 4.0 cm, Far 7.9 in / 20.0 cm
Decode 15 Mil Code 128
Near 2.2 in / 5.5 cm, Far 15.0 in / 38.0 cm
Default Symbologies 1d
1D (default): Bookland EAN, Codabar, Code 128, Code 39, Code 93, EAN/JAN 13, EAN/JAN 8, GS1-128, GS1 DataBar Expanded, Limited and Omnidirectional, Interleaved 2 of 5, ISBT 128 UDI, Trioptic, UPC-A, UPC-E
Default Symbologies 2d
2D (default): Aztec, Composite, Data Matrix, Han Xin, MaxiCode, MicroPDF417, Micro QR, PDF417, QR
Supported Postal Codes
Australia Post, Japan Postal, Mailmark, Netherlands KIX, UK Postal, US Planet, US Postnet, USPS 4CB / Intelligent Mail
Decode 10 Mil Datamatrix
Near 1.6 in / 4.0 cm, Far 3.9 in / 10.0 cm
Supported Symbologies 1d
1D (supported): Code 11, Matrix 2 of 5, MSI

Bluetooth Information

Bluetooth Radio
Class 2 Bluetooth, version 2.1 + EDR with 56-bit data encryption
Bluetooth Range
Up to 10 m (33 ft), depending on environment and host device
Bluetooth Profiles
Basic Mode: HID; Application Mode: SPP; iOS Application Mode (default). Some OS or device models may support only one profile

Certification Regulatory

Emi Rfi
FCC Part 15 Class C, RSS 210, ICES 003, C-Tick, CISPR 22, CE EN55022, EN55024
LED Safety
IEC/EN 62471 (Exempt Group); FCC ID: LUBMA41; IC ID: 2529A-MA41S8; Telec ID: R 201-125709
Bluetooth Sig
Declaration ID: D030473; QDID: 82009
Environmental
RoHS compliant
Electrical Safety
Certified to IEC 60950-1; UL 60950-1; CAN/CSA C22.2

Questions buyers ask

Which iPhone models does CX4388-3528 fit?

This configuration fits the iPhone 17e and iPhone 16e. Socket Mobile sells a separate DS840 sled for iPhone 16/15.

Is an iPhone included?

No. The phone is not included. The box contains the DS840 data reader, a wrist strap, the charging dock and a Get Started Guide. The charging cable and adapter are sold separately.

How long does the battery last?

Socket Mobile rates it for 10,000 scans within 11 hours at one scan every 4 seconds, with 25 hours of standby. The 700 mAh battery charges in 8 hours and can be replaced in the field.

Will it work with my point-of-sale app?

Square and Shopify support the DS840 natively. Other apps can integrate it with Socket Mobile's CaptureSDK version 2.0.29 or higher. The scanner also supports HID and SPP Bluetooth profiles.

Can it scan barcodes on another phone's screen?

Yes. The DS840 reads both printed and on-screen barcodes, such as mobile tickets and digital coupons.
