Socket Mobile DuraSled DS860 1D/2D/MRZ Barcode Sled Scanner for iPhone 17e/16e with Charging Dock, Black

MPN CX4394-3534

Fits iPhone 16e

$612.77

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Socket Mobile DuraSled DS860 (CX4394-3534) is a black professional sled scanner for iPhone 17e and iPhone 16e. It reads 1D and 2D barcodes, passport MRZ lines, OCR-A/B and MICR E13B fonts. Its rubber casing protects the phone from drops. This bundle includes a charging dock that charges the reader and the iPhone together. It connects over Bluetooth, works natively in Square and Shopify, and integrates with custom apps through CaptureSDK.

  • Reads 1D and 2D barcodes plus passport MRZ, OCR-A/B and MICR E13B fonts, and DotCode
  • Decode range of 4.1 to 91.7 cm, with 20 mil Code 39 readable to 91.7 cm (36.1 in)
  • Rubber sled for iPhone 17e and iPhone 16e, rated for 2,500 tumbles at 1 m onto a metal plate
  • Field-replaceable 700 mAh battery rated for 10,000 scans within 11 hours and 25 hours of standby

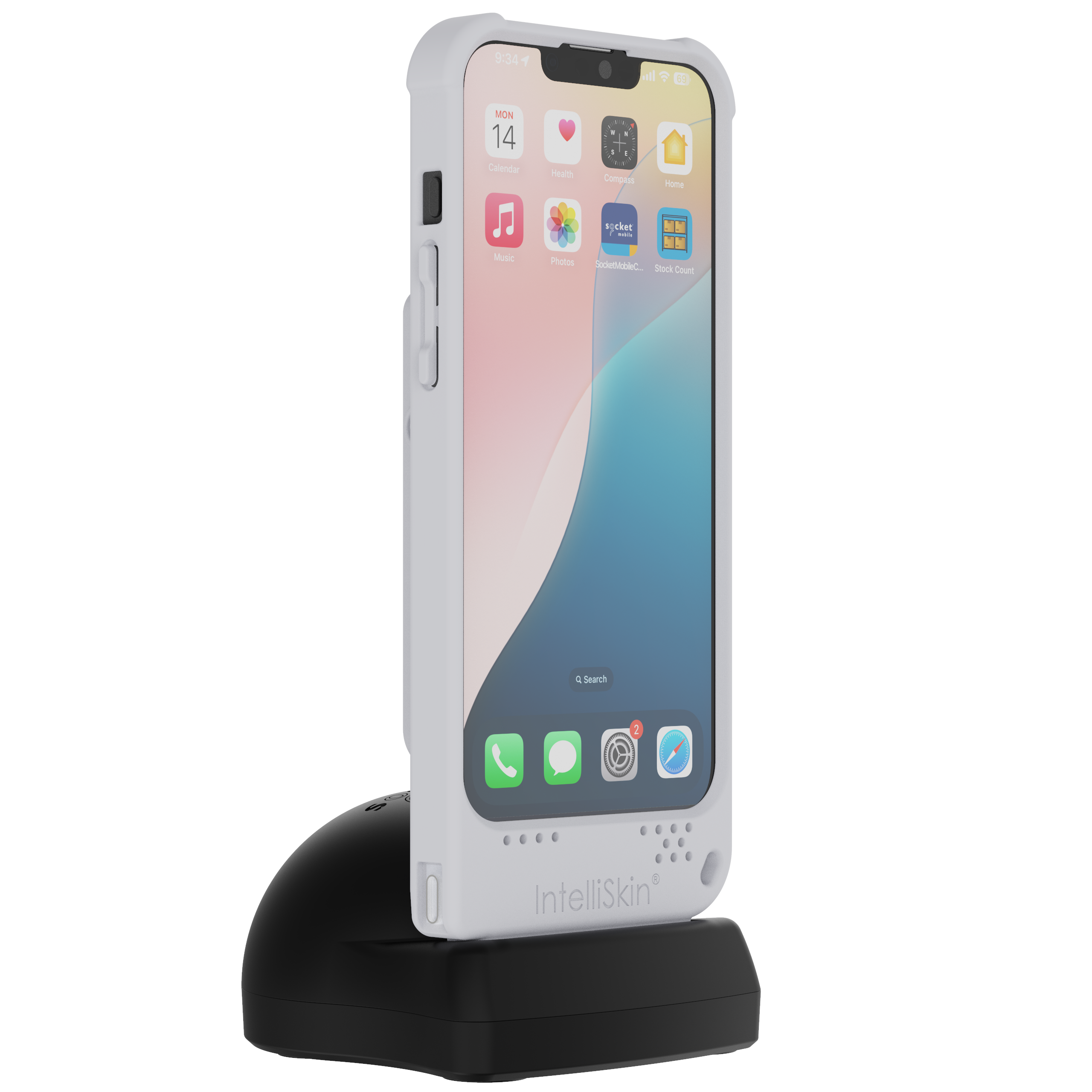

  • Charging dock included to charge the reader and iPhone simultaneously
  • Class 2 Bluetooth 2.1 + EDR, native in Square and Shopify, CaptureSDK 2.0.29 or higher
  • Check in guests and scan merchandise with one iPhone-based device instead of separate passport and barcode readers
  • Reads larger labels from across a counter or shelf, with published ranges up to 91.7 cm

The DuraSled DS860 for Apple is Socket Mobile's professional sled scanner. It reads barcodes and travel documents on one device. This configuration, CX4394-3534, is the black sled for iPhone 17e and iPhone 16e, supplied with a charging dock. With it, merchants and agents can scan product barcodes and customer passports one-handed. It is built for travel and hospitality, retail point of sale, field service and mobile service teams.

Beyond the full 1D and 2D symbology set, the DS860 reads OCR-A and OCR-B by default, and it also supports MICR E13B, passport MRZ and DotCode. Its 1280 x 960 pixel sensor decodes from 4.1 to 91.7 cm depending on barcode size, symbology and label media. Published figures include 20 mil Code 39 out to 91.7 cm (36.1 in), 100% UPC-A to 63.2 cm and 20 mil QR to 44.5 cm. It reads printed and on-screen codes omnidirectionally, from pitch black to direct sunlight.

The rubber casing is rated for 2,500 tumbles at 1 m onto a metal plate. The field-replaceable 700 mAh lithium-polymer battery delivers 10,000 scans within 11 hours at one scan every 4 seconds, with 25 hours of standby. The included dock charges the sled and the iPhone at the same time.

Connection is Class 2 Bluetooth 2.1 + EDR with a range of up to 10 m, using HID, SPP or the default iOS Application Mode. Square and Shopify support the scanner natively, and CaptureSDK 2.0.29 or higher brings it into native and web apps. DuraSled core components and charging infrastructure stay constant across iPhone models. The DS860 is designed and assembled in Fremont, CA, with a 1-year warranty.

Ideal for

  • Hotel, airline and travel-desk check-in with passport MRZ capture
  • Retail point of sale that also verifies travel IDs, such as duty-free and tax-free sales
  • Field service and mobile service teams scanning parts and documents
  • Logistics and track-and-trace with long-range label reading
  • Healthcare, inspections and audits on iPhone-based workflows

Specifications

General

MPN
CX4394-3534
UPC
758497125460
Fits
iPhone 17e / iPhone 16e
Brand
Socket Mobile
Color
Black
Model
DuraSled DS860 for Apple
Reads
1D Barcodes, 2D Barcodes, MRZ OCR Fonts, Postal Codes
Assembly
Designed and assembled in the USA (Fremont, CA)
Warranty
1-year warranty included (extended options available)
Highlights
Drop Protection | Passport Reader | Scans on Screen
Product Type
Durable Professional 1D/2D/MRZ Barcode Sled Scanner
Configuration
DS860 (Black), iPhone 17e/16e, Charging Dock

Packaging

Not Included
iPhone not included; charging cable/adapter sold separately
Data Reader With 6 Bay Charger
Data Reader, Wrist Strap, 6 Bay Charger, Get Started Guide
Data Reader With Charging Dock
Data Reader with Charging Dock (this SKU): Data Reader, Wrist Strap, Charging Dock, Get Started Guide
Data Reader With Charging Cable
Data Reader, Wrist Strap, Charging Cable, Get Started Guide

Dimensions

Shipping Weight
1.80 lbs
USB Cable Length
USB 2.0 cable, 1.2 m
USB Cable Weight
~2.72 oz (77.1 g)
Charging Dock Size
7.33 x 1.12 x 3.23 in (186.2 x 28.4 x 82.0 mm)
Charging Dock Weight
~16.9 oz (478.5 g)
Durasled Iphone 15 Size
L 5.77 x H 2.82 x W 0.31 in (147.6 x 71.6 x 7.8 mm)
Durasled Iphone 16e Size
L 5.77 x H 2.82 x W 0.31 in (147.6 x 71.6 x 7.8 mm)
Durasled Iphone 15 Weight
~4.2 oz (113.5 g)
Durasled Iphone 16e Weight
~4.2 oz (113.5 g)

Compatibility

Sdk
Socket Mobile CaptureSDK version 2.0.29 or higher
Native Support
Square, Shopify
Compatible With
Apple iOS, Bluetooth Classic

Operating Systems

Supported
Apple iOS

User Environments

Ambient Light
0 to 100,000 lux (pitch black to direct sunlight)
Relative Humidity
95% at 60 °C (140 °F), non-condensing
Storage Temperature
-40° to 70 °C (-40° to 158 °F)
Charging Temperature
Charging above 40 °C / 100 °F ambient may result in charging issues
Tumble Specification
2,500 cycles at 3.3 ft (1 m) to a metal plate, IEC6008-2-31, IEC60068-2-32
Operating Temperature
0° to 45 °C (32° to 113 °F)

Battery Information

Voltage
3.7 V
Capacity
700 mAh
Cell Type
Proprietary
Charge Time
8 hours
Battery Type
1 rechargeable lithium-ion polymer, replaceable
Battery Weight
12.5 g
Commodity Code
8507.60.0000
Life Per Charge
Standby: 25 hours; Active: 10,000 scans within 11 hours (one scan every 4 seconds); varies with temperature, light and battery age
Lithium Content
4.5 g
Rohs Compliance
Yes, included with scanner
Hazmat UN Number
UN3481, P.I. 967
Cells Per Battery
1
Country OF Origin
China (battery)
Watts Per Battery
2.59
Battery Cycle Life
500 charge-discharge cycles
Percentage Lithium
36.3%
Chemical Composition
Lithium-polymer

Reading Performance

Scan Angle
44.5° (horizontal) x 33.5° (vertical)
Decode Range
4.1 to 91.7 cm (1.6 to 35.1 in), depends on barcode size, symbology, label media
Print Contrast
Down to 25%-20%
Sensor Resolution
1280 horizontal x 960 vertical pixels
Decode 5 Mil Pdf417
Near 3.0 in / 7.6 cm, Far 7.9 in / 20.1 cm
Decode 3 Mil Code 39
Near 3.0 in / 5.8 cm, Far 7.6 in / 14.7 cm
Default Ocr Typeface
OCR (default): OCR-A, OCR-B
Decode 20 Mil Code 39
Near 1.6 in / 4.1 cm, Far 36.1 in / 91.7 cm
Decode 20 Mil QR Code
Near 1.1 in / 2.8 cm, Far 17.5 in / 44.5 cm
Decode 5 Mil Code 128
Near 2.3 in / 5.8 cm, Far 9.8 in / 24.9 cm
Decode 15 Mil Code 128
Near 2.4 in / 6.1 cm, Far 27.8 in / 70.6 cm
Decode 6 67 Mil Pdf417
Near 2.5 in / 6.3 cm, Far 10.1 in / 25.7 cm
Default Symbologies 1d
1D (default): Bookland EAN, Codabar, Code 128, Code 39, Code 93, EAN/JAN 13, EAN/JAN 8, GS1-128, GS1 DataBar Expanded, Limited and Omnidirectional, Interleaved 2 of 5, ISBT 128 UDI, Trioptic, UPC-A, UPC-E
Default Symbologies 2d
2D (default): Aztec, Composite, Data Matrix, Han Xin, MaxiCode, MicroPDF417, Micro QR, PDF417, QR
Supported Ocr Typeface
OCR (supported): MICR E13B
Supported Postal Codes
Australia Post, Japan Postal, Mailmark, Netherlands KIX, UK Postal, US Planet, US Postnet, USPS 4CB / Intelligent Mail
Decode 100 Percent UPC A
Near 1.6 in / 4.1 cm, Far 24.9 in / 63.2 cm
Decode 10 Mil Datamatrix
Near 2.1 in / 5.3 cm, Far 11.0 in / 27.8 cm
Supported Symbologies 1d
1D (supported): Code 11, Matrix 2 of 5, MSI

Bluetooth Information

Bluetooth Radio
Class 2 Bluetooth, version 2.1 + EDR with 56-bit data encryption
Bluetooth Range
Up to 10 m (33 ft), depending on environment and host device
Bluetooth Profiles
Basic Mode: HID; Application Mode: SPP; iOS Application Mode (default). Some OS or device models may support only one profile

Certification Regulatory

Emi Rfi
FCC Part 15 Class C, RSS 210, ICES 003, C-Tick, CISPR 22, CE EN55022, EN55024
LED Safety
IEC/EN 62471 (Exempt Group); FCC ID: LUBMA41; IC ID: 2529A-MA41S8; Telec ID: R 201-125709
Environmental
RoHS compliant
Electrical Safety
Certified to IEC 60950-1; UL 60950-1; CAN/CSA C22.2

Questions buyers ask

Can the DS860 read passports?

Yes. The DS860 reads passport MRZ lines as well as OCR-A, OCR-B and MICR E13B fonts, so one iPhone sled captures both product barcodes and travel documents.

Which iPhones does CX4394-3534 fit?

This configuration fits the iPhone 17e and iPhone 16e. A separate DS860 sled is available for iPhone 16/15.

What is in the box?

The DS860 data reader, a wrist strap, the charging dock and a Get Started Guide. The iPhone is not included, and the charging cable and adapter are sold separately.

What does the charging dock do?

It charges the DS860 reader and the iPhone inside it at the same time, so both start each shift charged.

How far can it read a barcode?

The decode range is 4.1 to 91.7 cm, depending on barcode size, symbology and label media. For example, 20 mil Code 39 reads to 91.7 cm and 100% UPC-A to 63.2 cm.
