Socket Mobile DuraScan Terminal DT862 Mid-Range Bluetooth LE 1D/2D Barcode Scanner for iPhone 17e and 16e

MPN CX4679-3960

Fits iPhone 16e

$543.52$649.00Save $105.48

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Socket Mobile DuraScan Terminal DT862 (CX4679-3960) adds professional mid-range 1D/2D scanning to an iPhone 17e or iPhone 16e. It reads 5 to 160 mil barcodes from 2.1 inches to 14 feet. Its rubberized, IP54-rated housing protects the phone while keeping the camera, touchscreen and USB-C charging accessible. It connects over Bluetooth LE to apps built with Socket Mobile CaptureSDK and runs on a field-replaceable 1200 mAh battery. This SKU is the data reader only; no iPhone is included.

  • Mid-range 1D/2D scanning from 2.1 inches to 14 feet, barcode sizes 5 to 160 mil
  • Default support for OCR-A and OCR-B, DotCode, GS1 Data Matrix and GS1 QR

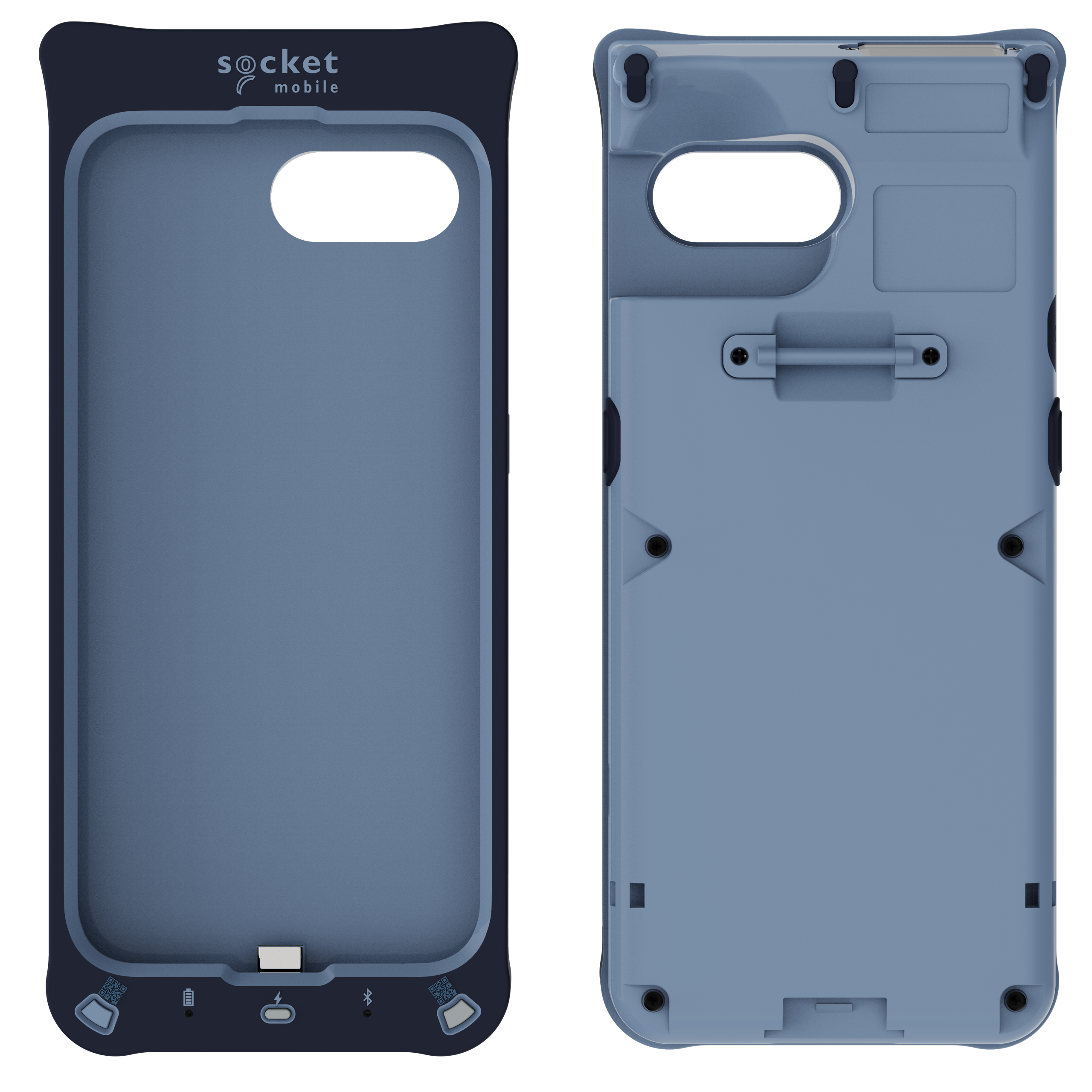

  • Rubberized, IP54-rated housing for iPhone 17e, also compatible with iPhone 16e

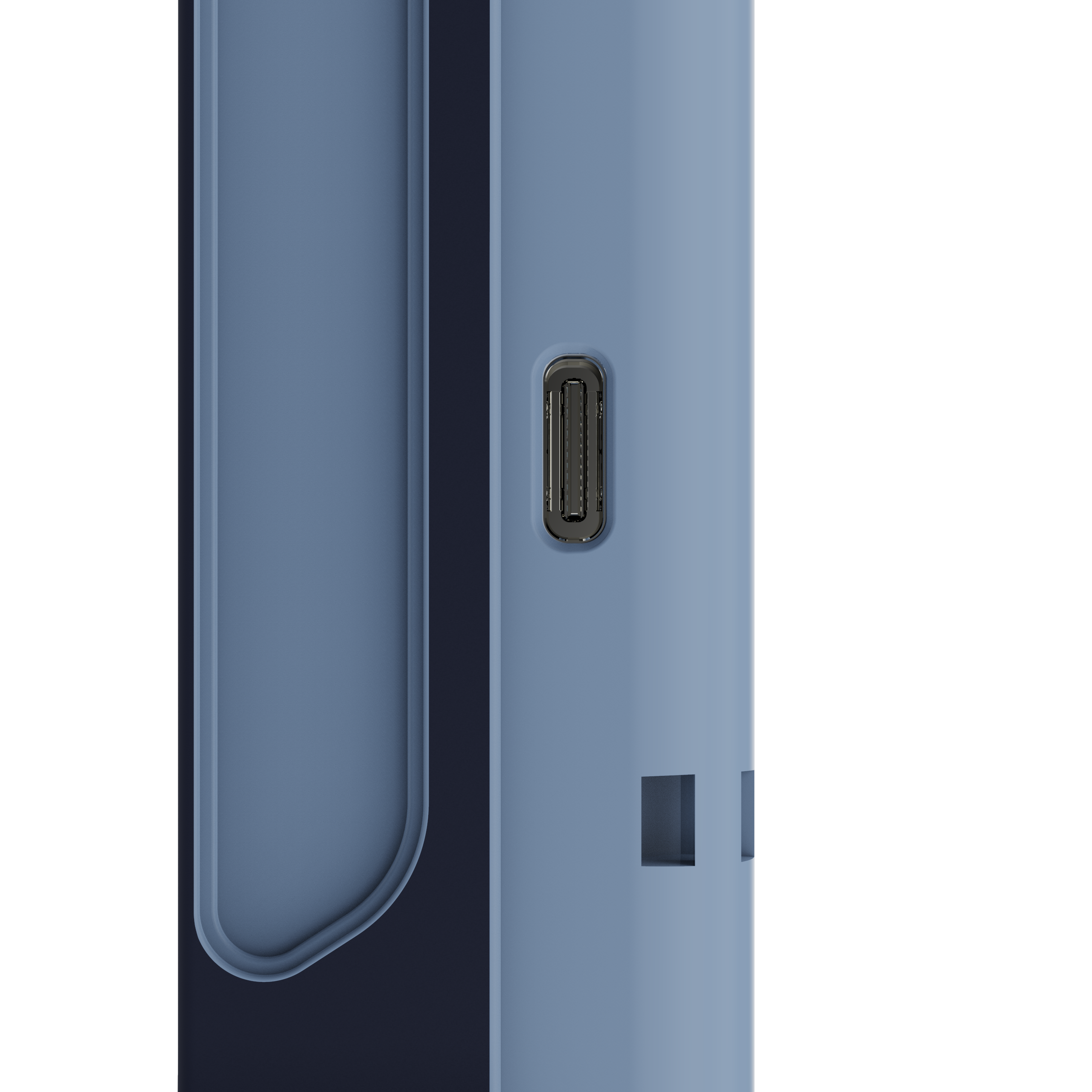

  • Full access to the iPhone camera and touchscreen, plus USB-C passthrough charging
  • Field-replaceable 1200 mAh, 3.7 V lithium-ion polymer battery rated for a full shift
  • Bluetooth LE connection to apps built with CaptureSDK 2.0.29 or higher
  • LED status indicators and audible feedback tones
  • Scans shelf labels, baggage tags and equipment from up to 14 feet without reaching or climbing

The DuraScan Terminal DT862 is a mid-range scanning terminal for mobile professionals who work on iPhone. It is designed for the iPhone 17e and is also compatible with the iPhone 16e. Its high-performance engine reads 1D and 2D barcodes from 2.1 inches out to 14 feet, and handles barcode sizes from 5 mil to 160 mil. Staff can scan items on shelves, luggage belts, counters and equipment without repositioning. A high-visibility aimer helps with targeting at any distance.

The DT862 adds several capabilities over the DT841. It reads DotCode, GS1 Data Matrix and GS1 QR, and adds UK Postal to its postal codes. It also supports OCR-A and OCR-B by default, with MICR E13B available. Omnidirectional scanning captures printed and on-screen codes. Advanced decoding handles scratched, smudged and low-contrast labels, down to 25%-20% print contrast.

The rubberized, IP54-rated enclosure protects the iPhone from drops and bumps. Users keep full access to the native camera and touchscreen, and USB-C passthrough charges the phone while it stays in place. Power comes from a field-replaceable 1200 mAh, 3.7 V lithium-ion polymer battery rated for a full shift. LED indicators and audible tones confirm each read.

Connectivity is Bluetooth Low Energy in Application Mode. The DT862 works with apps built with Socket Mobile CaptureSDK version 2.0.29 or higher. The terminal is designed and assembled in Fremont, California, and includes a 1-year warranty. A version with a pre-installed 256GB iPhone 17e is available as HC2134-3962. This SKU, CX4679-3960, is the data reader only.

Ideal for

  • Airline and travel staff scanning baggage tags and boarding passes
  • Retail associates reading shelf labels at a distance and running point of sale
  • Warehouse and logistics track-and-trace from up to 14 feet
  • Field technicians identifying equipment and running inspections
  • Healthcare and food handling workflows that need OCR and GS1 code capture

Specifications

Battery

Voltage
3.7 V
Capacity
1200 mAh
Cell Type
Battery Pack
Battery Type
1 rechargeable lithium-ion polymer
Battery Weight
22 g
Commodity Code
8507.60.0000
Lithium Content
0.58 g
Rohs Compliance
Yes, on the battery and scanner
Hazmat UN Number
UN3481, P.I. 967
Cells Per Battery
1
Country OF Origin
China
Field Replaceable
Rechargeable, field-replaceable, rated for a full shift
Watts Per Battery
4.44 W
Percentage Lithium
2.64%
Chemical Composition
Lithium-polymer
Life Per Full Charge
Charge time approx. 7.0 h

General

MPN
CX4679-3960
UPC
758497129758
Brand
Socket Mobile
Model
DuraScan Terminal DT862
Reads
1D and 2D barcodes
Highlights
IP54 Rating
Configuration
Data reader only, iPhone not included
Shipping Weight
1.70 lbs

Physical

Housing
Rubberized protective housing
Charging
USB-C passthrough charging for the iPhone
Ingress Protection
IP54

Bluetooth

Bluetooth Radio
Bluetooth LE
Bluetooth Range
Up to 10 m (33 ft.), depending on environment and host device
Bluetooth Profiles
Application Mode, requires a compatible app with Socket Mobile CaptureSDK

Compatibility

Sdk Requirement
Requires an app built with CaptureSDK 2.0.29 or higher
Compatible Devices
iPhone 17e (also compatible with iPhone 16e)
Supported Operating Systems
Apple iOS

Reading Performance

Scan Angle
44.5° horizontal, 33.5° vertical
Extended Range
5 to 160 mil barcodes at 2.1 in to 14 ft
Print Contrast
Down to 25%-20%
Reading Distance
2.8 to 91.7 cm (1.1 to 36.1 in.), depends on barcode size, symbology and label media
Sensor Resolution
1280 horizontal x 960 vertical pixels
Reading Distance 15 Mil QR
0.59 to 11.06 in (1.5 to 28.1 cm)
Default Barcode Symbologies
1D: Bookland EAN, Codabar, Code 128, Code 39, Code 93, EAN/JAN-13, EAN/JAN-8, GS1-128, GS1 DataBar Expanded/Limited/Omnidirectional, Interleaved 2 of 5, ISBT 128 UDI, Trioptic, UPC-A, UPC-E; 2D: Aztec, Composite, Data Matrix, DotCode, GS1 Data Matrix, GS1 QR, MaxiCode, MicroPDF417, Micro QR, PDF417, QR; OCR: OCR-A, OCR-B
Reading Distance 13 Mil UPC A
1.50 to 20.04 in (3.8 to 50.9 cm)
Supported Barcode Symbologies
1D: Code 11, Matrix 2 of 5, MSI; Postal: Australia Post, Japan Postal, Mailmark, Netherlands KIX, UK Postal, US Planet, US Postnet, USPS 4CB/Intelligent Mail; OCR: MICR E13B
Reading Distance 5 Mil Code 39
1.10 to 6.54 in (2.8 to 16.6 cm)
Reading Distance 6 67 Mil Pdf417
0.91 to 7.05 in (2.3 to 17.9 cm)
Reading Distance 10 Mil Datamatrix
1.22 to 7.48 in (3.1 to 19.0 cm)

Questions buyers ask

Which iPhone models does the DT862 fit?

It is designed for the iPhone 17e and is also compatible with the iPhone 16e.

How far away can it scan?

It reads barcodes from 5 mil to 160 mil at distances from 2.1 inches up to 14 feet. Actual range depends on barcode size, symbology and label media.

Is an iPhone included?

No. CX4679-3960 is the data reader only. A version with a factory-new 256GB iPhone 17e pre-installed is available as HC2134-3962.

What software does it need?

The DT862 uses Bluetooth LE in Application Mode. It works with apps built with Socket Mobile CaptureSDK version 2.0.29 or higher, and apps that already integrate CaptureSDK work with it out of the box.

What battery does it use?

It uses a single rechargeable, field-replaceable 1200 mAh, 3.7 V lithium-ion polymer battery rated for a full shift, with a charge time of approximately 7.0 hours.
