Socket Mobile XtremeScan Mag XS662 Bluetooth LE Mid-Range Barcode Scanner with Rokform Case for iPhone 17

MPN CX4838-4148

Fits iPhone 17

$877.62

Backordered · ships as soon as it arrives

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

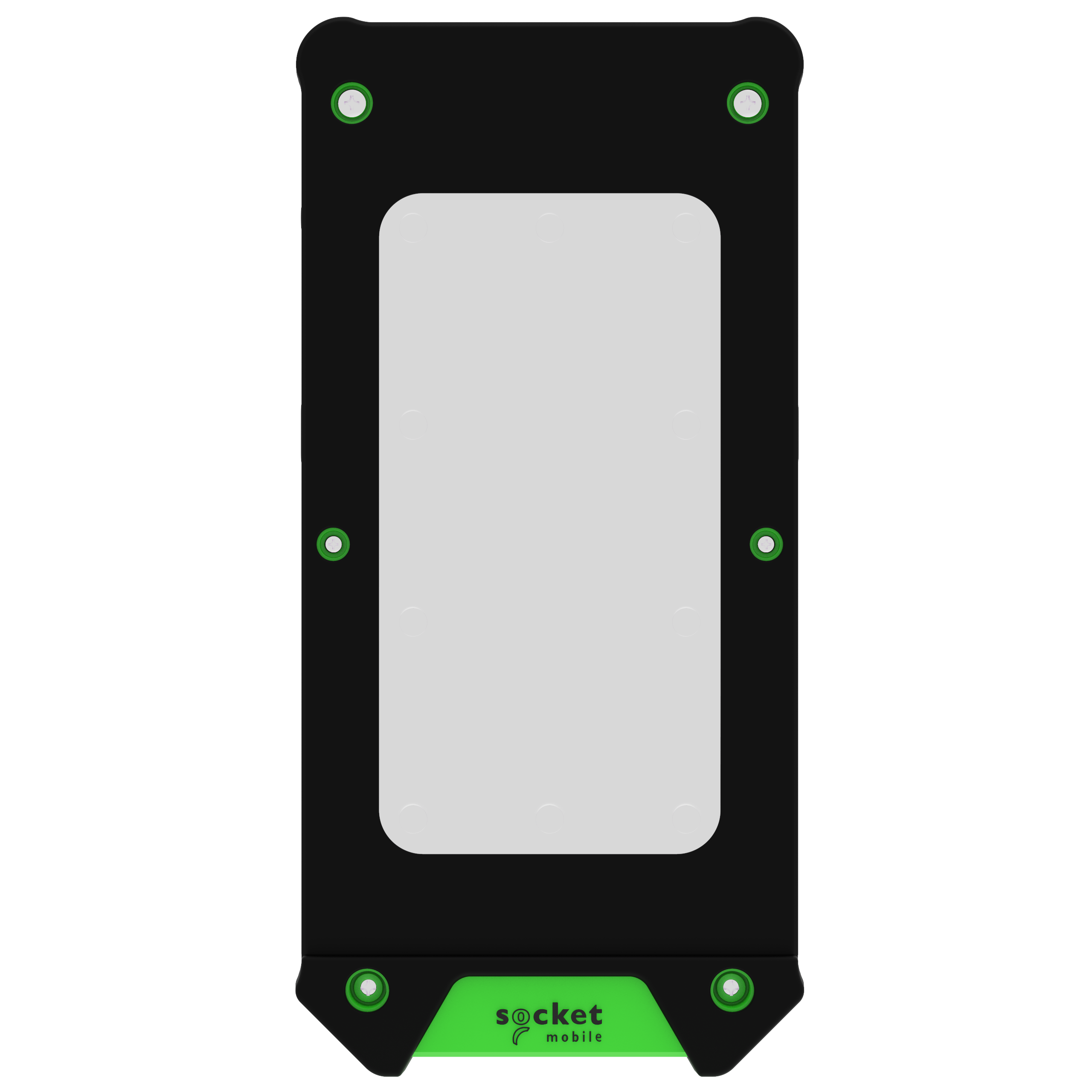

The Socket Mobile XtremeScan Mag XS662 (CX4838-4148) is a rugged handheld 1D/2D barcode scanner that magnetically attaches to your iPhone 17 through the included Rokform case. It reads printed and on-screen barcodes from 2.1 inches to 14 feet, carries an IP67 rating and MIL-STD-810G drop testing, and connects over Bluetooth LE to apps built with Socket Mobile CaptureSDK 2.0.29 or higher. It is built for warehouse, logistics and field teams running scanning on their own phones.

  • Mid-range 1D/2D scanning of 5 mil to 160 mil barcodes from 2.1 inches to 14 feet, including on-screen codes
  • IP67 sealed housing, 10 ft (3.1 m) MIL-STD-810G drop rating and 2,500-cycle tumble specification
  • Magnetic mounting system with an included Rokform case for iPhone 17 for one-handed operation
  • Bluetooth LE connection (up to 10 m / 33 ft) for Apple iOS, Android and Windows apps built on CaptureSDK 2.0.29 or higher
  • Advanced decoding of scratched, damaged, smudged or low-contrast barcodes with print contrast down to 25%-20%
  • Rechargeable, field-replaceable 1200 mAh lithium-polymer battery rated for a full shift
  • 1280 x 960 sensor, high-visibility aimer, LED indicators and audible feedback tones
  • Scan shelf, pallet and equipment labels up to 14 feet away without a ladder or forklift reach

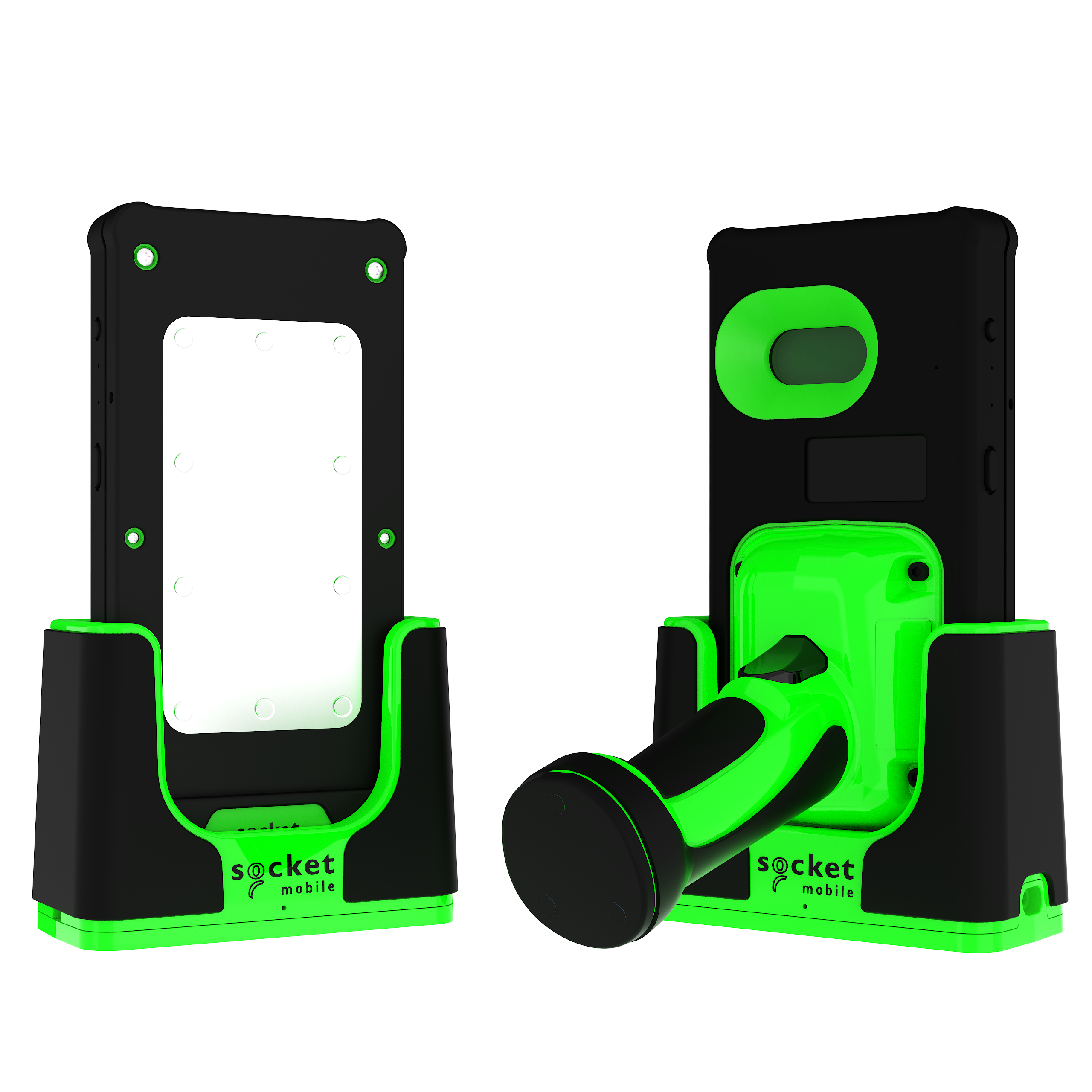

The Socket Mobile XtremeScan Mag XS662 is the standard handheld version of the XtremeScan Mag 662. It is a mid-range 1D/2D barcode scanner designed for bring-your-own-device deployments. This SKU, CX4838-4148, includes a Rokform case for iPhone 17. With the case fitted, the phone attaches to the scanner's magnetic mount and forms a one-handed scanning unit. The phone detaches just as easily when workers need it for other tasks.

A 1280 x 960 imager with a high-visibility aimer reads barcodes from 5 mil to 160 mil at distances from 2.1 inches to 14 feet. That range covers everything from small labels to pallet and shelf tags. Omnidirectional decoding handles printed and on-screen codes, including scratched, smudged or low-contrast labels with print contrast down to 25%-20%. Default symbologies include Code 128, Code 39, UPC/EAN, GS1 DataBar, QR, Data Matrix, PDF417, Aztec and MaxiCode, plus OCR-A/B. Postal codes are also supported.

The sealed housing is rated IP67 and tested to a 10 ft (3.1 m) drop per MIL-STD-810G and 2,500 tumbles at 1 m. The scanner operates from 0° to 45° C and in light levels from pitch black to direct sunlight. A field-replaceable 1200 mAh lithium-polymer battery is rated to last a full shift. LEDs and multiple tones confirm reads and show charging status.

The scanner uses Bluetooth LE in Application Mode, with a range of up to 10 m (33 ft). It requires an app that integrates Socket Mobile CaptureSDK version 2.0.29 or higher. Apps that already use CaptureSDK work with it out of the box on Apple iOS, Android and Windows. The box includes the data reader, a USB-C to USB-C charging cable, the Rokform case and an insert. Socket Mobile includes a 1-year warranty and publishes a datasheet and user guide for the model.

Ideal for

  • Warehouse picking, put-away and cycle counts on high shelves and pallets
  • Transportation and logistics package and freight scanning
  • Airport baggage handling
  • Manufacturing line and parts tracking
  • Construction and field service asset and equipment scanning

Specifications

General

MPN
CX4838-4148
Brand
Socket Mobile
Model
XtremeScan Mag 662
Reads
1D and 2D barcodes
Assembly
Designed and Assembled in the USA
Warranty
1-year warranty included (extended options available)
Highlights
Mid-Range Scanning, Rugged IP67 Rated, Scans on Screen
Configuration
XS662 Standard Handheld, Rokform Case for iPhone 17

Package

Contents
Data reader, USB-C to USB-C cable, Rokform case, insert
Included Case
Rokform Case for iPhone 17

Operating Systems

Supported
Apple iOS, Android, Windows
Sdk Requirement
Requires app with CaptureSDK 2.0.29 or higher

User Environments

Sealing
IP67, meets IEC sealing and EN60529
Ambient Light
0 to 100 000 lux (pitch black to direct sunlight)
Relative Humidity
95% at 60° C (140° F), non-condensing
Drop Specifications
10 ft (3.1 m) at room temp; 8 ft (2.4 m) freezer; 7 ft (2.1 m) to concrete across temperature, per MIL-STD-810G
Storage Temperature
-40° to 70° C (-40° to 158° F)
Charging Temperature
Charging above 40° C / 100° F may result in charging issues
Tumble Specification
2,500 cycles at 3.3 ft (1 m) to a metal plate
Operating Temperature
0° to 45° C (32° to 113° F)

Battery Information

Voltage
3.7 V
Capacity
1200 mAh
Cell Type
Battery Pack
Battery Type
1 rechargeable Lithium Ion Polymer, field-replaceable
Battery Weight
22 g
Commodity Code
8507.60.0000
Lithium Content
0.58 g
Rohs Compliance
Yes, battery and scanner
Hazmat UN Number
UN3481, P.I. 967
Cells Per Battery
1
Country OF Origin
China (battery)
Watts Per Battery
4.44 W
Percentage Lithium
2.64%
Chemical Composition
Lithium-polymer
Life Per Full Charge
Charge time approx. 7.0 h; lasts a full shift

Reading Performance

Scan Angle
44.5° horizontal, 33.5° vertical
Decode Range
5.8 to 436.9 cm (2.3 to 172 in.)
Print Contrast
Down to 25%-20%
Sensor Resolution
1280 horizontal x 960 vertical pixels
Barcode Size Range
5 mil to 160 mil
Decode Ranges 15 Mil QR
Near 1.2 in / Far 11.5 in
Decode Ranges 20 Mil QR
Near 1.2 in / Far 14.0 in
Decode Range 5 Mil Pdf417
Near 7.4 in / 8.1 in; Far 16.0 in / 13.1 in
Decode Range 20 Mil Code 39
Near 7.4 in / 2.1 in; Far 16.0 in / 54.0 in
Decode Ranges 5 Mil Code 39
Near 2.4 in / Far 9.5 in
Default Barcode Symbologies
1D, 2D and OCR-A/B symbologies enabled by default
Decode Range 100 Mil Code 39
Near 7.4 in / 11.0 in; Far 16.0 in / 172.0 in
Decode Range 15 Mil Code 128
Near 7.4 in / 4.0 in; Far 16.0 in / 40.0 in
Decode Ranges 5 Mil Code 128
Near 2.8 in / Far 9.0 in
Decode Range 100 Percent Upca
Near 7.4 in / 2.3 in; Far 16.0 in / 38.0 in
Decode Ranges 6 67 Mil Pdf417
Near 2.4 in / Far 8.0 in
Supported Barcode Symbologies
Additional 1D, postal and MICR E13B symbologies supported
Decode Range 10 Mil Datamatrix
Near 7.4 in / 7.0 in; Far 16.0 in / 17.0 in
Decode Ranges 100 Percent Upca
Near 1.8 in / Far 19.5 in
Decode Ranges Reading Distance
3.0 to 49.5 cm (1.2 to 19.5 in.)
Decode Range 160 Mil Datamatrix
Near 7.4 in / 11.5 in; Far 16.0 in / 138.0 in
Decode Range 7 5 Mil Datamatrix
Near 7.4 in / 8.3 in; Far 16.0 in / 12.8 in
Decode Ranges 10 Mil Datamatrix
Near 2.9 in / Far 8.5 in

Bluetooth Information

Bluetooth Radio
Bluetooth LE
Bluetooth Range
Up to 10 m (33 ft)
Bluetooth Profiles
Application Mode (CaptureSDK app required)

Certification Regulatory

Emi Rfi
FCC Part 15 Class C, RSS 210, ICES-003, C-Tick, CISPR 22, CE; FCC ID LUBMA41; IC ID 2529A-MA41M9
LED Safety
IEC 60825-1; EN 60825-1
Bluetooth Sig
Declaration ID D030529; QD ID 82009
Environmental
RoHS EN 50581
Electrical Safety
EN/IEC/UL/CSA 62368-1

Questions buyers ask

Does the XtremeScan Mag XS662 work with any app?

No. It connects over Bluetooth LE in Application Mode and works with apps that integrate Socket Mobile CaptureSDK version 2.0.29 or higher. Apps that already use CaptureSDK support it out of the box on Apple iOS, Android and Windows.

Which phone does the included case fit?

This SKU (CX4838-4148) includes a Rokform case for iPhone 17. The case lets the phone attach magnetically to the scanner without an additional adapter.

How far away can it read barcodes?

It reads barcodes from 5 mil to 160 mil at distances from 2.1 inches to 14 feet. Actual range depends on barcode size, symbology and label media. A 100 mil Code 39 label reads out to 172 inches (436.9 cm).

How rugged is it?

The housing is sealed to IP67 against dust, water and immersion. It is rated for a 10 ft (3.1 m) drop at room temperature per MIL-STD-810G and 2,500 tumbles at 1 m. It operates from 0° to 45° C.

What is in the box and how long does the battery last?

The box includes the data reader, a USB-C to USB-C charging cable, the Rokform case for iPhone 17 and an insert. The field-replaceable 1200 mAh lithium-polymer battery is rated for a full shift and charges in approximately 7 hours.
