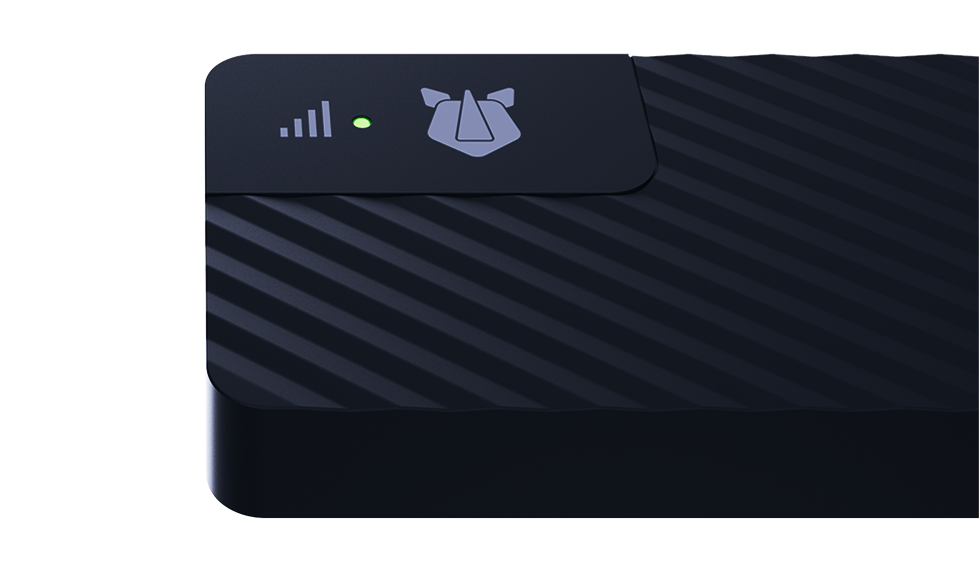

Rhino Mobility RHINO D2 5G RedCap USB-C Dongle with eSIM for Enterprise Peripherals

MPN DG-RHN-D2-0C-001
$129.69$189.99Save $60.30

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

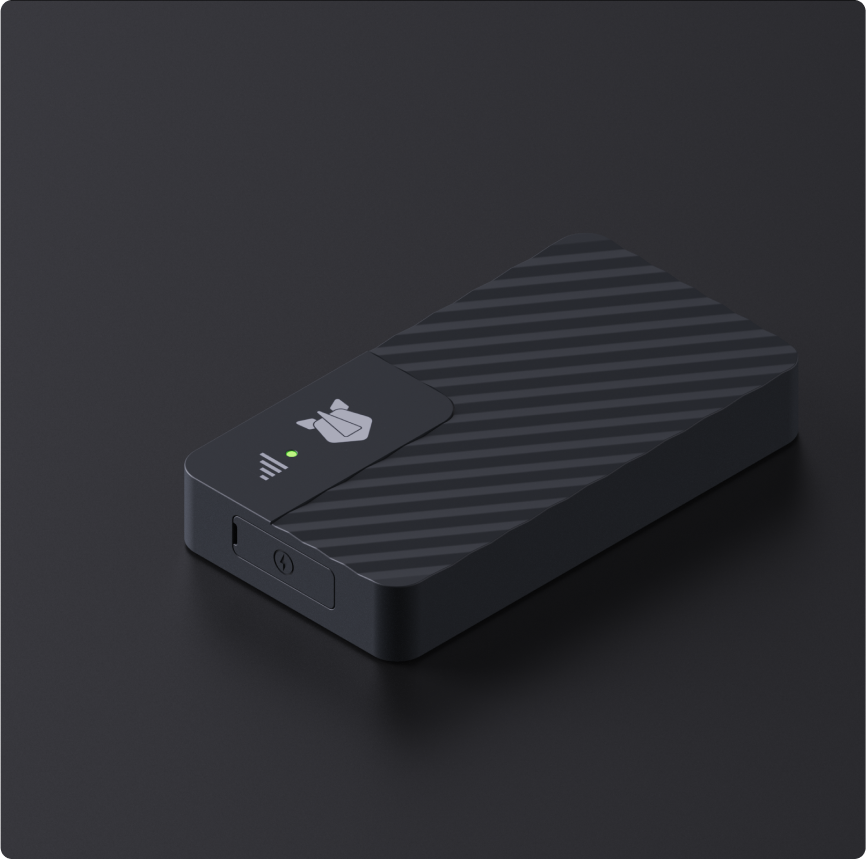

The Rhino Mobility RHINO D2 is an ultra-compact 5G RedCap dongle that adds cellular connectivity to laptops and enterprise devices over USB-C. It runs on a Qualcomm Snapdragon X35 platform with OpenWRT and supports 5G RedCap and 4G LTE, including CBRS Band 48. It accepts a physical SIM or eSIM, is certified for the T-Mobile and AT&T networks, and is rated IP54. Fleets can be managed centrally through Mambo EMM.

  • 5G RedCap and 4G LTE connectivity on the Qualcomm Snapdragon X35 platform, including CBRS Band 48
  • Physical SIM and eSIM support for flexible provisioning and activation
  • Dual USB Type-C (USB 2.0) ports with USB Power Delivery and USB tethering
  • Certified for use on the T-Mobile and AT&T networks, with FCC and PTCRB certification
  • IP54 dust and splash resistance, 1.5 meter drop rating and -10 to 50°C operating temperature
  • Remote fleet management through Mambo EMM, plus local WebUI management
  • 3-year product availability guarantee and an optional TAA-compliant version
  • Adds 5G RedCap or LTE connectivity to laptops and peripherals that have no built-in modem

The RHINO D2 5G from Rhino Mobility is a 5G RedCap dongle that gives laptops, tablets and enterprise peripherals their own cellular connection. It measures 86 x 47 x 14.5 mm, weighs 35 g, and connects through two USB Type-C (USB 2.0) ports with USB Power Delivery and USB tethering. It works with Windows, macOS, iPadOS, Linux and Android, so one SKU can serve a mixed fleet.

The dongle is built on the Qualcomm Snapdragon X35 5G RedCap platform with an ARM Cortex A7 processor running at up to 1.9 GHz, 256MB RAM and 512MB storage, running OpenWRT. It supports 5G RedCap on bands 1, 2, 5, 7, 12, 14, 25, 26, 30, 48, 66, 71 and 78 and 4G LTE on bands 1, 2, 4, 5, 7, 12, 13, 14, 25, 26, 30, 41, 48, 66 and 71. Band 48 support covers private CBRS networks, and Rhino lists network slicing support. The D2 accepts both a physical SIM and an eSIM. It is FCC and PTCRB certified, T-Mobile Network Certified for IoT (Non-stock) and AT&T Network Ready.

The D2 is designed for high-volume enterprise rollouts. Mambo EMM lets administrators remotely monitor devices, manage eSIMs, deploy updates and run large deployments, and a local WebUI is available for direct configuration. The IP54 rating, 1.5 meter drop rating and -10 to 50°C operating range suit work in warehouses, vehicles and on shop floors. A TAA-compliant manufacturing option is available.

Rhino guarantees product availability for 3 years, so fleets can be standardized without mid-cycle model changes. The dongle carries a 1-year limited warranty. A spec sheet, brochure, management capabilities guide, quick start guide and user manual are available for the D2.

Ideal for

  • Adding cellular connectivity to enterprise laptops and tablets without built-in modems
  • Connecting point-of-sale, kiosk and peripheral devices in retail and hospitality
  • Mobile workstations and devices in healthcare, transportation and logistics
  • Private CBRS (Band 48) network deployments in warehouses and campuses
  • Large managed rollouts with centralized eSIM and firmware control through Mambo EMM

Specifications

SIM

SIM Type
pSIM and eSIM

General

MPN
DG-RHN-D2-0C-001
UPC
691057077604
Brand
Rhino Mobility
Model
RHINO D2 5G
Product Type
5G RedCap USB-C dongle

Network

CBRS
CBRS (Band 48) supported
5G Bands
1 2 5 7 12 14 25 26 30 48 66 71 78
LTE Bands
4G: 1 2 4 5 7 12 13 14 25 26 30 41 48 66 71
Technology
LTE / 5G (5G RedCap)
Network Slicing
Network slicing supported

Features

Emm
Mambo EMM manageable
TAA
Optional TAA-compliant version
Web UI
WebUI management
OS Support
Windows, macOS, iPadOS, Linux, Android OS support

Platform

Chipset
Qualcomm Snapdragon X35
Processor
ARM Cortex A7 up to 1.9 GHz
Operating System
OpenWRT

Key Specs

OS
OpenWRT
Emm
EMM manageable
RAM
256MB RAM
Memory
512MB
Network
5G RedCap

Dimensions

Size
86 x 47 x 14.5 mm (3.39 x 1.85 x 0.57 in)
Weight
35 g (1.23 oz)

Connectivity

USB Ports
USB Type-C (USB 2.0), 2 ports
USB Tethering
USB tethering
USB Power Delivery
USB Power Delivery (USB-PD)

Environmental

IP Rating
IP54 rating
Drop Rating
1.5 meter drop rated
Storage Temperature
-10 to 50°C storage temperature
Operating Temperature
-10 to 50°C operating temperature

Certifications

Att
AT&T Network Ready
Fcc
FCC
Ptcrb
PTCRB
T Mobile
T-Mobile Network Certified for IoT (Non-stock)

Memory Storage

RAM
256MB RAM
Storage
512MB storage

Long Term Support

Warranty
1-Year Limited Warranty
Availability
3-Year Product Availability Guarantee

Questions buyers ask

What devices does the RHINO D2 work with?

Rhino Mobility lists support for Windows, macOS, iPadOS, Linux and Android. The dongle connects over USB Type-C and supports USB tethering.

Which networks is the RHINO D2 certified for?

It is certified for use on the T-Mobile and AT&T networks. Its listed certifications are FCC, PTCRB, T-Mobile Network Certified for IoT (Non-stock) and AT&T Network Ready.

Does the RHINO D2 support eSIM?

Yes. It supports both a physical SIM and an eSIM, and eSIMs can be managed remotely through Mambo EMM.

Does it support private CBRS networks?

Yes. The D2 supports Band 48 (CBRS) on both 4G LTE and 5G, and Rhino also lists network slicing support.

How durable is the RHINO D2?

It is IP54 rated for dust and splash resistance, drop rated to 1.5 meters, and operates from -10 to 50°C.
