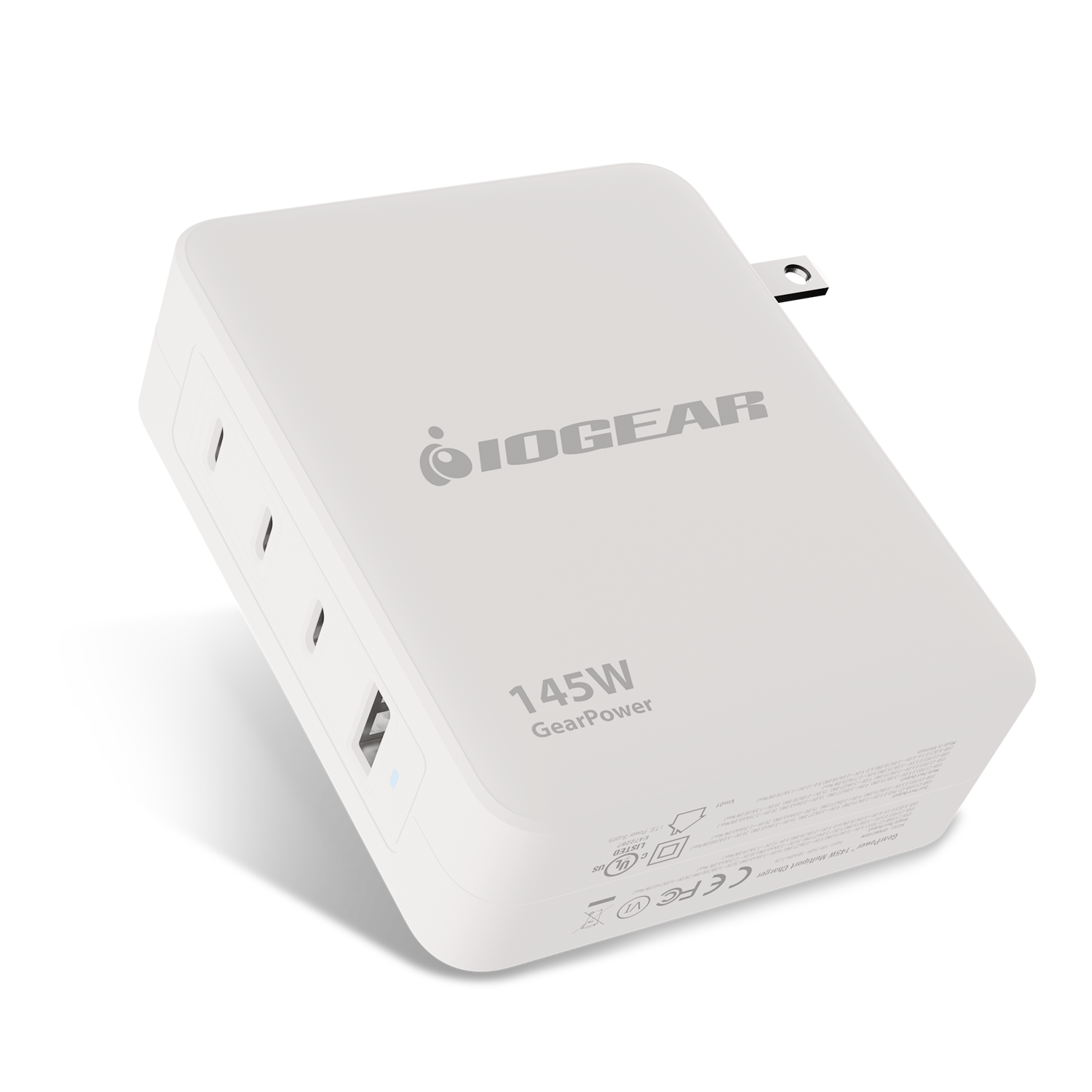

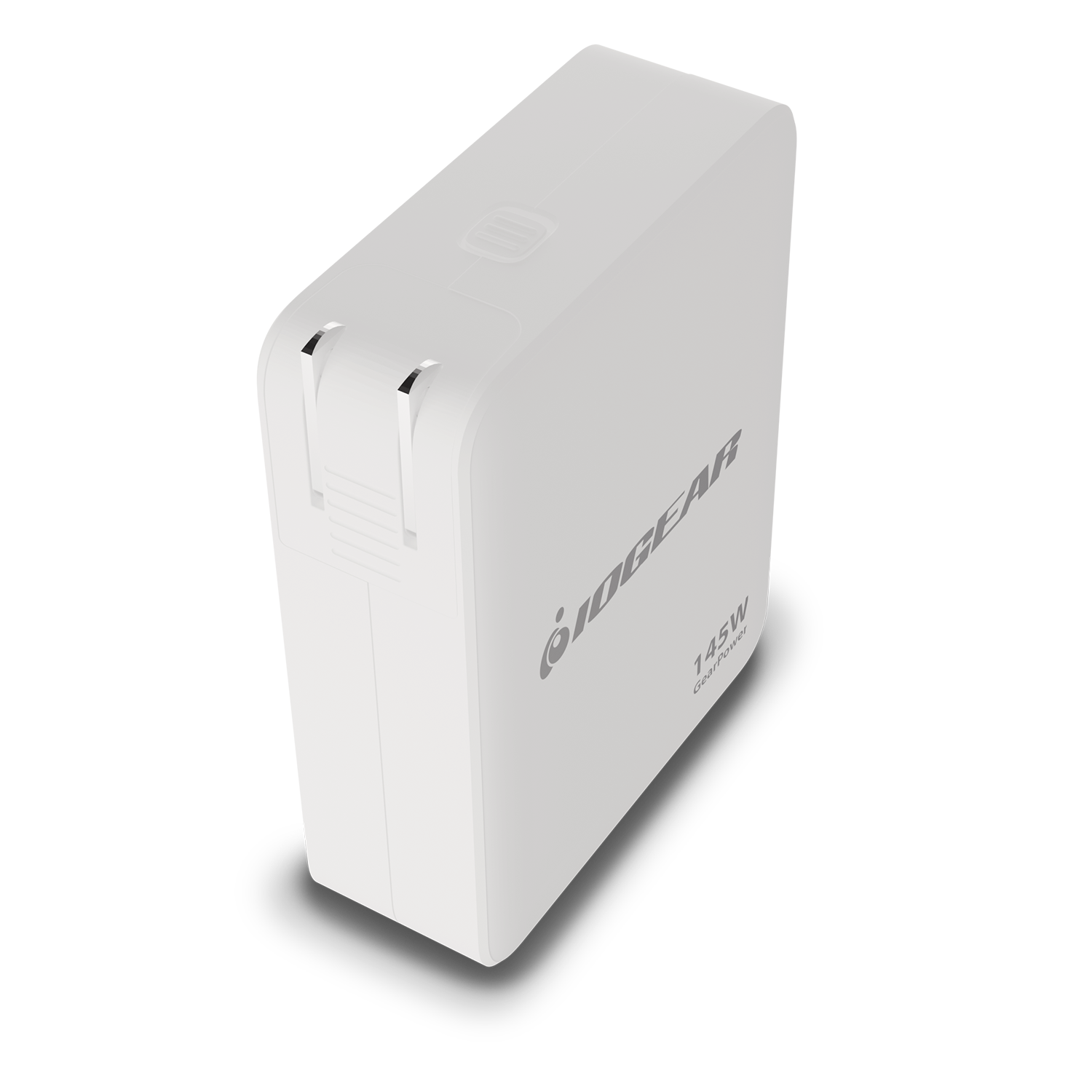

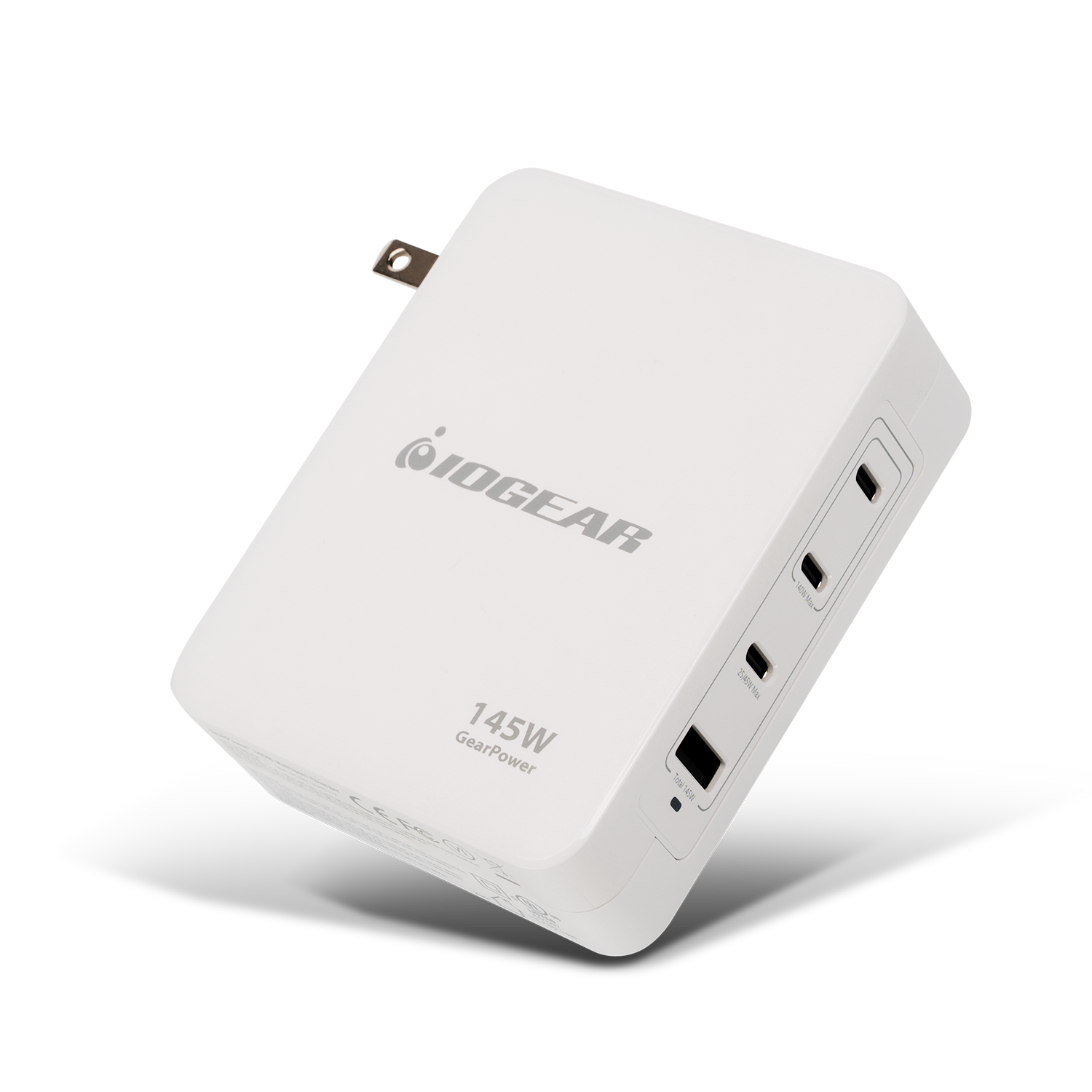

IOGEAR GearPower 145W 4-Port GaN USB-C Multiport Wall Charger

MPN GPAWC145W
  • Over 100 W
  • USB-C
$89.95

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The IOGEAR GearPower 145W Multiport Charger (GPAWC145W) is a compact GaN wall charger with three USB-C ports and one USB-A port. It delivers up to 145W of total output and up to 140W from a single USB-C port for compatible laptops. It can charge a laptop, tablet and smartphone at the same time. Overcurrent, overvoltage, short-circuit and overheating protection are built in, and a 4ft USB-C to C cable is included.

  • Up to 145W total output from a GaN charger
  • Four ports: 3x USB-C and 1x USB-A
  • Up to 140W (28V 5A) from USB-C1 or USB-C2 used alone
  • Charges multiple laptops, tablets and smartphones simultaneously
  • Overcurrent, overvoltage, short-circuit and overheating protection
  • USB-C to C 4ft cable included, rated for charging up to 140W
  • Charge a USB-C laptop at up to 140W from one port without a separate laptop brick
  • Power a laptop, tablet, phone and a USB-A accessory from a single wall outlet

The IOGEAR GearPower 145W Multiport Charger replaces a bag full of power bricks with one compact GaN adapter. It suits travelling professionals, field staff and anyone who carries a USB-C laptop alongside a phone and tablet. It provides four outputs: two USB-C ports rated up to 140W, a third USB-C port rated up to 45W, and a USB-A port rated up to 18W, with up to 145W of total output.

Used on its own, USB-C1 or USB-C2 supplies up to 28V 5A (140W) for high-draw laptops. When several devices are connected, the charger shares power according to IOGEAR's published port map. With USB-C1 or C2 plus USB-C3 in use, the main port still delivers up to 100W while USB-C3 supplies 45W. With all four ports in use, output is 65W, 30W, 25W and 18W. The full port-by-port breakdown in the specifications helps you plan which device goes on which port.

GaN technology keeps the unit to 3.7 x 2.9 x 1.1 in and 0.80 lb. Built-in overcurrent, overvoltage, short-circuit and overheating protection safeguards connected devices. The box includes a USB-C to C 4ft cable rated for charging compatible devices at up to 140W, a quick start guide and a warranty card. The charger is covered by IOGEAR's 1 Year Limited Warranty. A USB-A to C cable for the USB-A port is not included.

Ideal for

  • Charging a USB-C laptop, tablet and phone from one outlet while travelling
  • Hot-desk and field-office setups where outlets are limited
  • Replacing separate laptop and phone chargers in a mobile work kit
  • Keeping a mixed USB-C and USB-A device fleet powered at a shared workstation

Specifications

Power

Total Output
Up to 145 W total
Output Rating
Max 28V 5A

Weight

Unit Weight
0.80 lbs (0.38 kg)
Unit Pack Weight
1.05 lbs (0.48 kg)
Inner Pack Weight
6.74 lbs (3.06 kg)
Master Carton Weight
28.6 lbs (13 kg)

General

UPC
881317522221
Brand
IOGEAR
Model
GPAWC145W
Manufacturer
IOGEAR
Product Line
GearPower Chargers
Product Name
GearPower 145W Multiport Power Adapter

Warranty

Warranty
1 Year Limited Warranty

Connectors

USB
2x USB-C up to 140W; 1x USB-C up to 45W; 1x USB-A up to 18W
Four Ports Used
All four ports: C1 65W; C2 30W; C3 25W; A4 18W max
Single Port Used
USB-C1/C2: 28V 5A 140W max; USB-C3: 20V 2.25A 45W max; USB-A4: 12V 1.5A 18W max
Three Ports C1 C2 A4
USB-C1 + C2 + A4: C1 65W max; C2 30W max; A4 18W max
Three Ports C1 C2 C3
USB-C1 + C2 + C3: C1 65W max; C2 30W max; C3 45W max
Two Ports C1 Plus C2
USB-C1 + USB-C2: 20V 3.25A 65W max each
Two Ports C3 Plus A4
USB-C3 + USB-A4: C3 9V 2.77A 25W max; A4 12V 1.5A 18W max
Three Ports C1 OR C2 C3 A4
USB-C1/C2 + C3 + A4: C1/C2 100W max; C3 25W max; A4 18W max
Two Ports C1 OR C2 Plus A4
USB-C1/C2 + USB-A4: C1/C2 20V 5A 100W max; A4 12V 1.5A 18W max
Two Ports C1 OR C2 Plus C3
USB-C1/C2 + USB-C3: C1/C2 20V 5A 100W max; C3 20V 2.25A 45W max

Inner Pack

Width
5.3 in (13.5 cm)
Height
12.9 in (33 cm)
Length
6.6 in (17 cm)
Inner Pack Qty
6 pcs

Requirements

System Requirements
USB-C laptop, tablet or smartphone; USB-C to C cable (one included); USB-A to C cable (not included)

Master Carton

Width
11.8 in (30 cm)
Height
13.7 in (35 cm)
Length
14.2 in (36 cm)
Master Carton Qty
24 pcs

Unit Dimensions

Width
1.1 in (2.8 cm)
Height
3.7 in (9.5 cm)
Length
2.9 in (7.5 cm)

Package Contents

IN The Box
1x GPAWC145W charger; 1x USB-C to C 4ft cable; 1x warranty card; 1x quick start guide

Unit Package Dimensions

Width
4.29 in (10.9 cm)
Height
6.4 in (16.5 cm)
Length
1.9 in (4.9 cm)

Questions buyers ask

How much power can a single USB-C port deliver?

When used alone, USB-C1 or USB-C2 delivers up to 28V 5A (140W). USB-C3 delivers up to 45W and the USB-A port up to 18W.

What happens to output when all four ports are in use?

With all four ports connected, USB-C1 supplies up to 65W, USB-C2 up to 30W, USB-C3 up to 25W and USB-A up to 18W.

Is a cable included?

Yes. A USB-C to C 4ft cable rated for charging compatible devices at up to 140W is included. A USB-A to C cable is not included.

What devices can it charge?

It charges USB-C laptops, tablets and smartphones, such as iPhone 16, Samsung phones, MacBook Pro and MacBook Air, iPad Pro and Google Pixel.

What safety protections does it have?

The charger has built-in overcurrent, overvoltage, short-circuit and overheating protection.
