IPCMobile Linea Pro Rugged 16e Barcode Scanner Sled for iPhone 16e and 17e, Standard Range 2D (LPR-ZS2D-PH6E)

MPN LPR-ZS2D-PH6E

Fits iPhone 16e

$581.74$799.00Save $217.26

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The IPCMobile Linea Pro Rugged LPR-ZS2D-PH6E turns an iPhone 16e or iPhone 17e into an enterprise barcode scanner. It has a standard-range 2D imager, dual scan buttons and programmable buttons for custom workflows. The sled is IP65 rated and passes 1.2 m drops to concrete per MIL-STD-810G. A swappable 2330 mAh battery supports multi-shift work, and USB-C pass-through handles sync and charging. This part number does not include HF RFID.

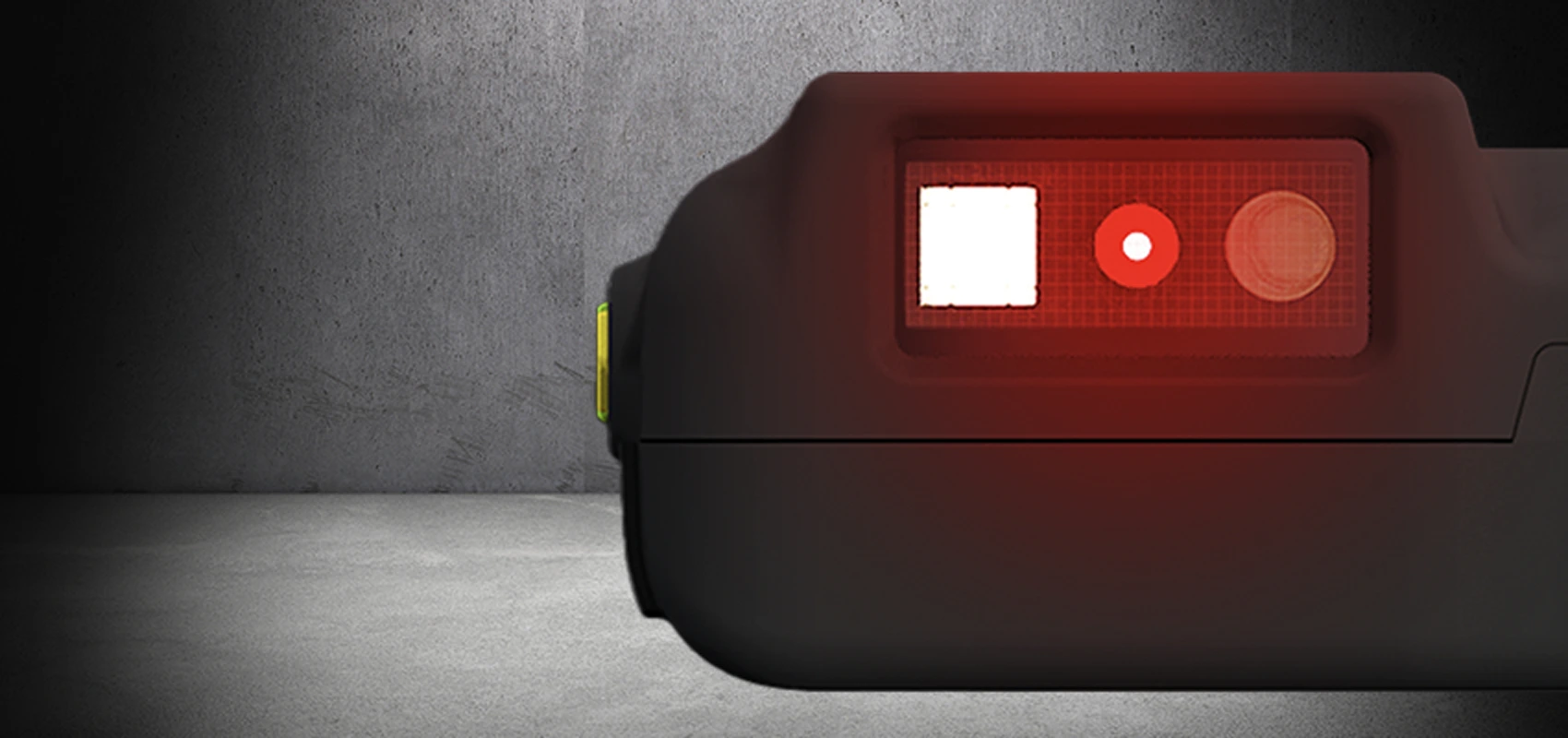

  • Standard-range 2D scanner for iPhone 16e and iPhone 17e (no HF RFID on this part number)

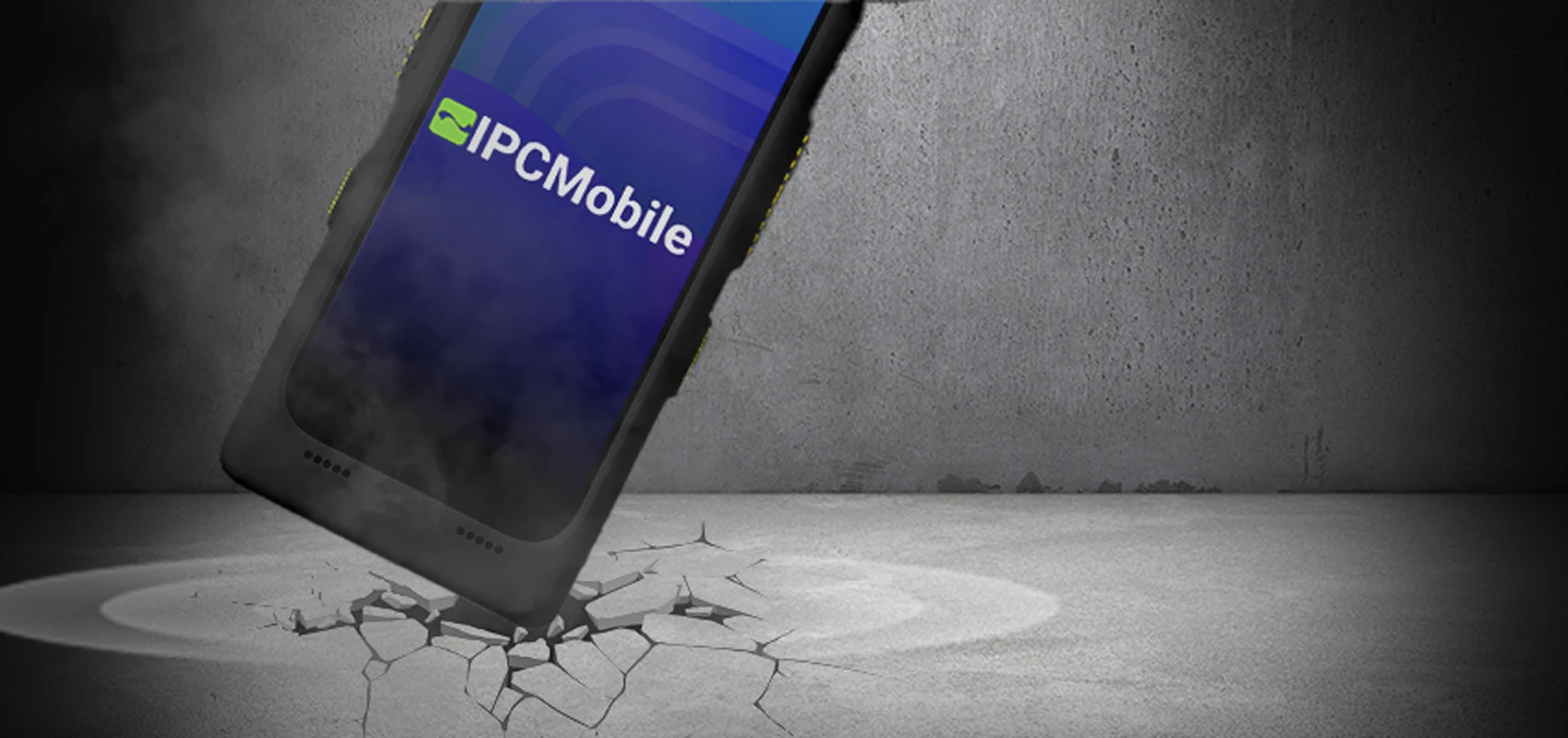

  • IP65 rating and 1.2 m drop to concrete per MIL-STD-810G
  • Swappable 3.6 V / 2330 mAh Li-ion battery with backup charging and battery sharing

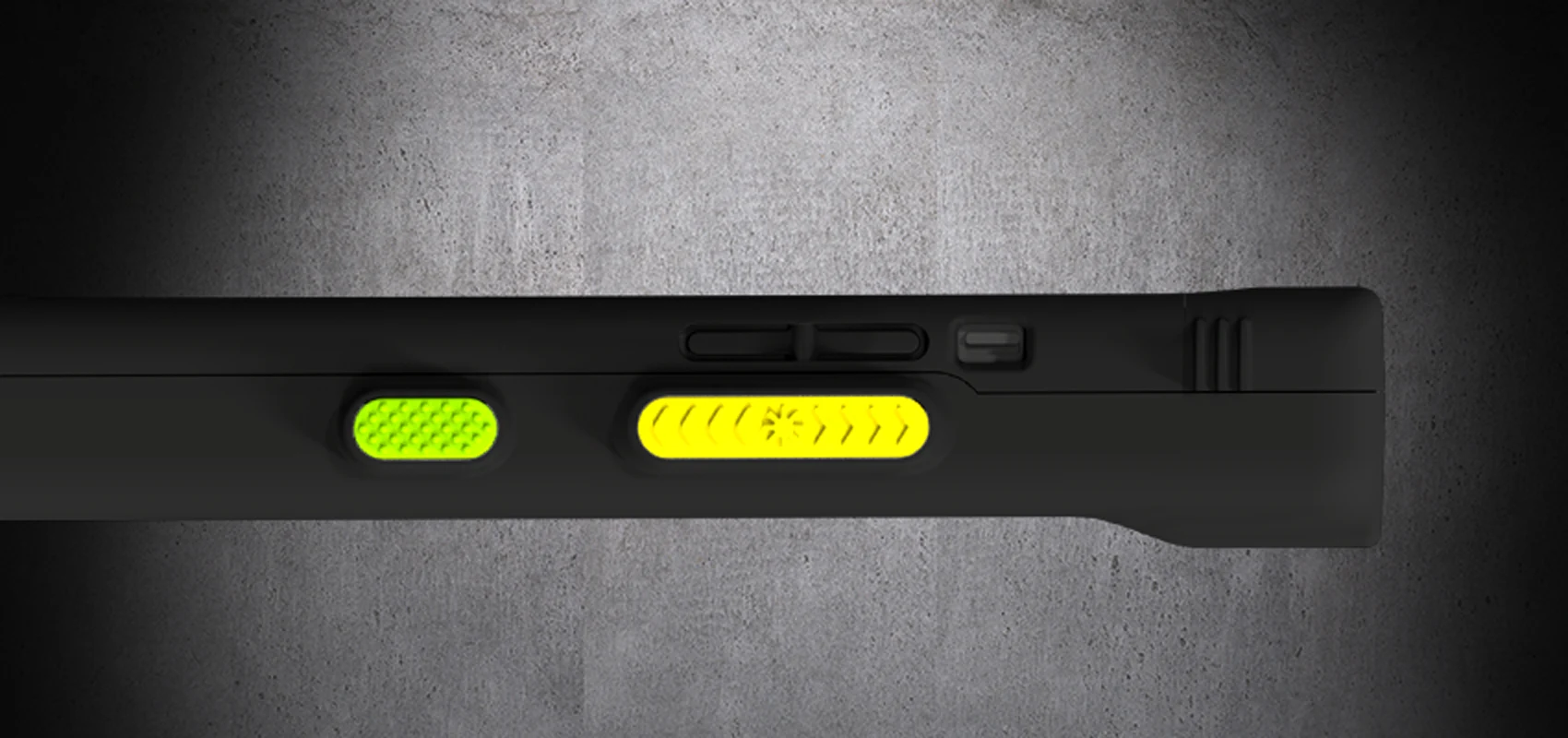

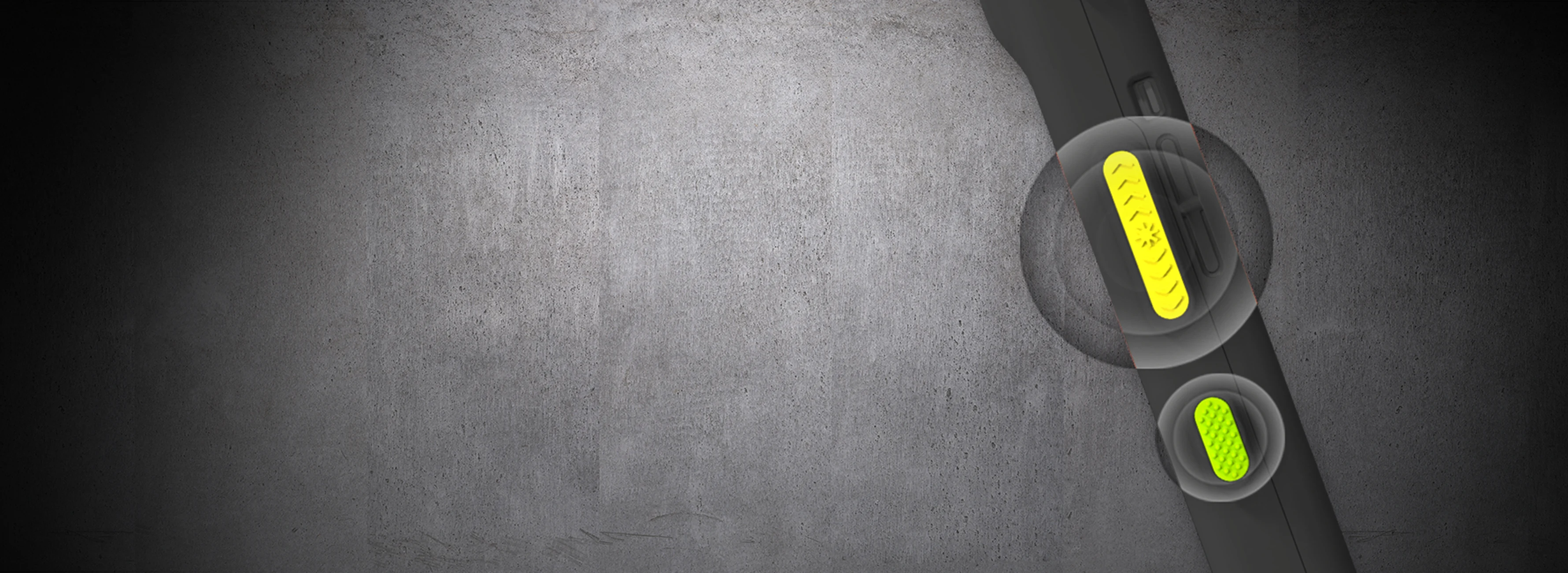

  • Dual scan buttons plus programmable buttons for custom workflows
  • USB-C charging, pass-through sync and serial communication pass-through
  • QWedge, QBrowser and IPCSupport apps, plus an SDK for Xcode and Visual Studio (MAUI)
  • Deploy scanning on iPhones staff already know, with no separate handheld OS to learn
  • Read retail, logistics, ID and postal barcodes, including QR, Data Matrix, PDF417 and Passport MRZ

The Linea Pro Rugged 16e from IPCMobile turns an iPhone 16e or 17e into a secure 1D/2D barcode scanner. Staff keep the familiar iPhone interface, and the sled adds a scan engine, extra battery power and ruggedized protection. Part number LPR-ZS2D-PH6E uses a standard-range 2D scanner and does not include the HF RFID contactless reader, which is offered as LPR-ZS2DHF-PH6E.

The scanner reads a broad set of symbologies. Supported 1D codes include UPC/EAN, Code 128, GS1-128, GS1 DataBar and Interleaved 2of5. Supported 2D codes include QR, Data Matrix, PDF417, Aztec and Passport MRZ. It also reads postal codes such as Intelligent Mail Barcode and POSTNET. Dual scan buttons and programmable buttons let operators trigger scans and specific actions. Buttons also give access to the iPhone's power/lock, volume and mute controls.

The sled is built for the shop floor. It is IP65 rated and survives 1.2 m drops to concrete per MIL-STD-810G. It measures 84 x 171.5 x 28.4 mm and weighs 181 g. The 3.6 V / 2330 mAh lithium-ion battery is swappable and supports backup charging and battery sharing, so devices can stay in service across shifts. The sled charges at 5 V DC through USB-C or the dock connector and supports pass-through sync and serial communication over USB-C. It also includes a SAM holder.

For deployment, QWedge sends barcode data to any iOS app with no code. QBrowser lets web apps interact with the sled, and IPCSupport handles firmware updates, diagnostics and settings. An SDK for Xcode and Visual Studio (MAUI) supports custom apps. Optional accessories include the Flex Case, Pistol Grip, Pistol Grip Charger and 1 or 5 Unit Charging Stations. A user manual and quick start guide are available.

Ideal for

  • Retail inventory counts, price checks and mobile point of sale
  • Warehouse receiving, picking and shipping in supply chain operations
  • Patient, specimen and medication scanning in healthcare
  • Hospitality and travel check-in, including passport MRZ reading
  • Custom iOS scanning apps built with the IPCMobile SDK

Specifications

General

UPC
810086104659
Brand
IPCMobile
HF Rfid
Not included on this part number
IN The Box
Linea Pro Rugged, USB-C charging/syncing cable, security screw
Description
Linea Pro Rugged for iPhone 16e and 17e, Standard Range 2D Scanner
Part Number
LPR-ZS2D-PH6E
Compatible Iphone
iPhone 16e and iPhone 17e

Package

Documentation
User manual and quick start guide
Shipping Weight
0.60 lbs

Software

Sdk
SDK for Xcode and Visual Studio (MAUI)
Apps
QWedge, QBrowser, IPCSupport
1d Barcode Types
JAN/UPC/EAN incl. add-on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 DataBar, IATA, Industrial 2of5, Interleaved 2of5, ISBN-ISSN-ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
2d Barcode Types
Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), MaxiCode (modes 2-5), MicroPDF417, Micro QR, PDF417, QR
Postal Barcode Types
Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET

Electrical

Battery
Rechargeable Li-ion 3.6 V / 2330 mAh
Input Power
5 V DC via USB-C or dock connector
Connectivity
External scanner trigger; USB-C pass-through sync; SAM holder; USB-C serial pass-through
Contactless Card Reader
Not included on this part number
2d Barcode Reader Platform Options
Zebra SE4750 SR (1280 x 960), SE4770 (1280 x 800), SE5500 (2688 x 1520) across the LPR platform

Industries

Industries
Healthcare, Hospitality, Retail, Supply Chain, Travel

Mechanical

Port
USB-C, accessory connector
Weight
181 g (6.38 oz)
Buttons
Dual scan buttons; iPhone power/lock, volume and mute access
Dimensions

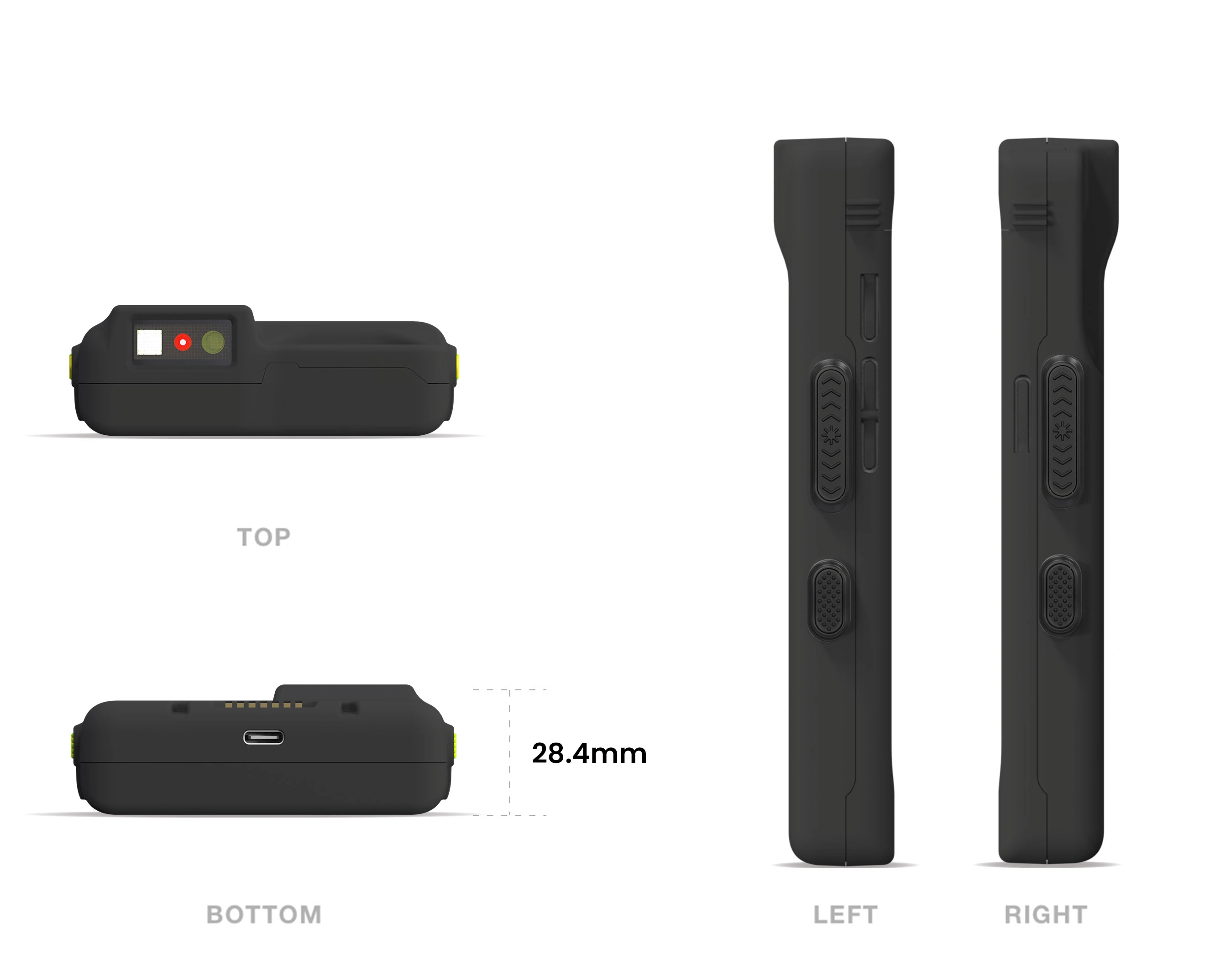

84 x 171.5 x 28.4 mm (3.31 x 6.75 x 1.12 in)

Certifications

Regulatory
TSCA, Proposition 65, FCC, CE, RoHS
Environmental
1.2 m drop, MIL-STD-810G, IP65
Protection Rating
IP65; 1.2 m drop to concrete per MIL-STD-810G

Questions buyers ask

Which iPhone models does the LPR-ZS2D-PH6E fit?

IPCMobile's SKU table lists this part number for the iPhone 16e and iPhone 17e.

Does this model include RFID or NFC card reading?

No. This part number has the standard-range 2D scanner only. The HF RFID contactless version is LPR-ZS2DHF-PH6E.

Can I use it with my existing iOS apps?

Yes. QWedge is a no-code keyboard extension that sends barcode data to any iOS application. QBrowser supports web apps, and the SDK supports Xcode and Visual Studio (MAUI) projects.

How is the device charged and synced?

It takes 5 V DC through USB-C or the dock connector. It also supports pass-through sync and serial communication over USB-C, and a USB-C charging and syncing cable is included.

How rugged is it?

It carries an IP65 rating and is rated for 1.2 m drops to concrete per MIL-STD-810G. The optional Flex Case adds further protection.
