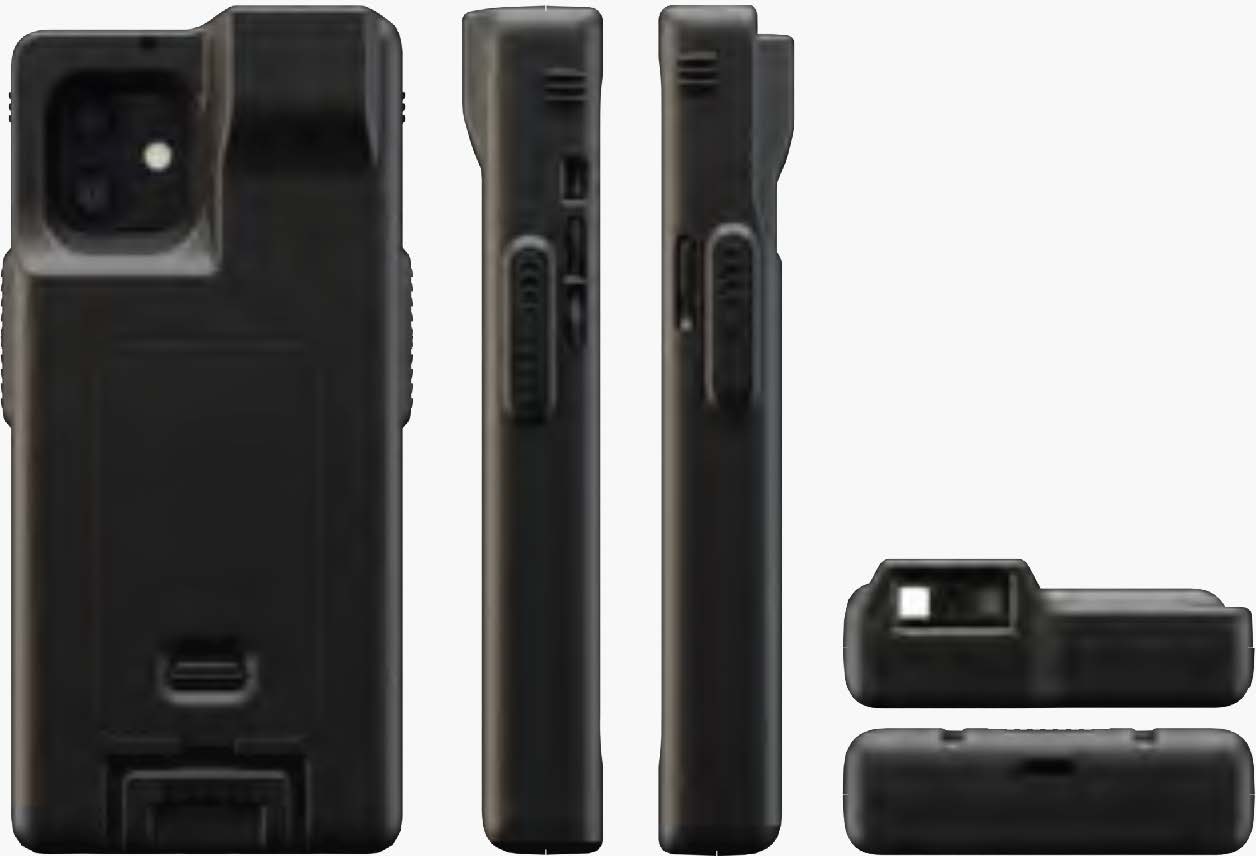

Infinite Peripherals Linea Pro Rugged Standard Range 2D Barcode Scanner Sled with HF RFID for iPhone 13 and 14

MPN LPR-ZS2DHF-PH3

Fits iPhone 13, iPhone 14

$808.75

In stock · only 2 leftShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Infinite Peripherals (IPCMobile) Linea Pro Rugged LPR-ZS2DHF-PH3 is a form-fitted barcode scanner and HF RFID sled for iPhone 13 and iPhone 14. It pairs a Zebra standard range 2D engine with a 13.56MHz HF RFID reader supporting Apple VAS and Google Smart Tap, and adds a hot-swappable battery for multi-shift use. It is IP65 rated and drop tested to MIL-STD-810G at 1.2m.

  • Zebra standard range 2D engine with red aimer: Code 39 100mil up to 36ft, 20mil up to 9ft
  • 13.56MHz HF RFID reader with Apple VAS and Google Smart Tap support
  • Hot-swappable 3.7V battery providing backup charge to the iPhone
  • IP65 rated and 1.2m drop tested to MIL-STD-810G
  • Form-fitted for both iPhone 13 and iPhone 14
  • Right- and left-hand scan buttons with access to iPhone power, volume and mute
  • Supported by QWedge, SDK, RapidBrowser and Quantum IQ device management
  • Gives staff a familiar iOS device while delivering dedicated-scanner performance for high-volume workflows

The Linea Pro Rugged 13/14 turns an iPhone 13 or iPhone 14 into an enterprise-grade data capture device. This configuration, LPR-ZS2DHF-PH3, combines a Zebra standard range 2D scan engine with HF RFID, and is built for back-of-store, warehouse and forklift workflows in retail and supply chain operations. One sled accepts both iPhone 13 and iPhone 14 models.

The standard range engine reads Code 39 at 100mil from up to 36ft and at 20mil from up to 9ft, with a 30° vertical and 48° horizontal field of view and a red aimer. The 13.56MHz HF RFID reader supports Apple VAS and Google Smart Tap plus MIFARE Mini, Classic 1K/4K, Ultralight/Ultralight C, Plus 2K/4K, DESFire, ISO/IEC 14443 Type A/B, ISO/IEC 15693 and JIS X 6319-4 (FeliCa compatible). Right- and left-hand scan buttons sit alongside access to the iPhone power, volume and mute controls.

A hot-swappable 3.7V battery provides backup charge to the iPhone, rated 5627mAh combined with iPhone 13 or 5679mAh combined with iPhone 14, and can share power with the Rugged Pistol Grip accessory. The sled is IP65 rated, drop tested to 1.2m per MIL-STD-810G, and certified MFi, UN38.3, FCC, CE and RoHS. It weighs 186g and measures 172mm x 85mm x 30mm. Optional security screws can immobilize the iPhone and smart battery.

For deployment, QWedge delivers scan data into apps with no code, the SDK supports advanced custom workflows, RapidBrowser adds scanning, printing and payments to web apps, and Quantum IQ handles over-the-air updates, configuration, diagnostics and tracking. A quick start guide, product brief and specifications sheet are available from IPCMobile.

Ideal for

  • Retail back-of-store inventory, receiving and price checks
  • Warehouse picking and put-away, including forklift-mounted workflows
  • Loyalty pass and contactless card reading via Apple VAS and Google Smart Tap
  • Multi-shift supply chain operations using swappable batteries

Specifications

Electrical

Battery
3.7V, 5627mAh (combined iPhone 13) or 5679mAh (combined iPhone 14)
HF Rfid
13.56MHz
Scanning
Engine options: Zebra SE4750S/M, Zebra SE55
Indicator
Electro-magnetic buzzer
Input Voltage
5V
Rfid Card Reader
HF RFID; MIFARE Mini, Classic 1K/4K, Ultralight/Ultralight C, Plus 2K/4K, DESFire; ISO/IEC 14443 Type A/B; ISO/IEC 15693; JIS X 6319-4 (FeliCa compatible)
Input Output Ports
USB Type-C

Mechanical

Port
USB-C, accessory connector
Weight
186g (6.56oz)
Buttons
Right- and left-hand scan buttons; access to iPhone power, volume and mute
Dimensions
172mm x 85mm x 30mm (6.69in x 3.35in x 1.02in) (L x W x D)
Compatibility
iPhone 13 and iPhone 14

Compatibility

Operating System
iOS

Configuration

Brand
Infinite Peripherals (IPCMobile)
Model
Linea Pro Rugged 13/14
Description
Linea Pro Rugged with Zebra Standard Range 2D, HF RFID, for iPhone 13 or 14
Part Number
LPR-ZS2DHF-PH3

Environmental

Storage
-15°C to +50°C; 5% to 90% relative humidity
Operating
-10°C to +40°C; 5% to 90% relative humidity

Certifications

Regulatory
MFi, UN38.3, FCC, CE, RoHS
Environmental
1.2m drop per MIL-STD-810G; IP65

Key Specifications

Battery
3.7V, 5627mAh combined with iPhone 13 or 5679mAh combined with iPhone 14
Indicator
Electro-magnetic buzzer
Field OF View
Standard Range: 30° vertical, 48° horizontal; Advanced Range: 21° vertical, 37° horizontal
Input Voltage
USB-PD (5V)
Read Distance
Standard Range: Code 39 100mil 36ft, 20mil 9ft; Advanced Range: Code 39 20mil 36in
Engine Options
Standard/Mid range with red aimer laser; Advanced Range with green aimer laser (this SKU: Standard Range)
Input Output Ports
USB Type-C, accessory contacts

Questions buyers ask

Which iPhone models does the LPR-ZS2DHF-PH3 fit?

It is form-fitted for iPhone 13 and iPhone 14. The iPhone is sold separately.

Does this sled read NFC passes and contactless cards?

Yes. The 13.56MHz HF RFID reader supports Apple VAS and Google Smart Tap, as well as MIFARE, ISO/IEC 14443 Type A/B, ISO/IEC 15693 and FeliCa-compatible JIS X 6319-4 cards.

How far can the standard range engine read?

IPCMobile rates the standard range engine at up to 36ft for 100mil Code 39 barcodes and up to 9ft for 20mil Code 39 barcodes.

Can it support 24/7 shifts?

Yes. The hot-swappable 3.7V battery provides backup charge to the iPhone, rated 5627mAh combined with iPhone 13 or 5679mAh combined with iPhone 14, so batteries can be exchanged without taking the device out of service.

How do scans get into my apps?

QWedge sends scan data into apps with no code, the SDK supports custom integrations, RapidBrowser adds scanning to web applications, and the Linea Pro is supported out of the box by various WMS and App Store applications.
