Infinite Peripherals Linea Pro Rugged 16 Standard Range 2D Barcode Scanner Sled with HF RFID for iPhone 16

Name: Infinite Peripherals Linea Pro Rugged 16 Standard Range 2D Barcode Scanner Sled with HF RFID for iPhone 16
Brand: Infinite Peripherals
Price: 793.75 USD
Availability: InStock

MPN LPR-ZS2DHF-PH6

Fits iPhone 16

$793.75$849.00Save $55.25

In stock · only 4 leftShips from the US

Request a quote · volume, multi-site or with plans

30-day returns on unopened devices
Secure checkout · pay by card

Datasheets & documents

Overview

The Infinite Peripherals (IPCMobile) Linea Pro Rugged 16 LPR-ZS2DHF-PH6 is a form-fitted barcode scanner sled for iPhone 16 with a standard range 2D engine and HF RFID. It adds dual scan buttons plus two programmable buttons, a swappable 2330mAh smart battery with backup charging, and IP65 protection with 1.2m drop testing to MIL-STD-810G, turning iPhone 16 into a secure, enterprise-ready data capture device.

Standard range 1D/2D Zebra scan engine for iPhone 16
HF RFID contactless reader compatible with Smart Tap and VAS
Dual scan buttons plus two programmable buttons
Swappable 3.6V 2330mAh smart battery with backup charging and battery sharing
IP65 rated and 1.2m drop tested to concrete per MIL-STD-810G
USB-C with pass-through sync and accessory connector with external trigger
QWedge, QBrowser, IPCSupport and SDK for Xcode and Visual Studio (MAUI)
Keeps the familiar iPhone 16 experience while adding dedicated-scanner speed, cutting training time

The Linea Pro Rugged 16 transforms an iPhone 16 into an enterprise barcode scanner while keeping the iOS interface staff already know. This configuration, LPR-ZS2DHF-PH6, pairs a standard range 2D scanner with an HF RFID contactless reader, and suits retail, healthcare, hospitality, supply chain and travel workflows.

The 1D/2D scan engine reads a broad set of symbologies, including UPC/EAN, Code 128, GS1 DataBar, QR, Data Matrix, PDF417, Aztec, Passport MRZ and postal codes such as Intelligent Mail Barcode and POSTNET. The contactless reader supports Smart Tap and VAS, ISO/IEC 14443 Type A/B, MIFARE Classic, Ultralight and DESFire, ISO/IEC 15693, FeliCa-compatible JIS X 6319-4 and NFC. Alongside dual scan buttons, two connected buttons can be programmed to trigger specific actions and data collection, and the iPhone power/lock, volume and mute/action controls stay accessible.

A swappable 3.6V 2330mAh lithium-ion smart battery supports backup charging and battery sharing for multi-shift operation. The sled is IP65 rated against dust and moisture and drop tested to 1.2m on concrete per MIL-STD-810G. It measures 84mm x 171.5mm x 28.4mm, weighs 181g, and adds a USB-C port with pass-through sync, serial pass-through, an accessory connector with external trigger support and an optional SAM holder. It operates from -10°C to +45°C and carries CE, FCC, RoHS, Proposition 65 and TSCA certifications.

Deployment options include QWedge for no-code keyboard entry into any iOS app, QBrowser for low-code web apps, and IPCSupport for battery status, firmware updates and diagnostics. The SDK is available for Xcode and Visual Studio (MAUI) with sample projects. A user manual and quick start guide are available from IPCMobile.

Ideal for

Retail inventory, price checks and mobile point-of-sale with loyalty pass reading
Healthcare patient and medication barcode scanning
Supply chain receiving, picking and shipping
Hospitality and travel ticket, pass and ID scanning, including Passport MRZ

Specifications

Software

Barcode Types 1d: JAN/UPC/EAN incl. add-on, Codabar/NW-7, Code 11, Code 39, Code 93, Code 128, GS1-128, GS1 DataBar, IATA, Industrial 2of5, Interleaved 2of5, ISBN/ISSN/ISMN, Matrix 2of5, MSI/Plessey, S-Code, Telepen, Tri-Optic, UK/Plessey
Barcode Types 2d: Aztec Code, Aztec Runes, Chinese Sensible code, Codablock F, Composite codes, Data Matrix (ECC200), Passport MRZ (OCR-B), MaxiCode (mode 2-5), MicroPDF417, Micro QR, PDF417, QR
Operating System: iOS
Postal Barcode Types: Chinese Post, Intelligent Mail Barcode, Korean Postal Authority code, POSTNET

Electrical

Audio: Electromagnetic buzzer
Battery: Rechargeable lithium-ion battery, 3.6V / 2330mAh
Input Power: DC 5V through USB Type-C; DC 5V through dock connector
Connectivity: External scanner trigger via rear connector; USB-C pass-through sync; optional SAM holder; USB-C serial pass-through
Microcontroller: Megahunt
Barcode Readers 2d: Zebra SE4750 SR (1280 x 960); Zebra SE4770 (1280 x 800); Zebra SE5500 (2688 x 1520) CMOS imagers
Contactless Card Reader: ISO/IEC 14443 Type A/B, MIFARE Classic 1K/4K, Ultralight/Ultralight C, DESFire, ISO/IEC 15693, JIS X 6319-4 (FeliCa compatible), ISO/IEC 18000-3 mode 3 (NFC)

Mechanical

Port: USB-C, accessory connector
Weight: 181g (6.38oz)
Buttons: Dual scan buttons; two programmable buttons; access to iPhone power/lock, volume and mute/action

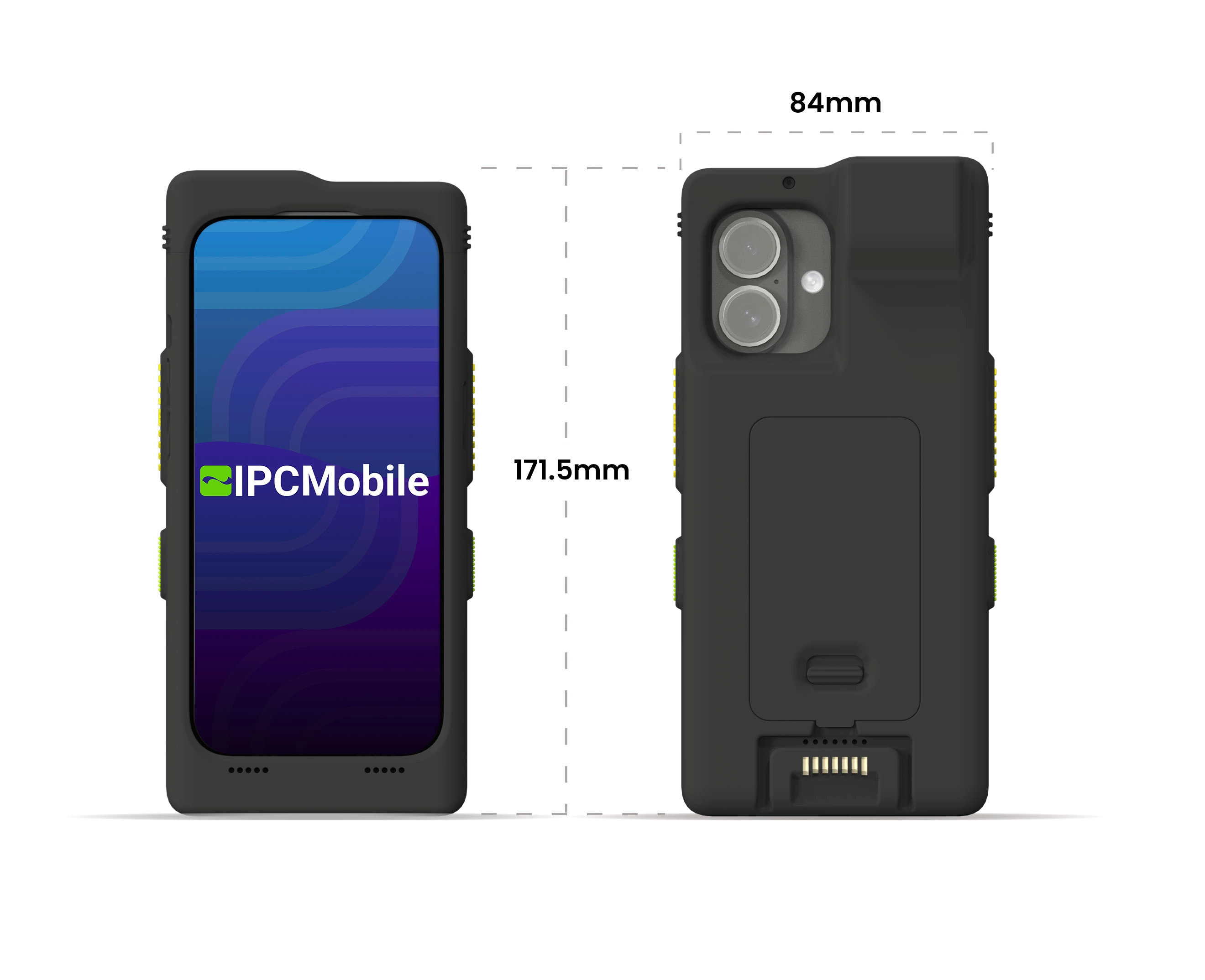

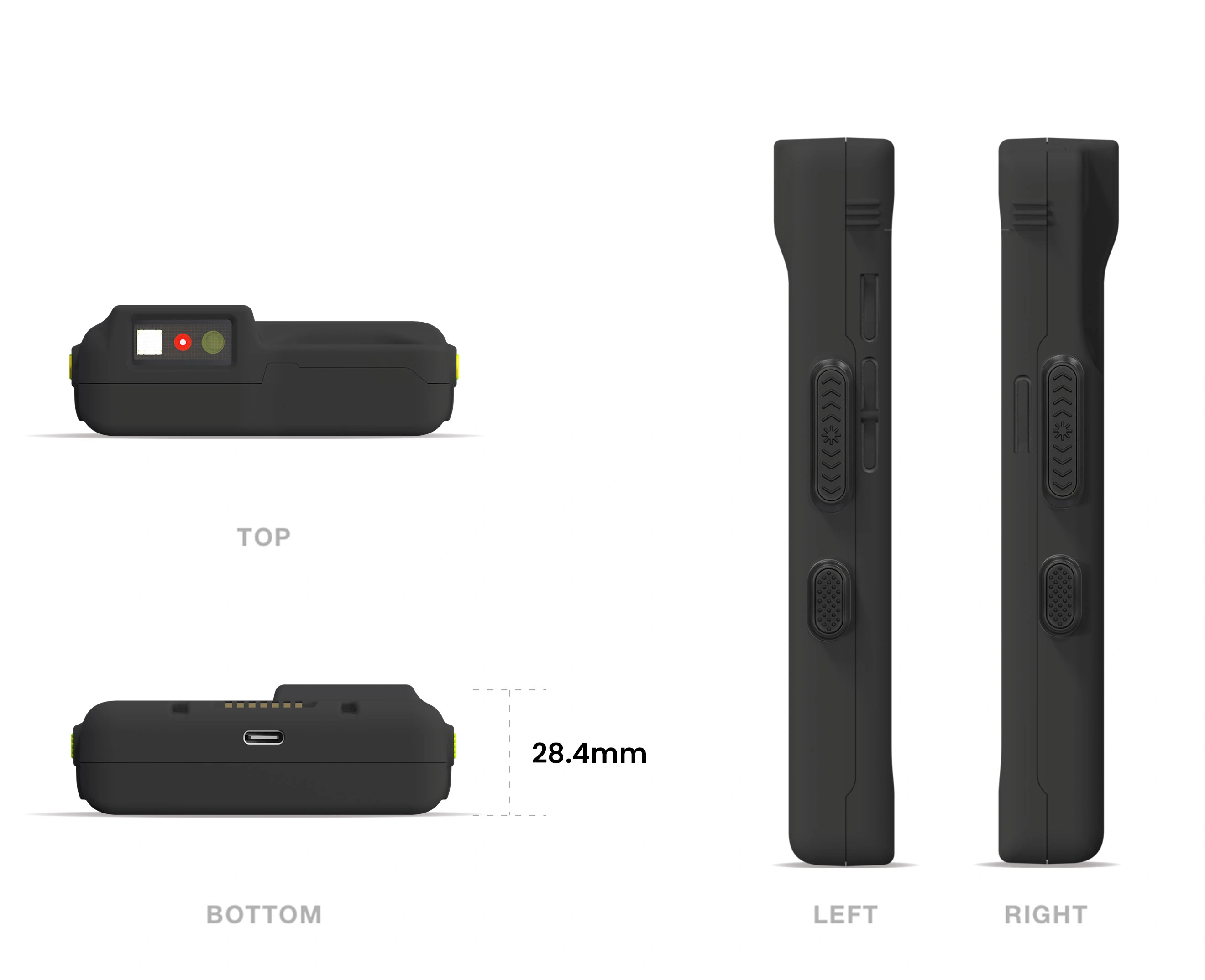

Dimensions: 84mm x 171.5mm x 28.4mm (3.31in x 6.75in x 1.12in) (W x H x D)
Compatibility: iPhone 16
Protection Rating: IP65; 1.2m drop to concrete per MIL-STD-810G

Configuration

Brand: Infinite Peripherals (IPCMobile)
Model: Linea Pro Rugged 16
Description: Linea Pro Rugged for iPhone 16, Standard Range 2D Scanner, HF RFID
Part Number: LPR-ZS2DHF-PH6

Environmental

Relative Humidity: 5% to 90% (non-condensing)
Storage Temperature: -20°C to +50°C
Operating Temperature: -10°C to +45°C (14°F to 113°F)

Certifications

Regulatory: TSCA, Proposition 65, FCC, CE, RoHS
Environmental: 1.2m drop, MIL-STD-810G, IP65

Questions buyers ask

Which iPhone does the LPR-ZS2DHF-PH6 fit?

This part number is form-fitted for iPhone 16. Separate Linea Pro Rugged SKUs cover iPhone 15, iPhone 16e/17e and iPhone 17. The iPhone is sold separately.

What can the HF RFID reader read?

It is compatible with Smart Tap and VAS and supports ISO/IEC 14443 Type A/B, MIFARE Classic 1K/4K, Ultralight, Ultralight C and DESFire, ISO/IEC 15693, FeliCa-compatible JIS X 6319-4 and NFC.

What do the programmable buttons do?

The two connected buttons can be assigned to trigger specific actions and data collection, so operators can automate routine steps with a single press.

How is the sled powered through long shifts?

It uses a swappable 3.6V 2330mAh lithium-ion smart battery with backup charging and battery sharing, and charges at DC 5V through USB-C or the dock connector.

How do I integrate it with my apps?

QWedge lets any iOS app receive barcode data with no code, QBrowser enables web apps with low code, IPCSupport handles firmware and diagnostics, and the SDK is available for Xcode and Visual Studio (MAUI).
