Cradlepoint MC400-5GB 5G Modular Modem Upgrade for R1900 with RX30-MC and IBR1700 Routers

MPN MB-MC400-5GB

Made for Cradlepoint

$915.04$999.99Save $84.95

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Ericsson Cradlepoint MC400-5GB (MB-MC400-5GB) is a 5G modular modem for MC400-capable Cradlepoint routers. This mobile SKU is the 5G upgrade for the R1900 with an RX30-MC managed accessory or the IBR1700, and it includes modem doors. It supports 5G FR1 NSA/SA and LTE Advanced Pro Category 20, with dual 4FF SIM slots and 4x4 MIMO. Use it to move an existing router to 5G or to add a second modem for failover.

  • 5G FR1 NSA/SA plus LTE Advanced Pro Category 20 (3GPP Release 15)
  • Peak rates up to 4.14 Gbps downlink and 660 Mbps uplink
  • Dual 4FF SIM slots with SIM-based auto-carrier selection
  • 4x4 MIMO, with up to 7 CA downlink and 2 CA uplink on LTE
  • AT&T, T-Mobile and Verizon certified; FirstNet Capable, T-Mobile Connecting Heroes and Verizon Frontline
  • CBRS Band 48 (FCC Part 96) support for private cellular networks
  • Upgrade to 5G by adding the modem to your existing R1900 or IBR1700
  • A second modem gives vehicle and remote-site links a failover path on another carrier

The Ericsson Cradlepoint MC400-5GB is a field-installable 5G modem for Cradlepoint MC400-capable routers. It lets teams move a deployment to 5G without replacing the router, or add a second modem for failover and carrier diversity. This MB-MC400-5GB SKU is the mobile upgrade for the R1900 with an RX30-MC managed accessory or the IBR1700, and it includes modem doors. The data sheet lists these supported endpoints: AER2200, IBR1700, E300, E3000, R1900 (requires the RX30-MC) and R920 (requires the RX20-MC).

The modem supports 5G FR1 in both NSA and SA modes plus LTE Advanced Pro Category 20 (3GPP Release 15), with WCDMA/DC-HSPA+ fallback. Rated peak rates reach up to 4.14 Gbps downlink and 660 Mbps uplink. It uses 4x4 MIMO and up to 7 CA downlink on LTE. Band coverage includes n41, n71, n77 and n78, and LTE support includes B14 and CBRS B48. Two 4FF SIM slots with SIM-based auto-carrier selection let the router switch to the second SIM when the primary data plan cap is reached.

The MC400-5GB carries network operator certifications for AT&T, T-Mobile and Verizon. It is FirstNet Capable and certified for T-Mobile Connecting Heroes and Verizon Frontline. It also supports private cellular networks under FCC Part 96 (CBRS Band 48). Power comes over USB from the host router. The module measures 93 x 74 x 13 mm, operates from -30 °C to 70 °C, and meets MIL STD 810G and SAE J1455 when installed in an IBR1700 or an R1900 with RX30-MC. SIM cards are not included. A data sheet is available for this product.

Ideal for

  • Upgrading R1900 or IBR1700 fleet routers from LTE to 5G without replacing the router
  • Adding a second carrier to police, fire and EMS vehicles on FirstNet, Connecting Heroes or Frontline
  • Dual-SIM failover and cost control for field operations vehicles and mobile command units
  • Connecting to private CBRS (Band 48) networks at industrial or campus sites

Specifications

Power

Required
Provided through USB by the host router

General

MPN
MB-MC400-5GB
UPC
810007808840
Brand
Ericsson Cradlepoint
Color
Silver
Model
MC400-5GB Modular Modem
Regions
North America, Europe, Asia-Pacific
Host Interface
USB
Accessory Family
Modular

Package

Contents
MC400-5GB modular modem, modem doors
SIM Requirement
Requires 4FF SIM (not included)

Cellular

3g
WCDMA/DC-HSPA+

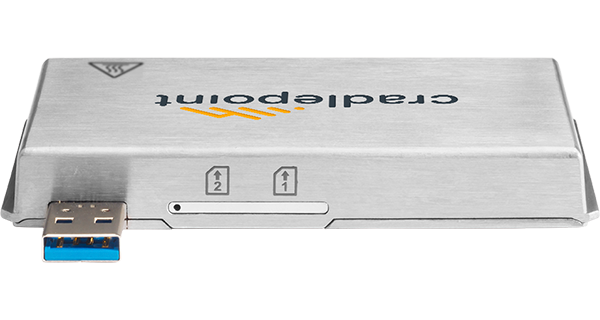

SIM
Dual SIM slots, 4FF (nano) form factor
SMS
Yes
GNSS
Passive GNSS (multiplexed with DIV/MIMO2 antenna ports)
MIMO
4x4 MIMO
3g Bands
1, 2, 3, 4, 5, 6, 8, 9, 19
Modulation
5G FR1: Downlink up to 256 QAM; Uplink up to 256 QAM (uplink 256 QAM only enabled on particular carrier equipment)
Technology
5G FR1 NSA/SA and 4G LTE, LTE Advanced Pro Category 20
5G NR Bands
NSA and SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps (2 layers LTE + TDD, 100 MHz BW, 256 QAM, SISO)
3gpp Release
3GPP Release 15
TX Power LTE
LTE bands: 23 dBm ± 1 (typical conducted)
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
Up to 4.14 Gbps (20 layers LTE + TDD, 100 MHz BW, 256 QAM, 4x4)
TX Power Endc
LTE + 5G NR ENDC: 20 dBm ± 1 (typical conducted)
TX Power 5G NR
5G NR bands: 23 dBm ± 1.5 (typical conducted)
Private Cellular
Yes, includes FCC Part 96 (CBRS Band 48)
Carrier Selection
SIM-based auto-carrier selection
TX Power LTE Hpue
25 dBm ± 1 (B41 standalone mode only)

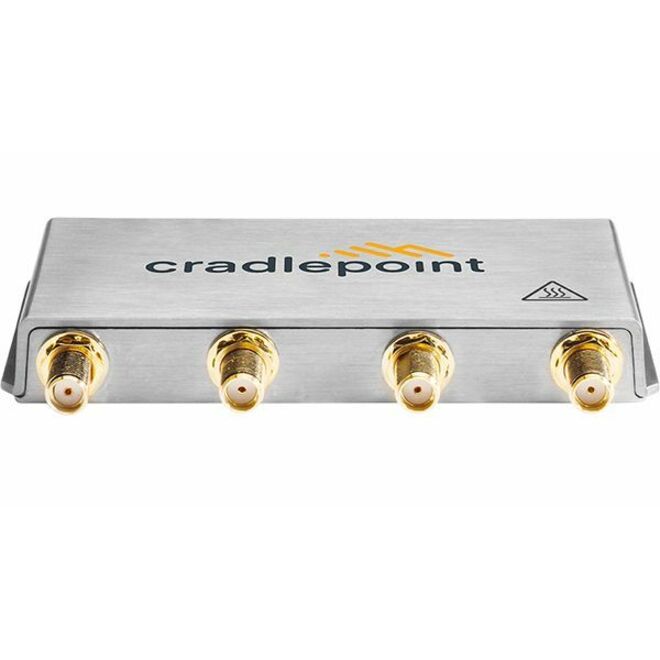

Antenna Connectors
SMA female connectors; external 600 MHz – 6 GHz cellular paddle antennas (qty 4) included only with supported branch routers
Carrier Aggregation LTE
LTE only: Downlink up to 7 CA, Uplink up to 2 CA
Carrier Aggregation Endc
LTE + 5G NR ENDC: Downlink 1 CA, Uplink 1 CA

Physical

Size
93 x 74 x 13 mm (3.7 x 2.9 x 0.5 in)
Weight
.104 kg (3.7 oz)

Compatibility

Designated Hosts
Upgrade for R1900 with RX30-MC or IBR1700 mobile routers
Supported Endpoints
AER2200, IBR1700, E300, E3000, R1900 (requires RX30-MC managed accessory), R920 (requires RX20-MC managed accessory)

Environmental

Storage Humidity
5% to 95%
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
UL/cUL, CB Scheme, EN 62368-1
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Public Safety
FirstNet Capable™, T-Mobile Connecting Heroes, Verizon Frontline
Substance Compliance
WEEE, RoHS, REACH, California Prop 65
Shock Vibration Humidity
Compliant with MIL STD 810G and SAE J1455 when inserted in an IBR1700 router or an R1900 router with an RX30-MC managed accessory
Network Operator Standards
PTCRB (U.S., Canada), GCF (Worldwide)
Network Operator Certifications
AT&T, T-Mobile, Verizon

Questions buyers ask

Which routers is the MB-MC400-5GB intended for?

This SKU is the 5G modem upgrade for the R1900 with an RX30-MC managed accessory or the IBR1700 mobile routers, and it includes modem doors. The MC400-5GB data sheet also lists the AER2200, E300, E3000 and the R920 (with an RX20-MC) as supported endpoints.

What SIM does the MC400-5GB use?

It has dual SIM slots in the 4FF (nano) form factor with SIM-based auto-carrier selection. SIM cards are not included.

Which carriers and public safety networks is it certified for?

The data sheet lists network operator certifications for AT&T, T-Mobile and Verizon. It is FirstNet Capable and certified for T-Mobile Connecting Heroes and Verizon Frontline.

Does it need its own power?

No. The host router supplies power over USB.

Are antennas included?

The modem uses SMA female connectors. Cradlepoint includes four external paddle antennas only with supported branch router SKUs. This mobile SKU connects to the antenna setup of the host router installation.
