Teltonika Networks PR3PUUS3 US Power Supply, 9 W, 9 VDC 1.0 A with 4-Pin Connector

MPN PR3PUUS3

Made for Teltonika

$12.91

In stock · only 1 leftFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Highlights

Overview

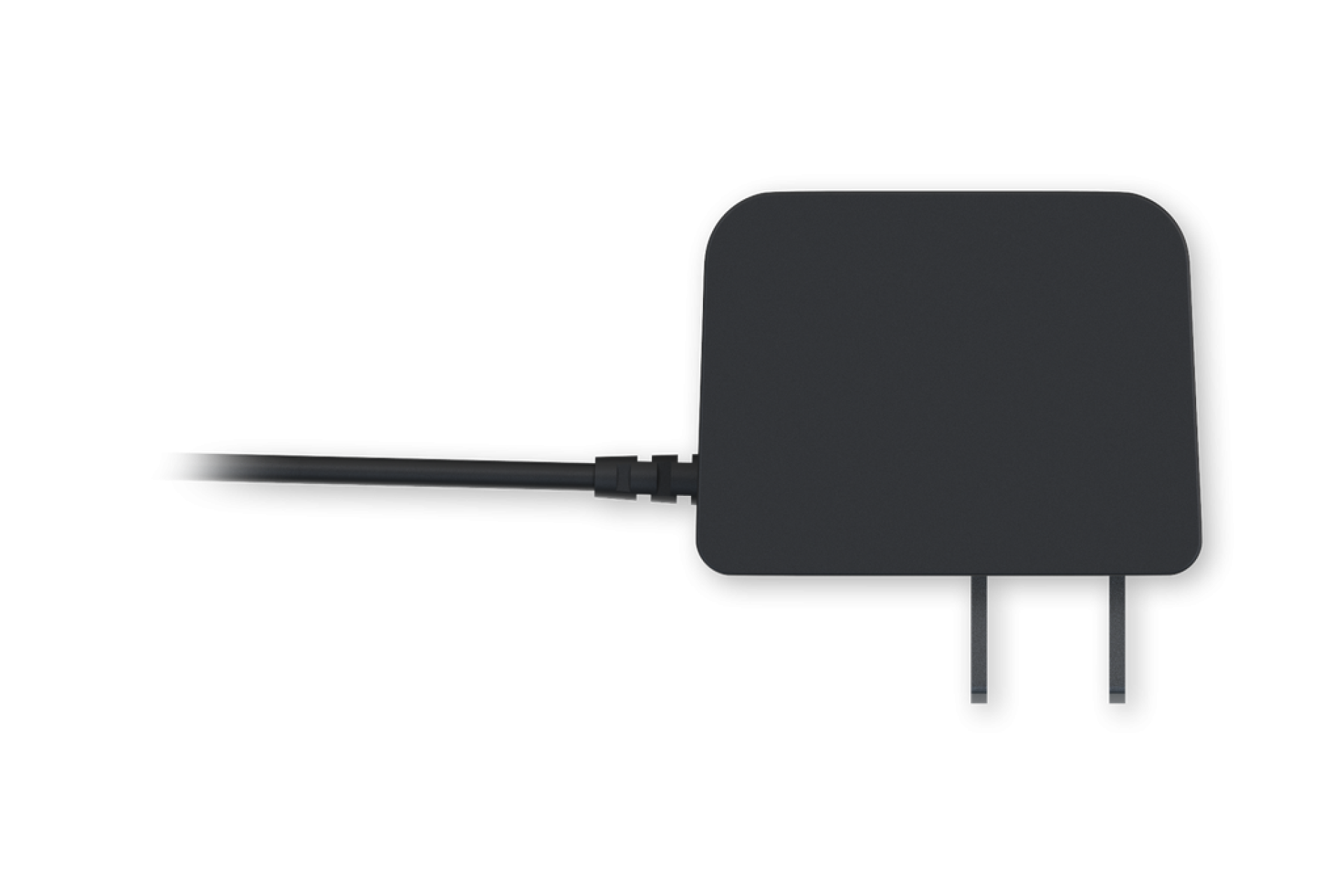

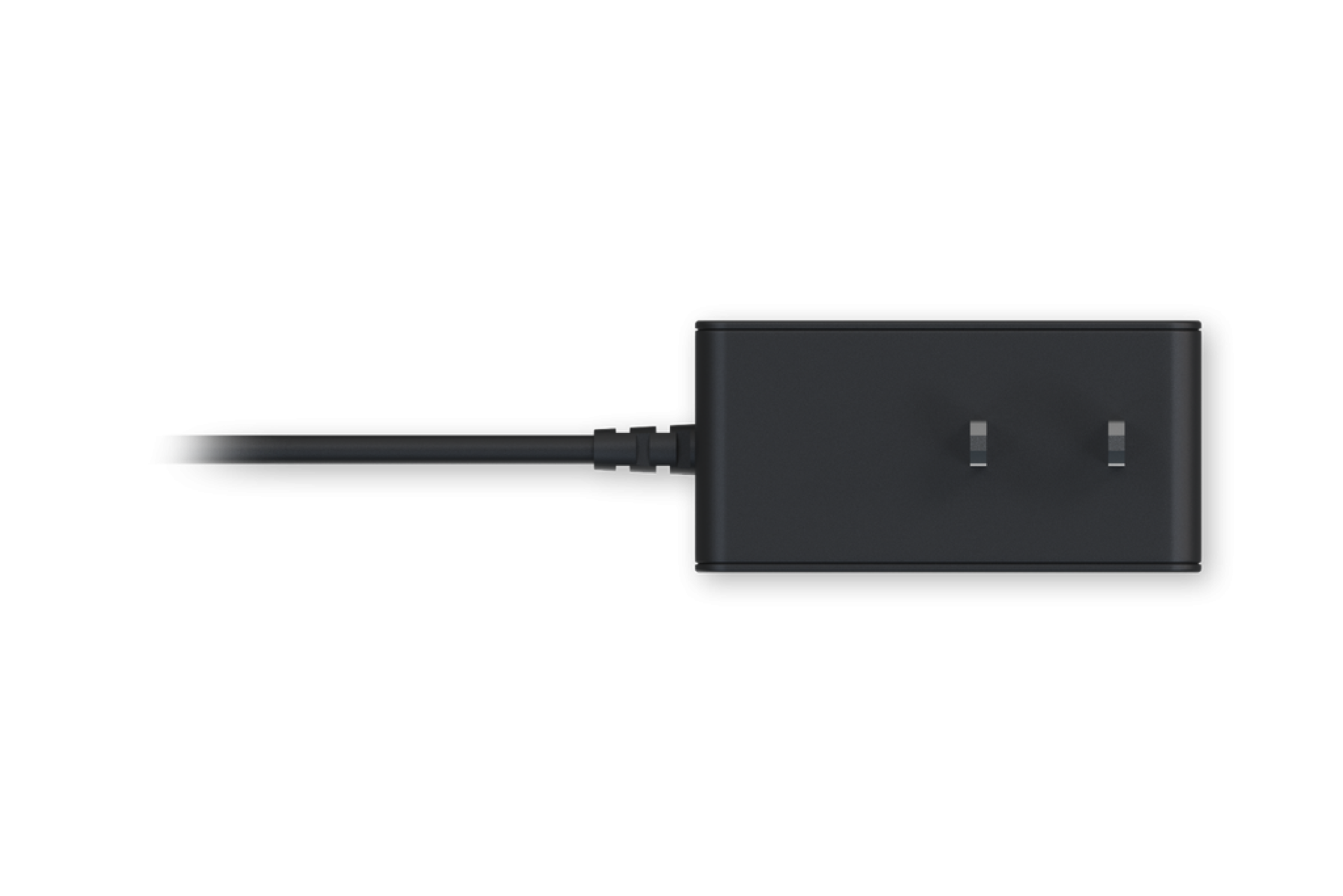

The Teltonika Networks PR3PUUS3 is a 9 W power supply with a US Type A plug. It delivers 9 VDC at 1.0 A through a 4-pin, 3 mm pitch connector. Teltonika lists it for current devices including the RUT200, RUT241, RUT901, RUT951, RUT956, TRB140 series, TRM500 and TSW110. Universal 100–240 VAC input, short circuit protection and a rated 50,000 h MTBF make it a dependable spare or replacement adapter for installs in North America.

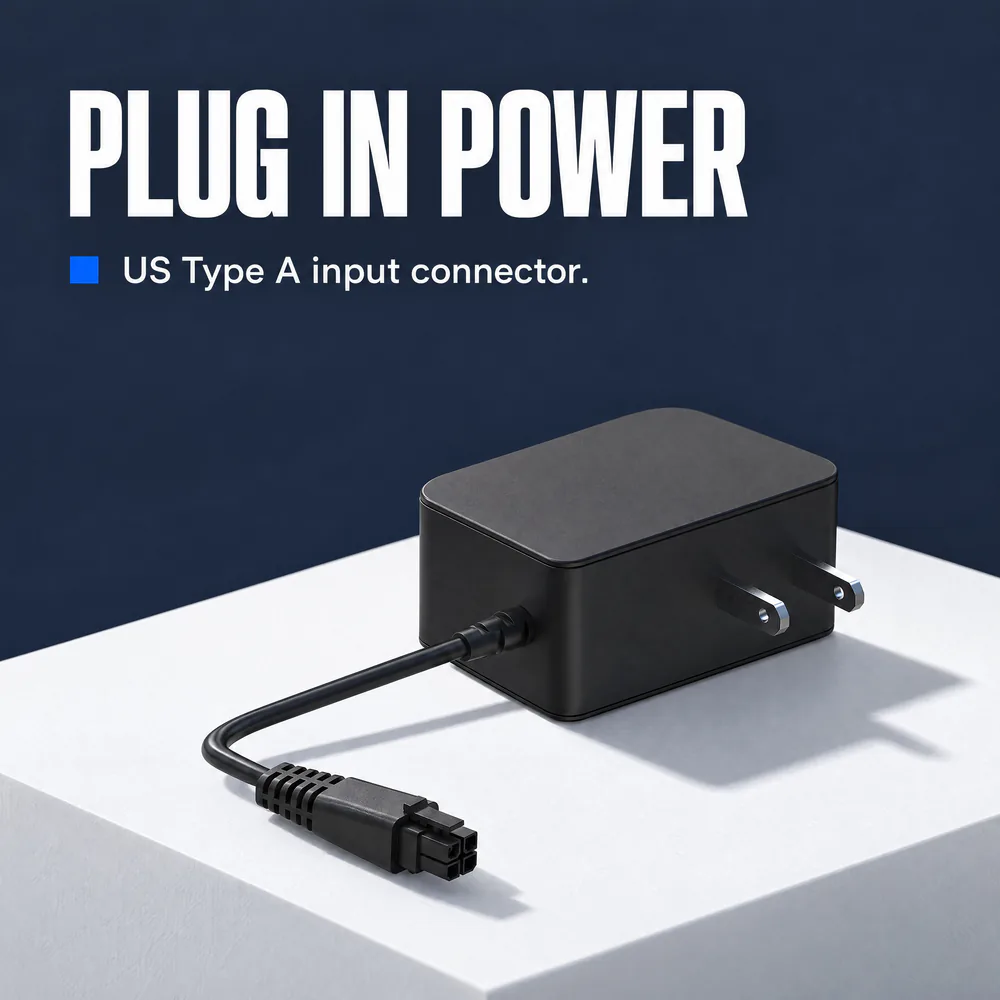

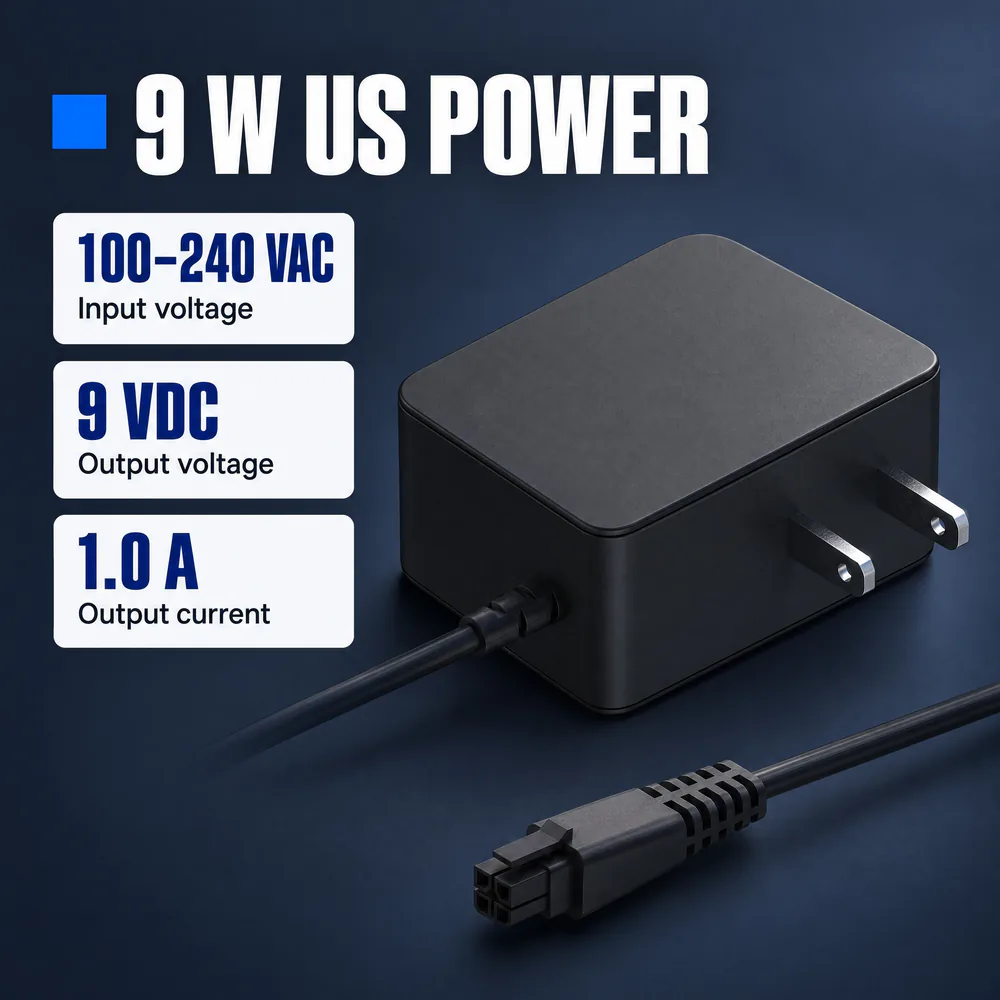

The PR3PUUS3 is Teltonika Networks' 9 W power supply for US outlets. It is built for IT teams and integrators running Teltonika routers, gateways, modems and switches, and it works as a spare, a replacement or a second adapter for a new site. The fixed US Type A plug accepts 100–240 VAC at 50/60 Hz, and the input range extends from 90 to 264 VAC and 47 to 63 Hz. Output is 9 VDC at 1.0 A through Teltonika's 4-pin, 3 mm pitch connector, and output voltage stays between 8.55 and 9.45 VDC.

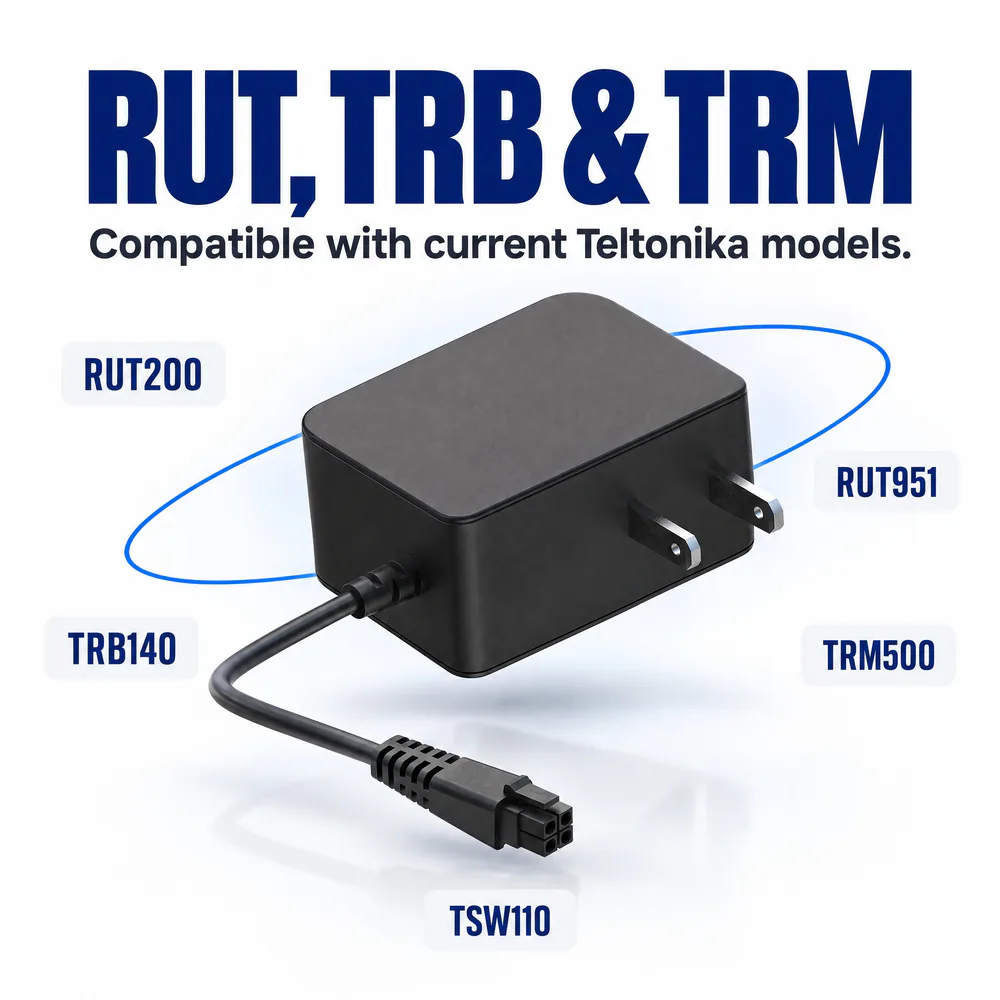

Teltonika's current compatibility list for this adapter covers Oxa; the RUT200, RUT202, RUT241, RUT260, RUT261, RUT271, RUT281, RUT301, RUT901, RUT906, RUT951, RUT951 PoE+, RUT956, RUT976, RUT981 and RUT986 routers; the TRB140, TRB141, TRB142, TRB145, TRB160 and TRB501 gateways; the TRM142, TRM282 and TRM500 modems; and the TSW110 switch. Standardizing on one adapter across these models simplifies spares management for multi-site fleets.

The adapter includes short circuit protection. It is dielectric-tested at 3000 VAC from primary to secondary, has a maximum input inrush current of 40 A and carries a rated MTBF of 50,000 hours. It is certified to UL 60950-1, CSA C22.2 No. 60950-1-07 and 47 CFR FCC Part 15 Subpart B, and it has been tested against the IEC 62321 series of hazardous-substance standards. A PR3PUUS3 datasheet is available.

Ideal for

  • Spare or replacement adapter for Teltonika RUT-series cellular routers
  • Powering TRB-series gateways and TRM-series modems in IoT deployments
  • Standardized power spares for multi-site branch and retail rollouts
  • Powering a TSW110 switch alongside a Teltonika router in a small network cabinet

Specifications

Other

MTBF
50,000 h
Hipot
Primary to Secondary 3000 VAC
Certification
UL 60950-1; CSA C22.2 No. 60950-1-07; FCC Part 15 Subpart B; ANSI C63.4:2014; IEC 62321 series
Input Voltage Range
90 – 264 VAC
Input Frequency Range
47 – 63 Hz
Psu Efficiency Standard
DoE Level VI
Short Circuit Protection
Yes
Maximum Input Inrush Current
40 A
Output Voltage Maximum Deviation
8.55 – 9.45 VDC

General

MPN
PR3PUUS3
UPC
4779051840861
Brand
Teltonika Networks
Model
US Power Supply, 9 W
HS Code
HS 850440
Hts Code
HTS 8504.40.95

Package

Shipping Weight
0.22 lb

Compatibility

Compatible Products
Oxa, RUT200, RUT202, RUT241, RUT260, RUT261, RUT271, RUT281, RUT301, RUT901, RUT906, RUT951, RUT951 PoE+, RUT956, RUT976, RUT981, RUT986, TRB140, TRB141, TRB142, TRB145, TRB160, TRB501, TRM142, TRM282, TRM500, TSW110

Technical Data

Input Current
0.4 A
Input Voltage
100 – 240 VAC
Output Current
1.0 A
Output Voltage
9 VDC
Input Connector
US (Type A)
Input Frequency
50 / 60 Hz
Output Connector
4-pin, 3 mm pitch

Questions buyers ask

Which Teltonika devices does the PR3PUUS3 power supply support?

Teltonika's current compatibility list includes Oxa; the RUT200, RUT202, RUT241, RUT260, RUT261, RUT271, RUT281, RUT301, RUT901, RUT906, RUT951, RUT951 PoE+, RUT956, RUT976, RUT981 and RUT986; the TRB140, TRB141, TRB142, TRB145, TRB160 and TRB501; the TRM142, TRM282 and TRM500; and the TSW110.

What is the output of this adapter?

It outputs 9 VDC at 1.0 A (9 W) through a 4-pin, 3 mm pitch connector. Output voltage stays within 8.55–9.45 VDC.

Can it be used on 230 V power?

The input accepts 100–240 VAC at 50/60 Hz, with an input range of 90–264 VAC. The plug is a US Type A plug.

Does the adapter have protection features?

Yes. It has short circuit protection and a 3000 VAC primary-to-secondary dielectric withstand rating, and it carries a rated MTBF of 50,000 hours.
