Plugable PS1-CA1 32W USB-C and USB-A Wall Charger with AC Outlet Extender

MPN PS1-CA1
  • 21–45 W
  • USB-C & USB-A
$27.95$39.99Save $12.04

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Overview

The Plugable PS1-CA1 turns one wall outlet into a small charging station. It plugs directly into the wall and passes the AC outlet through, so you keep the socket. It also adds a USB-C Power Delivery 3.0 port that delivers up to 30W and a USB-A port that delivers 12W. When both USB ports are in use, the USB-C port delivers 20W and the USB-A port delivers 12W. Its compact, stackable body leaves the adjacent outlet free.

  • Pass-through design keeps the AC outlet usable, with 15 A capacity
  • USB-C Power Delivery 3.0 port delivers up to 30W when used alone
  • USB-A Smart Charging port delivers 5V/2.4A (12W)

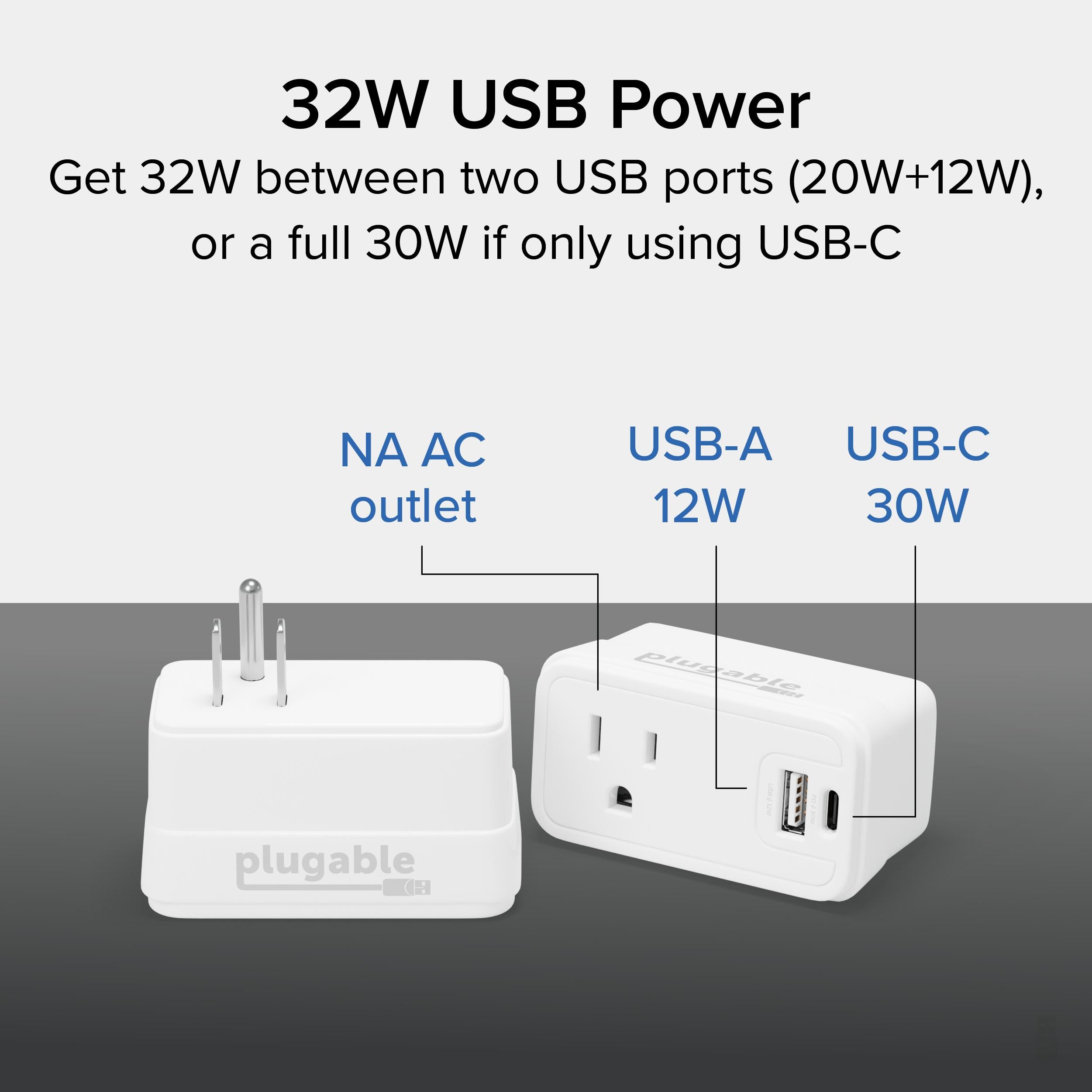

  • 32W combined USB output: 20W USB-C plus 12W USB-A when both ports are used
  • Compact 2.9 x 1.6 x 1.6 in stackable body that leaves the adjacent outlet free
  • Short circuit, over-temperature, overvoltage and overcurrent protection; ETL, UL, FCC and DOE certified

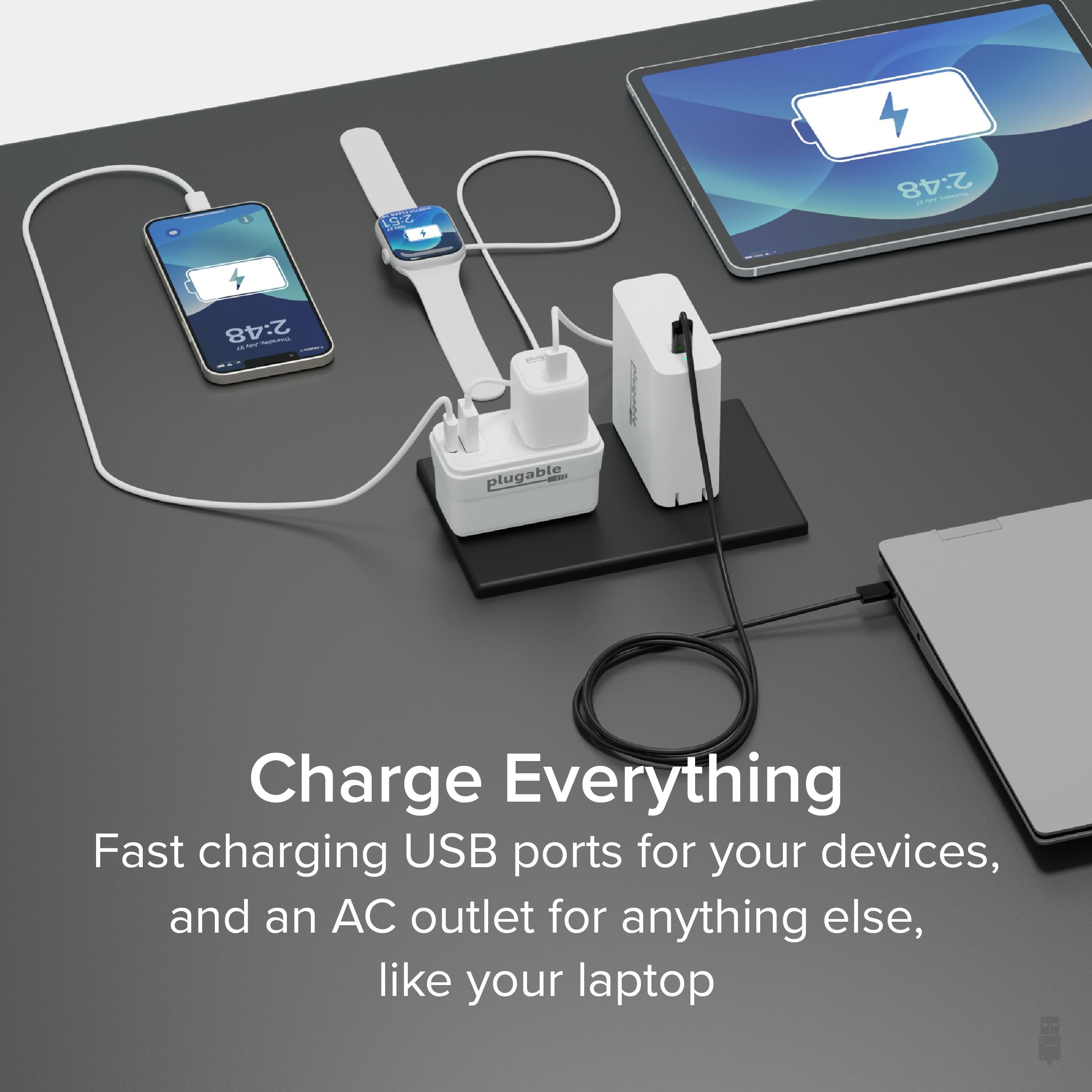

  • Keep the wall socket for a laptop brick or lamp while charging a phone and a second USB device

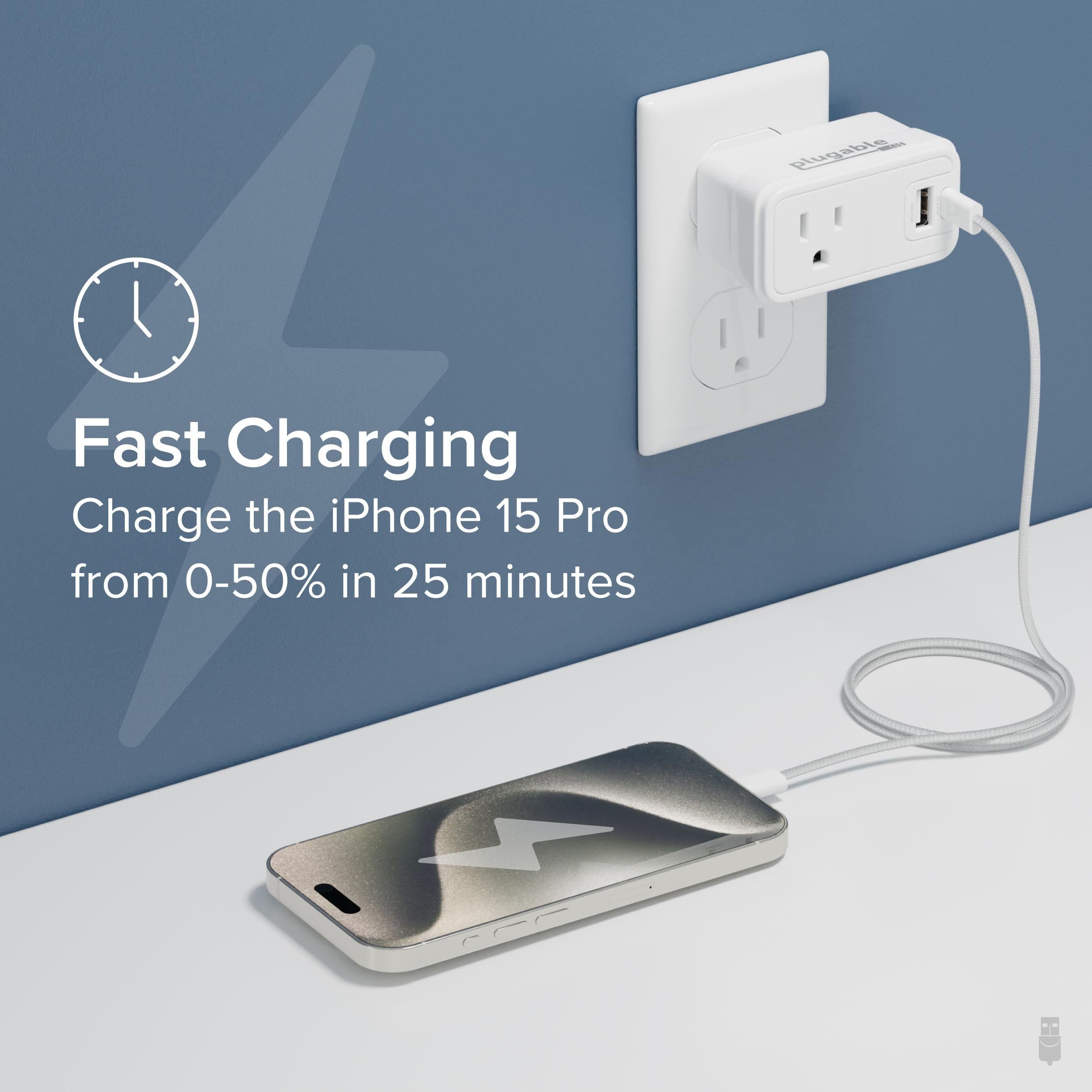

  • Fast charge an iPhone 15 or iPhone 16 from the 30W USB-C port

The Plugable PS1-CA1 is a wall outlet extender and USB charger in one unit. It suits travelers, hot-desk workers and anyone setting up a desk where outlets are scarce. It plugs straight into an AC wall outlet and keeps a full pass-through outlet on the front, rated for 15 amps, so a laptop brick, lamp or another charger can still be used. On the same face it adds a USB-C Power Delivery 3.0 port and a USB-A Smart Charging port, for 32W of combined USB power.

Power sharing is simple. With only the USB-C port in use, it supplies up to 30W, using PD profiles of 5V/3A, 9V/2.22A-3A, 12V/1.67A-2.5A and 15V/2A. That is enough to fast charge an iPhone 15 or iPhone 16. Plugable rates an iPhone 15 Pro at 0-50% in 25 minutes. The USB-A port alone supplies 5V/2.4A (12W). With both ports in use, USB-C delivers up to 20W and USB-A up to 12W at the same time.

The body measures 2.9 x 1.6 x 1.6 in (7.48 x 4.05 x 4.08 cm) and weighs 99 g (3.5 oz). It covers only one outlet, so the neighbouring socket stays usable, and units can be stacked. Built-in protection covers short circuit, over-temperature, input and output overvoltage, and output overcurrent. Plugable lists ETL, UL, FCC and DOE certifications. The unit is covered by Plugable's 2-year warranty and lifetime technical support.

Ideal for

  • Charging a phone and earbuds in a hotel room with one free outlet
  • Adding USB-C and USB-A charging under a desk without losing the socket

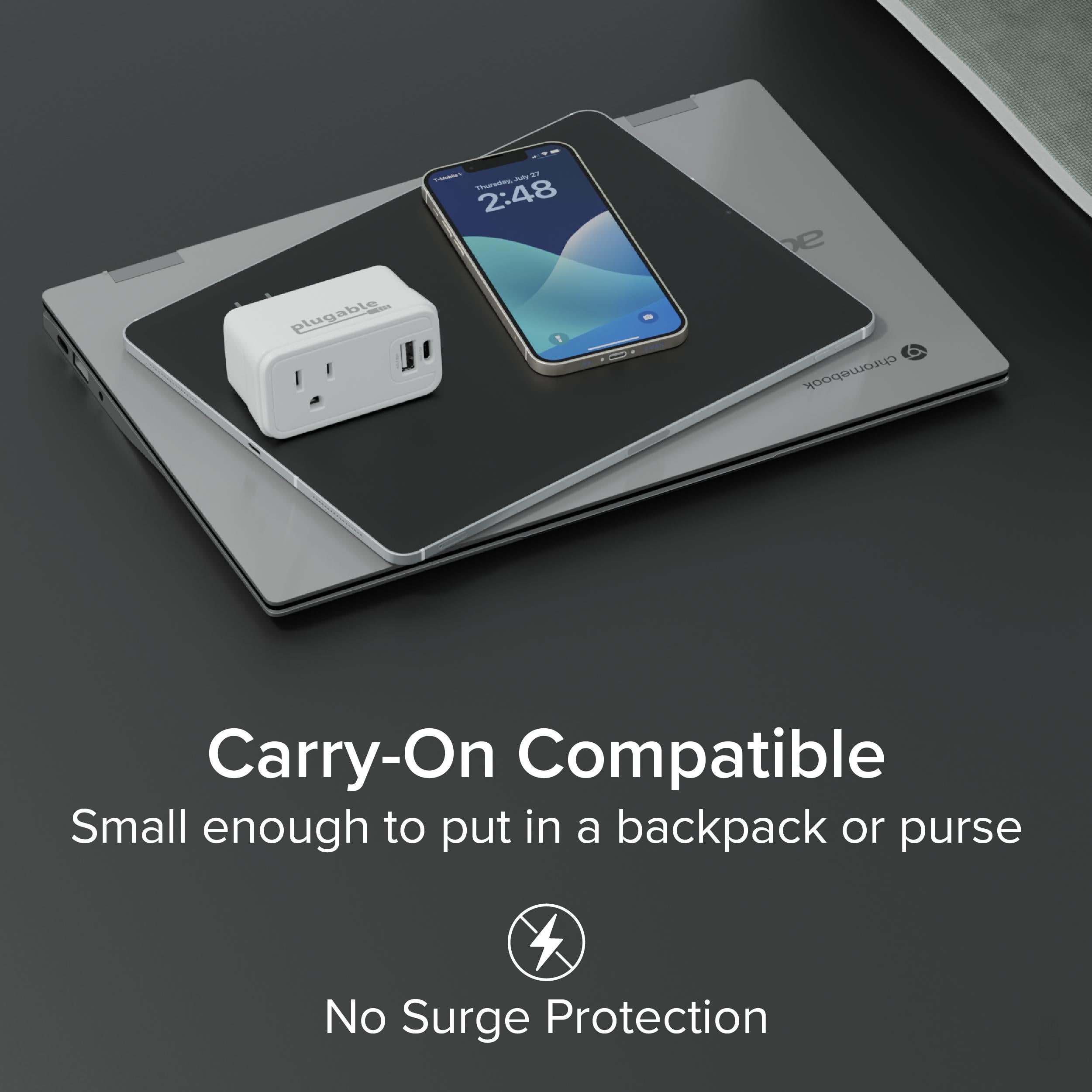

  • Airport gate and travel-bag charging kit for business travelers
  • Hot-desk and conference room setups where outlets are shared

Specifications

Safety

Protections
Short circuit, over-temperature, input/output overvoltage, output overcurrent
Certifications
ETL, UL, FCC, DOE

General

MPN
PS1-CA1
UPC
819927012955
Brand
Plugable
Product Name
Plugable Outlet Extender with USB and USB-C Charger

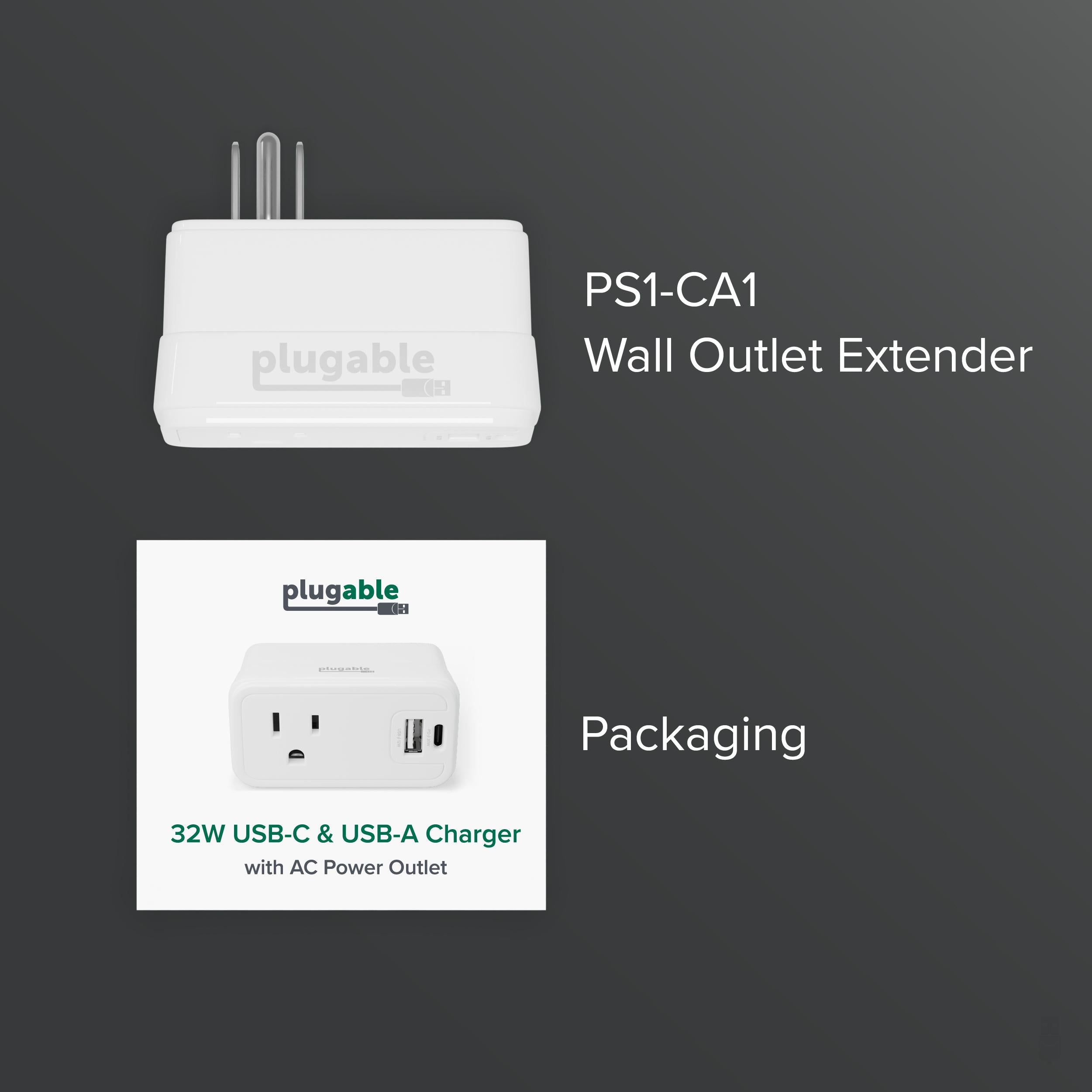

Package

IN The Box
1x Plugable 32W USB-C & USB-A Charger with AC Power Outlet

Support

Warranty
2-year warranty, lifetime technical support

Compatibility

Platforms

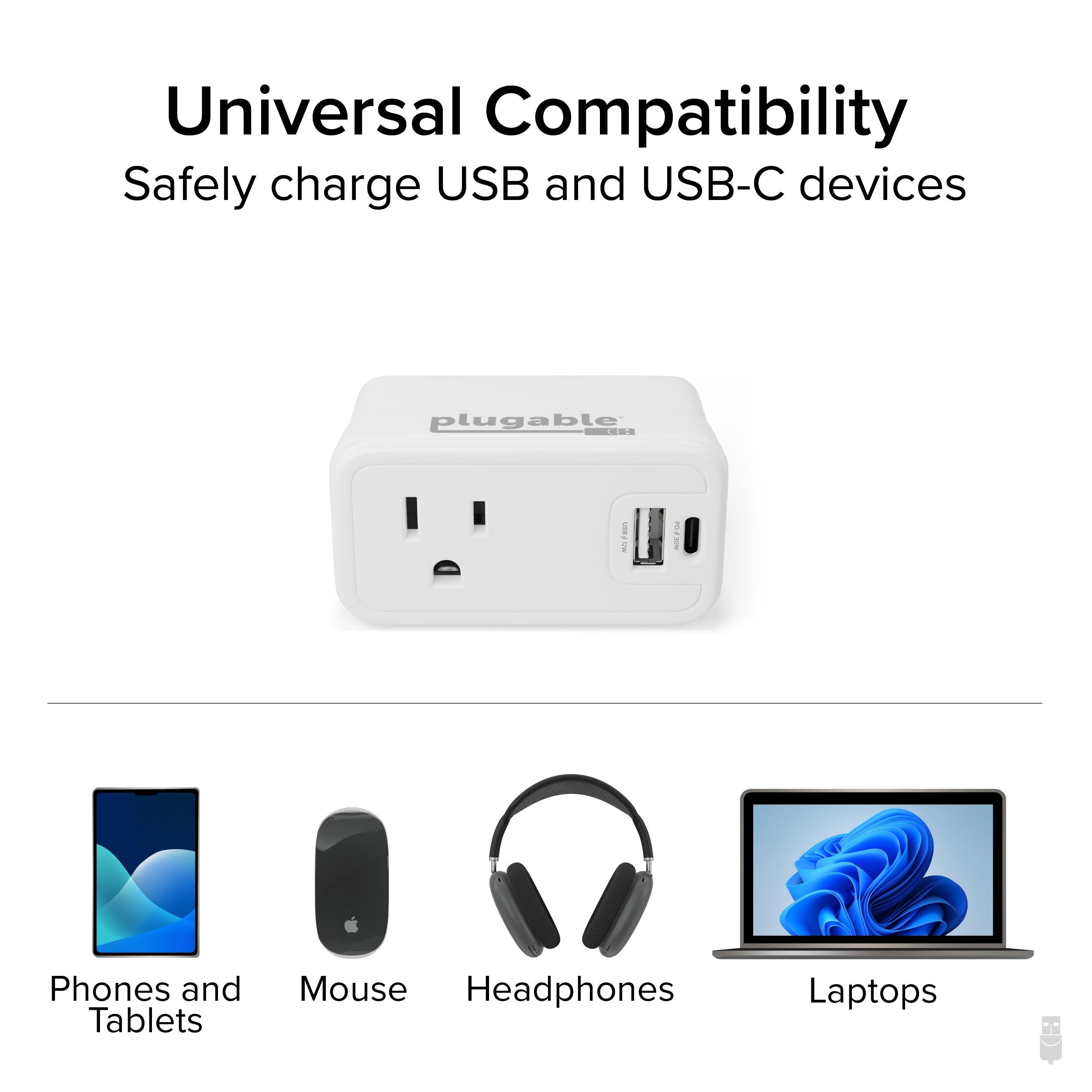

All versions of iOS and iPadOS, Android, ChromeOS, Linux, macOS, Windows
Stated Devices
iPhone 15/16, Samsung Galaxy, Google Pixel, iPad, AirPods, MacBook, Chromebook

Physical Stats

Item
USB-C & USB-A Charger 32W with AC Power Outlet
Size
7.48 x 4.05 x 4.08 cm / 2.9 x 1.6 x 1.6 in (H x W x D)
Weight
99 g / 3.5 oz
Shipping Weight
0.35 lb
Sku Part Number
PS1-CA1

Output Profiles

USB C 5v
5V / 3A
USB C 9v
9V / 2.22A-3A
USB C 12v
12V / 1.67A-2.5A
USB C 15v
15V / 2A
USB A Only
USB-A alone: 5V / 2.4A
USB C Only Max
USB-C alone: 30 W max
Dual Port Output
Both ports: USB-C 20 W max, USB-A 12 W max
Total USB Output
32 W combined

Power USB A TO Host

Voltage
5.0 V
Wattage
12.0 W
Amperage
2.4 A
Placement
Front
Connection Type
USB-A Smart Charging
Power Host Device
Host

Power USB C TO Host

Voltage
15.0 V
Wattage
30.0 W
Amperage
2.0 A
Placement
Front
Connection Type
USB-C Power Delivery 3.0
Power Host Device
Host

Power Mains Connection

AC Inlet
Direct AC plug
Placement
Rear
Connection Type
Region-specific Power Adapter
Power Host Device
Device
AC Pass Through Outlet
1 pass-through AC outlet, 15 A capacity

Questions buyers ask

How much power does each port deliver?

The USB-C port delivers up to 30W when used alone. The USB-A port delivers 12W (5V/2.4A). With both ports in use, USB-C delivers up to 20W and USB-A up to 12W.

Do I lose the wall outlet when this is plugged in?

No. The PS1-CA1 has a pass-through AC outlet with 15 A capacity. You can still plug in a laptop charger, lamp or another adapter.

Will it fast charge an iPhone?

Yes. The 30W USB-C Power Delivery port fast charges iPhone 15 and iPhone 16 models. Plugable rates an iPhone 15 Pro at 0-50% in 25 minutes.

Does it block the other outlet?

No. The unit covers only one outlet, so the adjacent socket stays free, and the design is stackable.

What protections are built in?

It has short circuit, over-temperature, input and output overvoltage, and output overcurrent protection. Plugable lists ETL, UL, FCC and DOE certifications.
