Panorama SAMS-SP-SMABJ Multi-Surge SMA Male to Bulkhead SMA Female Coaxial Surge Arrester

MPN SAMS-SP-SMABJ
$153.59$214.99Save $61.40

In stockFree 2-day shipping

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

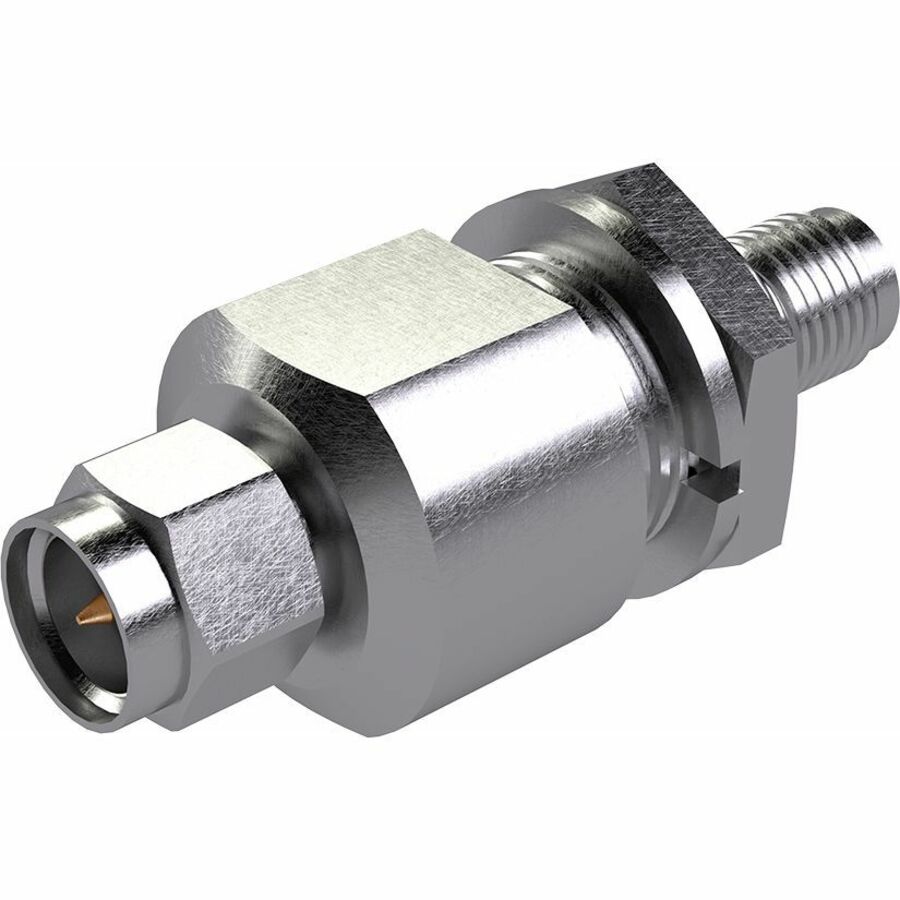

The Panorama SAMS-SP-SMABJ is a light-duty, multi-surge coaxial surge arrester with an SMA male connector and an SMA female bulkhead connector. It installs inline between an antenna and its feeder cable, or between coax and a radio or router. It operates from 0 to 6 GHz with typical VSWR below 1.5:1 and handles up to 25 W. The bulkhead feature earths the arrester to bars or panels up to 6.5 mm (0.25 in) thick.

  • SMA male to bulkhead SMA female coaxial surge arrester, multi-surge design
  • Operates from 0 to 6 GHz with low return and insertion loss
  • Typical VSWR below 1.5:1; 25 W maximum input power
  • Bulkhead mounting and earthing to bars or panels up to 6.5 mm (0.25 in); accepts a heavy-duty earth tag
  • Compact 35.3 mm length, 15 mm diameter, brass body
  • -40°C to +85°C operating temperature
  • Add surge protection to SMA-connected routers and gateways without adapters
  • Maintain signal quality with low insertion loss and VSWR below 1.5:1 across 0-6 GHz

Many cellular routers and gateways use SMA antenna connectors. The Panorama SAMS-SP-SMABJ adds surge protection to those runs without introducing adapters. This multi-surge arrester has an SMA male connector and an SMA female bulkhead connector. It mounts inline between an antenna and its feeder cable, or between a coaxial cable and the radio or router it serves.

The arrester operates from 0 to 6 GHz with low return and insertion loss, and it has a typical VSWR below 1.5:1. Maximum input power is 25 W, which suits light-duty surge protection on typical router antenna circuits. The body is 35.3 mm (1.39 in) long and 15 mm (0.59 in) in diameter, made of brass. It operates from -40°C to +85°C (-40°F to +185°F).

The bulkhead feature does double duty. It passes the connection through an enclosure wall and earths the arrester to a conductive earth bar or panel up to 6.5 mm (0.25 in) thick. Where a panel is not practical, it can accept a heavy-duty earth tag instead. That makes it a tidy choice at the point where an external antenna cable enters a cabinet, vehicle bulkhead or equipment enclosure. Panorama's datasheet is available for this product.

Ideal for

  • Protecting SMA-connected cellular routers fed by external antennas
  • Cabinet and enclosure cable entry points
  • Light-duty surge protection on short antenna feeder runs
  • Industrial and IoT gateway installations

Specifications

General

MPN
SAMS-SP-SMABJ
Brand
Panorama Antennas
Product Type
Multi-surge coaxial surge arrester

Package

Documents
Panorama SAMS-SP-SMABJ datasheet
Shipping Weight
0.12 lb

GPS Data

Number OF GPS Elements
No

Connectors

Connector A
SMA (m)
Connector B
Bulkhead SMA (f)

Mounting Data

Earthing
Bulkhead to earth bar or panel, or heavy-duty earth tag
Mounting Methods
Panel
Max Panel Thickness
6.5 mm (0.25 in)
Mounting Type Fixed
Panel

Electrical Data

Typical Vswr
<1.5:1
Uhf Elements
No
Wi-Fi Elements
No
Frequency Range
0-6 GHz
Max Input Power
25 W
Cellular LTE Elements
No

Mechanical Data

Length
35.3 mm (1.39 in)
Diameter
15 mm (0.59 in)
Material
Brass
Operating Temperature
-40°C to +85°C (-40°F to +185°F)

Questions buyers ask

What connectors does the SAMS-SP-SMABJ use?

An SMA male connector on one end and an SMA female bulkhead connector on the other.

What frequency range does it support?

0 to 6 GHz, with typical VSWR below 1.5:1.

What is the maximum input power?

25 W.

How is it earthed?

Through its bulkhead feature to a conductive earth bar or panel up to 6.5 mm (0.25 in) thick. It can also accept a heavy-duty earth tag.
