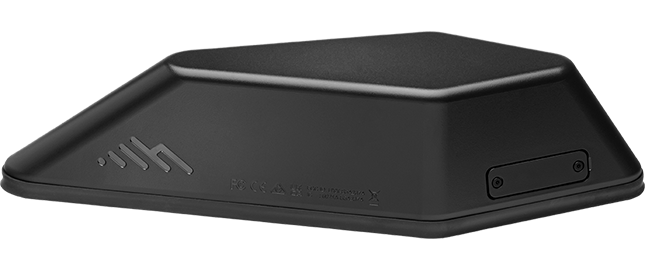

Cradlepoint R2105-5GB Outdoor 5G Captive Modem and Wi-Fi Accessory, Global (TAA-170900-014)

MPN TAA-170900-014

Made for Cradlepoint

$1,971.02$2,153.99Save $182.97

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Overview

The Cradlepoint TAA-170900-014 is the TAA-compliant 5G Captive Modem and Wi-Fi Accessory built on the rugged R2105-5GB. Mount it outdoors where the cellular signal is strongest and it serves the controlling Cradlepoint router as a 5G WAN adapter and an extra Wi-Fi 6 source. The pair is managed in Ericsson NetCloud Manager as a single device. The R2105 has an IP67 and IK09-rated enclosure, supports peak downlink rates up to 4.14 Gbps and accepts 9–36 VDC or 802.3at PoE power.

  • R2105-5GB with captive modem and captive Wi-Fi modes, managed with the controlling Cradlepoint router as a single entity in NetCloud
  • 5G NR FR1 NSA/SA and LTE Cat 20 modem with up to 4.14 Gbps downlink and 660 Mbps uplink peak rates
  • Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 (802.11ax) with DFS
  • IP67 and IK09 enclosure with salt-mist corrosion resistance and a -30 °C to 70 °C operating range
  • Power from 9–36 VDC with ignition sensing, or from 802.3at PoE (30 W)
  • Dual 4FF SIM slots, 4x4 MIMO and four internal cellular antennas
  • TAA-compliant version of Cradlepoint part 170900-014
  • Place the 5G radio on a pole, wall or exterior mount for the strongest signal while the controlling router stays indoors

The Cradlepoint TAA-170900-014 pairs the outdoor Ericsson Cradlepoint R2105-5GB with captive modem and captive Wi-Fi modes. The R2105 is mounted in the best signal location, and a Cradlepoint router elsewhere on the site acts as the controller. In NetCloud, the accessory appears as a modem WAN interface with the same Wireless WAN tools as an embedded modem, including Smart WAN Selection, WAN Verify and failover/failback. It also appears as a Wi-Fi interface with the same functions as the router's built-in radios. Deployment, management and licensing are handled through the controlling router. Cradlepoint lists the R1900 as the compatible router, and the part also appears in the R920 and R980 data sheets.

The modem is a 5G NR FR1 NSA/SA and LTE Advanced Pro Category 20 modem with dual 4FF SIM slots, 4x4 MIMO and four internal cellular antennas. Peak rates reach up to 4.14 Gbps downlink and 660 Mbps uplink. The modem supports a broad set of 5G NR bands from n1 to n79, including n48 CBRS for private cellular networks. Cradlepoint lists AT&T, T-Mobile and Verizon network operator certifications, along with FirstNet Trusted, T-Mobile Connecting Heroes and Verizon Frontline Verified. The Wi-Fi radio is dual-band, concurrent 2x2 MU-MIMO 802.11ax (Wi-Fi 6) with DFS.

The R2100-series housing is designed for exposed installations. It is rated IP67 and IK09, resists salt-mist corrosion and is tested to MIL-STD-810G shock and vibration procedures. It operates from -30 °C to 70 °C. Power comes from a 9–36 VDC input with ignition sensing or from 802.3at PoE. The package includes the R2105 with its attached power and Ethernet cables, a 3 m GPIO cable, a mounting template and a small accessories kit.

Ideal for

  • Rooftop or pole-mounted 5G WAN for an indoor Cradlepoint R1900 in vehicles, depots or remote sites
  • Outdoor Wi-Fi 6 coverage for yards, lots and staging areas from the same device as the cellular link
  • Primary or failover 5G connectivity where the router location has weak signal
  • Public-safety and government deployments that require TAA-compliant hardware and FirstNet Trusted connectivity
  • Private CBRS Band 48 cellular networks at industrial sites

Specifications

Modem

3g
WCDMA/UMTS/HSPA+
SMS
Yes
GNSS
Passive GNSS
MIMO
4x4 MIMO
3g Bands
1, 2, 4, 5, 6, 8, 9, 19
Antennas
4 internal cellular antennas
TX Power
5G NR 23 dBm ±1.5; EN-DC 20 dBm ±1; LTE 23 dBm ±1; HPUE 25 dBm ±1 (B41 SA only), typical conducted
LTE Bands
FDD B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71; TDD B34/38/39/40/41/42/43/46/48
Modulation
256 QAM downlink and uplink (carrier-equipment dependent)
Regulatory
FCC, IC, CE, RCM
Technology
5G FR1 NSA/SA, LTE Advanced Pro Cat 20, dual 4FF SIM, 3GPP Release 15
5G NR Bands
NSA/SA: n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
Peak Uplink
Up to 660 Mbps
Peak Downlink
Up to 4.14 Gbps
Private Cellular
Yes, CBRS Band 48 (FCC Part 96)
Carrier Aggregation
LTE: 7 CA DL / 2 CA UL; EN-DC: 1 CA DL / 1 CA UL
Network Operator Standards
PTCRB, GCF
Public Safety Certifications
FirstNet Trusted, T-Mobile Connecting Heroes, Verizon Frontline Verified
Network Operator Certifications
AT&T, T-Mobile, Verizon

Power

Fusing
3 A (9–24 VDC) / 2.5 A (>24 VDC)
DC Cable
380 mm attached DC cable, 4-pin 2x2 Molex Micro-Fit
PoE Class
802.3at Class 4 PD (30 W)
Input Options
9–36 VDC input or 802.3at PoE+ (30 W)
Power Features
Ignition sensing with time-delay off
Consumption R2105
Sleep 50 mW / idle 8 W / typical 14.5 W / heavy 17 W

General

MPN
TAA-170900-014
UPC
840292702653
Brand
Cradlepoint (Ericsson)
Product Name
5G Captive Modem and Wi-Fi Accessory, Outdoor, R2105-5GB (4.1 Gbps Modem), Global
Accessory Model
R2105-5GB with Wi-Fi
Operating Modes
Captive Modem and Captive Wi-Fi
Accessory Family
Modular
Base Part Number
170900-014 (non-TAA equivalent)
Trade Compliance
TAA-compliant
Compatible Router
Ericsson Cradlepoint R1900 (also listed in R920 and R980 data sheets)
Manufacturer Status
Active

Package

Contents

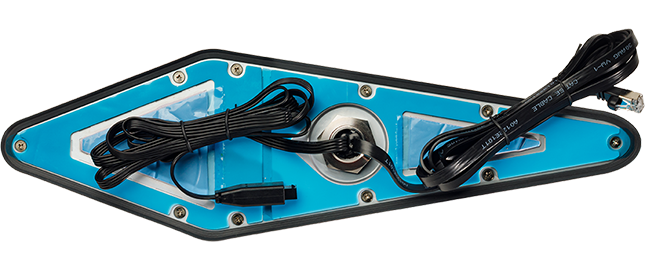

R2105, attached power and Ethernet cables, 3 m GPIO cable, mounting template, small accessories kit

Physical

Weight
1.46 kg (3 lb 4 oz)

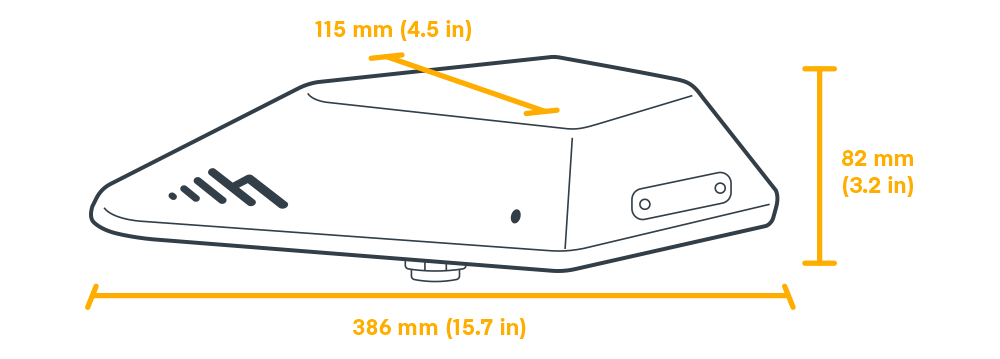

Dimensions
115 x 386 x 82 mm (4.5 x 15.7 x 3.2 in)

Interfaces

GNSS
Passive GNSS (multiplexed with internal cellular antennas)
Wi-Fi
Dual-band concurrent 2x2 MU-MIMO Wi-Fi 6 with DFS; 5 GHz client mode only in the EU
Modem
Embedded 5G NR FR1 low-/mid-band and 4G LTE Cat 20 modem
Ethernet
1 x 2.5 GbE RJ45 (LAN only), 380 mm non-removable shielded CAT5e flat cable with male RJ45

Wi-Fi Power

Fcc
2.4 GHz 30.9 / 5250–5350 MHz 29.4 / 5470–5725 MHz 29.5 / 5725–5850 MHz 34.3 dBm EIRP
Canada
2.4 GHz 30.9 / 5470–5725 MHz 29.5 / 5725–5850 MHz 34.3 dBm EIRP
European Union
2.4 GHz 20.0 / 5470–5725 MHz 22.7 dBm EIRP
Global Safe Mode
2.4 GHz 20.0 dBm EIRP

Performance

Vlans
Up to 64 Layer 2/Layer 3 VLANs
Ipsec VPN
300 Mbps point-to-point IPsec VPN
Stateful Firewall
900 Mbps
Concurrent Sessions
32,000
Typical Client Count
100
Concurrent VPN Tunnels
10
Ips Application Aware Client Analytics
650 Mbps

Reliability

MTBF
1,895,792 hours (Telcordia SR332 at 25 °C)
Shock Vibration
MIL-STD-810G Sec. 2.2.2 Proc. 1 and Proc. 5

Environmental

Humidity
Operating 5% to 95%; storage 5% to 95%
Corrosion
IEC60068-2-11 salt-mist corrosion resistance
Impact Protection
IK09 (10 joules impact)
Ingress Protection
IP67 (dust tight, water immersion up to 1 m)
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
CB Scheme, IEC/EN 62368-1
Vehicle
E-Mark, SAE J1455 Category 2
Security
FIPS 140-3 Level 1 in process (R2100 FIPS models only)
Substance Compliance
WEEE, RoHS, REACH, California Prop 65

Cloud Services

Support
Support included for the full NetCloud subscription term
Warranty
Limited lifetime warranty with an active NetCloud Service plan
Service Plans
NetCloud Mobile Performance, NetCloud Ruggedized IoT
Service Add Ons
NetCloud Exchange, NetCloud Advanced
Software Updates
Via NetCloud Manager
Device Management
NetCloud Manager

Edge Computing

CPU
Quad-core ARMv8 64-bit
Memory
Up to 1.8 GB
Applications
Docker containerized applications
Flash Storage
Up to 8 GB

Questions buyers ask

What does captive modem mode do with the R2105-5GB?

The R2105 connects to a controlling Cradlepoint router in a separate location. NetCloud manages the two as a single entity. The accessory appears as a modem WAN interface with Smart WAN Selection, WAN Verify and failover/failback, and as a Wi-Fi interface with the same functions as the router's embedded radios.

Which Cradlepoint routers is this accessory for?

Cradlepoint lists the R1900 as the compatible router. This part number also appears in the accessory tables of the R920 and R980 data sheets.

How is the R2105 powered?

It accepts 9–36 VDC through an attached 4-pin Molex Micro-Fit cable, with ignition sensing, or 802.3at PoE+ (30 W). Typical consumption is 14.5 W.

Is it suitable for permanent outdoor installation?

Yes. The enclosure is rated IP67 and IK09, resists salt-mist corrosion per IEC60068-2-11 and operates from -30 °C to 70 °C.

Which 5G bands does the modem support?

It supports NSA and SA on n1, n2, n3, n5, n7, n8, n12, n20, n25, n28, n38, n40, n41, n48, n66, n71, n77, n78 and n79. LTE coverage runs from B1 to B71, and 3G fallback is also supported.
