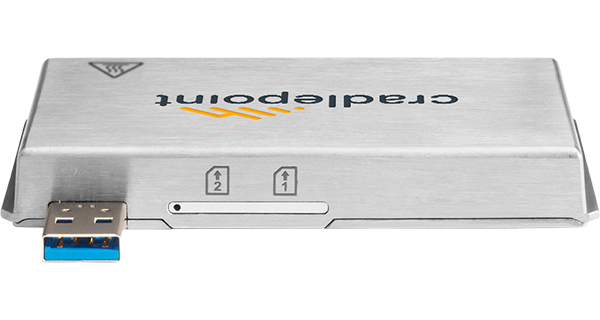

Cradlepoint MC400-5GB 5G Modular Modem Upgrade for R1900 (RX30-MC) and IBR1700, TAA (TAA-MB-MC400-5GB)

MPN TAA-MB-MC400-5GB

Made for Cradlepoint

$915.04$999.99Save $84.95

In stockShips from the US

1
Request a quote · volume, multi-site or with plans

Datasheets & documents

Overview

The Cradlepoint TAA-MB-MC400-5GB is the TAA-compliant MC400-5GB modular modem, packaged as the 5G upgrade for R1900 routers with an RX30-MC managed accessory and for IBR1700 mobile routers. It adds 5G FR1 NSA/SA and LTE Advanced Pro Category 20. Peak downlink is rated up to 4.14 Gbps. The modem has dual 4FF SIM slots and 4x4 MIMO. You can use it to bring an existing router up to 5G or to add a second modem for failover and carrier diversity. Modem doors are included.

  • 5G FR1 NSA/SA plus LTE Advanced Pro Category 20 and WCDMA/DC-HSPA+ (3GPP Release 15)
  • Peak rates up to 4.14 Gbps downlink and 660 Mbps uplink, 4x4 MIMO
  • Dual 4FF SIM slots with SIM-based auto-carrier selection
  • Mobile upgrade kit for R1900 with RX30-MC or IBR1700; modem doors included
  • AT&T, T-Mobile and Verizon certified; FirstNet Capable, T-Mobile Connecting Heroes and Verizon Frontline
  • Private cellular support including FCC Part 96 CBRS Band 48
  • TAA-compliant version of MB-MC400-5GB
  • Brings an existing R1900 or IBR1700 deployment to 5G without replacing the router

The Cradlepoint MC400-5GB is a modular modem that installs in the modem slot of an MC400-capable Cradlepoint router. This TAA-compliant part number (TAA-MB-MC400-5GB) is the 5G upgrade for R1900 routers fitted with the RX30-MC managed accessory and for IBR1700 mobile routers. Modem doors are included. Fleets, public-sector buyers and field-operations teams can use it to upgrade to newer cellular technology without replacing the router, or to add a second modem that keeps vehicles and remote sites online.

The modem supports 5G FR1 in both NSA and SA modes, alongside LTE Advanced Pro Category 20 and WCDMA/DC-HSPA+. It is built to 3GPP Release 15 and uses 4x4 MIMO. Cradlepoint rates peak downlink at up to 4.14 Gbps and peak uplink at up to 660 Mbps. On LTE, carrier aggregation reaches up to 7 CA downlink and 2 CA uplink. Band coverage runs from n71 (600 MHz) through n79 (4900 MHz), and includes CBRS Band 48 under FCC Part 96 for private cellular networks.

The modem has dual 4FF SIM slots with SIM-based auto-carrier selection. When the data cap on the primary SIM is reached, the router can switch to the second modem or SIM, which helps control data plan costs. The modem carries AT&T, T-Mobile and Verizon network operator certifications. It is also FirstNet Capable, T-Mobile Connecting Heroes and Verizon Frontline certified for public safety deployments.

The modem draws its power over USB from the host router. It operates from -30 °C to 70 °C. When installed in an IBR1700, or in an R1900 with an RX30-MC, it meets MIL-STD-810G and SAE J1455 for shock, vibration and humidity. Full specifications are in the MC400 datasheet.

Ideal for

  • Upgrading R1900 or IBR1700 vehicle routers from LTE to 5G without replacing hardware
  • Adding a second modem for dual-carrier failover in police, fire and EMS vehicles
  • Rail, transit and fleet deployments that need carrier diversity along a route
  • Moving to a second SIM when a data cap is reached to control plan costs
  • Private LTE/5G and CBRS Band 48 networks

Specifications

Power

Required
Provided through USB by the host

General

MPN
TAA-MB-MC400-5GB
UPC
810007806792
Brand
Cradlepoint (Ericsson)
Model
MC400-5GB Modular Modem
TAA Compliant
TAA-compliant
Accessory Family
Modular
Base Part Number
TAA-compliant version of MB-MC400-5GB
Region Availability
MC400 family available in North America, Europe and Asia-Pacific

Package

Contents
MC400-5GB Modular Modem and modem doors
Shipping Weight
1.00 lb (shipping)

Antennas

Connectors
SMA female connectors
Antenna Spec
External 600 MHz - 6 GHz cellular paddle antennas (qty 4, included only with supported Branch routers)

Cellular

SMS
SMS supported
GNSS
Passive GNSS (multiplexed with DIV/MIMO2 antenna ports)
MIMO
4x4 MIMO
Legacy 3g
WCDMA/DC-HSPA+
SIM Slots
Dual SIM slots, 4FF form factor
Modulation
5G FR1 Downlink up to 256 QAM; Uplink up to 256 QAM (only enabled on particular carrier equipment)
Technology
5G FR1 NSA/SA and 4G LTE
5G NR Bands
n1 (2100), n2 (1900), n3 (1800), n5 (850), n7 (2600), n8 (900), n12 (700), n20 (800), n25 (1900), n28 (700), n38 (2600), n40 (2300), n41 (2500), n48 (3500), n66 (1700/2100), n71 (600), n77 (3700), n78 (3500), n79 (4900)
5G NR Modes
NSA and SA
Peak Uplink
Up to 660 Mbps (2 layers LTE + TDD, 100 MHz BW, 256 QAM, SISO)
Wcdma Bands
3G bands 1, 2, 3, 4, 5, 6, 8, 9, 19
3gpp Release
3GPP Release 15
LTE Category
LTE Advanced Pro Category 20
TX Power LTE
LTE bands: 23 dBm ± 1 (typical conducted)
LTE Fdd Bands
B1 (2100), B2 (1900), B3 (1800), B4 (1700), B5 (850), B7 (2600), B8 (900), B12 (700), B13 (700), B14 (700), B17 (700), B18 (850), B19 (850), B20 (800), B25 (1900), B26 (850), B28 (700), B29 (700), B30 (2300), B32 (1500), B66 (1700), B71 (600)
LTE Tdd Bands
B34 (2000), B38 (2600), B39 (1900), B40 (2300), B41 (2500), B42 (3500), B43 (3700), B46 (5200), B48 (3500)
Peak Downlink
Up to 4.14 Gbps (20 layers LTE + TDD, 100 MHz BW, 256 QAM, 4x4)
TX Power Endc
LTE + 5G NR ENDC: 20 dBm ± 1 (typical conducted)
TX Power 5G NR
5G NR bands: 23 dBm ± 1.5 (typical conducted)
Private Cellular
Yes, includes FCC Part 96 (CBRS Band 48)
Carrier Selection
SIM-based auto-carrier selection
TX Power LTE Hpue
25 dBm ± 1 (B41 standalone mode only)
Carrier Aggregation LTE
LTE only: Downlink up to 7 CA, Uplink up to 2 CA
Carrier Aggregation Endc
LTE + 5G NR ENDC: Downlink 1 CA, Uplink 1 CA

Physical

Size
93 x 74 x 13 mm (3.7 x 2.9 x 0.5 in)
Weight
0.104 kg (3.7 oz)

Compatibility

Designed For
5G upgrade for R1900 with RX30-MC or IBR1700 mobile routers
Supported Endpoints
AER2200, IBR1700, E300, E3000, R1900 (requires RX30-MC), R920 (requires RX20-MC)

Environmental

Storage Humidity
5% to 95%
Operating Humidity
5% to 95%
Storage Temperature
-40 °C to 85 °C (-40 °F to 185 °F)
Operating Temperature
-30 °C to 70 °C (-22 °F to 158 °F)

Certifications

Safety
UL/cUL; CB Scheme; EN 62368-1
Regulatory
FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Public Safety
FirstNet Capable, T-Mobile Connecting Heroes, Verizon Frontline
Substance Compliance
WEEE; RoHS; REACH; California Prop 65
Shock Vibration Humidity
Compliant with MIL STD 810G and SAE J1455 when inserted in an IBR1700 or an R1900 with RX30-MC
Network Operator Standards
PTCRB (U.S., Canada); GCF (Worldwide)
Network Operator Certifications
AT&T, T-Mobile, Verizon

Questions buyers ask

Which routers is this modem kit meant for?

This part number is the 5G upgrade for R1900 routers fitted with the RX30-MC managed accessory and for IBR1700 mobile routers, and it includes modem doors. The MC400-5GB datasheet also lists the AER2200, E300, E3000 and R920 (with RX20-MC) as supported endpoints.

What SIM size does it use?

It has dual SIM slots in the 4FF (nano) form factor and supports SIM-based auto-carrier selection.

Does it support 5G standalone?

Yes. The modem supports 5G FR1 in both NSA and SA modes, with LTE Advanced Pro Category 20 as a fallback.

Is it certified for public safety networks?

Yes. It is FirstNet Capable and holds T-Mobile Connecting Heroes and Verizon Frontline certifications. It also carries AT&T, T-Mobile and Verizon network operator certifications.

How is the modem powered?

Power is provided over USB by the host router, so no separate power supply is needed.
